Keterangan

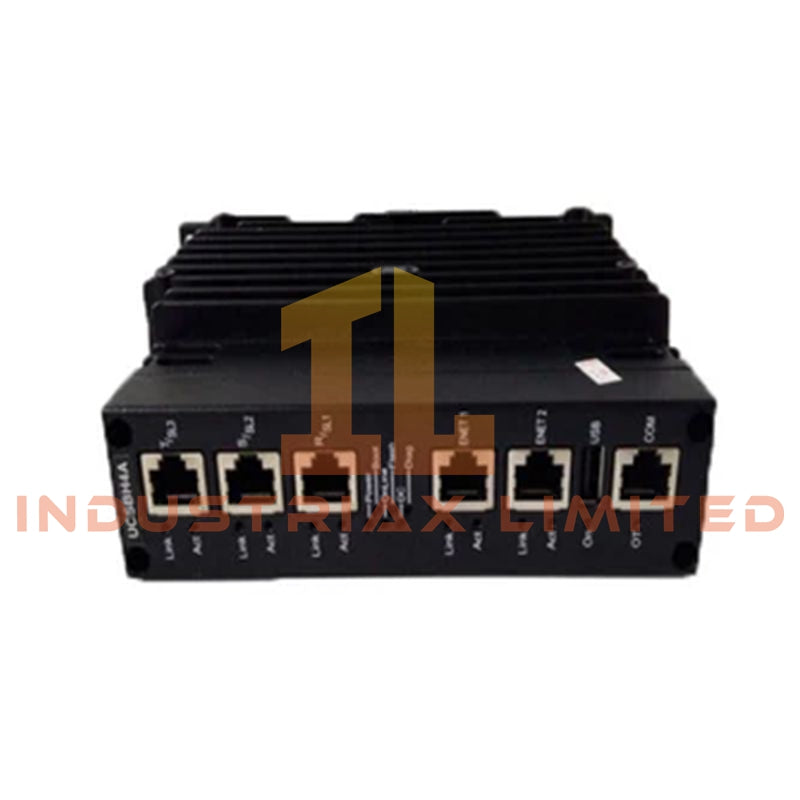

GE IS420UCSCH1C UCSC Controller Module
The GE IS420UCSCH1C, also cataloged as the IS420UCSCH1C UCSC Controller Module, operates as a dedicated hardware component for real-time turbine control execution within GE Mark VIe and Mark VIeS control platforms. The module processes compiled control logic, synchronizes distributed I/O communication through IONet Ethernet interfaces, and manages deterministic controller timing.
Hardware Specifications
Parameter
Specification
Model
IS420UCSCH1C
Brand
GE
Origin
United States
Weight
1.1 kg
Dimensions
50 mm (W) x 146 mm (H) x 204 mm (D)
Operating Temp
-40 deg C to +70 deg C
Power Consumption
15.6 W typical, 26.7 W peak
Processor
Intel EP80579 600 MHz
Memory
256 MB ECC DDR2 RAM, 2 GB NAND Flash
Operating System
QNX Neutrino Real-Time OS
Power Supply Input
18-30 VDC, nominal 24 VDC
Communication Interface
4 x 100 Mbps IONet RJ-45 Ethernet ports
Clock Synchronization
IEEE 1588 Precision Time Protocol (PTP), sub-100 us accuracy
Storage Temperature
-40 deg C to +85 deg C
Mounting Method
Direct panel mount, vertical orientation
Certifications
UL, ATEX Zone 2, IECEx
GE Mark VIe Deterministic Control and IONet Communication
The IS420UCSCH1C controller executes turbine application logic through the QNX Neutrino Real-Time Operating System and exchanges process data with distributed I/O packs through IONet Ethernet communication. The controller supports deterministic data transfer timing using IEEE 1588 PTP synchronization.
The UCSC controller architecture supports simplex, dual, and triple controller configurations. Firmware execution, control task scheduling, and communication timing are coordinated to maintain synchronized operation between controller nodes and connected I/O devices.
The module supports firmware flash compatibility within the Mark VIe control architecture, allowing controller software packages to be updated according to GE system configuration requirements. The embedded processor design uses fanless and battery-less construction to reduce mechanical service requirements in installed control panels.
Frequently Asked Questions
Q: What communication interface is provided by the IS420UCSCH1C controller? A: The controller provides four 100 Mbps IONet RJ-45 Ethernet ports for communication with distributed I/O packs and Mark VIe system components.
Q: What power input range is supported by the module? A: The IS420UCSCH1C operates from an 18-30 VDC supply input with a nominal 24 VDC control power source.
Q: Does the controller support redundant configurations? A: Yes. The module supports simplex, dual, and triple controller configurations within compatible Mark VIe and Mark VIeS architectures.
Field Installation Guidelines
Install the IS420UCSCH1C on a vertical panel surface according to GE Mark VIe installation requirements. Maintain proper airflow clearance around the controller enclosure and avoid installation locations exposed to excessive vibration or conductive contamination.
Use shielded Ethernet cabling for IONet communication connections. Ground cable shields according to the control panel grounding design and separate communication wiring from high-current power conductors to reduce electromagnetic interference.
Verify the 24 VDC control power supply polarity before energizing the module. Confirm that firmware versions, controller configuration files, and connected I/O pack settings match the installed Mark VIe system architecture before commissioning.
