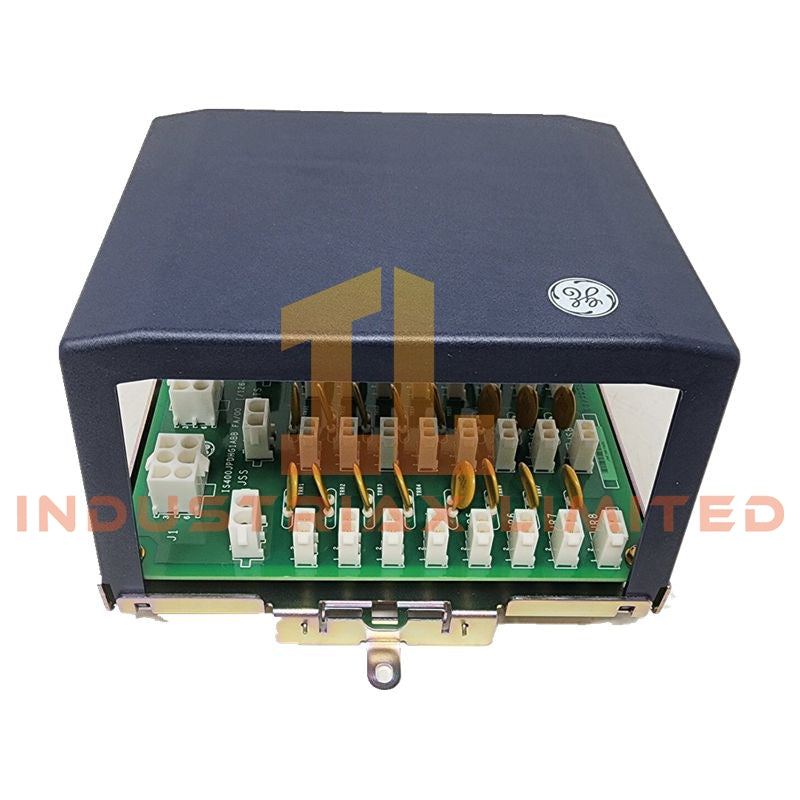

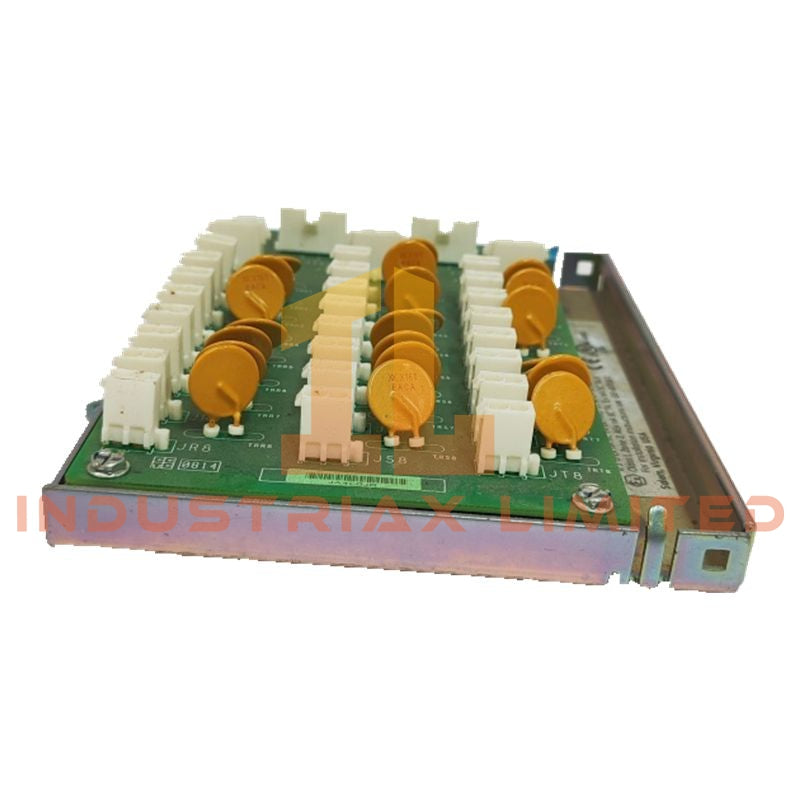

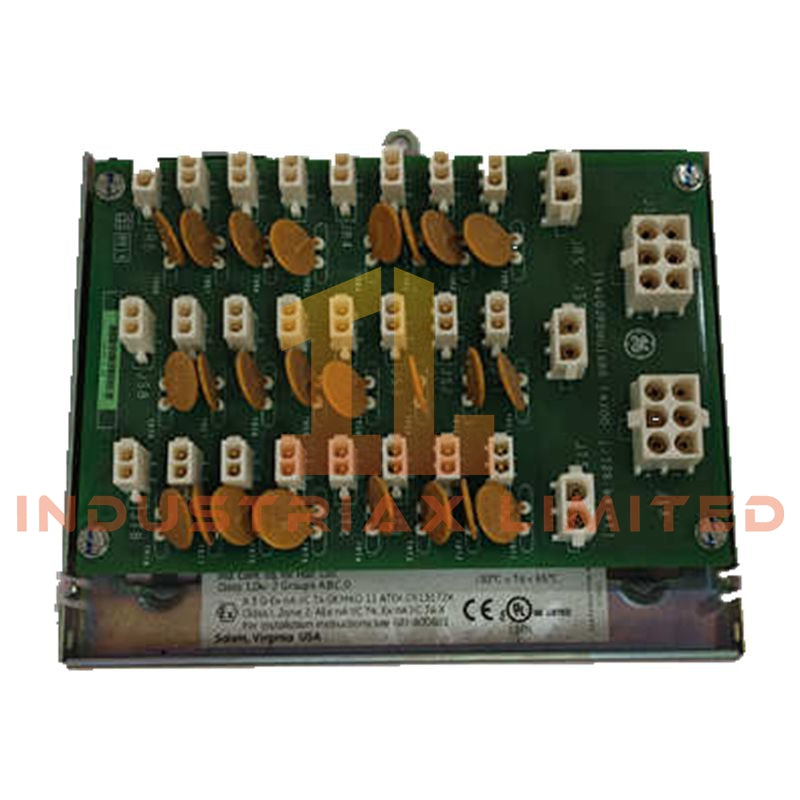

GE IS410JPDHG1A Mark VIe Power Distribution Module

Configured for wetting power distribution in the GE Mark VIe turbine control system, the GE IS410JPDHG1A (IS410JPDH Power Distribution Module) provides direct physical power routing and protection for I/O packs and control circuits through redundant 28 VDC input paths and fused output channels.

Hardware Specifications

Parameter	Specification
Model	IS410JPDHG1A
Brand	GE
Origin	United States
Weight	0.35 kg
Dimensions	160 x 120 x 38 mm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Dependent on connected wetting power load; module distributes up to 40 A output capacity
System Compatibility	Mark VIe / VIeS Speedtronic turbine control systems
Product Type	Power Distribution Module (PDM)
Input Power	Dual 28 VDC redundant sources with reverse polarity protection
Output Channels	24 fused outputs grouped JR/JS/JT
Fuse Protection	0.8 A PolyFuse per output channel
Total Output Capacity	Up to 40 A
Isolation	2500 V RMS input-to-output
Diagnostic Interface	PPDA diagnostic module integration for current and voltage monitoring
Status Indication	LED indicators for input, output, and fault conditions
Environmental Protection	Conformal coating for dust, humidity, and chemical exposure resistance
Certifications	UL Class I Div II, ATEX Zone 2, IEC 61010, CE, RoHS

EtherNet and Mark VIe Power Distribution Characteristics

The IS410JPDHG1A operates as a power routing component within the Mark VIe architecture by distributing 28 VDC wetting power to connected I/O and control circuits. The dual input arrangement supports redundant supply operation, allowing the distribution path to remain powered when one input source is unavailable.

The module uses individual fused output channels to limit fault propagation between connected field circuits. Diagnostic communication with the PPDA module provides current and voltage status information for system monitoring and maintenance analysis.

GE Mark VIe hardware platforms support deterministic control architectures with distributed I/O communication. The power distribution module provides the electrical interface required for maintaining field-side circuit availability across these control nodes.

Frequently Asked Questions

Q: Does the IS410JPDHG1A support redundant power input operation?
A: Yes. The module accepts dual 28 VDC input sources with reverse polarity protection and supports continued operation when one power source is lost.

Q: How are output circuits protected on this module?
A: The module provides 24 independent fused outputs using 0.8 A PolyFuse protection to isolate individual field circuits from downstream faults.

Q: What diagnostic functions are available with the IS410JPDHG1A?
A: The module interfaces with the PPDA diagnostic module for monitoring input and output current and voltage conditions.

Field Installation Guidelines

Install the IS410JPDHG1A on the designated Mark VIe control system mounting structure according to GE hardware installation requirements. Verify that both 28 VDC input sources have correct polarity before energizing the module.

Use appropriately rated field wiring for wetting power distribution circuits. Route power conductors separately from low-level analog or communication cables to reduce electrical interference. Terminate cable shields according to site grounding standards, normally using a single-point connection where required by the control system design.

Before commissioning, verify LED status indicators, output fuse conditions, and diagnostic feedback through the connected PPDA interface. Confirm that all field devices connected to JR/JS/JT output groups remain within the specified current distribution limits.
