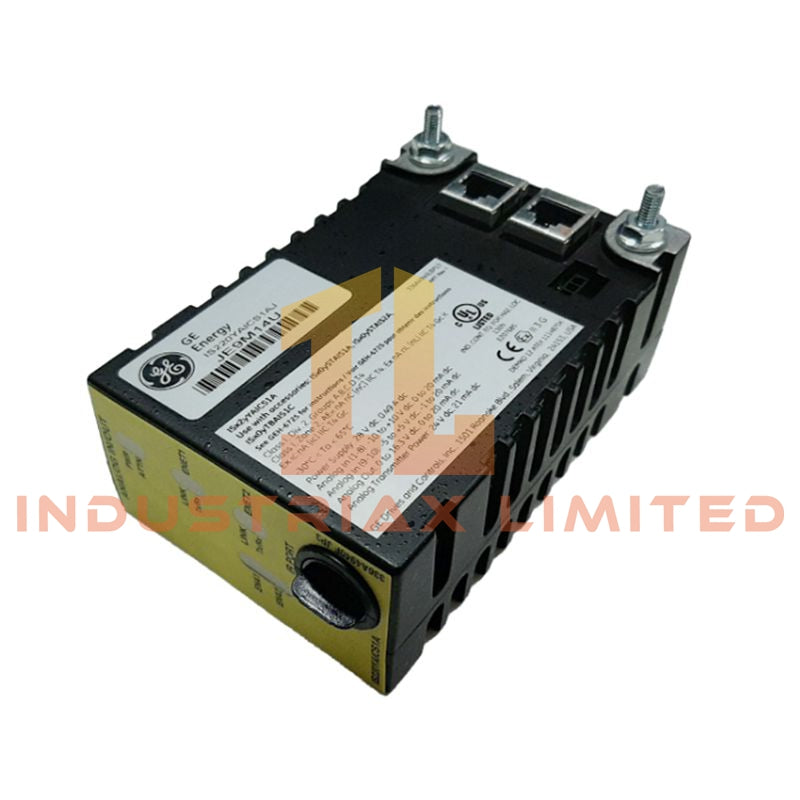

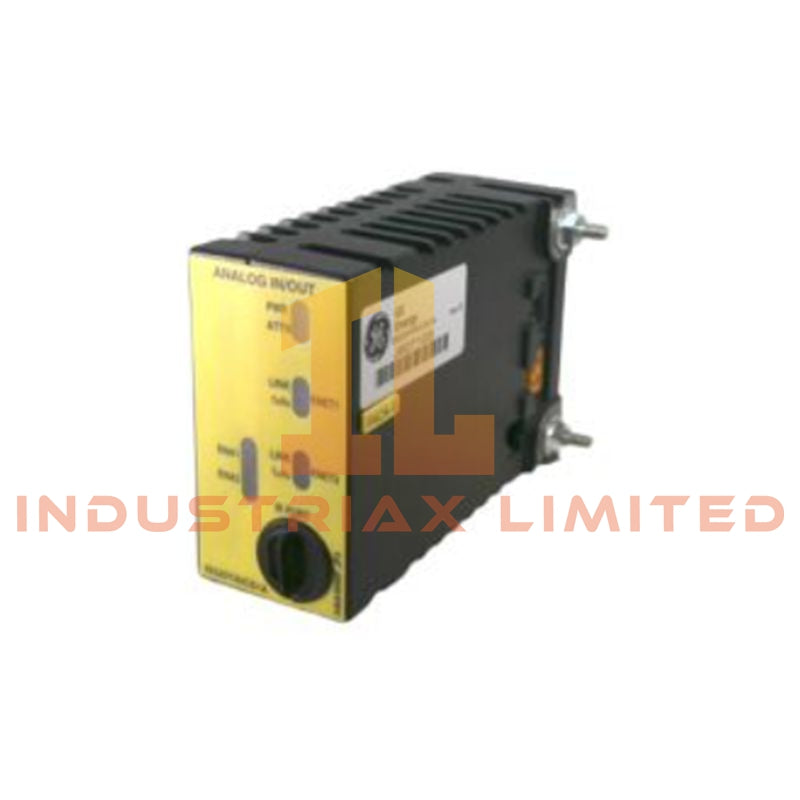

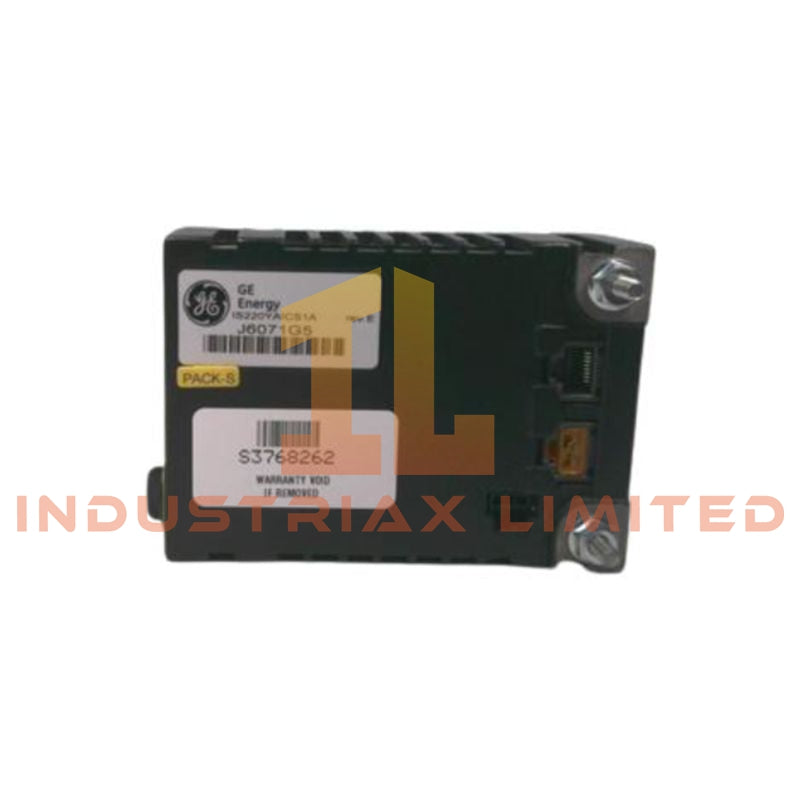

GE IS220YAICS1AJ Universal Safety Analog I/O Module
The GE IS220YAICS1AJ, also cataloged as the IS220YAICS1A Universal Safety Analog I/O Module, operates as a dedicated hardware component for safety analog signal acquisition and output execution within GE Mark VIeS Safety Instrumented System platforms. It processes voltage, current, RTD, and thermocouple signals through isolated I/O channels.
Hardware Specifications
Parameter
Specification
Model
IS220YAICS1AJ
Brand
GE
Origin
United States
Weight
0.8 kg
Operating Temp
-30 deg C to +65 deg C
Power Consumption
8-12 W
Product Type
Universal Safety Analog I/O Module
System Compatibility
GE Mark VIeS Safety Instrumented System
Analog Inputs
10 channels
Supported Input Signals
Voltage, current, RTD, thermocouple
Analog Outputs
2 channels, 0-20 mA current loop
Conversion Resolution
12-16 bit A/D and D/A conversion
Communication Interface
Dual 100 Mbps Ethernet IONet
Power Supply
24 VDC nominal, 18-32 VDC range
Isolation
Galvanic isolation per channel
Diagnostics
Continuous self-check, sensor health monitoring, wiring integrity monitoring
Redundancy Architecture
Triple Modular Redundancy (TMR) voting support
Safety Certification
IEC 61508 SIL3 compliance
GE Mark VIeS Safety I/O TMR Signal Processing
The IS220YAICS1AJ provides safety analog acquisition and output functions within GE Mark VIeS SIS architectures. The module supports SIL3 safety applications through channel-level galvanic isolation, continuous diagnostic monitoring, and TMR voting compatibility.
The module integrates deterministic Ethernet communication through dual 100 Mbps IONet interfaces. The redundant communication structure supports synchronized data exchange between safety controllers and distributed I/O devices.
The analog processing architecture supports I/O density scaling within the Mark VIeS platform by combining multiple field signal types in a single universal I/O module. Voltage, current, RTD, and thermocouple inputs are processed through dedicated conversion circuits with diagnostic monitoring for sensor status and wiring integrity.
Frequently Asked Questions
Q: What analog signal types can the IS220YAICS1AJ process? A: The module supports voltage, current, RTD, and thermocouple input signals, along with two 0-20 mA analog output channels.
Q: Does the module support redundant safety operation? A: Yes. The IS220YAICS1AJ supports Triple Modular Redundancy (TMR) voting within compatible GE Mark VIeS safety architectures.
Q: What communication interface is used by the module? A: The module communicates through dual 100 Mbps Ethernet IONet interfaces for redundant system communication.
Field Installation Guidelines
Install the IS220YAICS1AJ according to GE Mark VIeS cabinet installation procedures. Verify module seating, power wiring polarity, and Ethernet IONet connections before applying system power.
Use shielded instrumentation cables for analog field signals where required by the system grounding design. Connect cable shields according to the SIS cabinet grounding scheme and maintain separation between analog signal wiring and high-voltage switching conductors.
Confirm field signal type configuration matches the connected sensor type, including voltage, current, RTD, or thermocouple settings. Verify safety controller configuration, I/O assignments, and diagnostic status before placing the module into service.
