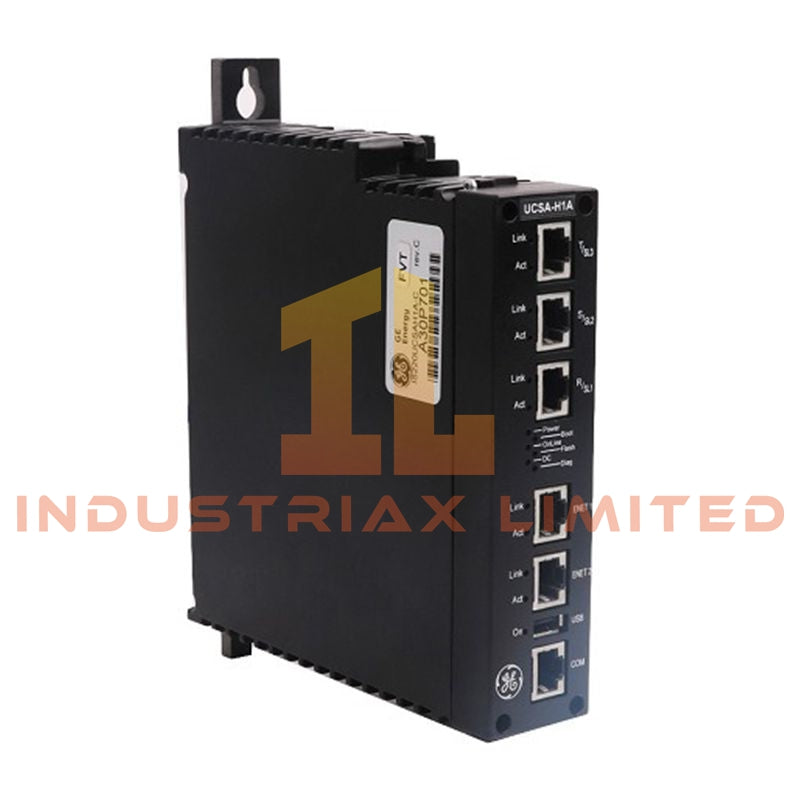

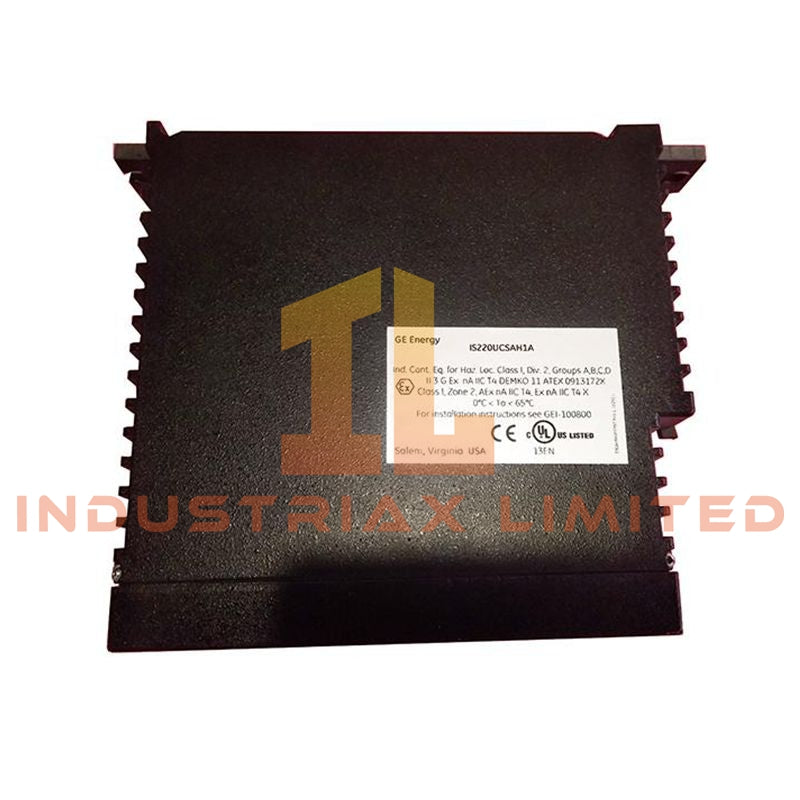

GE IS220UCSAH1 Embedded Controller Module

Configured for real-time turbine logic execution in GE Mark VIe distributed control systems, the GE IS220UCSAH1 (IS220UCSAH1 Embedded Controller Module) provides direct physical/electrical execution. The module operates as a standalone controller, executing compiled control applications and exchanging deterministic data with distributed I/O packs through IONet Ethernet communication.

Hardware Specifications

Parameter	Specification
Model	IS220UCSAH1
Brand	GE
Origin	USA
Weight	1.1 kg
Dimensions	50 mm (W) x 146 mm (H) x 204 mm (D)
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Approx. 12 W typical
Product Type	Embedded Controller Module
Processor	Freescale PowerPC 8349 @ 667 MHz
Memory	256 MB DDR SDRAM, 512 MB to 1 GB Flash
Operating System	QNX Neutrino Real-Time OS
Power Supply	18-36 VDC, nominal 28 VDC
Communication Interface	4-6 x 10/100 Mbps IONet Ethernet ports
Clock Synchronization	IEEE 1588 PTP, sub-100 us accuracy
Cooling Method	Fanless passive conduction cooling
Mounting	Direct panel mount, vertical orientation
Certifications	UL, CE, ATEX Zone 2, IECEx

Deterministic IONet Communication and Control Execution

The IS220UCSAH1 controller operates within the Mark VIe control architecture using IONet Ethernet links for communication with remote I/O packs. The module executes compiled turbine control algorithms under QNX real-time operation and maintains synchronized timing through IEEE 1588 Precision Time Protocol.

The controller supports GE industrial control configurations including simplex, dual redundant, and triple modular redundancy (TMR) arrangements. Firmware flash compatibility allows controlled loading of approved controller application packages within the Mark VIe engineering environment.

Frequently Asked Questions

Q: Does the IS220UCSAH1 include integrated field I/O channels?
A: No. The module is a standalone embedded controller and exchanges field data through distributed I/O packs connected via IONet Ethernet.

Q: What cooling method is used by the IS220UCSAH1?
A: The controller uses fanless passive conduction cooling through its enclosure design and mounting arrangement.

Q: Can the IS220UCSAH1 operate in redundant control configurations?
A: Yes. The module supports simplex, dual redundant, and TMR control configurations when configured within compatible Mark VIe architectures.

Field Installation Guidelines

Install the IS220UCSAH1 in the specified panel mounting orientation to maintain passive thermal dissipation. Verify the 18-36 VDC supply polarity and grounding before power application.

Use shielded Ethernet cabling for IONet connections and route communication wiring separately from high-voltage switching conductors to reduce electromagnetic interference. Ensure enclosure grounding and cable shield termination follow site electrical standards.

Firmware loading and controller replacement procedures should be performed using approved GE engineering tools and system maintenance procedures. Follow lockout/tagout requirements before disconnecting power or field wiring.
