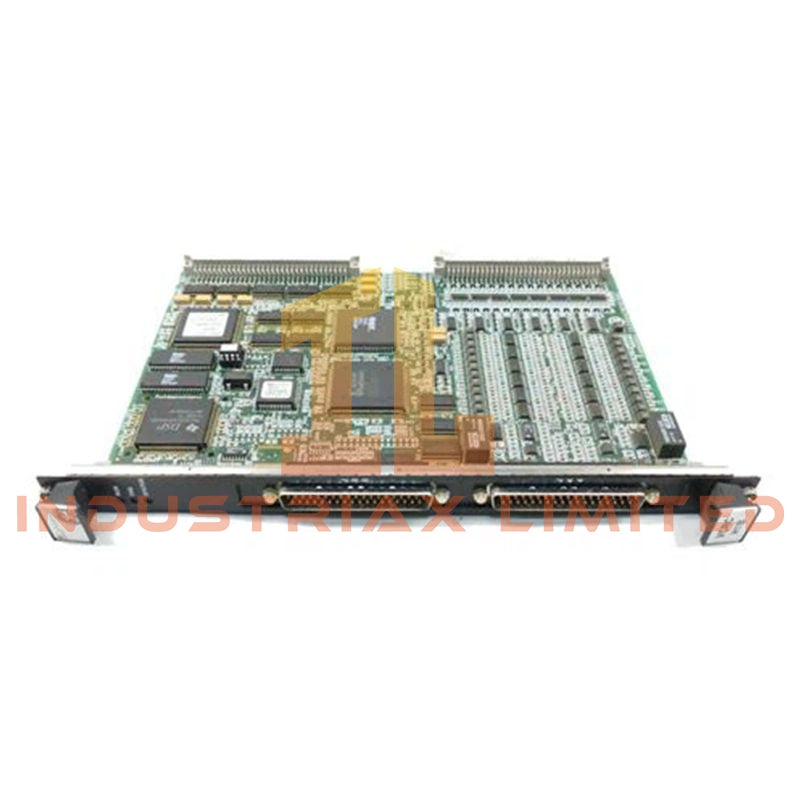

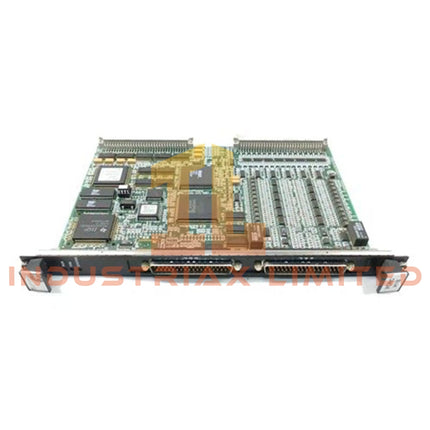

GE IS215UCVGH1AB Mark VI Speedtronic UCVG Controller Board

Configured for real-time turbine control execution in the GE Mark VI Speedtronic control platform, the GE IS215UCVGH1AB (IS215UCVG Controller Board) provides direct processor and communication functions through a single-slot VMEbus hardware interface. The board executes control logic using an Intel Ultra Low Voltage Celeron processor, QNX real-time operating system, onboard memory, and dual Ethernet communication channels.

Hardware Specifications

Parameter	Specification
Model	IS215UCVGH1AB
Brand	GE
Origin	United States
Weight	0.45 kg
Dimensions	6U VMEbus single-slot board form factor
Operating Temp	0 to +70 deg C
Power Consumption	+5 VDC at 4 A typical, 5.4 A maximum; +12 VDC and -12 VDC below 1 mA
Series	Mark VI Speedtronic Control System
Product Type	Single-slot Controller Board
Processor	Intel Ultra Low Voltage Celeron 650 MHz
System Memory	128 MB SDRAM
Nonvolatile Storage	128 MB Flash memory
Operating System	QNX real-time operating system
Bus Interface	VMEbus Rev D1.1
Ethernet Communication	2 x 10/100BaseTX RJ-45 ports
Serial Communication	2 x RS-232 ports
Additional Interfaces	SVGA monitor interface, keyboard/mouse interface, 2 x USB ports
Storage Temperature	-40 to +80 deg C
Certifications	CE, UL 508, ATEX Zone 2

VMEbus Communication and Firmware Flash Compatibility

The IS215UCVGH1AB controller board uses a VMEbus architecture for deterministic communication with Mark VI Speedtronic control components. The embedded processor executes turbine control algorithms under the QNX real-time operating system, while the 128 MB Flash memory provides nonvolatile firmware storage.

The dual Ethernet interface supports separate communication paths for configuration, peer communication, and industrial data exchange. Firmware flash compatibility and processor-level execution allow the controller to maintain existing Mark VI system configurations when replacing compatible UCV controller hardware.

Frequently Asked Questions

Q: What processor architecture is used in the IS215UCVGH1AB?
A: The board uses an Intel Ultra Low Voltage Celeron 650 MHz processor with 128 MB SDRAM and 128 MB Flash memory.

Q: What communication interfaces are available on the controller board?
A: The IS215UCVGH1AB provides two 10/100BaseTX Ethernet ports, two RS-232 serial ports, VMEbus interface, USB ports, and an SVGA interface.

Q: Which operating system runs on the controller module?
A: The controller operates with the QNX real-time operating system for deterministic control execution.

Field Installation Guidelines

Install the IS215UCVGH1AB in the designated 6U VMEbus rack slot and verify correct mechanical alignment before applying insertion force. Ensure the VME backplane connector is clean and free from contamination before installation.

Connect Ethernet, serial, and peripheral interfaces according to the Mark VI system wiring documentation. Keep communication cables separated from high-voltage power wiring to reduce electromagnetic interference.

Verify board seating, front panel indicator status, and VMEbus communication diagnostics after installation. Confirm firmware compatibility and controller configuration before returning the turbine control system to operational service.

Spesifikasi

• Merek: General Electric
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
