Keterangan

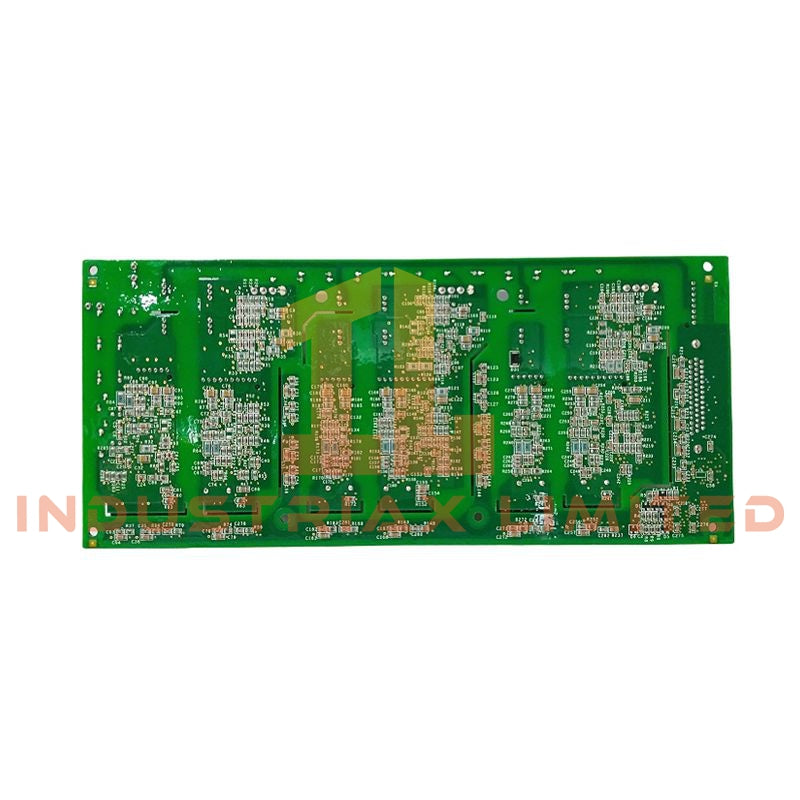

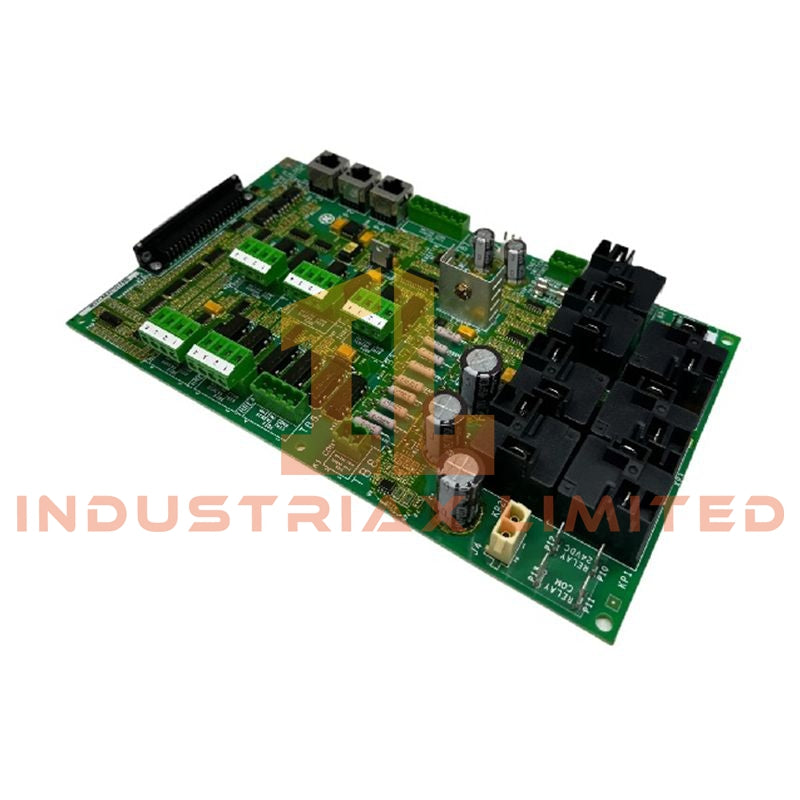

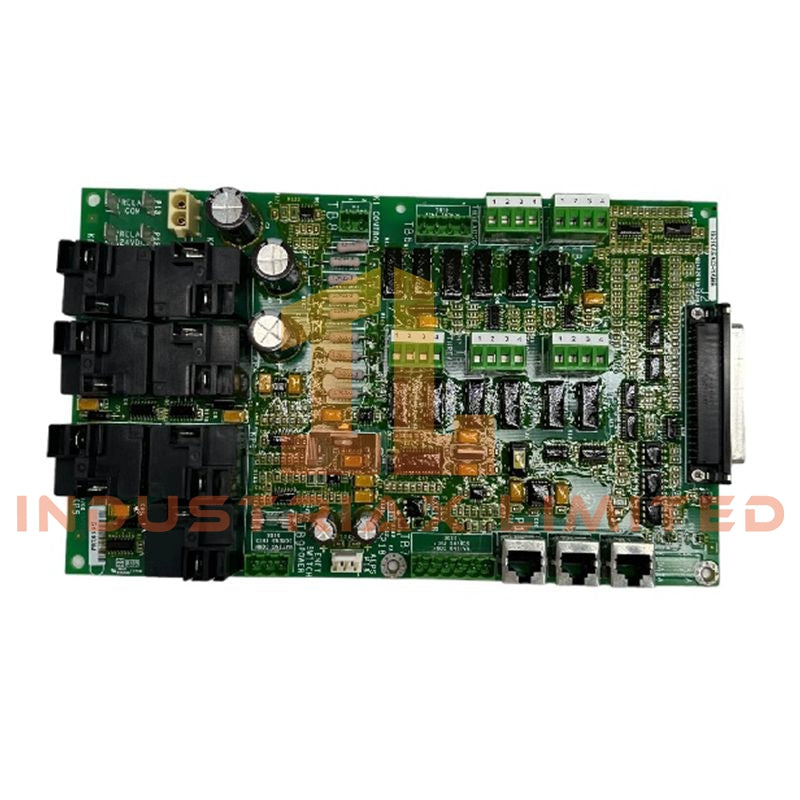

GE IS210AEAAH2BKE Mark VIe AE Series I/O Bridge Interface Board
The GE IS210AEAAH2BKE, also cataloged as the IS210AEAAH2BKE I/O Bridge Interface Board, operates as a dedicated hardware component for field signal conditioning and isolated I/O exchange within GE Mark VI / Mark VIe turbine control systems. The board provides analog and digital signal interfacing between field devices and turbine control processors.
Hardware Specifications
Parameter
Specification
Model
IS210AEAAH2BKE
Brand
GE
Origin
United States
Weight
1.0 kg
Dimensions
230 mm x 160 mm x 30 mm
Operating Temp
-40 deg C to +70 deg C
Power Consumption
24 VDC +/-10%, 20 W max
Product Type
I/O Bridge Interface Boards
System Platform
Mark VI / Mark VIe Speedtronic Turbine Control Systems
Processor
High-speed DSP for deterministic control algorithms
Conformal coating for moisture, dust, and corrosive environment protection
Profinet / EtherNet-IP Deterministic Networks and I/O Density Scaling
The IS210AEAAH2BKE functions as an AE series interface board within the GE Mark VI / Mark VIe control architecture. The module performs signal conditioning, electrical isolation, and data exchange between field sensors, actuators, and controller processing units.
The I/O architecture supports density scaling through multiple analog and digital channels, including 4-20 mA inputs, voltage inputs, relay outputs, and digital signal interfaces. Communication capability through IONet, Ethernet/IP, Profinet, Modbus RTU, and DNP3 allows integration with distributed control system configurations.
The board incorporates galvanic isolation between field channels and control-side circuits to reduce ground loop effects and electrical noise coupling. DSP-based processing supports deterministic signal handling for turbine control loops.
The conformal-coated PCB construction provides protection against moisture, dust, and corrosive contaminants. The module supports simplex and redundant Mark VIe hardware configurations through system-level controller architecture.
Frequently Asked Questions
Q: What type of field signals can the IS210AEAAH2BKE interface? A: The board supports analog inputs, analog outputs, digital inputs, and relay outputs for turbine field devices including sensors and actuators.
Q: What communication protocols are supported by the IS210AEAAH2BKE? A: The interface supports SPI, IONet, Modbus RTU, Ethernet/IP, Profinet, and DNP3 communication connections.
Q: How does the board provide signal isolation? A: The module provides channel-to-channel and channel-to-ground galvanic isolation to separate field wiring circuits from controller electronics.
Field Installation Guidelines
Install the IS210AEAAH2BKE according to the GE Mark VI / Mark VIe cabinet configuration requirements using the specified VME rack or DIN rail mounting arrangement.
Verify all field wiring connections at the 32-pin D-type connector and screw-clamp terminals before energizing the system. Confirm signal type compatibility for analog, digital, and relay channels.
Route communication cables and low-level signal wiring separately from high-current power conductors. Apply proper shield grounding practices to reduce electromagnetic interference.
Inspect the conformal-coated PCB surface during maintenance activities and prevent contamination from conductive particles, moisture accumulation, or chemical deposits.
