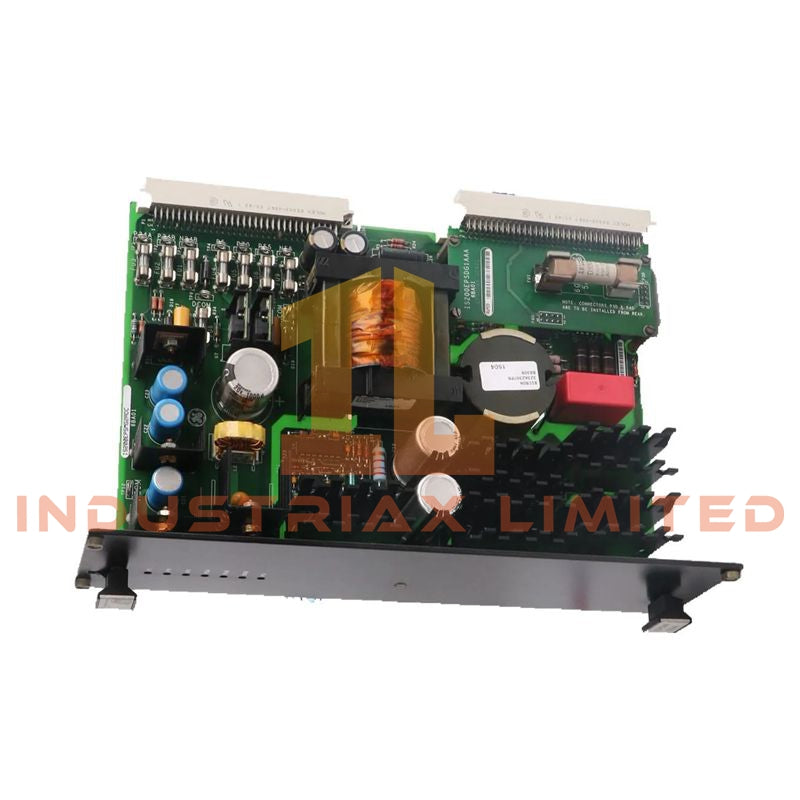

GE IS200EPSMG1A EX2100 Exciter Power Supply Module

The GE IS200EPSMG1A, also cataloged as the IS200EPSMG1A Exciter Power Supply Module, operates as a dedicated hardware component for regulated DC power conversion within GE EX2100 Excitation Control System platforms. The module converts 125 VDC input power into multiple isolated DC output rails for excitation and control circuits.

Hardware Specifications

Parameter	Specification
Model	IS200EPSMG1A
Brand	GE
Origin	United States
Weight	0.95 kg
Dimensions	230 mm x 170 mm x 40 mm
Operating Temp	-10 to 55 deg C
Product Type	Exciter Power Supply Modules
Series	EX2100
System Compatibility	GE Mark VI / EX2100 Excitation Control Systems
Input Voltage	125 VDC +/-20%
Output Voltages	+5 VDC, +/-15 VDC, +24 VDC, +70 VDC, 55 VDC, 20 VAC
Total Output Power	Approx. 150 W maximum
Efficiency	Approx. 85% at full load
Intermediate Voltage Stage	50 VDC buck regulator stage
Hold-up Time	15 ms at full load
Ripple	<50 mV (24 V), <20 mV (5 V), <30 mV (15 V)
Cooling Method	Passive cooling with dual heatsinks
PCB Construction	6-layer PCB with HV/LV trace separation
Protection Functions	Overcurrent, overvoltage, short-circuit, thermal protection
Indicators	LED status indicators for voltage rails

Industrial Control Power Conversion Characteristics

The IS200EPSMG1A applies switching regulator topology with transformer isolation to generate multiple regulated power rails for EX2100 excitation hardware. The isolated output architecture separates individual voltage domains, supporting distributed power delivery to control boards, crowbar circuits, ground detection circuits, and de-excitation components.

The module is installed through the EPBP backplane architecture and operates as a dedicated power component for Mark VI and EX2100 control sections. Power architecture compatibility is managed through GE system configuration and firmware-controlled controller assemblies.

The EX2100 platform uses defined backplane power distribution and module-level hardware compatibility. The IS200EPSMG1A provides regulated DC conversion with protection monitoring and LED-based voltage rail status indication.

Frequently Asked Questions

Q: What input voltage is required for the IS200EPSMG1A?
A: The module accepts a 125 VDC input supply with an allowable range of +/-20%.

Q: Which output rails are generated by the power supply module?
A: The module provides regulated +5 VDC, +/-15 VDC, +24 VDC, +70 VDC, 55 VDC, and 20 VAC outputs for different excitation control circuits.

Q: How is the module installed within the EX2100 system?
A: The IS200EPSMG1A is installed into the EPBP backplane inside Mark VI and EX2100 cabinets according to system hardware configuration requirements.

Field Installation Guidelines

Install the IS200EPSMG1A into the designated EPBP backplane position and verify connector alignment before applying DC input power.

Confirm the input polarity and voltage level before energizing the module. Ensure power wiring is separated from low-level signal wiring to reduce electrical noise coupling.

Maintain proper grounding practices for the cabinet and verify that protective earth connections meet site electrical standards. Do not modify PCB shielding or insulation barriers during installation.

Check LED voltage rail indicators after startup and verify downstream control modules receive the required DC supplies before system operation.
