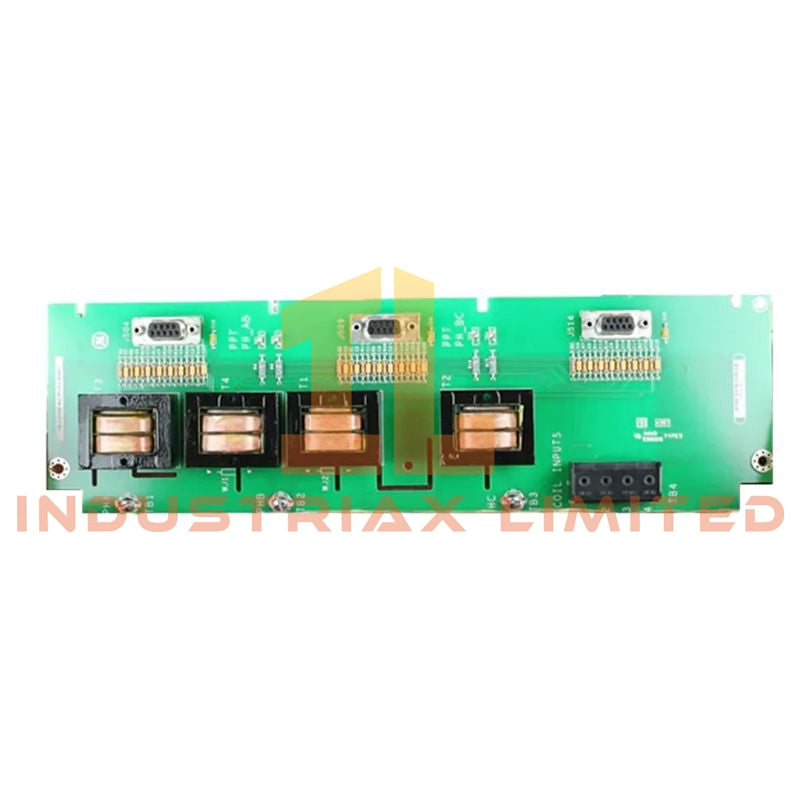

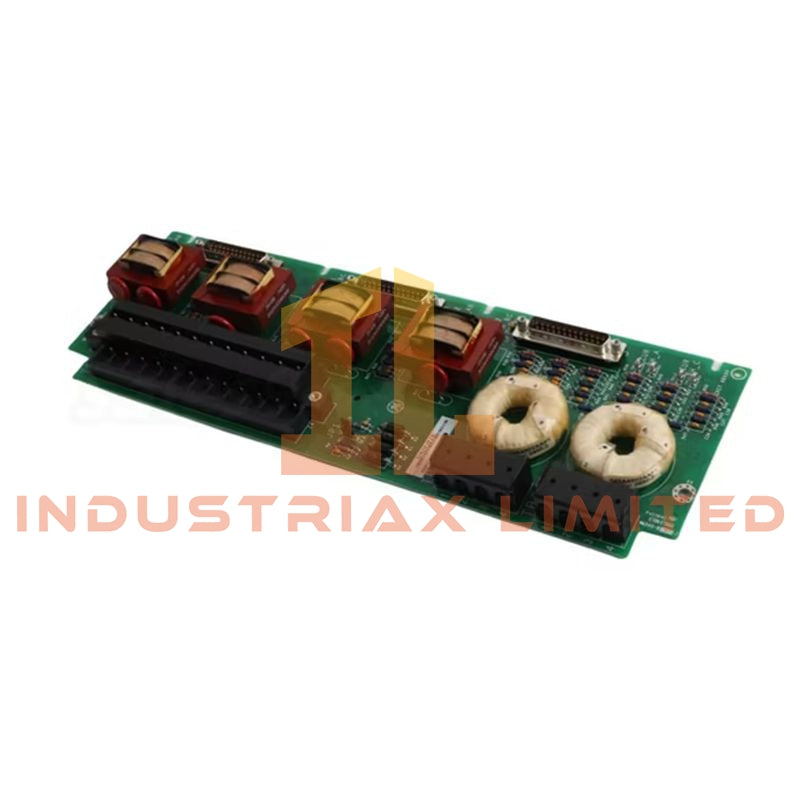

GE IS200EACFG1A EX2100 Exciter AC Feedback Board

The GE IS200EACFG1A, also cataloged as the IS200EACFG1A Exciter AC Feedback Board, operates as a dedicated hardware component for exciter voltage and flux feedback signal conditioning within the GE EX2100 Excitation Control System. The board converts AC feedback signals into isolated low-level inputs for controller processing.

Hardware Specifications

Parameter	Specification
Model	IS200EACFG1A
Brand	GE
Origin	United States
Weight	0.6 kg
Dimensions	Compact terminal board form factor
Operating Temp	-40 to 70 deg C
Power Consumption	Passive board design, no external power required
Product Type	Exciter AC Feedback Boards
Series	EX2100
Functional Acronym	EACF
Board Function	Exciter AC Feedback Signal Interface
PPT Input Voltage	480 VRMS, 50/60 Hz, +/-20%
Transformer Secondary Output	1.6 VRMS
Air Core CT / Flux Coil Inputs	0-0.8 VRMS at 50/60 Hz
Coil Inputs	4
Isolation Rating	1500 VAC channel-to-chassis
Connectors	3 x 9-pin D-sub connectors for M1, M2, C controllers
Terminal Blocks	TB1-TB4 voltage input terminals
Backplane Cable Limit	90 mm EBKP backplane connection
Noise Suppression	High-frequency filtering at signal entry
Installation Location	EX2100 exciter auxiliary cabinet

Deterministic Feedback Interface and Signal Conditioning Characteristics

The IS200EACFG1A provides an analog feedback interface within the EX2100 excitation architecture. The board uses passive transformer coupling and filtering circuits to scale 480 VRMS exciter power potential transformer signals into approximately 1.6 VRMS isolated controller-level signals.

The board supports I/O signal distribution between exciter feedback sources and GE controller sections through dedicated M1, M2, and C controller connections. The passive design eliminates onboard processing functions while maintaining signal isolation and electromagnetic noise suppression.

The EX2100 platform uses defined feedback signal scaling and controller interface configurations. The EACF board provides compatible signal conditioning for generator excitation monitoring without firmware-based processing functions.

Frequently Asked Questions

Q: What type of signals are processed by the IS200EACFG1A?
A: The board processes three-phase AC voltage feedback from the exciter PPT and flux coil current feedback signals from air-core CT inputs.

Q: Does the IS200EACFG1A require an external power supply?
A: No. The board uses passive signal interface components including transformers and filtering networks without onboard powered electronics.

Q: How is electrical isolation provided between field signals and controllers?
A: Isolation is provided through transformer coupling and rated channel-to-chassis isolation between AC feedback inputs and controller interfaces.

Field Installation Guidelines

Install the IS200EACFG1A in the designated EX2100 exciter auxiliary cabinet location and verify all connector positions before system energization.

Connect PPT voltage inputs and flux coil feedback wiring according to the EX2100 system drawings. Maintain correct phase identification for AC voltage feedback signals.

Use appropriate shielded wiring practices for feedback circuits. Ground cable shields according to site standards and keep shield termination points close to cable entry locations to reduce electrical interference.

Maintain short EBKP backplane connections and route feedback wiring separately from high-current excitation conductors. Verify terminal block assignments and controller interface connections before commissioning.
