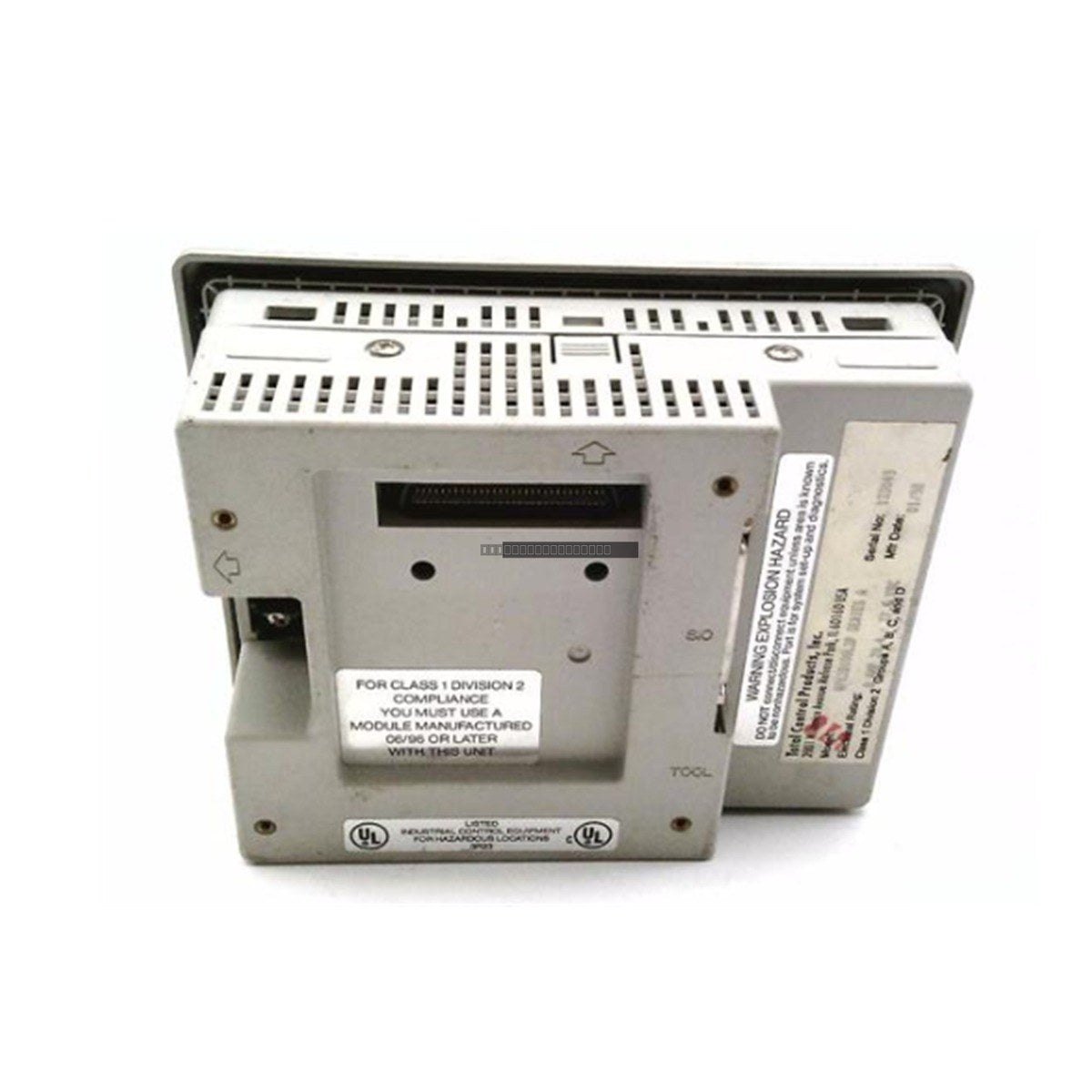

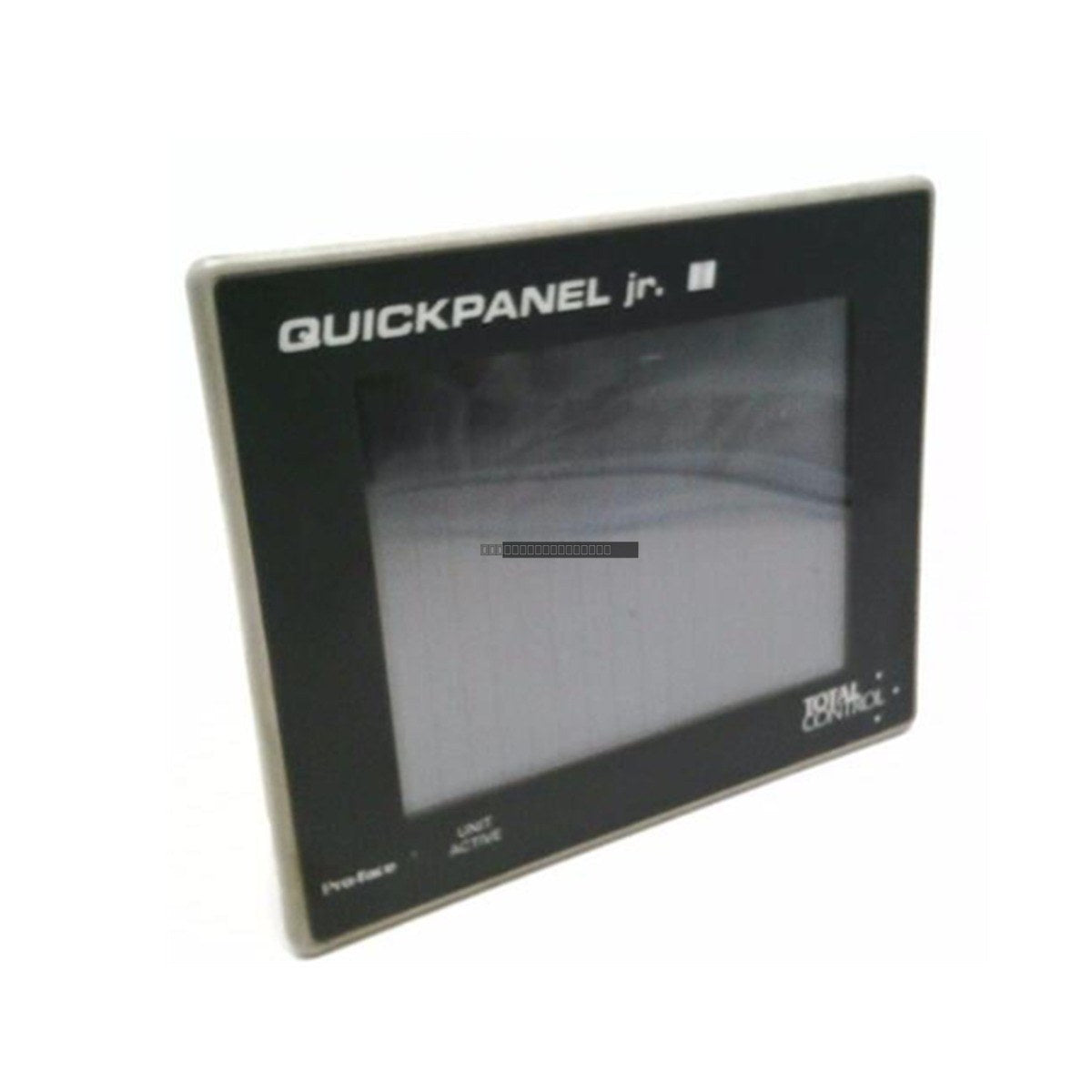

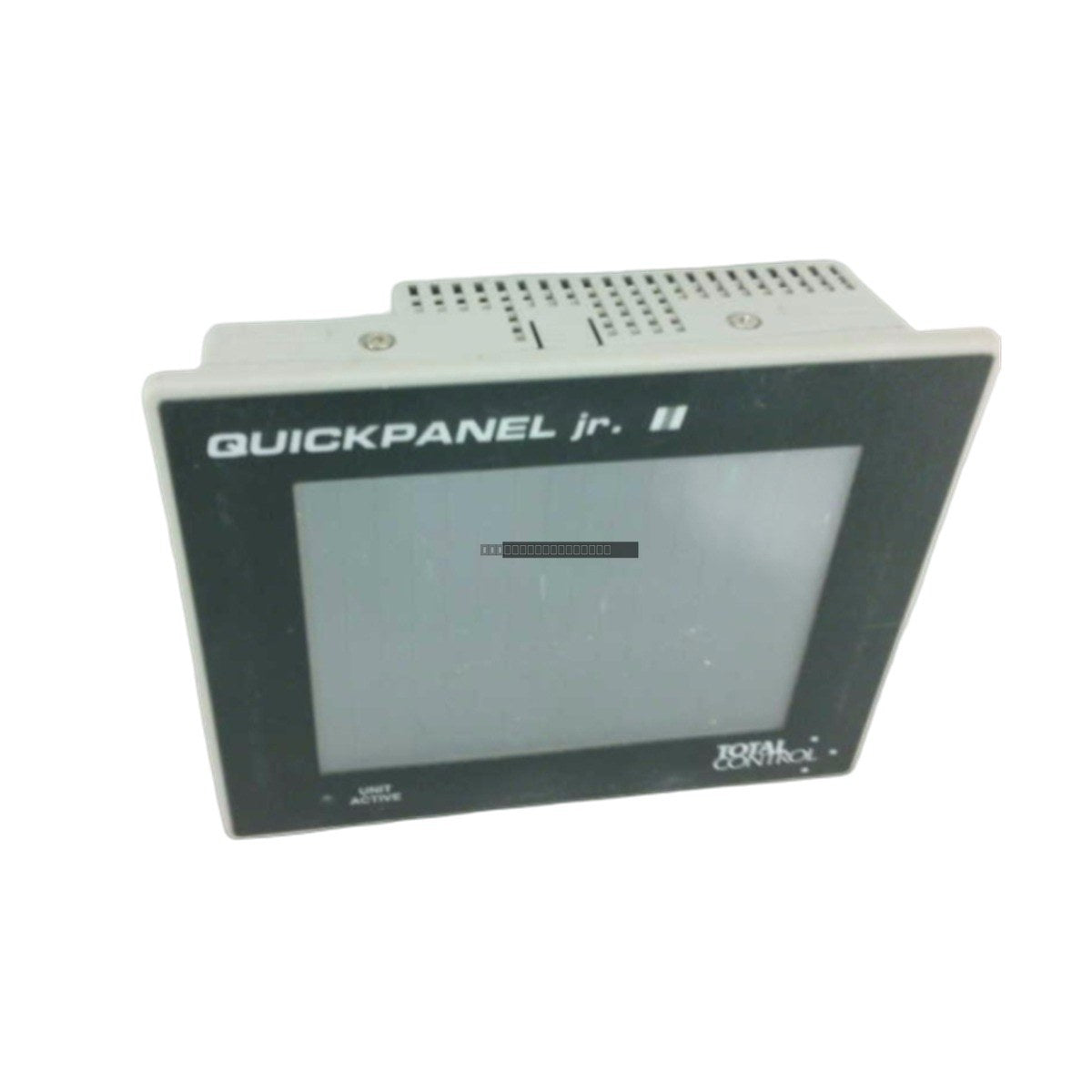

The GE Fanuc QPK3D200L2P is a 5.7-inch QuickPanel Jr. operator interface terminal designed for industrial automation environments. This HMI serves as a robust replacement for traditional hard-wired control components, such as pilot lights, selector switches, and pushbuttons. It provides operators with a centralized platform for real-time process visualization, alarm management, and localized machine control, effectively reducing diagnostic time and improving overall system efficiency in applications ranging from assembly lines to water treatment facilities.
Features
- Compact 5.7-inch monochrome LCD display optimized for high-contrast viewing in industrial lighting conditions.
- Supports a variety of industrial communication protocols including Modbus, Profibus, DeviceNet, and Allen-Bradley DH+ via optional expansion modules.
- Configured using QuickDesigner software (Version 3.7 or higher) for streamlined screen development and project deployment.
- Rugged front bezel construction with NEMA 4X/12 and IP65 ingress protection ratings for resistance against dust, oil, and water spray.
- Integrated serial and download ports for efficient data transfer and system programming.
Applications
The QuickPanel Jr. series is frequently deployed in manufacturing and process control environments where space-constrained HMI solutions are required. Typical applications include conveyor system monitoring, localized machine status feedback, and parameter adjustment interfaces for PLC-controlled equipment.
Technical Specifications
| Model |
QPK3D200L2P |
| Display Size |
5.7 inches |
| Display Type |
Monochrome LCD |
| Input Voltage |
24 VDC |
| Power Consumption |
12 W |
| Communication |
Serial Port, Download Port |
| Protection Rating |
NEMA 4X/12, IP65 (Front) |
| Operating Temperature |
0 to 50 deg C |
| Humidity |
20% to 85% RH (non-condensing) |
Installation Guidelines
- Ensure the panel cutout is prepared according to the manufacturer's dimensions to maintain the NEMA/IP seal integrity.
- Use a clean, flat surface for mounting the HMI to prevent bezel distortion and ensure a proper gasket seal.
- Verify that the 24 VDC power supply is stable and properly grounded to prevent electrical noise interference.
- Always power down the unit before connecting or disconnecting communication cables or optional modules.
- Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
FAQ
What software is required to program this HMI?
The QPK3D200L2P requires QuickDesigner software, version 3.7 or higher, to create and upload application projects.
Can this unit connect to an Allen-Bradley network?
Yes, this HMI supports connectivity to networks such as Allen-Bradley Remote I/O and Data Highway Plus through the use of specific optional communication modules.
What is the ingress protection rating of this device?
The front bezel of the unit is rated NEMA 4X/12 and IP65, providing protection against dust and water spray when mounted correctly in a suitable enclosure.
