Description

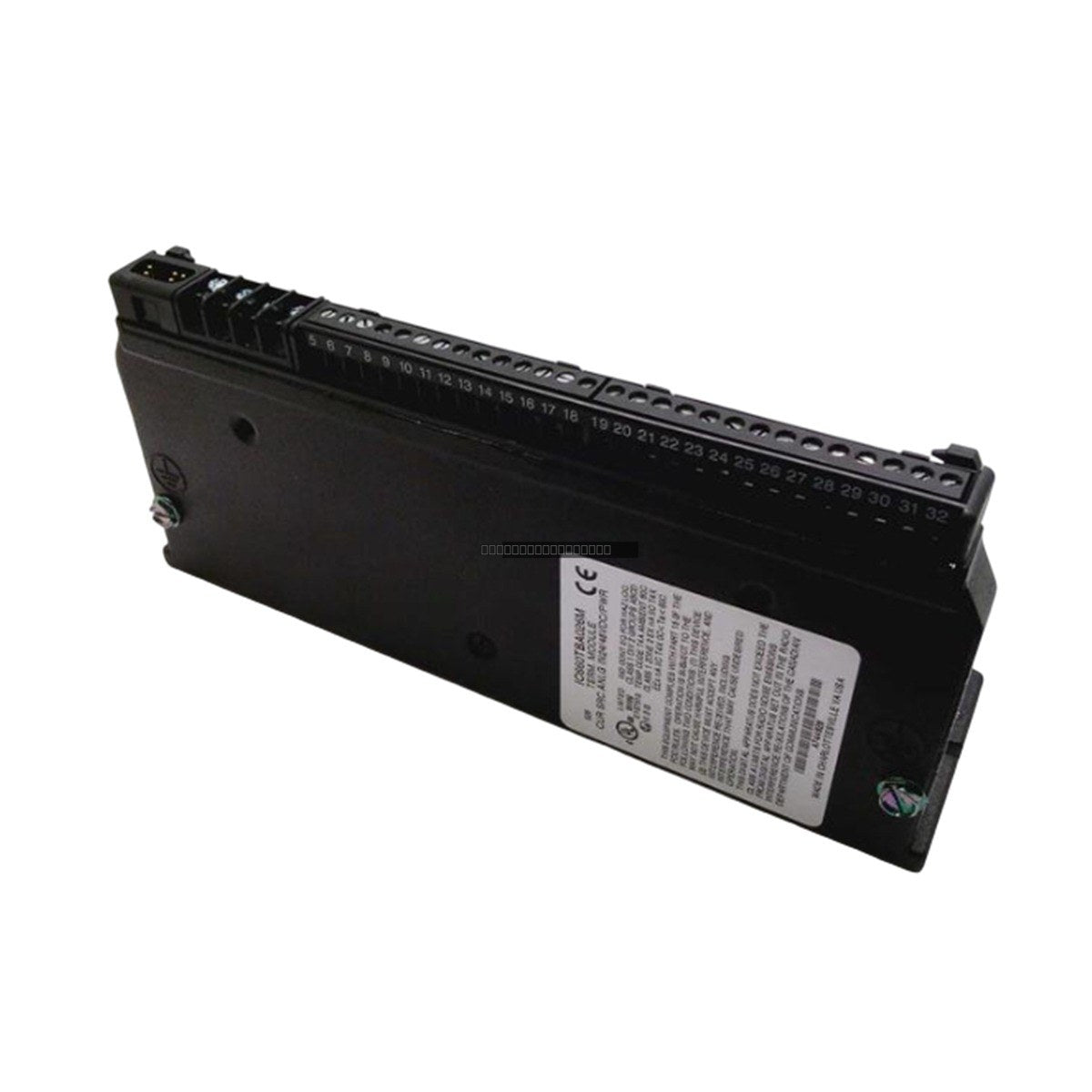

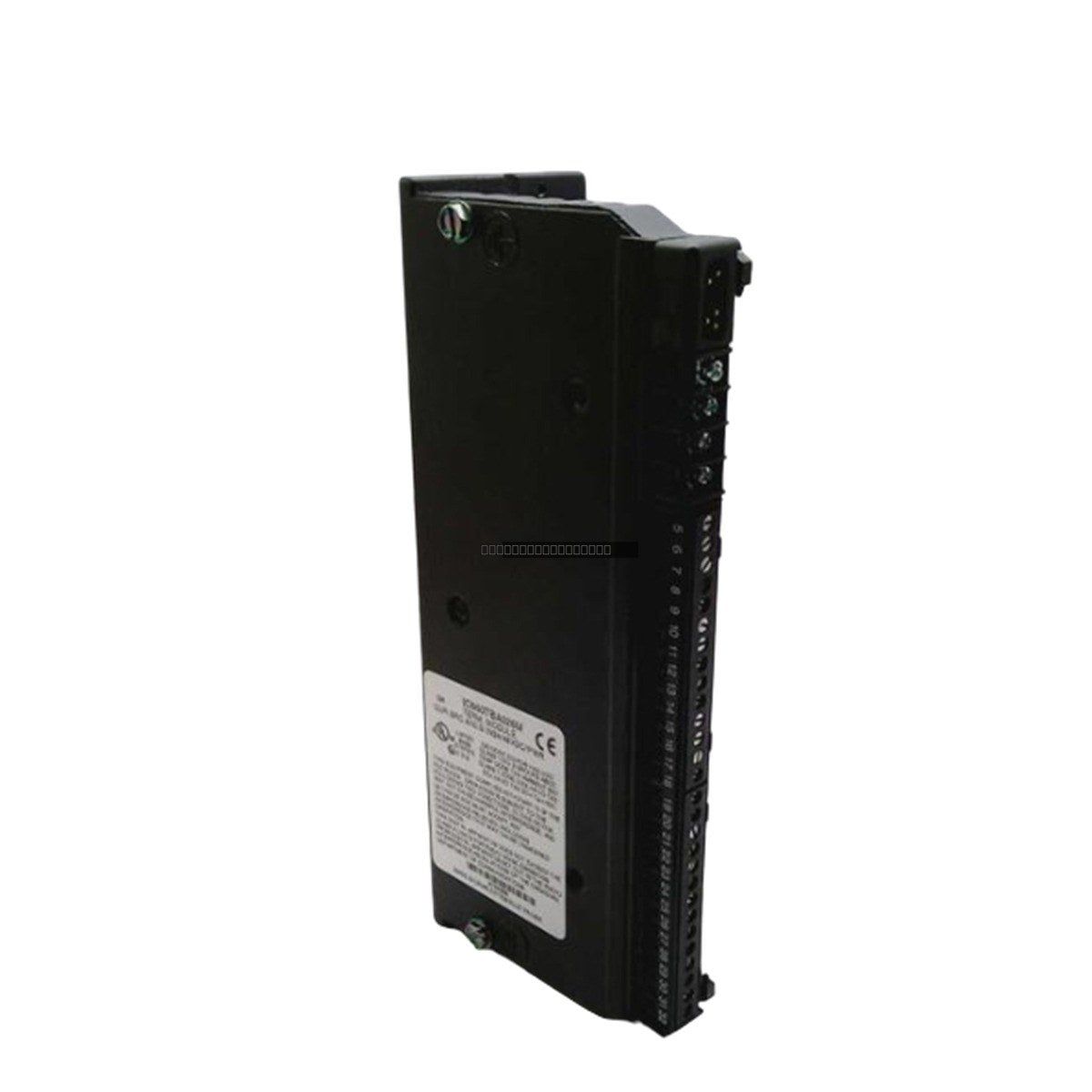

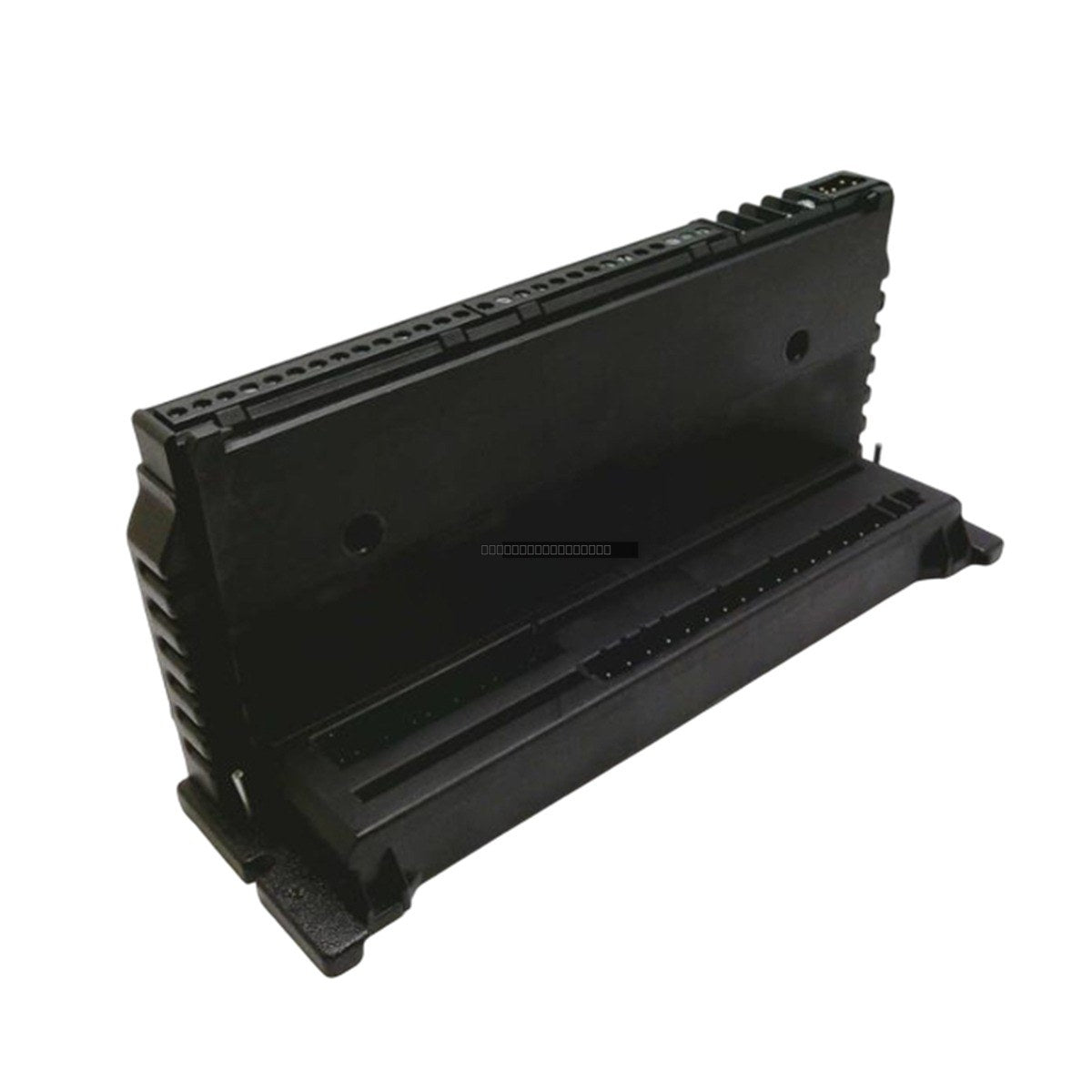

The General Electric IC660TBA026 is an analog output block belonging to the Genius I/O series. This module is designed to provide reliable current source analog output signals for industrial control applications. It operates as a high-performance interface, allowing for precise control of field devices within the Genius I/O architecture.
Features
- Series: Genius I/O
- Output Type: Current source analog output
- Signal Range: 4-20 mA
- Accuracy: 0.15% at 25 degC
- Heat Dissipation: 12 Watts
- Input Voltage: 115 Volts AC / 125 Volts DC
Technical Specifications
| Product Model |
IC660TBA026 |
| Manufacturer |
General Electric |
| Output Signal |
4-20 mA |
| Accuracy |
0.15% at 25 degC |
| Input Voltage |
115 VAC / 125 VDC |
| Heat Dissipation |
12 Watts |
| Operating Temperature |
0 to 60 degC |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the module from the I/O rack.
- Mount the block in a location that allows for adequate ventilation to manage the 12W heat dissipation.
- Use shielded twisted-pair cabling for analog signal connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the Genius I/O bus to maintain signal integrity and system safety.
- Verify that the input voltage matches the module specifications (115 VAC / 125 VDC) before applying power.
- Handle with care to prevent electrostatic discharge (ESD) damage to internal circuitry.
FAQ
What is the primary function of the IC660TBA026?
The IC660TBA026 is a current source analog output block used in Genius I/O systems to convert digital data into 4-20 mA analog signals for controlling field instrumentation.
What is the operating temperature range for this module?
This module is designed to operate in environments ranging from 0 to 60 degC.
Does this module require external power?
Yes, the module is rated for an input voltage of 115 VAC or 125 VDC to support its operational requirements.
