Description

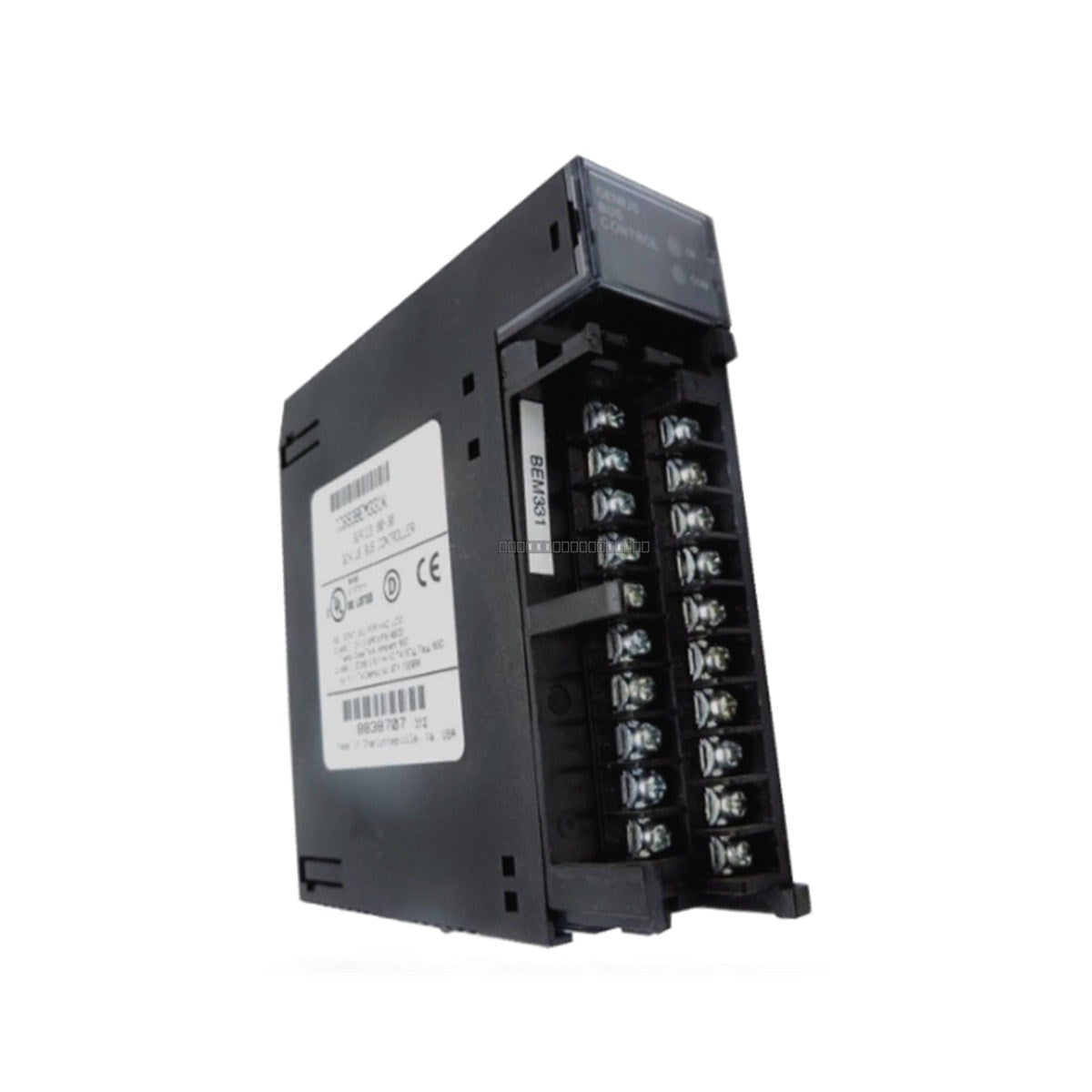

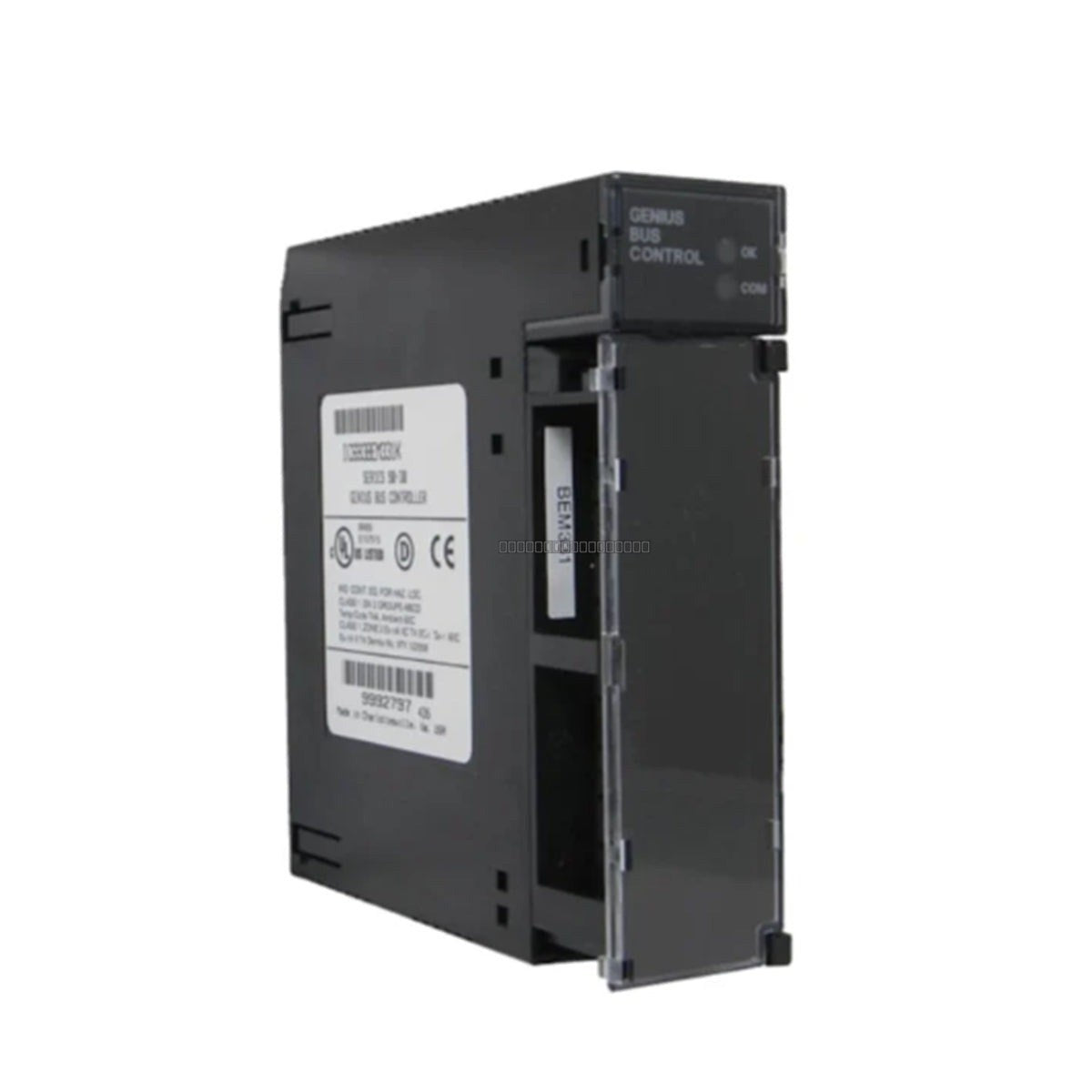

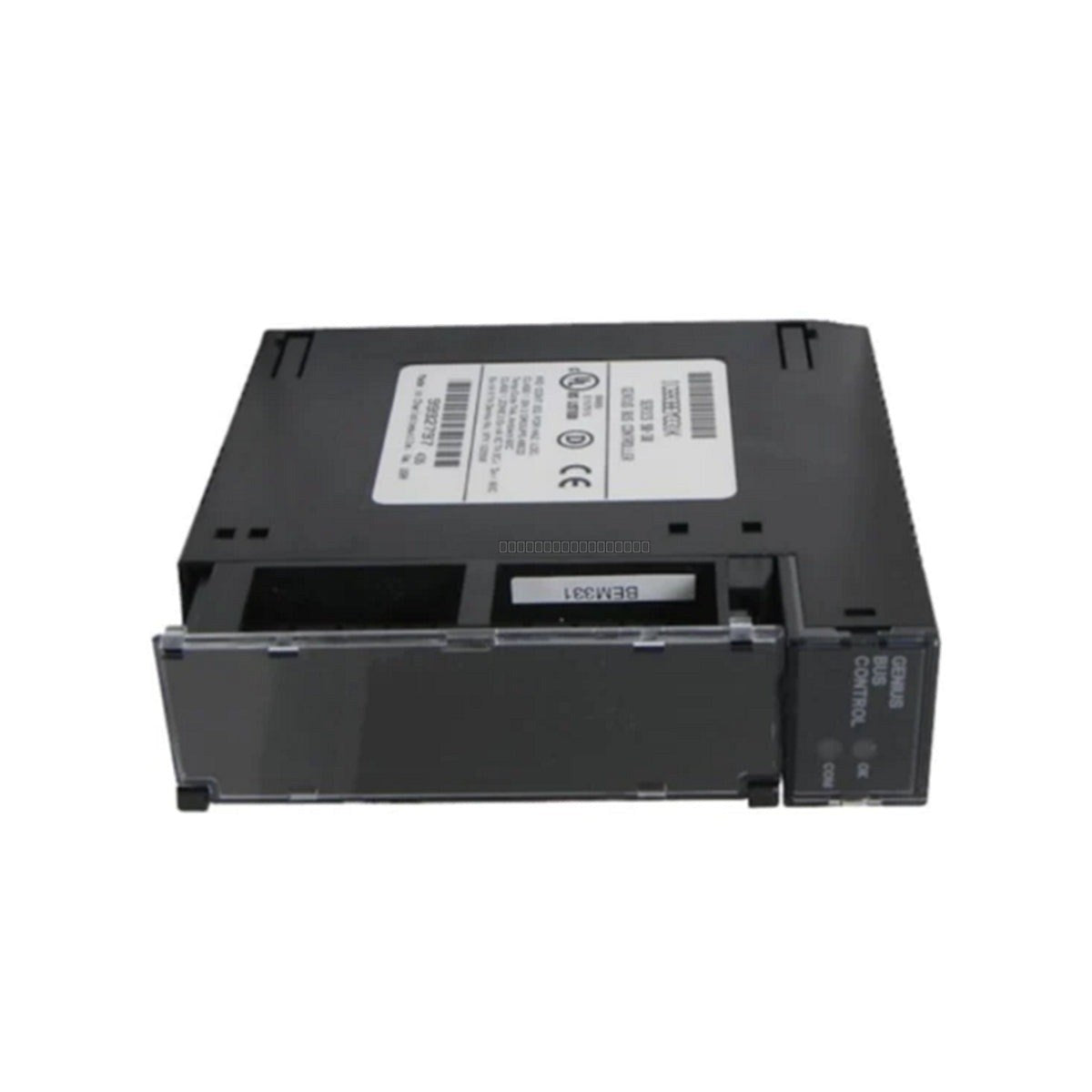

The General Electric IC693BEM331E is a Genius Bus Interface module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module serves as a communication gateway, allowing the Series 90-30 controller to interface with the Genius I/O bus network. It facilitates robust data exchange between the PLC backplane and remote Genius I/O blocks, supporting complex distributed control architectures.
Features
- Designed for seamless integration with the GE Series 90-30 PLC backplane.
- Provides Genius Bus interface capabilities for distributed I/O management.
- Equipped with two diagnostic LEDs (OK and COMM OK) for real-time status monitoring.
- Supports up to 31 I/O devices on the Genius bus.
- Maximum data throughput capacity of 128 bytes.
- Compact module design with an IP20 ingress protection rating.
Technical Specifications
| Product Model |
IC693BEM331E |
| Series |
Series 90-30 |
| Module Type |
Genius Bus Interface |
| Power Supply |
5V DC (sourced from backplane) |
| Current Consumption |
<300mA at 5V DC |
| Max I/O Devices |
31 |
| Max Data Rate |
128 bytes |
| IP Rating |
IP20 |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Slide the module into the designated slot on the Series 90-30 backplane and secure it using the integrated mounting screws.
- Ensure proper grounding of the PLC rack to minimize electromagnetic interference (EMI).
- Verify that the Genius bus cabling is routed away from high-voltage lines or sources of electrical noise.
- Check the status LEDs after power-up to confirm the module is communicating correctly with the bus.
FAQ
What is the primary function of the IC693BEM331E?
This module acts as a Genius Bus Controller, enabling a Series 90-30 PLC to communicate with and control remote Genius I/O blocks across a distributed network.
How is the module powered?
The module draws its required 5V DC power directly from the Series 90-30 PLC backplane upon which it is mounted.
What do the status LEDs indicate?
The module features two LEDs: 'OK' indicates the module is functioning correctly, and 'COMM OK' indicates successful communication over the Genius bus network.
