Description

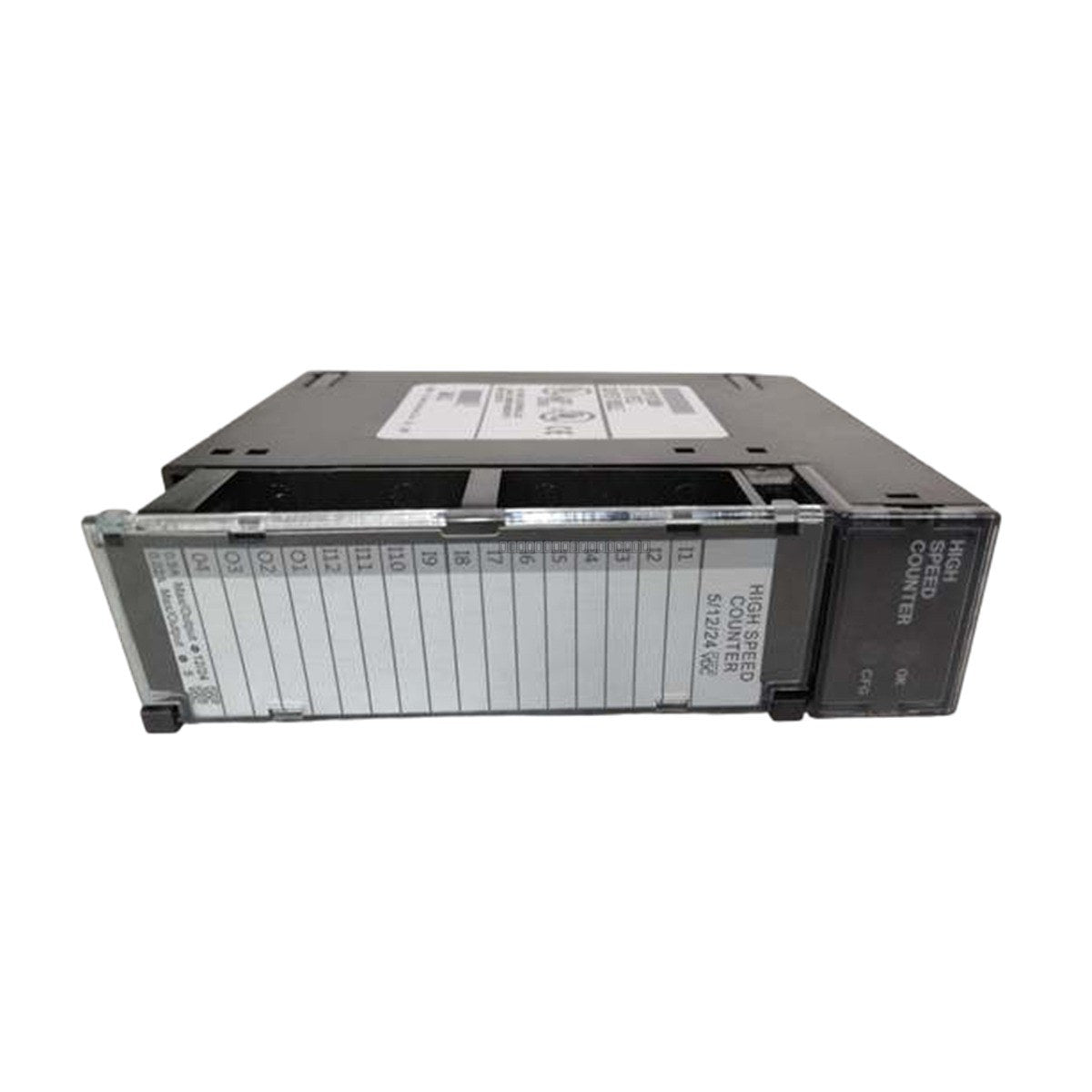

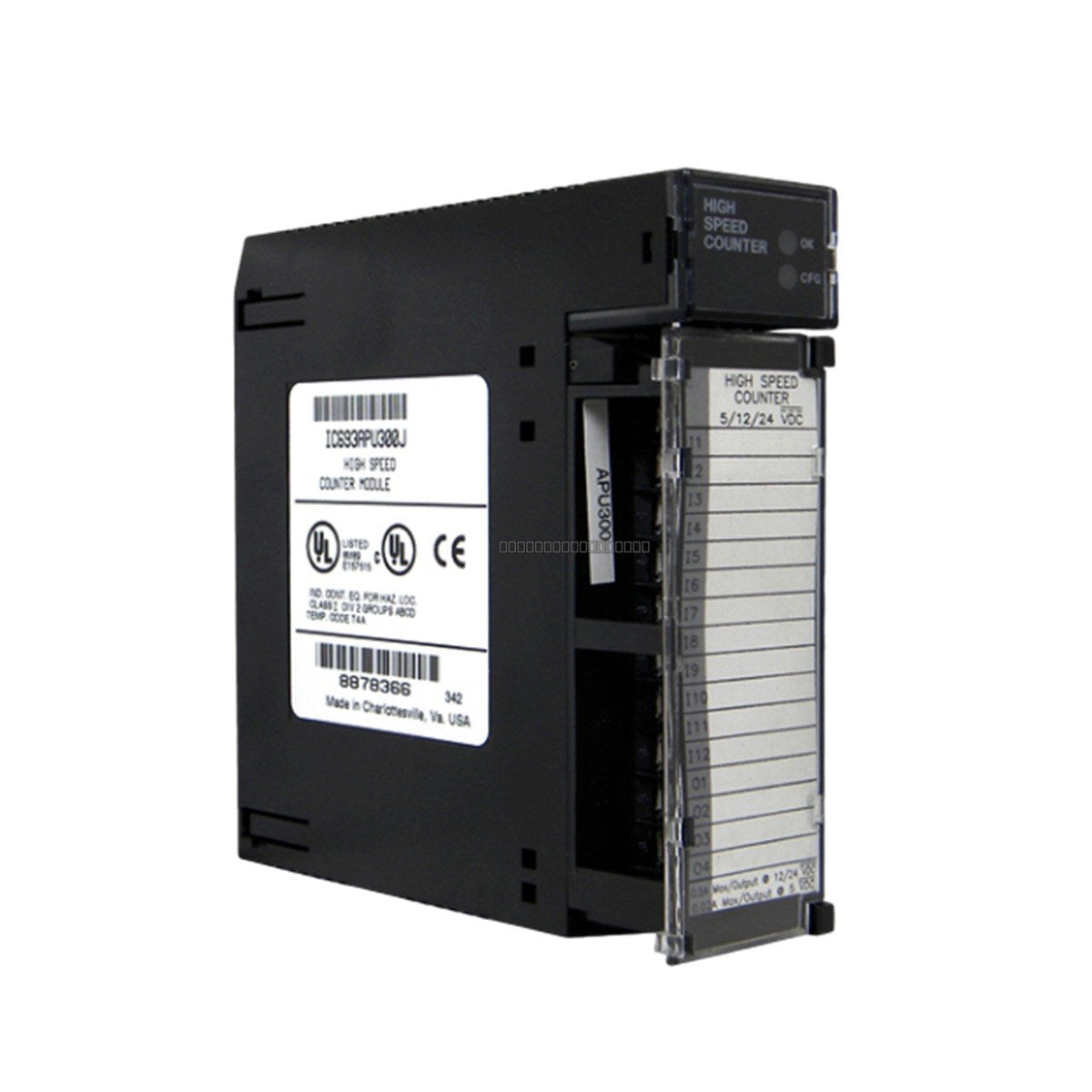

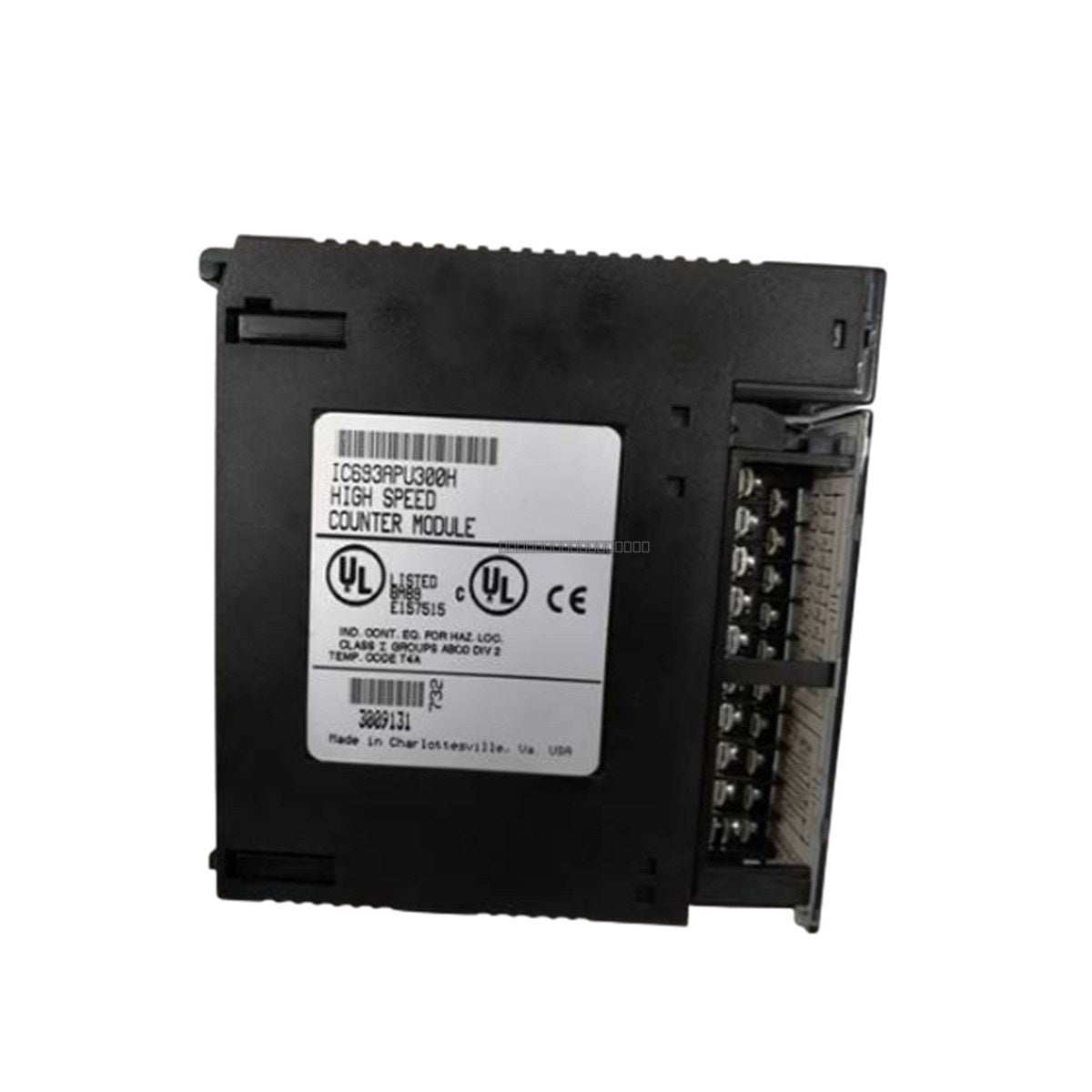

The GE Fanuc IC693APU300H is a high-speed counter (HSC) module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module is engineered to handle high-frequency pulse inputs, providing precise counting and timing capabilities required for industrial motion control, flow metering, and high-speed production line monitoring.
Features
- Twelve (12) positive logic input channels for versatile signal acquisition.
- Four (4) positive logic output channels for control and signaling.
- Supports a wide input signal voltage range from 5 VDC to 30 VDC.
- High-speed counting performance with rates up to 200 kHz.
- Integrated LED indicators for Board OK and Configuration OK status monitoring.
- Galvanic isolation rated at 250 Volts AC for enhanced system protection.
- Powered directly from the PLC backplane at 5 VDC.
Applications
This module is typically utilized in industrial automation environments requiring high-speed pulse processing, such as:
- Rotary encoder interfacing for position control.
- High-speed turbine or flow meter pulse counting.
- Batch counting and conveyor speed monitoring.
- Synchronization of high-speed manufacturing processes.
Technical Specifications
| Model |
IC693APU300H |
| Manufacturer |
General Electric (GE Fanuc) |
| Series |
Series 90-30 |
| Input Channels |
12 (Positive Logic) |
| Output Channels |
4 (Positive Logic) |
| Max Count Rate |
Up to 200 kHz |
| Input Voltage |
5 VDC, 10-30 VDC |
| Output Voltage Range |
10-30 VDC (at 500 mA) / 4.75-6 VDC (at 20 mA) |
| Backplane Power |
250 mA at 5 VDC |
| Isolation |
250 Volts AC |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the module from the rack.
- Install the module in an appropriate Series 90-30 I/O slot, ensuring the backplane connector is fully seated and the module is secured with the provided mounting screws.
- Use shielded cabling for high-speed pulse inputs to minimize electromagnetic interference (EMI).
- Maintain proper grounding practices for the PLC chassis to ensure signal integrity and safety.
- Ensure the operating environment is within the specified temperature ranges and free from excessive dust or corrosive gases.
FAQ
What is the primary function of the IC693APU300H?
The IC693APU300H is a specialized I/O module for the GE Series 90-30 PLC that counts high-frequency pulses from external devices like encoders or sensors and provides high-speed output control based on those counts.
Is this module compatible with all Series 90-30 racks?
Yes, this module is designed for standard Series 90-30 PLC backplanes. Please ensure your specific CPU and rack configuration support the power requirements of this module.
