Description

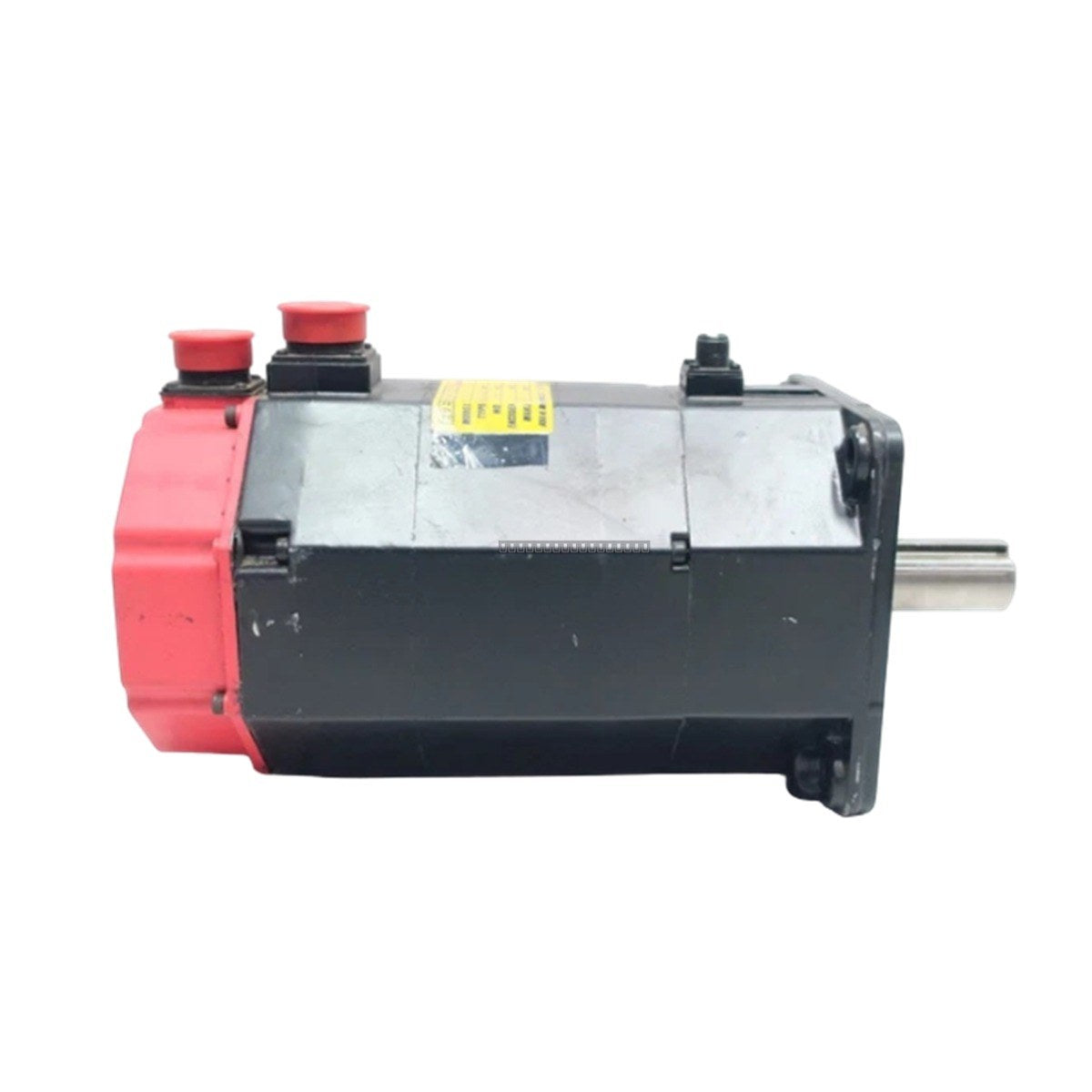

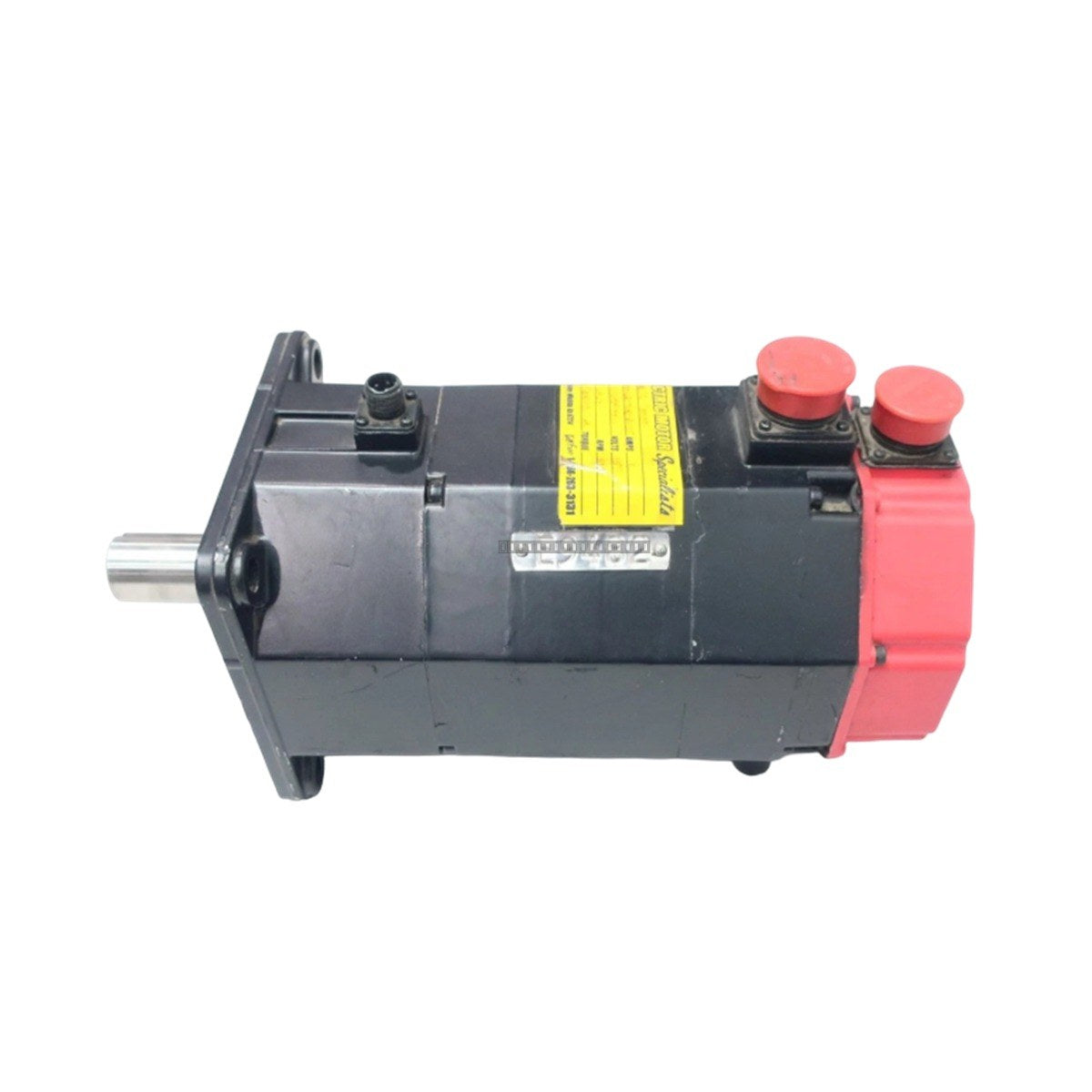

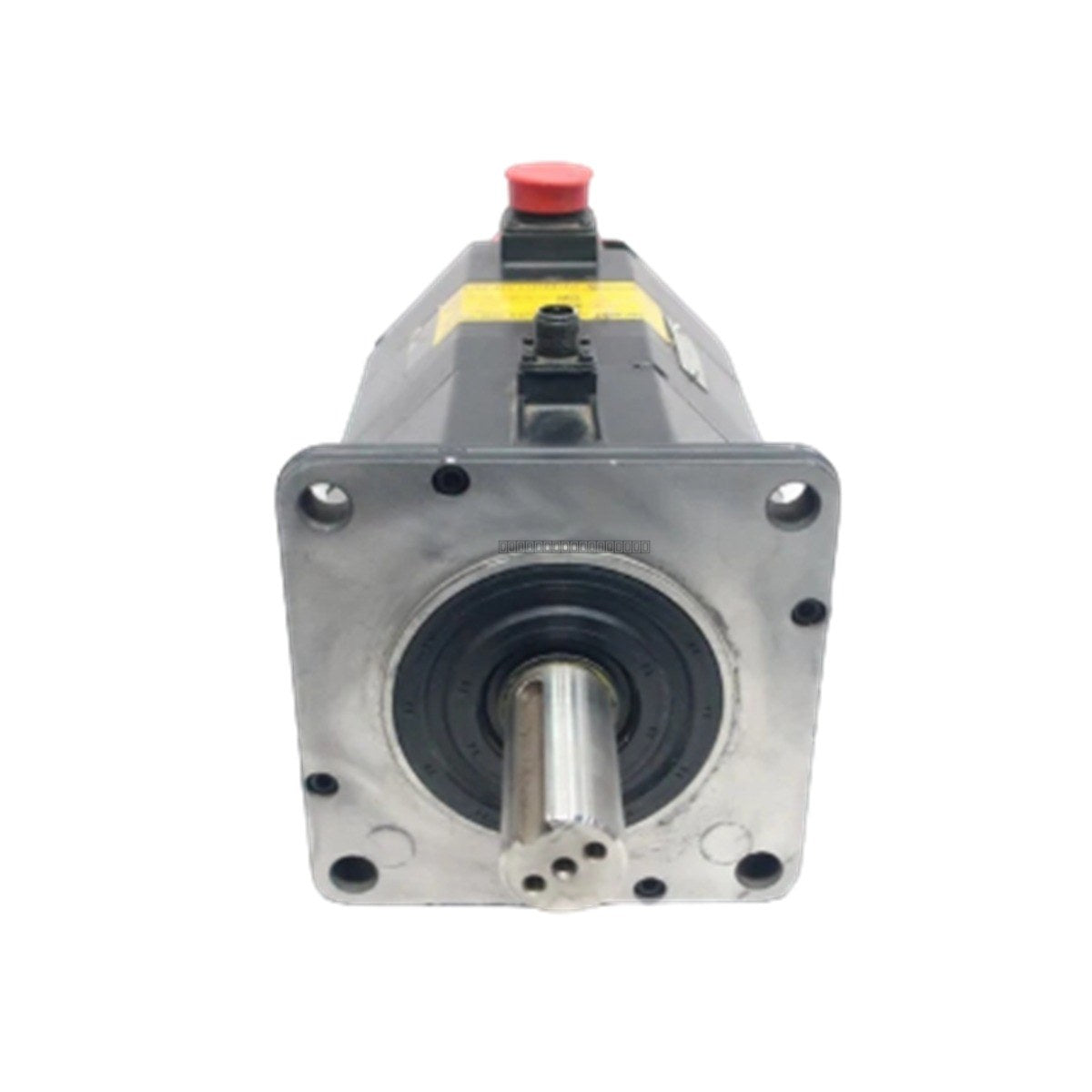

The General Electric A06B-0143-B175 is a high-performance AC servo motor designed for precision motion control in CNC machinery. This unit, part of the A12/3000 series, features an integrated brake and a straight shaft configuration, providing reliable torque and positioning accuracy for demanding industrial automation applications.
Features
- Integrated brake for secure holding and emergency stopping
- Straight shaft design for standard mechanical coupling
- Rated for 2.8 kW power output
- Optimized for 3000 RPM operation
- Robust 3-phase AC design
Applications
This servo motor is primarily utilized in CNC machine tools, robotic systems, and automated manufacturing lines requiring high-speed, high-precision rotational control.
Technical Specifications
| Model |
A06B-0143-B175 |
| Rated Voltage |
155 V |
| Rated Current |
12 A (rms) |
| Max Current |
20 A (rms) |
| Rated Power |
2.8 kW |
| Rated Speed |
3000 RPM |
| Frequency |
200 Hz |
| Power Factor |
0.95 |
| Operating Temperature |
0 degC to +40 degC |
| Storage Temperature |
-20 degC to +85 degC |
| Humidity |
20 to 90 % RH (non-condensing) |
Installation Guidelines
- Ensure the motor is mounted on a rigid, vibration-free surface to prevent mechanical resonance.
- Verify that the shaft alignment is precise to avoid excessive radial or axial load on the bearings.
- Use shielded cables for power and encoder connections to minimize electromagnetic interference (EMI).
- Ensure adequate ventilation around the motor housing to maintain operating temperatures within the specified 0 to 40 degC range.
- Always disconnect power before performing any wiring, inspection, or maintenance on the motor or its drive interface.
- Confirm that the grounding path is secure and follows local electrical safety standards to prevent ground loops.
FAQ
What is the primary function of the A06B-0143-B175?
This is an AC servo motor used for precise motion control in CNC systems, capable of delivering 2.8 kW of power at 3000 RPM.
Does this motor include a brake?
Yes, this model (A06B-0143-B175) is equipped with an integrated brake for holding applications.
What are the environmental requirements for this motor?
The motor should be operated in an ambient temperature range of 0 degC to 40 degC with a non-condensing humidity level between 20% and 90%.
