Description

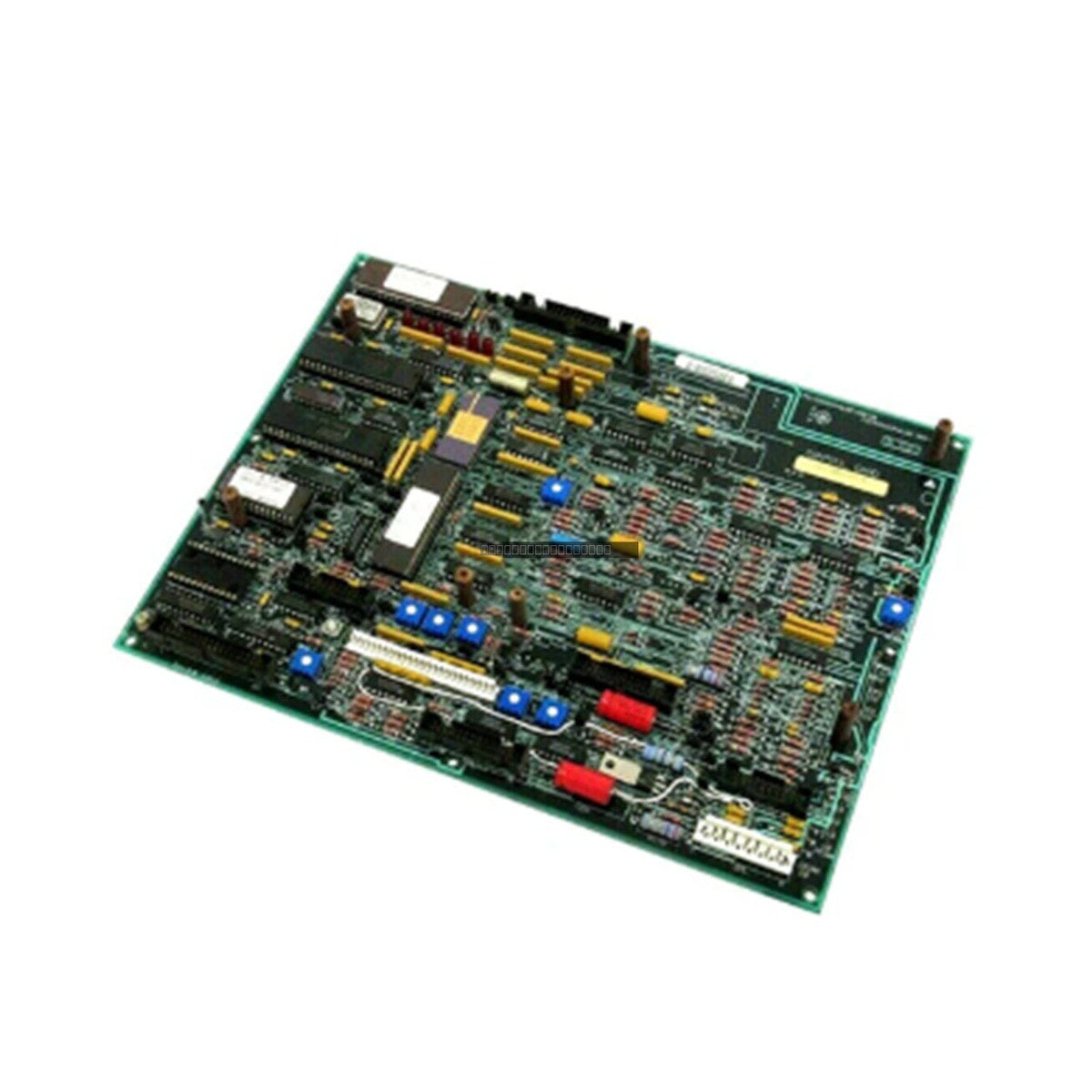

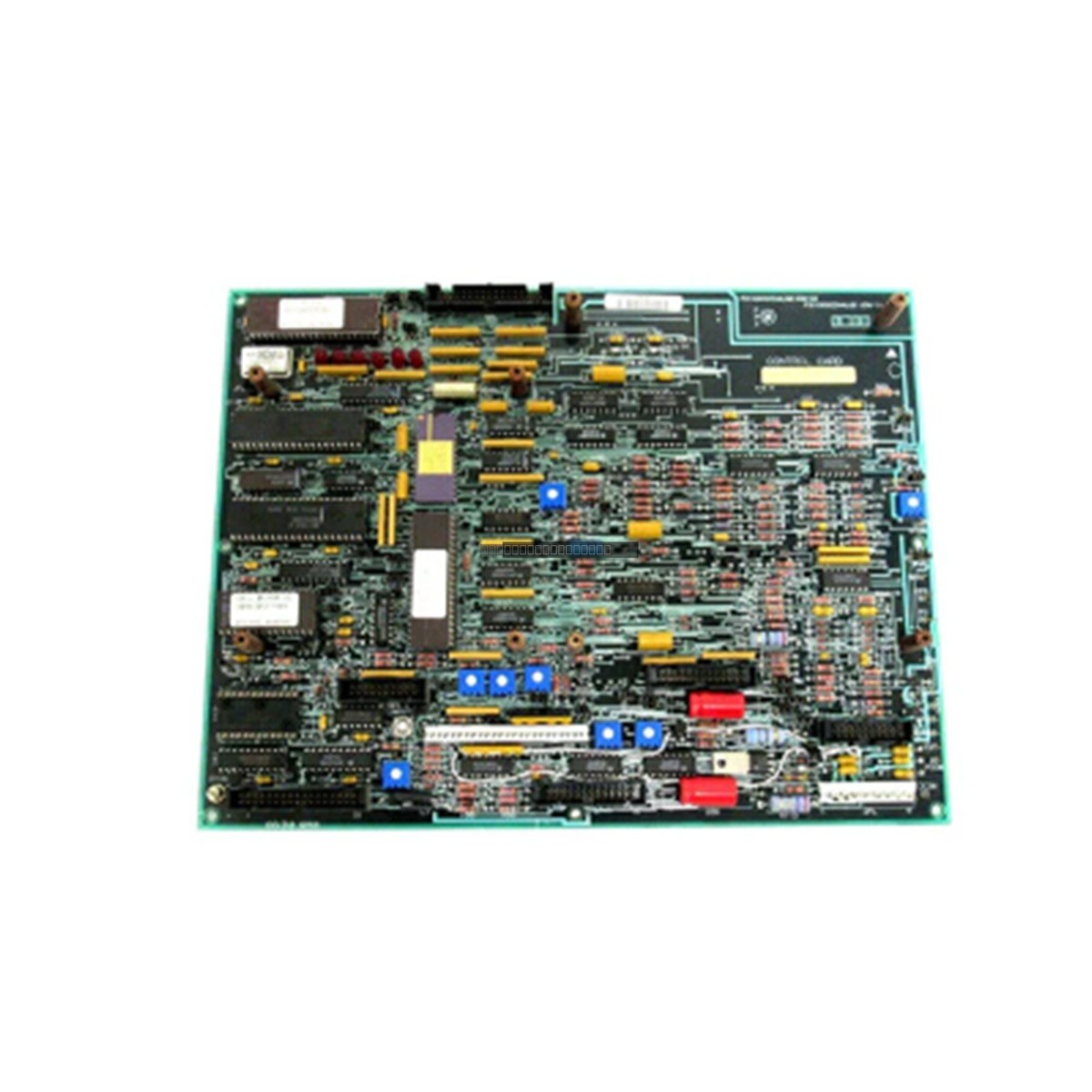

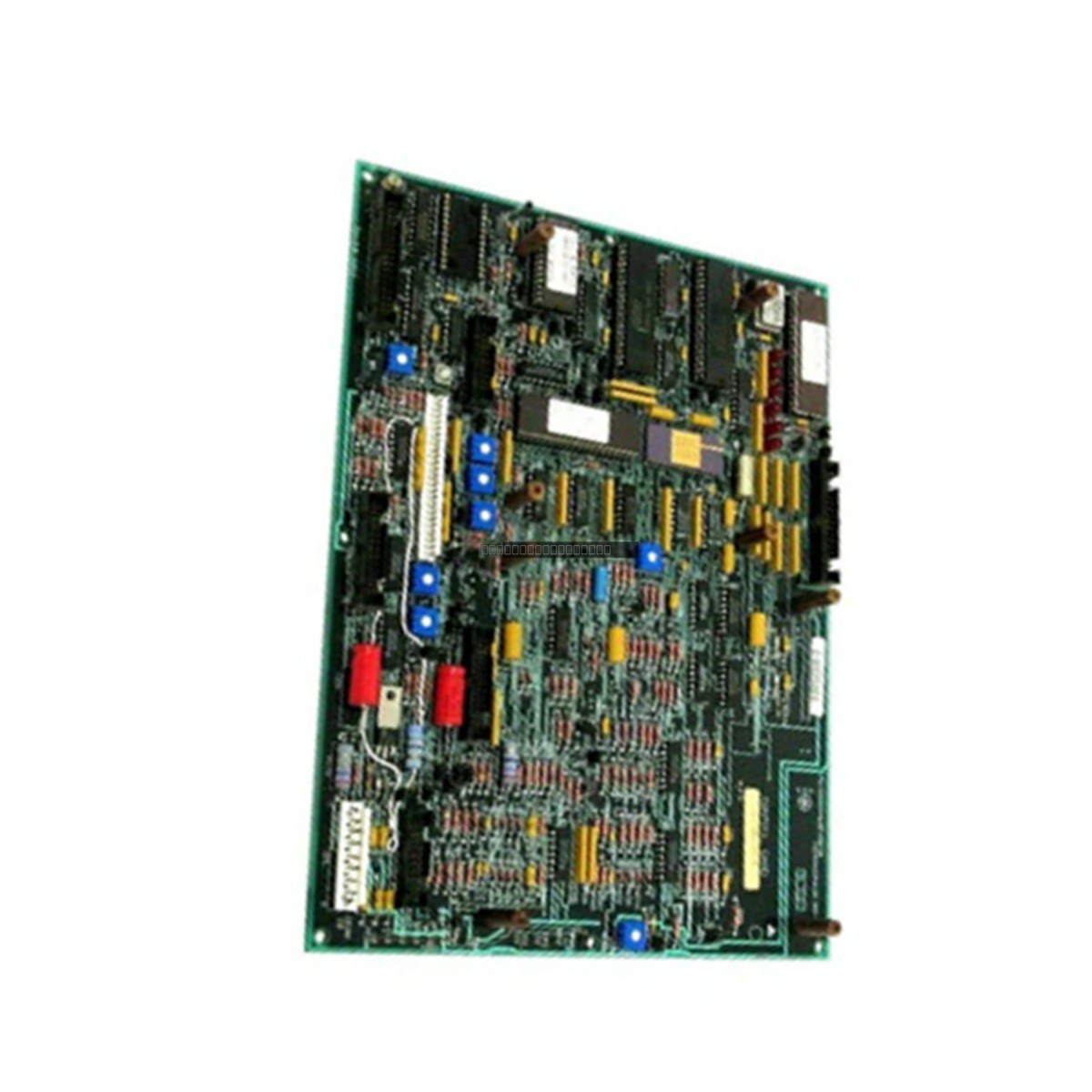

The 531X300CCHBDM3 is a specialized Control Card within the GE AX Control series, designed for legacy General Electric drive systems including the DC 300 platform. This board serves as the central logic unit for drive regulation, enabling precise motor control and signal processing in demanding industrial environments. It is a critical component for maintaining legacy infrastructure in sectors such as steel manufacturing, paper processing, and heavy-duty material handling, providing a reliable replacement for aging or failing control hardware.
Features
-
Signal Regulation: Equipped with eight potentiometers for precise adjustment of control parameters and analog signal scaling.
-
Diagnostic Interface: Features six red LED status indicators and a dedicated manual reset switch to facilitate efficient system troubleshooting.
-
Hardware Architecture: High-density PCB design featuring integrated circuits and robust power filtering components, including transformers and capacitors for stable voltage distribution.
-
Modular Expansion: Includes two sets of four standoffs to support the integration of auxiliary boards via vertical pin headers.
-
Mechanical Design: Factory-drilled at all four corners to support standard rack or panel mounting within industrial drive enclosures.
Applications
This control board is primarily utilized in legacy GE drive systems, specifically the DC 300 series. It is essential for industrial automation applications requiring reliable motor speed and torque regulation, particularly in heavy manufacturing and continuous process lines where legacy hardware must be maintained to avoid costly system overhauls.
Technical Specifications
| Model |
531X300CCHBDM3 |
| Brand |
General Electric (GE) |
| Series |
AX Control Series |
| Application |
DC 300 Drive Systems |
| Mounting |
4-point corner hole |
| Expansion |
Dual 4-standoff support |
| Diagnostics |
6 x Status LEDs, 1 x Reset switch |
| Adjustments |
8 x Multi-turn potentiometers |
| Operating Temperature |
0 to 50 degC |
Installation Guidelines
-
ESD Precautions: Always handle the PCB by its edges. Use a grounded wrist strap and an anti-static mat to prevent electrostatic discharge damage to sensitive ICs.
-
Power Down: Ensure the drive system is fully de-energized and locked out before attempting to install or remove the control board.
-
Mounting: Secure the board using the four corner mounting holes. Ensure the board is properly seated and that all auxiliary board pin headers are aligned before applying pressure.
-
Wiring: Verify that all cable connectors are fully seated and locked. Ensure that shielded cables are routed away from high-power AC lines to minimize electromagnetic interference (EMI).
-
Calibration: After installation, verify the settings of the eight onboard potentiometers to ensure they match the requirements of the specific drive application.
FAQ
Is the 531X300CCHBDM3 compatible with other GE drive series?
This board is specifically designed for the GE AX Control series and the DC 300 drive platform. Compatibility with other series is not guaranteed and should be verified against your specific drive system documentation.
What should I do if the status LEDs indicate a fault?
The six status LEDs provide diagnostic feedback. Consult your specific GE DC 300 drive maintenance manual to interpret the LED patterns. If a fault persists after a manual reset, check the potentiometer settings and ensure all auxiliary board connections are secure.
