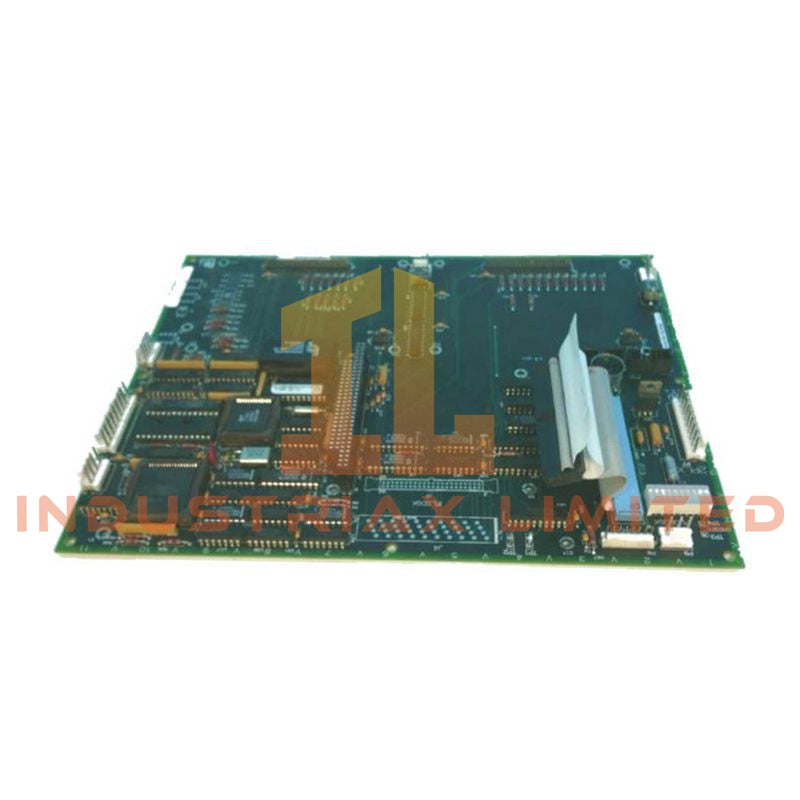

GE DS215TCQAG1BZZ01A TCQA Analog I/O Board

The GE DS215TCQAG1BZZ01A, also cataloged as the DS215TCQA Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition and output execution within GE Mark V Speedtronic turbine control system platforms. It processes temperature, pressure, flow, and vibration signals through onboard conversion and conditioning circuits.

Suffix Breakdown & Model Matrix

Segment	Description
DS215	GE Mark V board family designation
TCQA	TCQA analog I/O functional acronym
G1	Hardware configuration identifier
B	Functional revision 1
ZZ	Functional revision 2 designation
01A	Artwork revision identifier

Hardware Specifications

Parameter	Specification
Model	DS215TCQAG1BZZ01A
Brand	GE
Origin	United States
Weight	0.39 kg
Dimensions	262 x 185 x 39 mm
Operating Temp	-40 to +70 deg C
Product Type	Analog I/O Boards
Series	Mark V LM
Functional Acronym	TCQA
Functional Description	Circuit Board and Firmware
Power Supply	24 VDC
Input Signals	Temperature, pressure, flow, vibration, and analog process signals
Output Signals	Analog control signals for turbine subsystems
Communication Interfaces	RS-485, CAN, Modbus TCP/IP depending on revision
Signal Processing	Analog-to-digital conversion and analog output control
PCB Coating	Normal coating
Mounting Type	Mark V rack/backplane installation

GE Mark V Analog I/O Processing and Deterministic Control Interface

The DS215TCQAG1BZZ01A provides analog input acquisition and output control functions within the GE Mark V LM control platform. The board converts field sensor signals into processed data values and transfers control information through the turbine controller backplane architecture.

The TCQA board supports I/O density scaling within Mark V turbine control configurations by handling multiple analog channels through high-density connectors. Signal conditioning circuits perform input stabilization, conversion, and diagnostic verification for connected field devices.

GE Mark V Firmware and Backplane Compatibility

The DS215TCQAG1BZZ01A includes board-level firmware support for Mark V R/S/T core compatibility. The revision identifiers B and Z define functional modifications and firmware/artwork configuration states that must match the installed control rack requirements.

The board uses GE Mark V deterministic communication architecture rather than modern Ethernet field networks. Backplane communication timing is controlled by the associated processor modules for synchronized turbine monitoring and control operations.

Frequently Asked Questions

Q: Does the DS215TCQAG1BZZ01A operate as a standalone controller?
A: No. The TCQA board functions as an analog I/O interface module and requires integration with GE Mark V processor and rack assemblies.

Q: What field signals can be connected to the DS215TCQAG1BZZ01A?
A: The board processes analog signals including temperature, pressure, flow, vibration, and other turbine monitoring inputs.

Q: Are firmware and revision compatibility required for replacement installation?
A: Yes. Functional revision and firmware configuration must match the installed Mark V system architecture.

Field Installation Guidelines

Install the DS215TCQAG1BZZ01A into the designated GE Mark V rack slot and verify backplane connector alignment before applying power.

Connect analog field wiring according to cabinet documentation. Use shielded instrumentation cables where required and terminate shields according to grounding practices to reduce noise coupling.

Separate analog signal wiring from high-current power conductors. Confirm board revision, firmware compatibility, and connector seating before commissioning the turbine control system.

Spesifikasi

• Merek: General Electric
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
