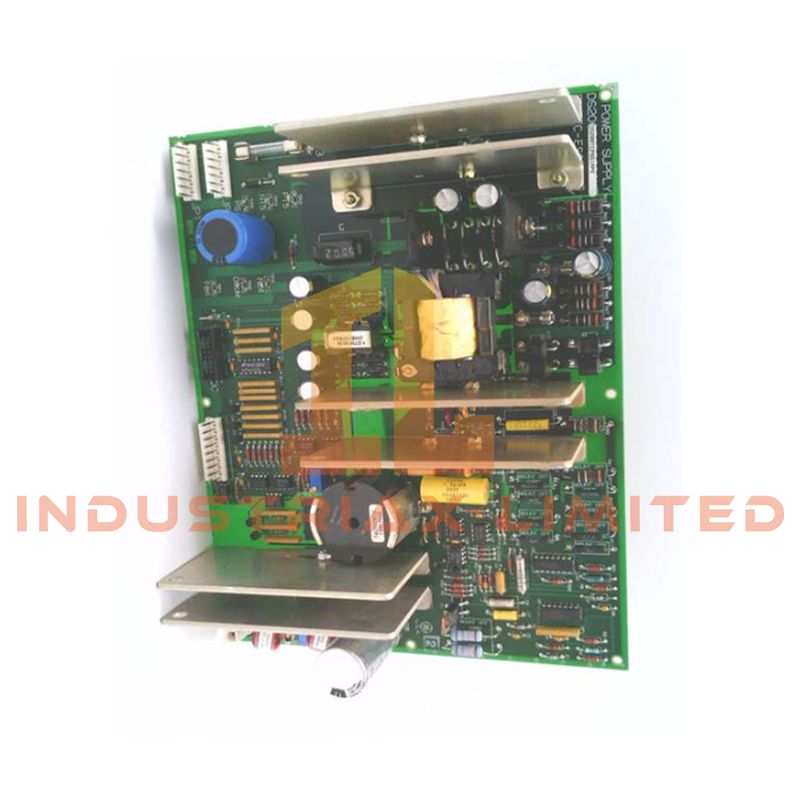

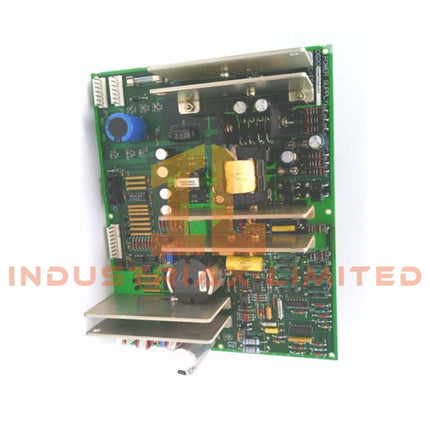

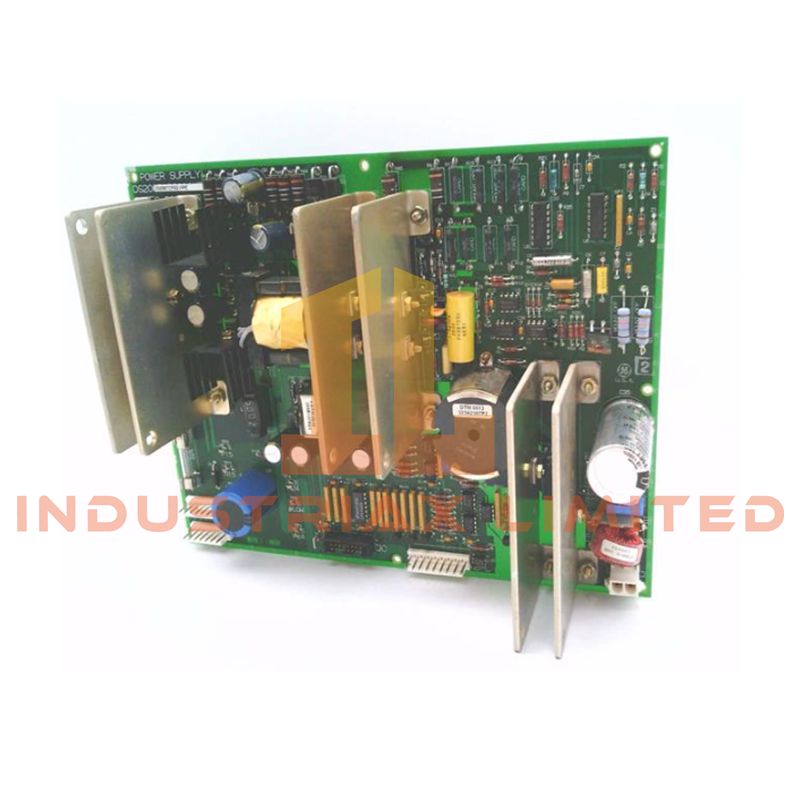

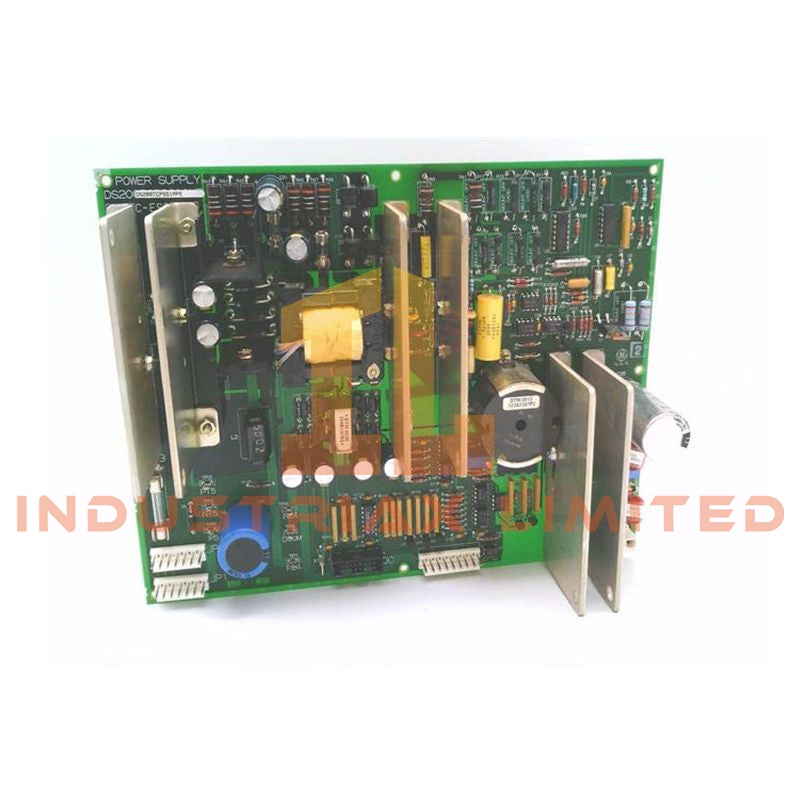

GE DS200TCPSG1APE Power Supply Board

The GE DS200TCPSG1APE, also cataloged as the DS200TCPS Power Supply Board, operates as a dedicated hardware component for regulated DC power conversion and voltage rail distribution within GE Mark V Speedtronic turbine control systems.

Hardware Specifications

Parameter	Specification
Model	DS200TCPSG1APE
Brand	GE
Origin	United States
Weight	2.60 lbs
Dimensions	280 x 200 x 30 mm
Operating Temp	-30 to +65 deg C
Product Type	Power Supply Boards
Functional Acronym	TCPS
Functional Description	DC Power Supply Input Board
Input Voltage	115/230 VAC, 50/60 Hz
DC Outputs	+5 VDC @ 15 A, +15 VDC @ 2 A, -15 VDC @ 2 A, +24 VDC @ 1 A
Regulation Accuracy	+/-2%
Ripple and Noise	<50 mV RMS
Isolation	2500 VAC input-to-output isolation
Protection Functions	Overvoltage, overcurrent, and thermal shutdown
Connectors	Backplane edge connector and terminal blocks
Cooling Method	Convection cooling with optional forced air
PCB Coating	Normal coating
Assembly Type	Normal Assembly

GE Mark V Power Distribution and Firmware Compatibility

The DS200TCPSG1APE provides regulated DC voltage rails for GE Mark V processor and I/O control boards. The board converts incoming AC power into controlled DC outputs required by system modules, including logic and analog supply rails.

The power architecture supports GE industrial control platforms through backplane power distribution. Voltage rail monitoring is provided through onboard LED indicators for status verification of the generated supplies.

For GE Mark V systems, firmware and hardware revision compatibility must be verified before replacement. The DS200TCPSG1APE includes revision identifiers that define board configuration and compatibility with installed Mark V assemblies.

Frequently Asked Questions

Q: What DC voltage outputs are generated by the GE DS200TCPSG1APE?
A: The board provides regulated +5 VDC, +15 VDC, -15 VDC, and +24 VDC output rails for Mark V control modules.

Q: What protection functions are integrated into the DS200TCPSG1APE power supply board?
A: The board includes overvoltage protection, overcurrent protection, and thermal shutdown functions for power circuit protection.

Q: Can the DS200TCPSG1APE be installed in systems other than GE Mark V?
A: No. The board is designed for GE Mark V Speedtronic control systems and requires compatible rack hardware and power distribution connections.

Field Installation Guidelines

Install the DS200TCPSG1APE in the designated GE Mark V rack position and verify backplane connector alignment before energizing the system.

Disconnect input power before board replacement. Inspect terminal blocks, edge connectors, and PCB surfaces for contamination or mechanical damage before installation.

Maintain separation between AC input wiring and low-level control signal cables to reduce electrical interference. Follow site grounding procedures for protective earth and shield termination. Use ESD protection when handling the board to prevent damage to power control and monitoring circuits.

Confirm voltage rail output measurements and board revision compatibility before returning the Mark V control system to operation.
