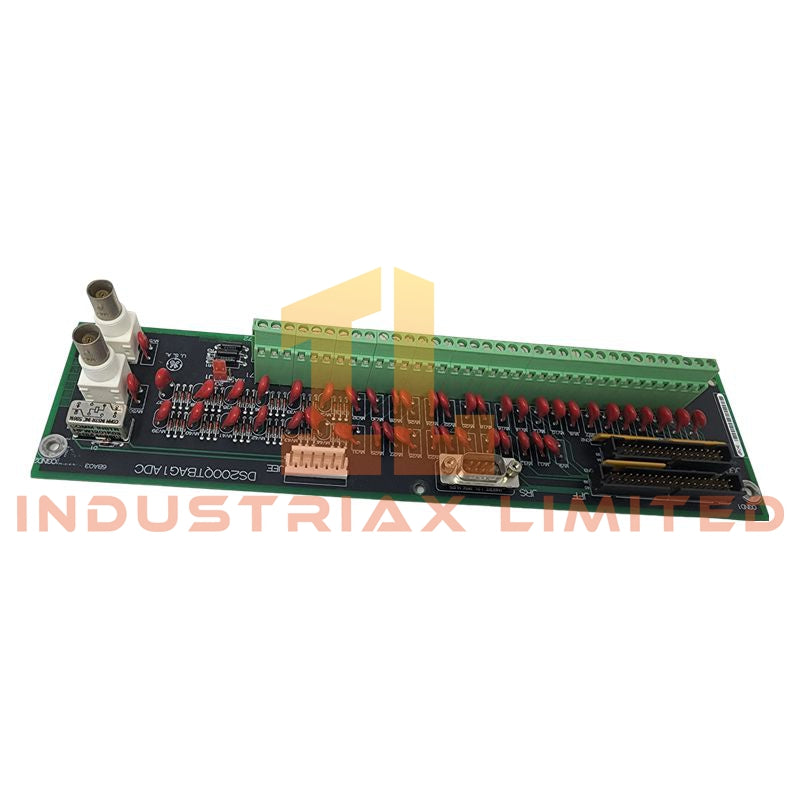

GE DS200QTBAG1ADC Analog I/O Terminal Board

The GE DS200QTBAG1ADC, also cataloged as the DS200QTBA Analog I/O Terminal Board, operates as a dedicated hardware component for analog signal termination and conditioning within GE Mark V Speedtronic turbine control systems. It interfaces with LVDT feedback, servo valve outputs, magnetic pulse inputs, and generator power signals through field wiring connections.

Hardware Specifications

Parameter	Specification
Model	DS200QTBAG1ADC
Brand	GE Energy
Origin	United States
Weight	0.40 kg
Dimensions	25.9 x 16.0 x 6.4 cm
Operating Temp	-40 to +85 deg C
Power Consumption	Not specified
Product Type	Analog I/O Terminal Board
Series	Mark V Speedtronic / EX2000 Configuration
Signal Inputs	6 magnetic pulse frequency inputs, 0-10 kHz
LVDT Channels	6 channels with 5 kHz / 10 VAC excitation
Servo Outputs	8 channels, 4-20 mA / +/-10 V outputs
Resolution	16-bit analog resolution
Analog Accuracy	+/-0.5%
Servo Output Accuracy	+/-0.05%
Response Time	<=5 ms
Isolation Voltage	1000 V AC continuous
Surge Protection	130 V AC MOV protection per channel
Connectors	2 terminal blocks with 72 signals each, 1 x 40-pin JFF connector
Communication Interface	RS-232 / RS-485 diagnostic port
PCB Protection	Conformal coating with EMI resistance
Hot-Swap Capability	Supported
Diagnostics	LED signal status indicators

GE Mark V Analog Signal Interface Characteristics

The DS200QTBAG1ADC terminal board provides signal routing and conditioning functions between field devices and GE Mark V control modules. The board processes analog feedback loops including LVDT actuator position signals, servo valve command outputs, turbine speed pulse signals, and generator measurement inputs.

The analog channels support 16-bit conversion resolution for turbine control signal processing. LVDT interface circuits provide excitation and feedback demodulation functions for actuator position measurement. Servo output channels support electro-hydraulic valve command transmission with fast signal response characteristics.

The board architecture supports deterministic signal handling within Mark V turbine control configurations. Terminal connections provide field wiring termination, while the JFF connector provides internal control system interface connections.

Frequently Asked Questions

Q: What field signals can the DS200QTBAG1ADC process?
A: The board supports LVDT feedback channels, magnetic pulse frequency inputs, servo valve analog outputs, and generator power transmitter signals within Mark V control configurations.

Q: Does the DS200QTBAG1ADC support hot swapping?
A: The board supports hot-swap capability. Field replacement procedures must follow GE Mark V system maintenance requirements to avoid signal calibration or wiring errors.

Q: What type of diagnostic interface is available on this terminal board?
A: The board provides LED status indicators and RS-232/RS-485 serial communication connections for diagnostic monitoring.

Field Installation Guidelines

Install the DS200QTBAG1ADC according to GE Mark V cabinet wiring procedures. Verify terminal block assignments before connecting field devices, especially for LVDT excitation, servo outputs, and pulse input circuits.

Use shielded cables for analog signal wiring where required. Connect cable shields according to the cabinet grounding scheme to reduce electromagnetic interference on low-level feedback signals. Separate analog signal cables from high-current power conductors and switching circuits.

Confirm connector seating, terminal torque, and board alignment before system energization. During replacement operations, record existing wiring positions and verify signal calibration after installation.
