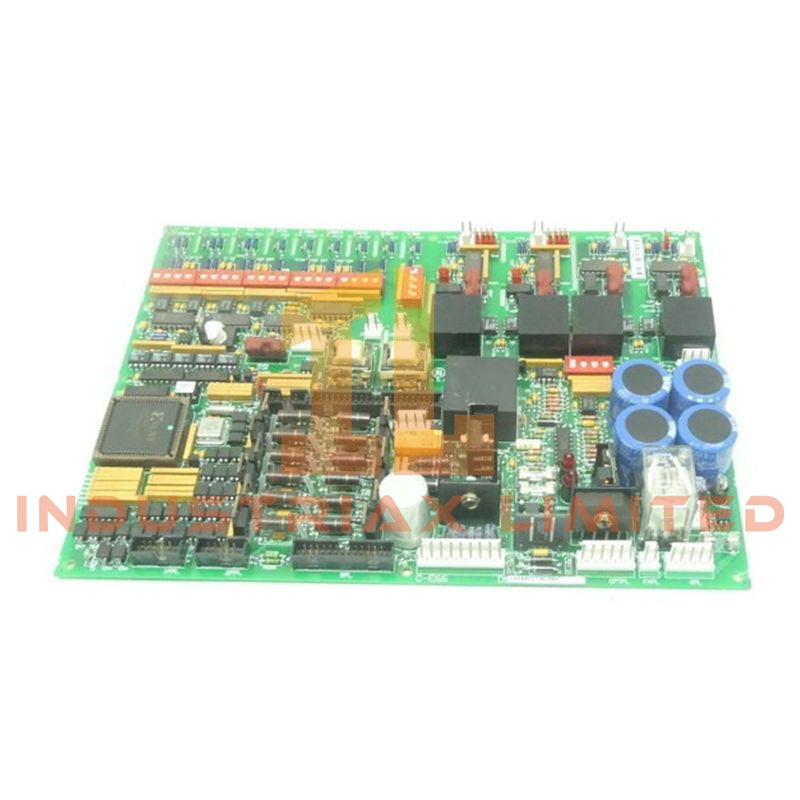

GE DS200DCFBG2BNC DC Feedback Power Supply Board
The GE DS200DCFBG2BNC, also cataloged as the DS200DCFB DC Feedback Power Supply Board, operates as a dedicated hardware component for regulated DC power distribution and feedback signal processing within GE Mark V Speedtronic turbine control system platforms. It provides control-level voltage regulation, feedback monitoring, and protection circuit execution for drive control interfaces.
Hardware Specifications
Parameter
Specification
Model
DS200DCFBG2BNC
Brand
GE
Origin
United States
Weight
0.75 kg
Power Consumption
Powered from GE Mark V control system supply circuits
3 protective fuses with LED/neon status indicators
Feedback Functions
Voltage and current feedback monitoring
GE Mark V DC Power Feedback and Control Interface
The DS200DCFBG2BNC integrates DC power regulation and feedback processing functions for GE Mark V turbine control architectures. The board contains voltage/current feedback circuits, protection components, transformers, relays, and switching elements used for controlled power conversion and monitoring.
The DS200DCFB board family supports industrial control hardware configuration through DIP switch selections and jumper settings. These configuration elements allow adjustment of AC line voltage selection and DC bridge or motor voltage feedback VCO circuits according to system requirements.
Industrial Control Bus and Hardware Configuration
The DS200DCFBG2BNC follows GE Speedtronic Mark V hardware design practices for rack-based controller integration. The board revision structure includes functional, hardware, and artwork modifications identified by the B, N, and C revision identifiers. Compatibility with earlier DS200DCFBG2 assemblies allows integration into existing control rack configurations.
Frequently Asked Questions
Q: Does the DS200DCFBG2BNC contain independent application firmware? A: No. The board operates as a hardware power supply and feedback interface module. Control logic and system diagnostics are executed by connected GE Mark V processor assemblies.
Q: What protection functions are integrated into the board? A: The board includes short-circuit protection, thermal monitoring circuits, fuse protection, and LED/neon indicators for fuse status observation.
Q: What configuration elements are available on the board? A: The DS200DCFBG2BNC provides DIP switches and jumper points for hardware configuration, including voltage selection and feedback circuit settings.
Field Installation Guidelines
Install the DS200DCFBG2BNC into the designated GE Mark V rack position and verify all plug and stab connector alignment before applying power.
Inspect connector contacts, fuse indicators, and board mounting points during installation. Maintain proper separation between power wiring and low-level feedback signal wiring to reduce electrical noise coupling.
Connect grounding and shielding according to GE cabinet wiring practices. Confirm jumper and DIP switch positions match the required turbine control configuration before system startup.
