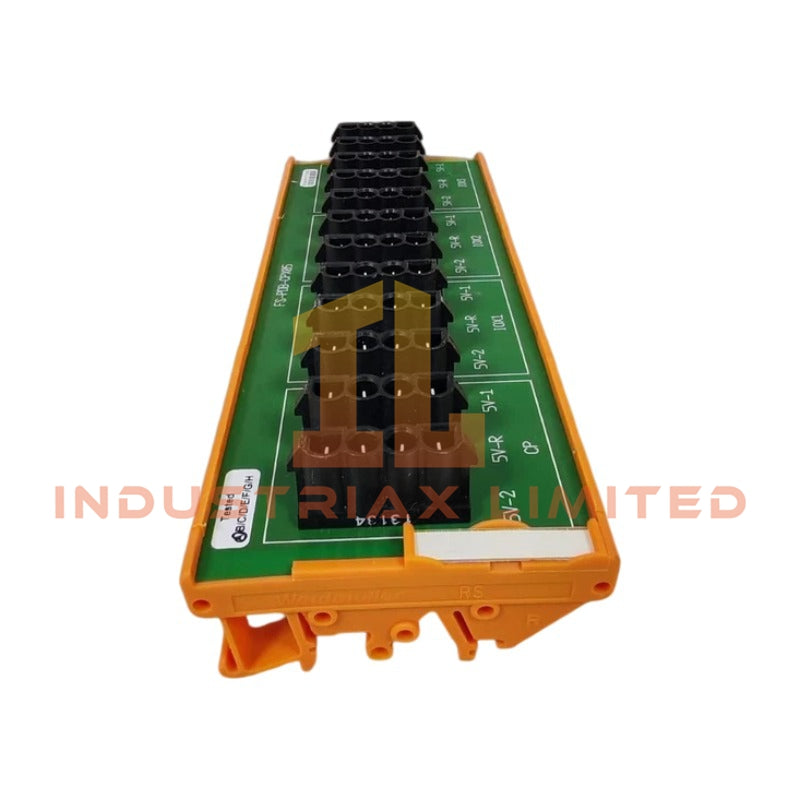

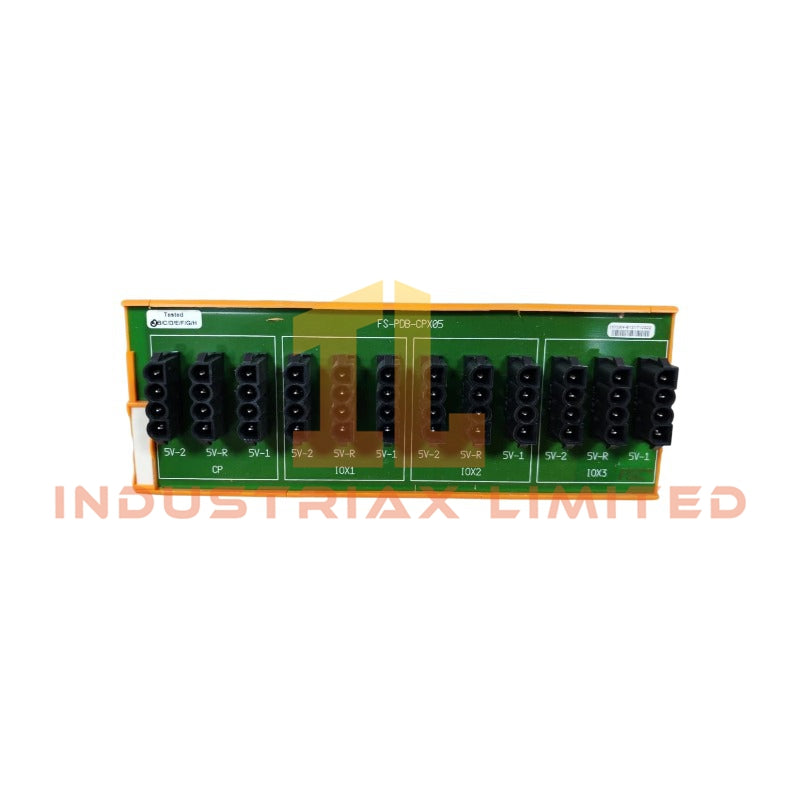

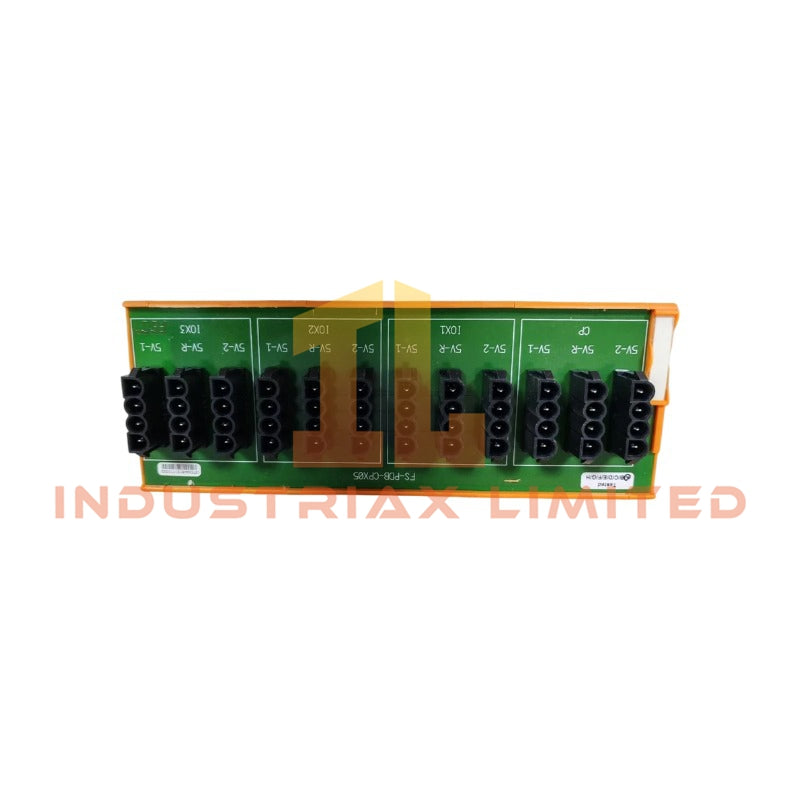

Honeywell FS-PDB-CPX05 Power Distribution Board

Configured for 5 VDC rail distribution in Honeywell controller chassis assemblies, the Honeywell FS-PDB-CPX05 (FS-PDB-CPX05 Power Distribution Board) provides direct physical power routing between controller hardware sections.

Hardware Specifications

Parameter	Specification
Model	FS-PDB-CPX05
Brand	Honeywell
Product Type	Power Distribution Board
Origin	USA
Weight	0.22 kg
Dimensions	17.1 x 7.1 x 5.8 cm (shipping size)
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Passive power distribution board; powered from controller chassis 5 VDC rails
Input Voltage	From controller chassis 5 VDC rails
Connector Type	4-pin action-pin header
Mounting Type	DIN-rail TS32 / TS35 x 7.5 mm
Humidity	Up to 95% RH, non-condensing
Tariff Code	8537101190
Shipment Location	Xiamen, China

Honeywell Process Control Power Distribution Characteristics

The FS-PDB-CPX05 distributes controller chassis 5 VDC supply rails through a dedicated power distribution interface. The board uses a 4-pin action-pin header connection to transfer electrical power between compatible Honeywell control hardware assemblies.

Furthermore, the board supports DIN-rail installation with TS32 and TS35 x 7.5 mm mounting methods. The mechanical design allows integration into Honeywell controller cabinet arrangements while maintaining defined wiring paths.

The module operates as a passive distribution component and does not provide process signal conversion, 4-20 mA HART loop communication, FOUNDATION Fieldbus connectivity, or Profibus PA interface functions. Its electrical role remains limited to chassis-level DC power routing.

Frequently Asked Questions

Q: Does the FS-PDB-CPX05 perform voltage conversion or regulation?
A: No. The FS-PDB-CPX05 receives 5 VDC rails from the controller chassis and distributes the supplied voltage through its connector interface.

Q: What mounting hardware is compatible with the FS-PDB-CPX05?
A: The board supports DIN-rail mounting configurations using TS32 and TS35 x 7.5 mm rails.

Q: Can the FS-PDB-CPX05 be used for analog or digital I/O signal connections?
A: No. The board is designed for power distribution only and does not process field input or output signals.

Field Installation Guidelines

• Install the FS-PDB-CPX05 on a compatible DIN rail using the specified TS32 or TS35 x 7.5 mm mounting method.
• Verify that the controller chassis provides the required 5 VDC supply rail before connection.
• Inspect the 4-pin action-pin header for correct alignment before insertion.
• Route power wiring separately from high-noise signal cables to reduce electrical interference.
• Maintain proper cabinet grounding practices according to the control system installation standard.
• Check connector seating after installation to prevent intermittent power distribution faults.
• Avoid applying external voltages to unused connection points.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
