Description

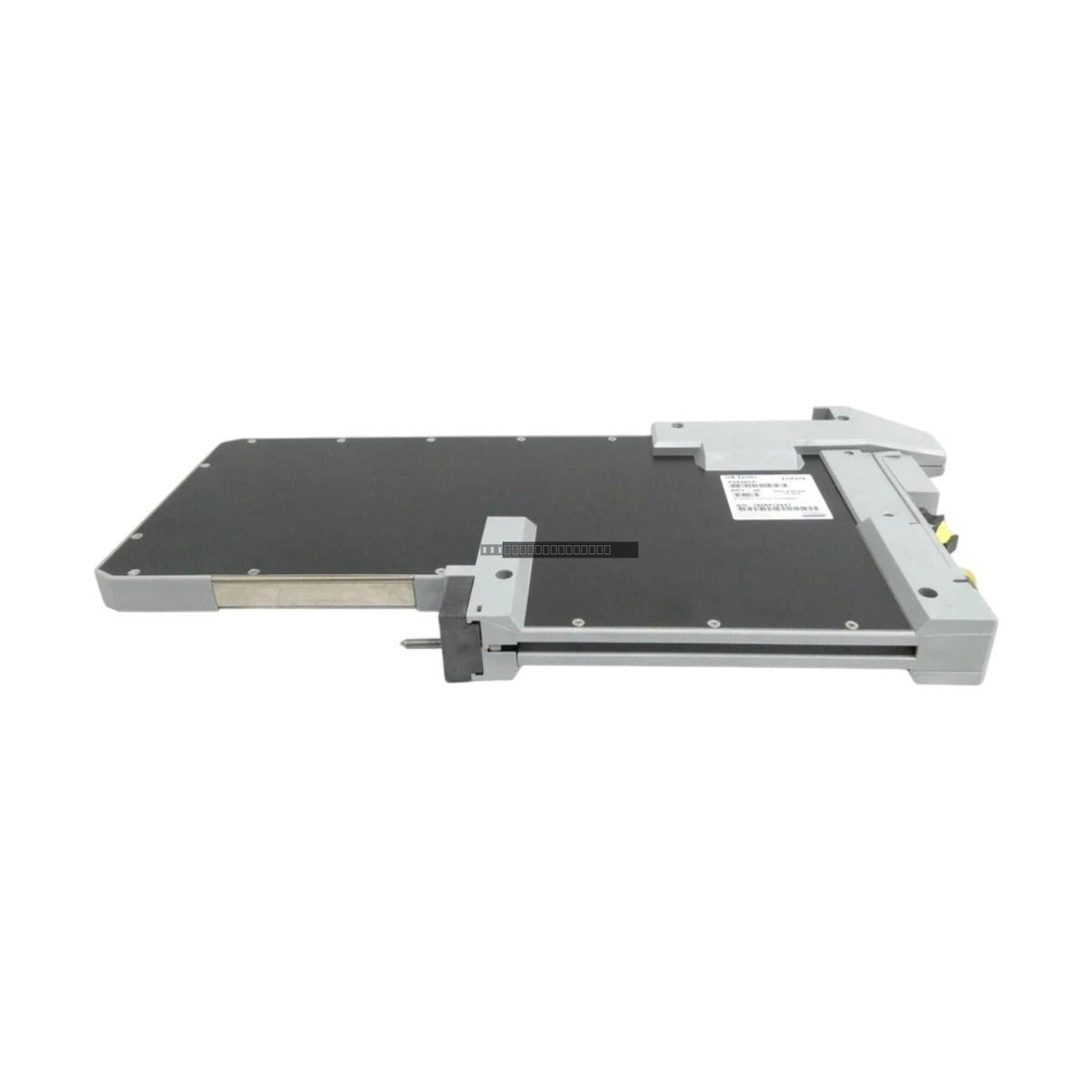

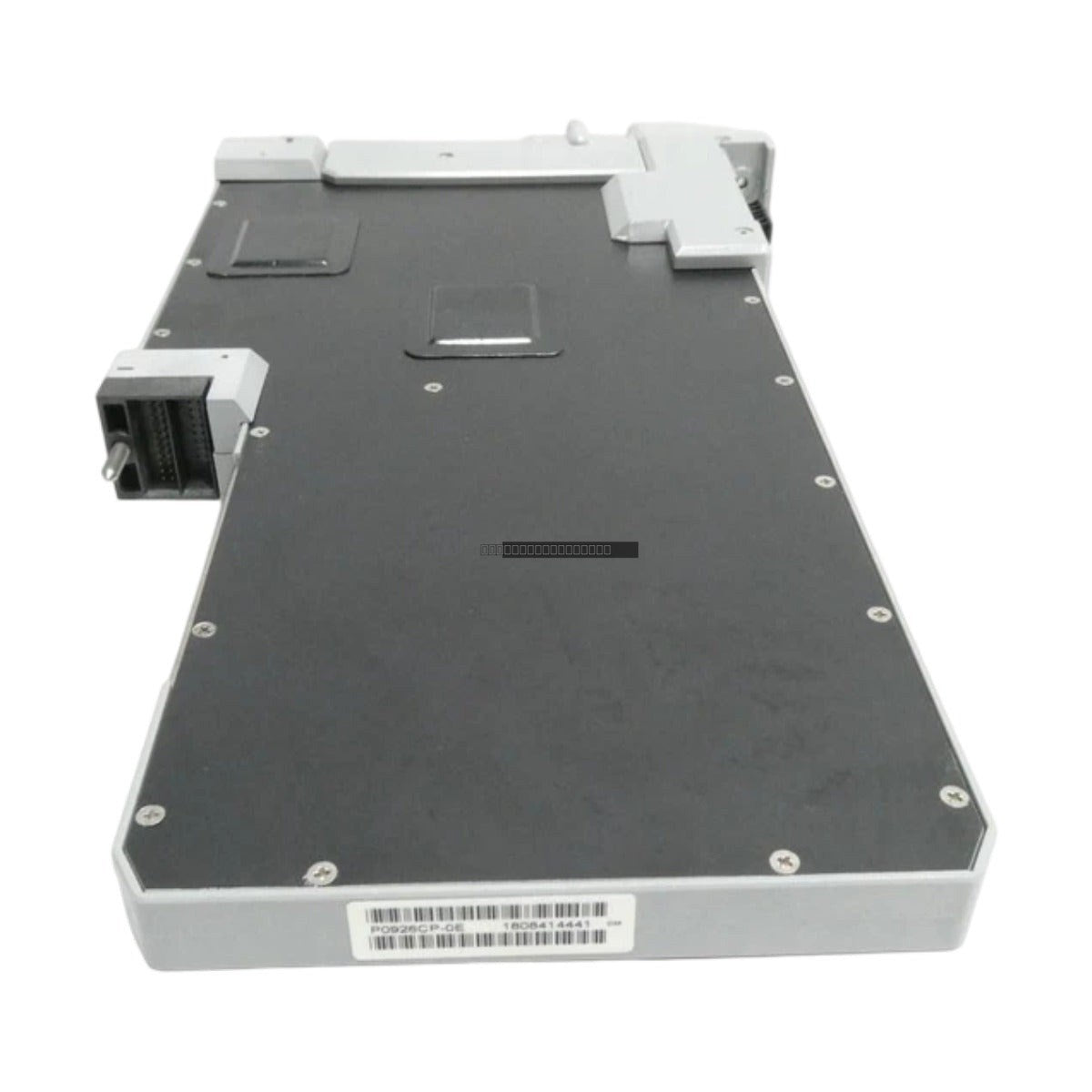

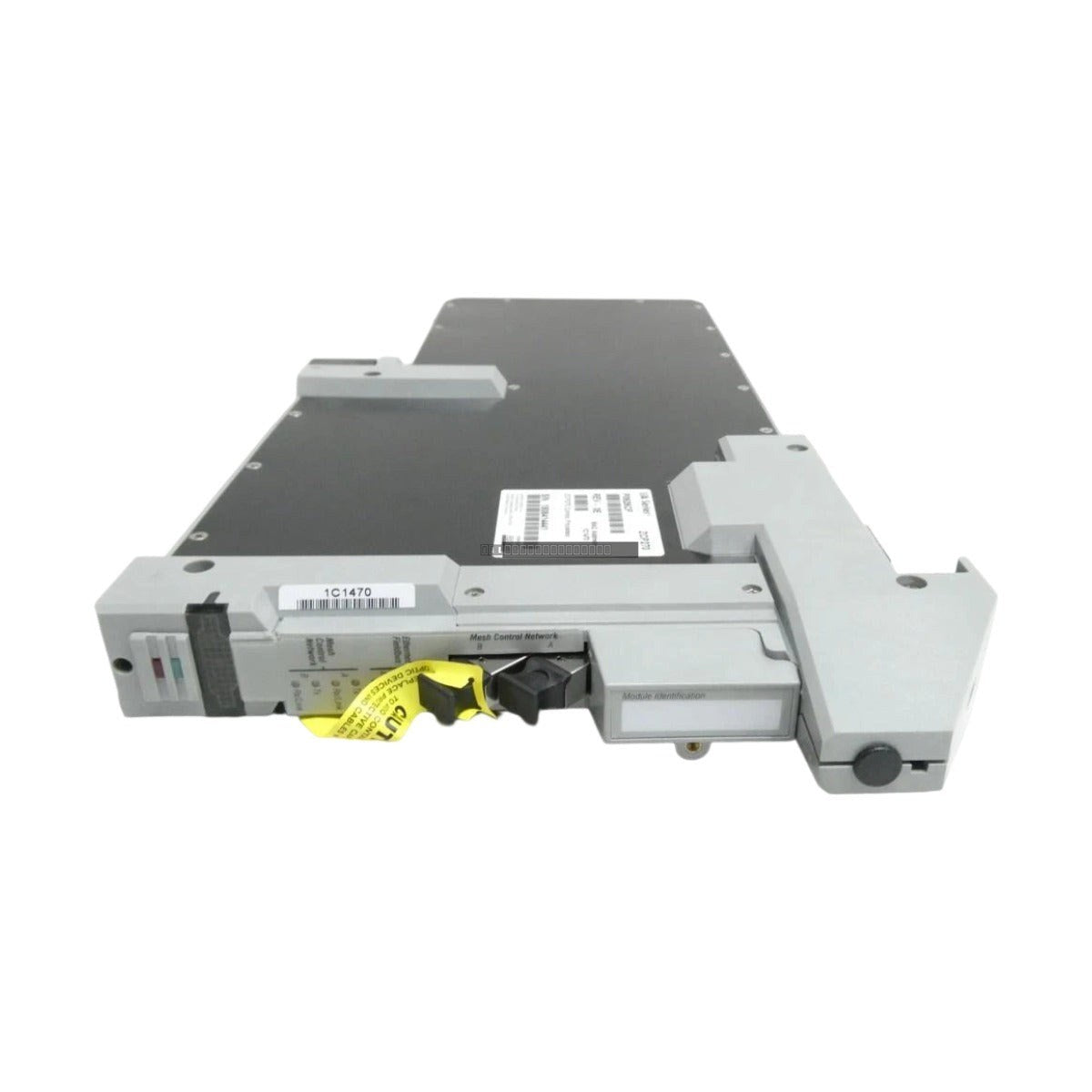

The Foxboro ZCP270 (P0926CP-0E) is a high-performance, fault-tolerant control processor engineered for the Foxboro I/A Series and Foxboro Evo control systems. This module serves as a centralized processing hub, executing complex regulatory, logic, and sequential control algorithms, as well as critical data acquisition tasks. Designed for demanding industrial environments including oil and gas, chemical processing, and power generation, the ZCP270 ensures high availability through its support for redundant pair configurations, which effectively eliminate single points of failure.
Features
- High-speed RISC processor architecture for advanced computational tasks.
- Redundant 100 Mbps Ethernet communication for seamless integration with the Mesh network.
- Supports up to 120 Fieldbus Modules (FBMs) per processor.
- Bumpless transfer capability in redundant pairs for mission-critical reliability.
- Integrated self-diagnostics and time synchronization management.
- Robust design for operation in harsh industrial temperature ranges.
Applications
The ZCP270 is widely utilized in large-scale distributed control systems (DCS) where process continuity is paramount. Typical applications include continuous process control in refineries, petrochemical plants, utility power generation, and water treatment facilities where high-speed I/O processing and network redundancy are required.
Technical Specifications
| Model |
ZCP270 (P0926CP-0E) |
| Processor Type |
High-speed RISC |
| Memory |
16 MB SDRAM / 32 MB Flash |
| Communication |
Redundant 100 Mbps Ethernet |
| Capacity |
Up to 120 Fieldbus Modules |
| Power Consumption |
8.5 W (Typical) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to +70 deg C |
| Relative Humidity |
5 to 95% (Noncondensing) |
| Vibration Rating |
0.75 g (5 to 500 Hz) |
Installation Guidelines
- Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within the 0 to 60 deg C range.
- Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
- Power down the baseplate or rack before inserting or removing the ZCP270 module.
- Ensure all fiber optic or copper network cables are properly seated and secured to prevent intermittent communication faults.
- Verify that the redundant pair is correctly configured in the system software to enable bumpless transfer functionality.
FAQ
Q: Can the ZCP270 operate as a standalone unit?
A: Yes, it can operate as a standalone processor, though it is frequently deployed in redundant pairs to achieve high availability in mission-critical applications.
Q: What type of network does this module connect to?
A: The ZCP270 communicates with the higher-level Mesh network via redundant 100 Mbps Ethernet connections.
