Description

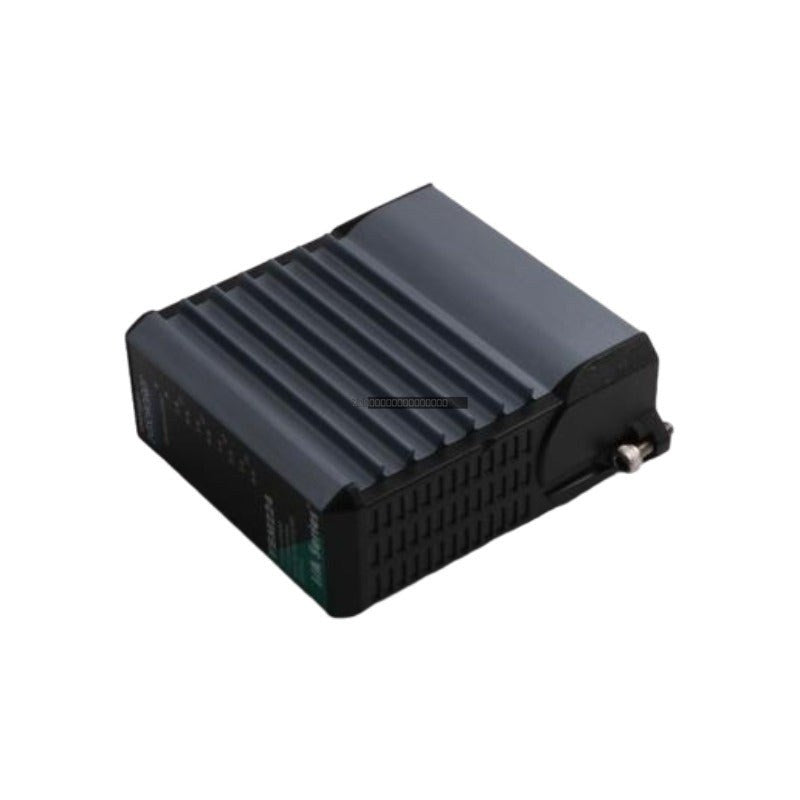

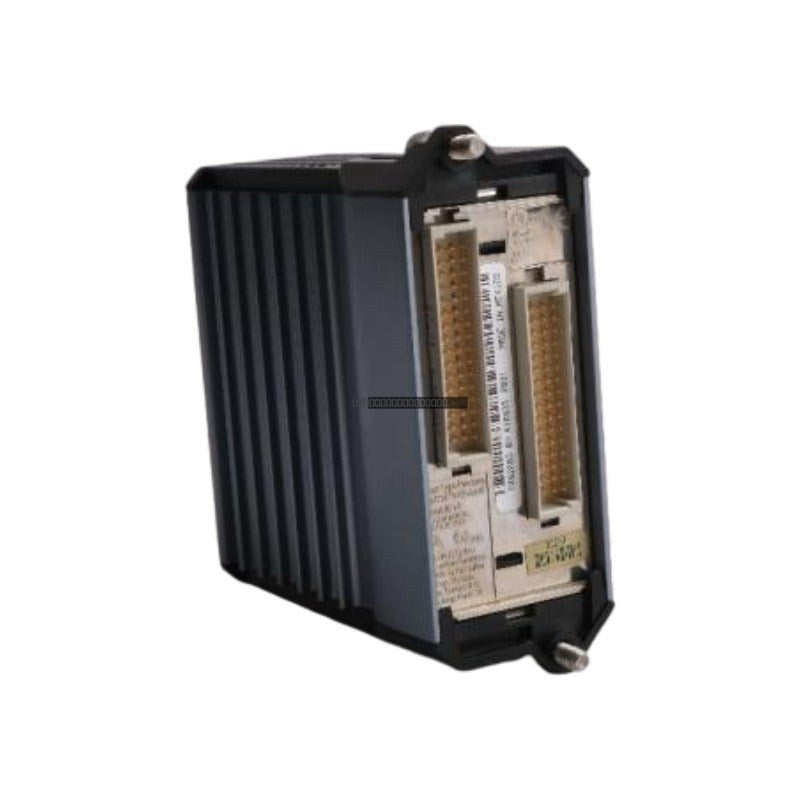

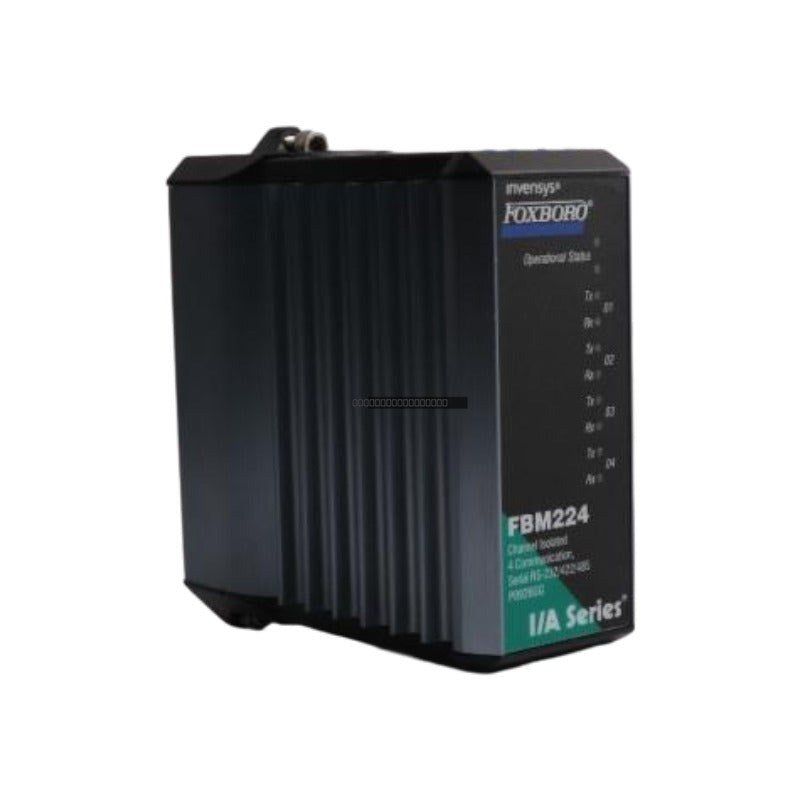

The Foxboro FBM224 (P0926GG) is a high-performance Communication Interface Module (CIM) designed for the I/A Series distributed control system. It acts as a critical gateway between the Foxboro Fieldbus and external serial-based devices, including PLCs, motor control centers, and smart power meters. By centralizing third-party device management within the I/A Series environment, the FBM224 minimizes wiring complexity and provides comprehensive diagnostic visibility, which is essential for maintaining uptime in complex industrial architectures.
Features
-
Modular Design: Standard Eurocard form factor for direct installation into I/A Series high-density baseplates.
-
Protocol Support: Native support for Modbus RTU and Modbus ASCII protocols.
-
Flexible Connectivity: Features four software-configurable ports supporting RS-232, RS-422, or RS-485 electrical standards.
-
Redundancy: Supports dual-redundant Fieldbus connections for enhanced system-level reliability.
-
Galvanic Isolation: 600 V AC isolation on all communication ports to protect internal logic from ground loops and electrical transients.
-
Hot-Swappable: Designed for replacement while the baseplate is powered, ensuring zero interruption to the Fieldbus or adjacent I/O.
Applications
The FBM224 is widely deployed in mission-critical industrial environments, including oil refineries, chemical processing plants, and large-scale utility systems. It is primarily used to integrate multi-vendor automation equipment into a unified control strategy.
Technical Specifications
| Model |
FBM224 (P0926GG) |
| Module Type |
4-Port Communication Interface Module |
| Communication Ports |
4 x RS-232 / RS-422 / RS-485 (Software Configurable) |
| Baud Rates |
Up to 38.4 kbps |
| Isolation |
600 V AC galvanic isolation |
| Power Consumption |
4 W maximum |
| Operating Temperature |
-20 to +70 deg C |
| Relative Humidity |
5 to 95 percent (non-condensing) |
| Environmental Rating |
G3 Harsh Environment (ISA S71.04) |
Installation Guidelines
-
Mounting: Ensure the module is fully seated in the I/A Series baseplate to ensure proper backplane connection.
-
Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
-
Wiring: Utilize shielded communication cables for all serial connections. Ensure proper grounding of cable shields to minimize EMI/RFI interference.
-
Configuration: Ports are software-configurable; verify port settings in the I/A Series configuration software before connecting field devices.
-
Power: While the module is hot-swappable, ensure that field-side power is disconnected from the terminal block before performing wiring maintenance on the ports.
FAQ
Q: Can the FBM224 be replaced while the system is running?
A: Yes, the FBM224 is hot-swappable, allowing for replacement without interrupting the operation of the Fieldbus or adjacent I/O modules.
Q: What protocols does this module support?
A: The FBM224 supports Modbus RTU and Modbus ASCII protocols via its four serial ports.
Q: Are the communication ports isolated?
A: Yes, the module features 600 V AC galvanic isolation on all four communication ports to protect against electrical transients and ground loops.
