Description

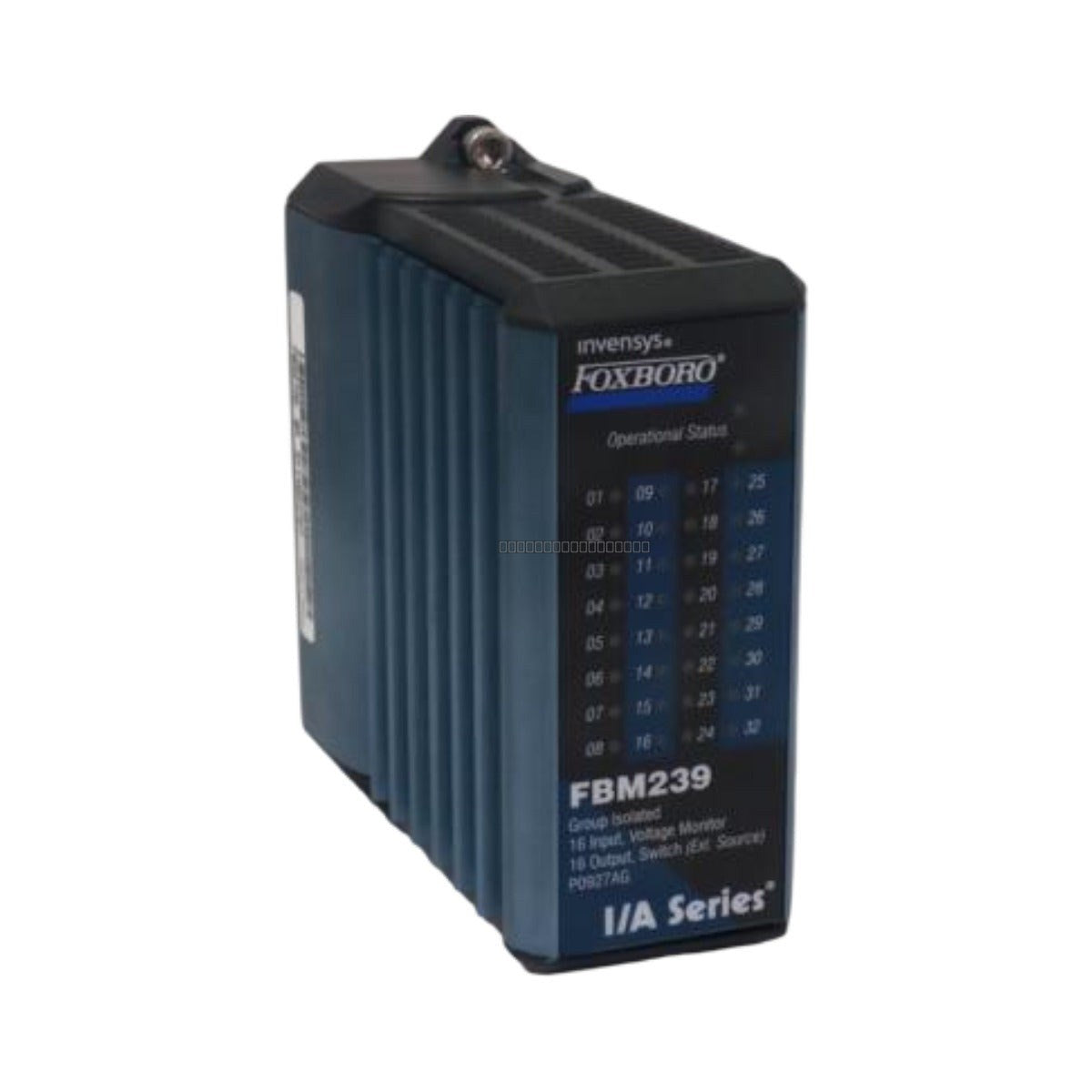

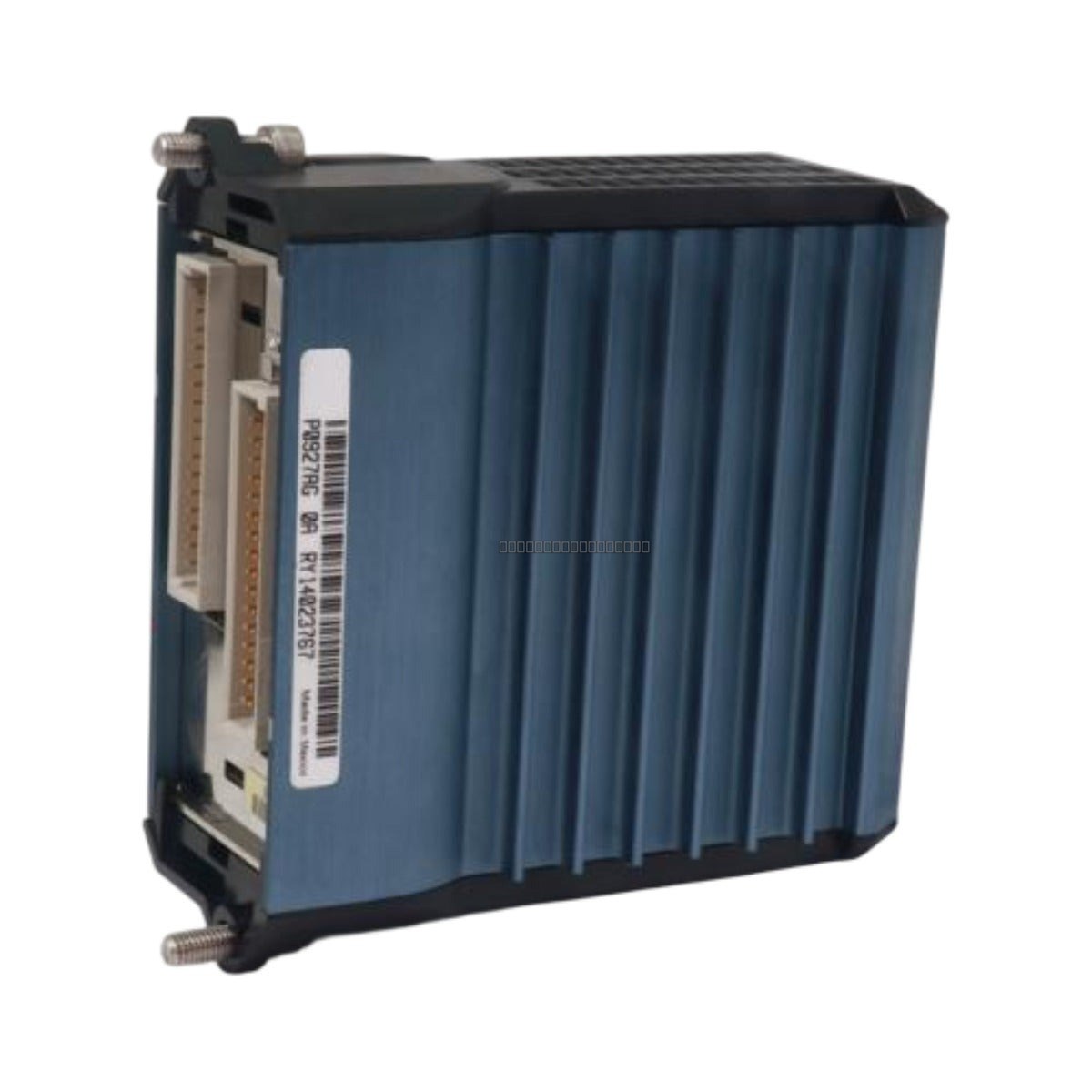

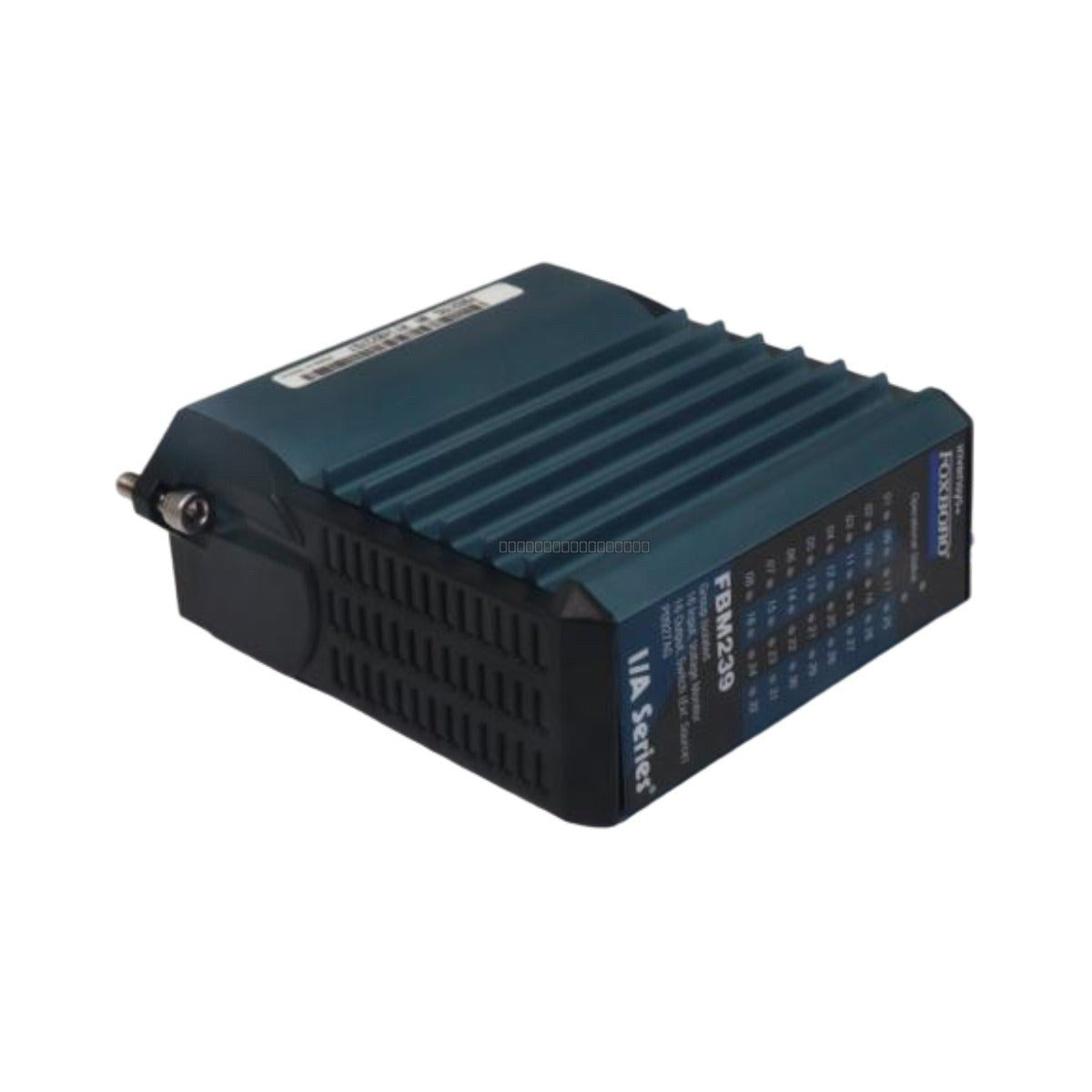

The Foxboro FBM239 (P0927AG) is a high-density discrete I/O interface module designed for the I/A Series distributed control system. This module provides a versatile combination of digital inputs and outputs to manage field devices such as motor starters, solenoids, and limit switches. Engineered for demanding industrial environments including oil and gas, power generation, and chemical processing, the FBM239 centralizes signal processing to minimize hardware footprint. By integrating advanced diagnostic capabilities and supporting redundant communication paths, this module significantly reduces unscheduled downtime and ensures precise binary control across complex process architectures.
Features
- 16-channel combined discrete input/output interface.
- Dual-redundant Fieldbus communication for high-availability control.
- Opto-isolated channels to protect internal logic from field-side electrical noise and surges.
- Supports software-configurable pulse counting and state change detection.
- G3 harsh environment rating for operation in corrosive or extreme conditions.
- Hot-swappable design allows for maintenance without system power-down.
- Continuous internal self-diagnostics with fault reporting to the operator workstation.
Applications
The FBM239 is ideal for process automation applications requiring high-density binary control, including:
- Motor control and starter monitoring.
- Solenoid valve actuation and feedback.
- Limit switch and proximity sensor signal acquisition.
- General-purpose discrete I/O for PLC or DCS-based process control.
Technical Specifications
| Model |
FBM239 (P0927AG) |
| Brand |
Foxboro (Schneider Electric) |
| Module Type |
Discrete Input / Output Module |
| Channels |
16 Channels (Combined) |
| Input Voltage |
24 VDC (Nominal) |
| Output Current |
0.25 Amps per channel (Typical) |
| Isolation |
600 VAC galvanic isolation |
| Power Consumption |
4 W maximum |
| Operating Temperature |
-20 to +70 deg C |
| Storage Temperature |
-40 to +85 deg C |
| Humidity |
5 to 95 percent (non-condensing) |
| Environmental Rating |
G3 Harsh Environment |
Installation Guidelines
- Ensure the I/A Series baseplate is properly grounded before module insertion.
- The module is hot-swappable; however, ensure the field wiring is secured and verified before engaging the module into the baseplate.
- Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise environments.
- Maintain adequate ventilation in the cabinet to ensure operating temperatures remain within the -20 to +70 deg C range.
- Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQ
Is the FBM239 P0927AG hot-swappable?
Yes, the module supports hot-swapping, allowing maintenance personnel to replace the unit while the system remains powered and operational.
What is the primary function of the FBM239?
The FBM239 acts as a high-density interface for discrete signals, allowing the I/A Series DCS to communicate with and control binary field devices like solenoids and switches.
Does this module require external power for the field devices?
The module is designed for 24 VDC nominal operation; ensure the field power supply is compatible with the specific load requirements of your connected devices.
