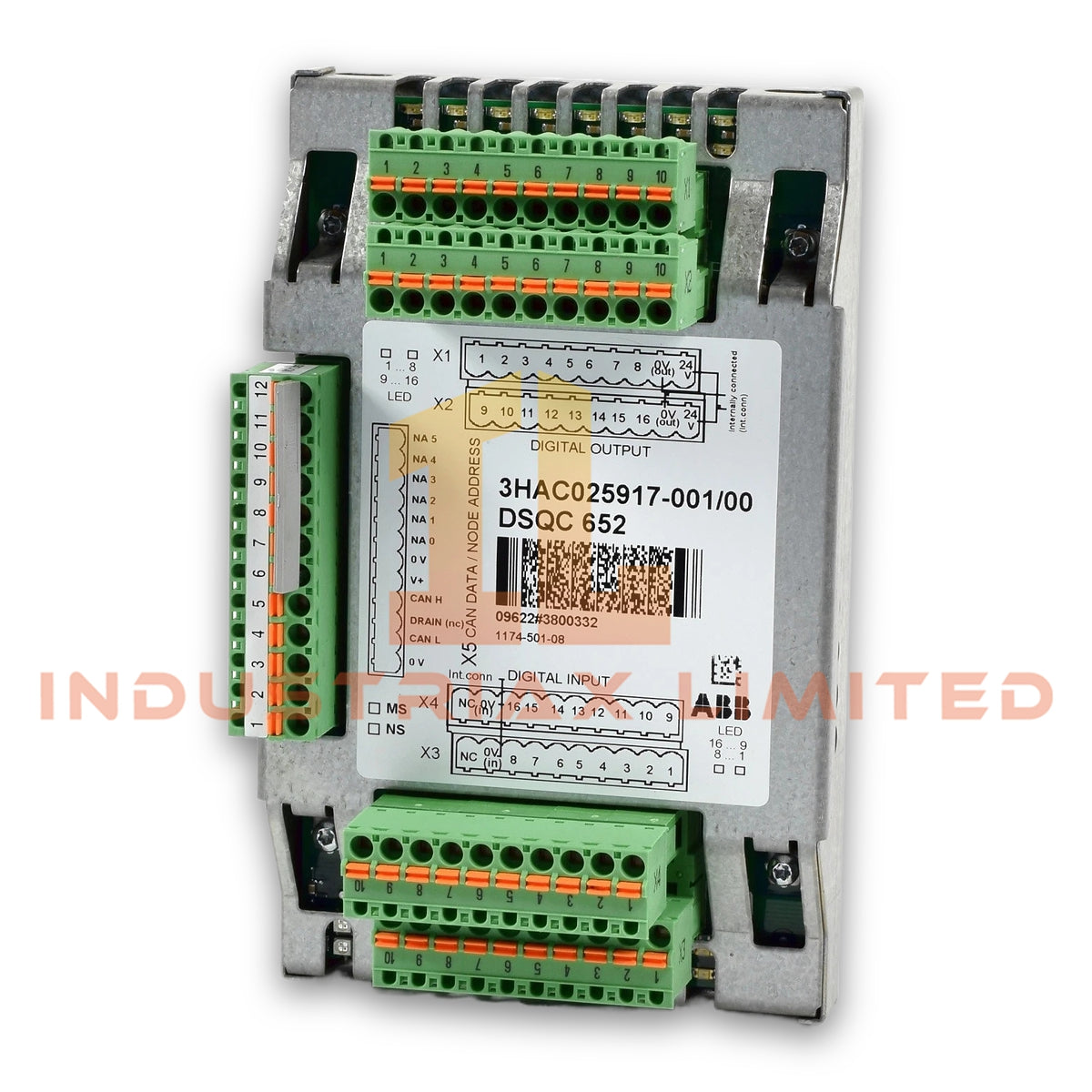

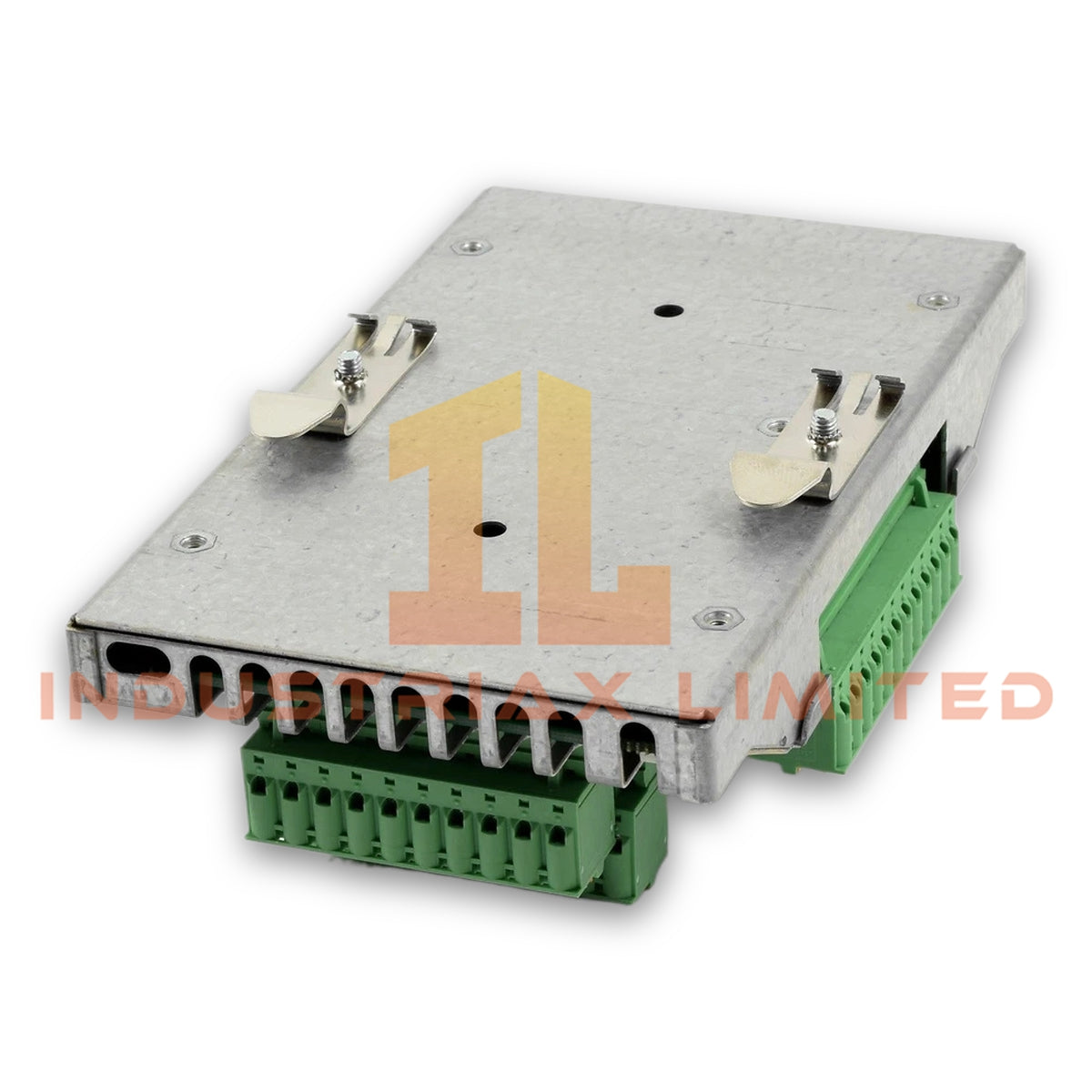

ABB DSQC652 3HAC025917-001/00 Digital I/O Unit

Configured for 24 VDC digital signal acquisition in ABB robot controller I/O systems, the ABB DSQC652 3HAC025917-001/00 (DSQC652 Digital I/O Unit) provides direct electrical input processing for field devices and control signals.

Hardware Specifications

Parameter	Specification
Model	DSQC652 3HAC025917-001/00
Brand	ABB
Product Type	Digital I/O Unit
Origin	Sweden
Weight	0.44 kg
Dimensions	15.7 x 9.8 x 6 cm
Operating Temp	-10 deg C to +55 deg C
Humidity	5% to 95% NC
Power Consumption	150 mW per channel
Digital Input Channels	16 digital inputs
Rated Voltage	24 VDC
Input Voltage Thresholds	15 V to 35 V
Input Current	Approximately 5 mA at rated voltage
Voltage Drop	<= 0.5 V at 500 mA
Leakage Current	<= 0.1 mA
Response Delay	<= 0.5 ms

ABB PLC/DCS I/O Bus and Signal Processing Characteristics

The ABB DSQC652 operates as a digital signal interface module within ABB robot controller architectures. Therefore, it processes discrete field inputs through 24 VDC electrical channels and transfers status information to the controller communication structure.

The module supports I/O density scaling through 16 input channels, allowing multiple external sensors, switches, and binary devices to connect within a compact hardware assembly. In addition, its low response delay supports fast signal state recognition for industrial automation sequences.

ABB industrial controller platforms use structured backplane communication methods. Consequently, DSQC652 integration requires correct controller configuration, firmware compatibility, and approved ABB hardware addressing parameters.

Frequently Asked Questions

Q: What type of signals does the ABB DSQC652 process?
A: The DSQC652 processes 24 VDC digital input signals through 16 discrete input channels.

Q: What is the maximum operating temperature range for DSQC652?
A: The specified operating temperature range is -10 deg C to +55 deg C.

Q: Does DSQC652 provide isolated analog measurement functions?
A: No. The DSQC652 is a Digital I/O Unit designed for discrete signal acquisition rather than analog measurement.

Field Installation Guidelines

Install the DSQC652 according to ABB controller hardware manuals and approved cabinet layouts.

Verify that the 24 VDC supply voltage matches the module electrical requirements before connection. Use properly rated field wiring and maintain separation between signal cables and high-power conductors.

Connect the protective grounding system according to the controller cabinet grounding specification. Ensure cable routing avoids excessive electromagnetic interference sources.

Before system operation, check input channel wiring, field device polarity, and controller I/O configuration parameters. Confirm that the module communicates correctly with the ABB robot controller after installation.
