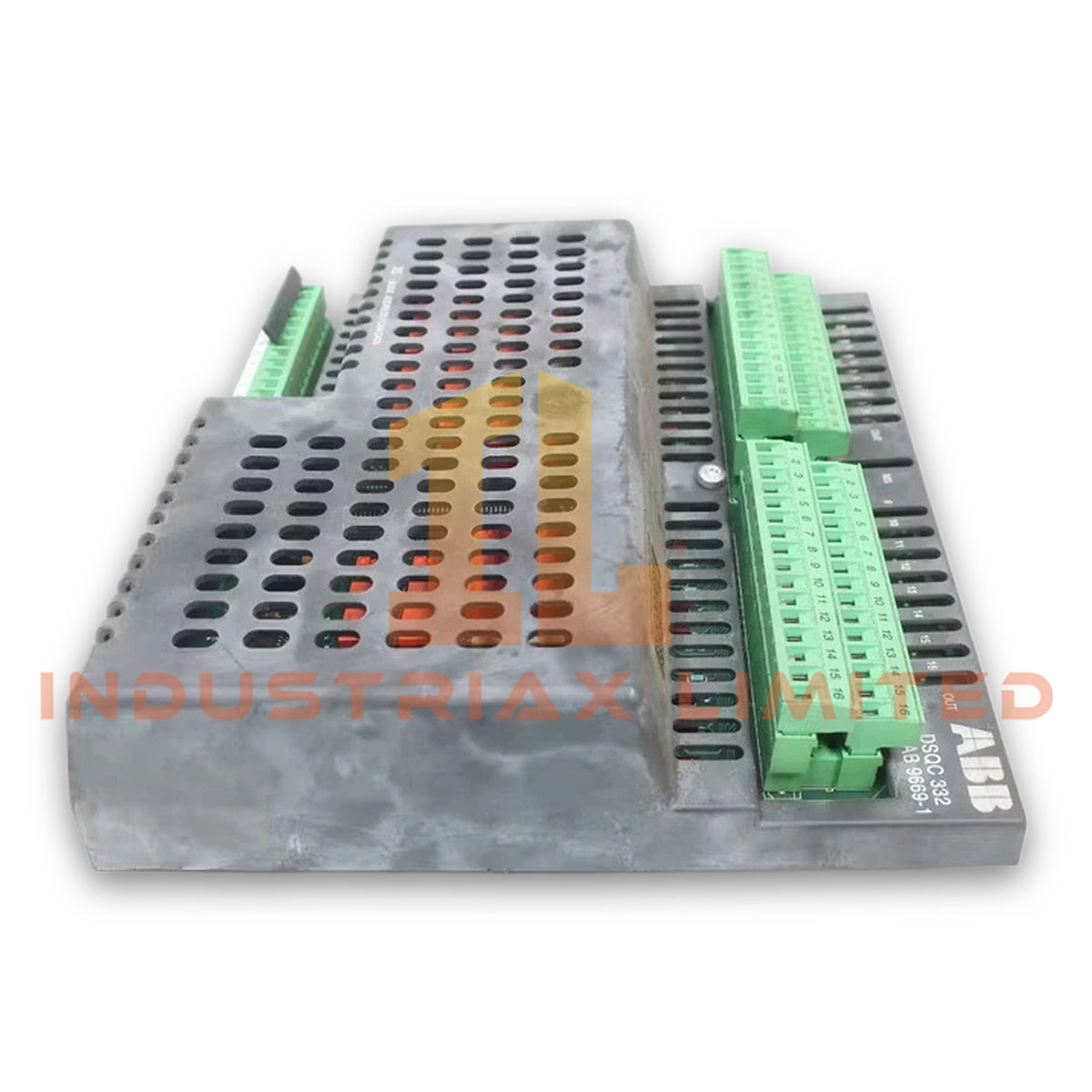

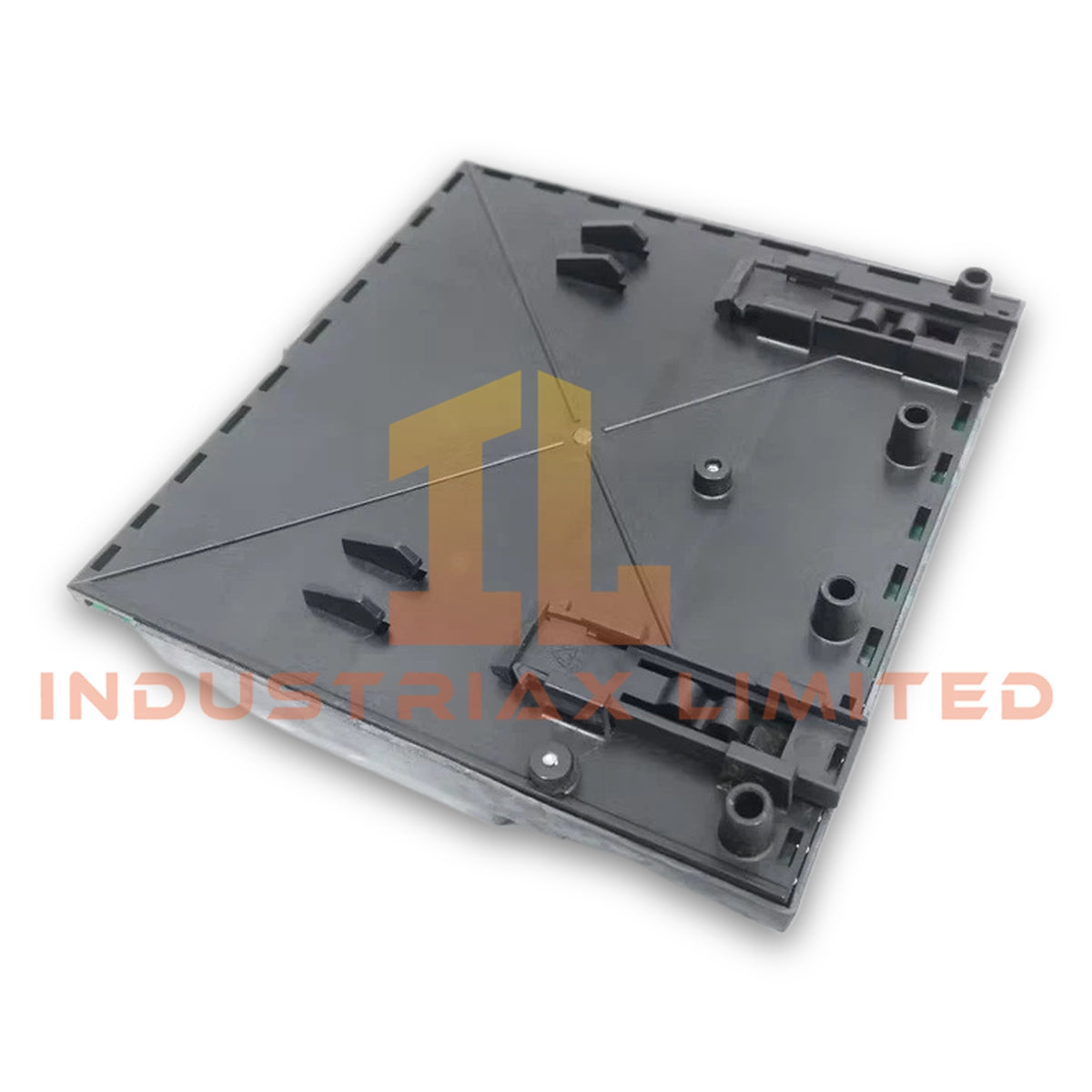

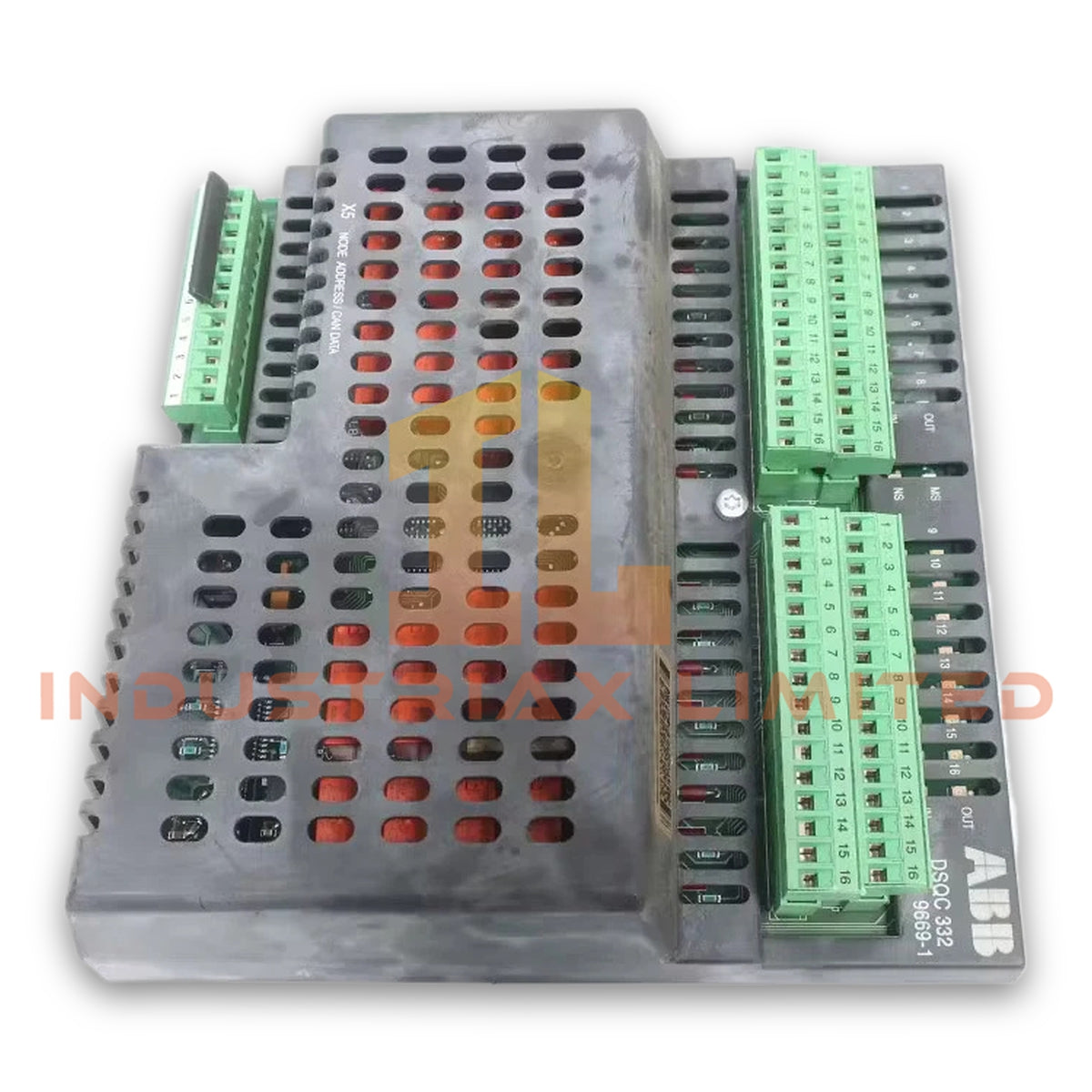

ABB DSQC332 Digital Relay I/O Unit
The ABB 3HAB9669-1, also cataloged as the DSQC332 Digital Relay I/O Unit, operates as a dedicated hardware component for relay signal handling and digital I/O execution within ABB S4 robot controller platforms. The module manages 24 VDC input signals and relay outputs for external device interfacing.
Hardware Specifications
Parameter
Specification
Model
DSQC332
Brand
ABB
Type Number
3HAB9669-1
Product Type
Digital Relay I/O Unit
Compatible Systems
ABB S4, S4C, S4C Plus, early IRC5 controllers
Origin
Sweden
Weight
Approx. 0.6 kg
Operating Temp
0 deg C to +55 deg C
Storage Temp
-40 deg C to +70 deg C
Relative Humidity
5% to 95% non-condensing
Protection Class
IP20
Input Voltage
24 VDC nominal
Input Voltage Range
19.2 VDC to 30 VDC
Output Current Limit
4 A aggregate
Response Time
Less than 10 ms
Industrial Control Bus and I/O Architecture
The ABB DSQC332 integrates with ABB robot controller architectures through the controller backplane interface and provides digital signal expansion for external equipment. Therefore, the module supports I/O density scaling within legacy ABB automation platforms by adding relay-based signal channels without modifying the main controller hardware.
The unit processes discrete electrical states between the robot controller and connected field devices. In addition, ABB controller firmware compatibility determines the available configuration functions and diagnostic access during system integration.
Frequently Asked Questions
Q: What type of signals does the ABB DSQC332 handle? A: The DSQC332 processes digital relay I/O signals, including 24 VDC input signals and relay output circuits for external device control.
Q: Can the DSQC332 operate as a standalone I/O device? A: No. The module requires integration with compatible ABB robot controller systems, including S4, S4C, S4C Plus, and early IRC5 platforms.
Q: What installation factors should be considered for the DSQC332? A: Installation should follow ABB controller cabinet requirements, including correct connector alignment, signal separation, grounding practices, and enclosure protection conditions.
Field Installation Guidelines
Install the DSQC332 inside the designated ABB controller cabinet slot according to the applicable controller hardware configuration.
Verify that the 24 VDC supply wiring matches the module input requirements before applying power. Separate relay output wiring from sensitive signal cables to reduce electrical interference.
Connect protective grounding according to the cabinet grounding scheme. Ensure all field connections use suitable terminal arrangements and maintain proper cable routing practices.
Before commissioning, check I/O channel addressing, controller recognition status, and signal response behavior through the ABB robot controller diagnostic interface.
