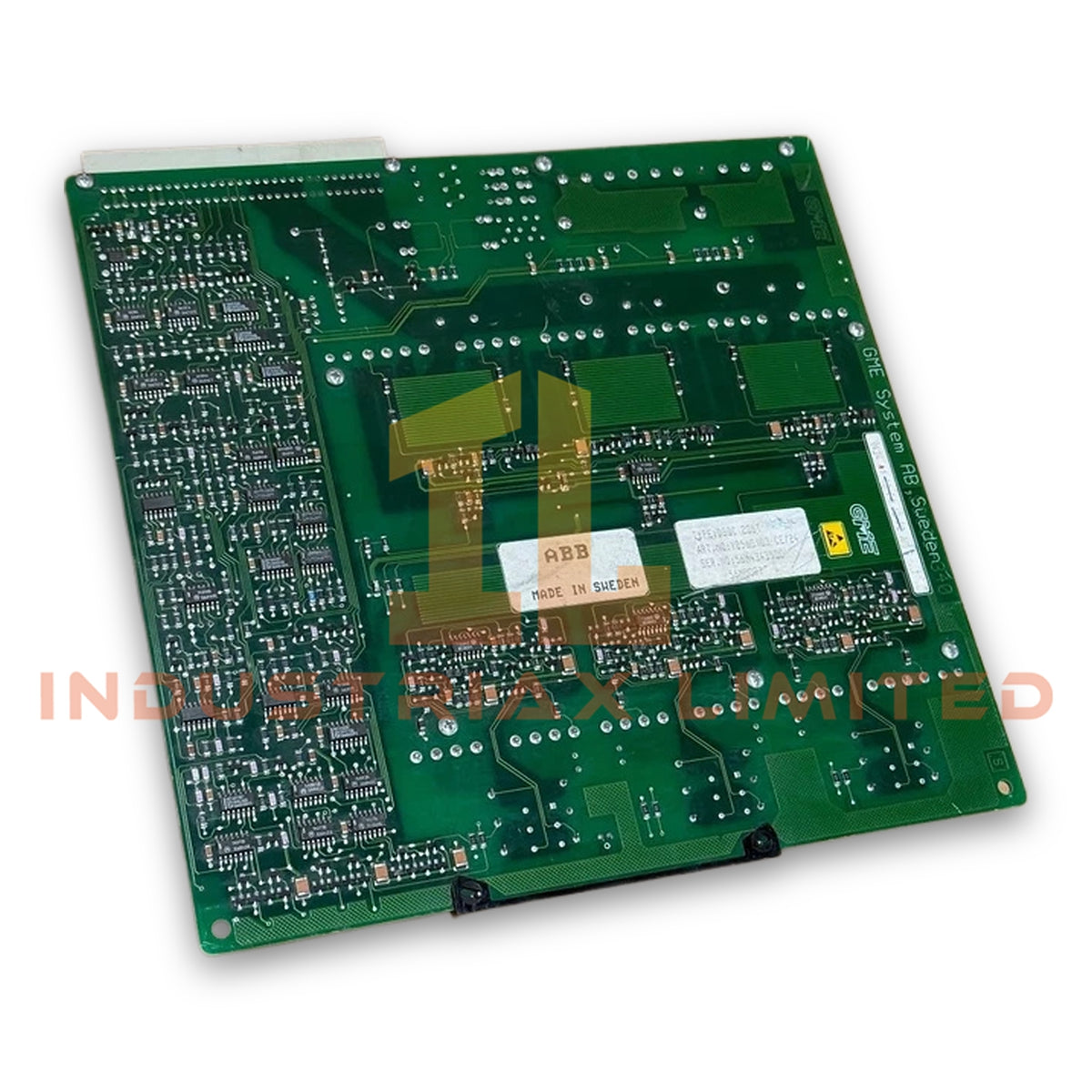

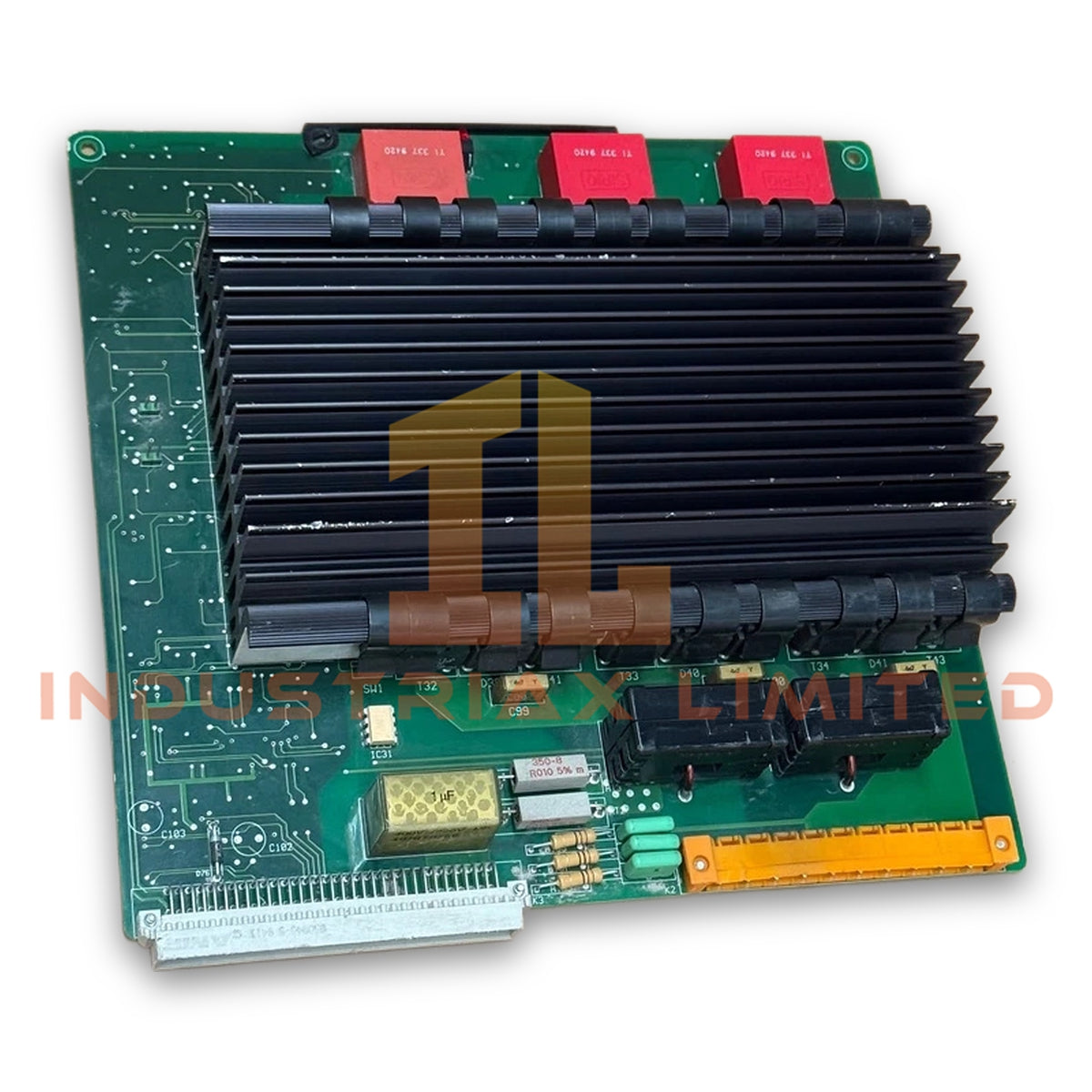

ABB DSQC236T Servo Drive Unit
Configured for axis motion execution in ABB robot controller systems, the ABB DSQC236T YB560103-CE (DSQC236T Servo Drive Unit) provides direct physical and electrical control for robot axis drive circuits. It processes closed-loop feedback signals and controls servo motor operation within compatible ABB industrial robot platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC236T
Brand
ABB
Part Number
YB560103-CE
Product Type
Servo Drive Unit / Axis Control Board
System Compatibility
ABB Industrial Robot Controller Systems
Origin
USA
Weight
Approx. 1.8 kg
Operating Temp
-10 deg C to +50 deg C
Storage Temp
-20 deg C to +70 deg C
Humidity Range
5% to 95% RH, non-condensing
Power Consumption
Not specified in available documentation
Input Voltage
380 V - 480 V AC
Output Current
Up to 20 A
Control Method
Closed-loop servo control with feedback processing
Axis Capacity
1 axis per board
Protection Class
IP20
ABB Industrial Drive Control Characteristics
The DSQC236T applies ABB robot drive control technology for axis-level motion regulation. It exchanges control signals with the robot controller through the internal drive interface and manages servo motor current output according to position and feedback conditions.
Furthermore, the module operates within ABB motion control architectures that require deterministic backplane communication and firmware compatibility with the installed robot controller generation. The drive board supports closed-loop regulation by processing encoder feedback signals and maintaining axis movement accuracy.
The unit design follows ABB industrial drive hardware principles, including I/O density scaling within controller cabinets and compatibility management between hardware revisions and controller firmware versions.
Frequently Asked Questions
Q: What function does the ABB DSQC236T perform in a robot system? A: The DSQC236T functions as a servo drive unit or axis control board that controls one robot axis through closed-loop motor feedback regulation.
Q: Does the DSQC236T support multiple robot axes? A: The available technical information specifies that the DSQC236T controls one axis per board. Multi-axis systems require additional compatible drive modules.
Q: What installation factors should be checked before replacing this module? A: Verify controller compatibility, connector configuration, firmware compatibility, power isolation status, and correct axis assignment before installation.
Field Installation Guidelines
Disconnect cabinet power before removing or installing the DSQC236T module.
Confirm the replacement board matches the original ABB part number and controller configuration.
Inspect connectors, terminal interfaces, and mounting points before installation.
Maintain proper grounding practices for the robot cabinet and drive system.
Route motor power cables separately from sensitive feedback signal wiring to reduce electrical interference.
Verify firmware and controller parameters after replacement before returning the robot system to operation.
