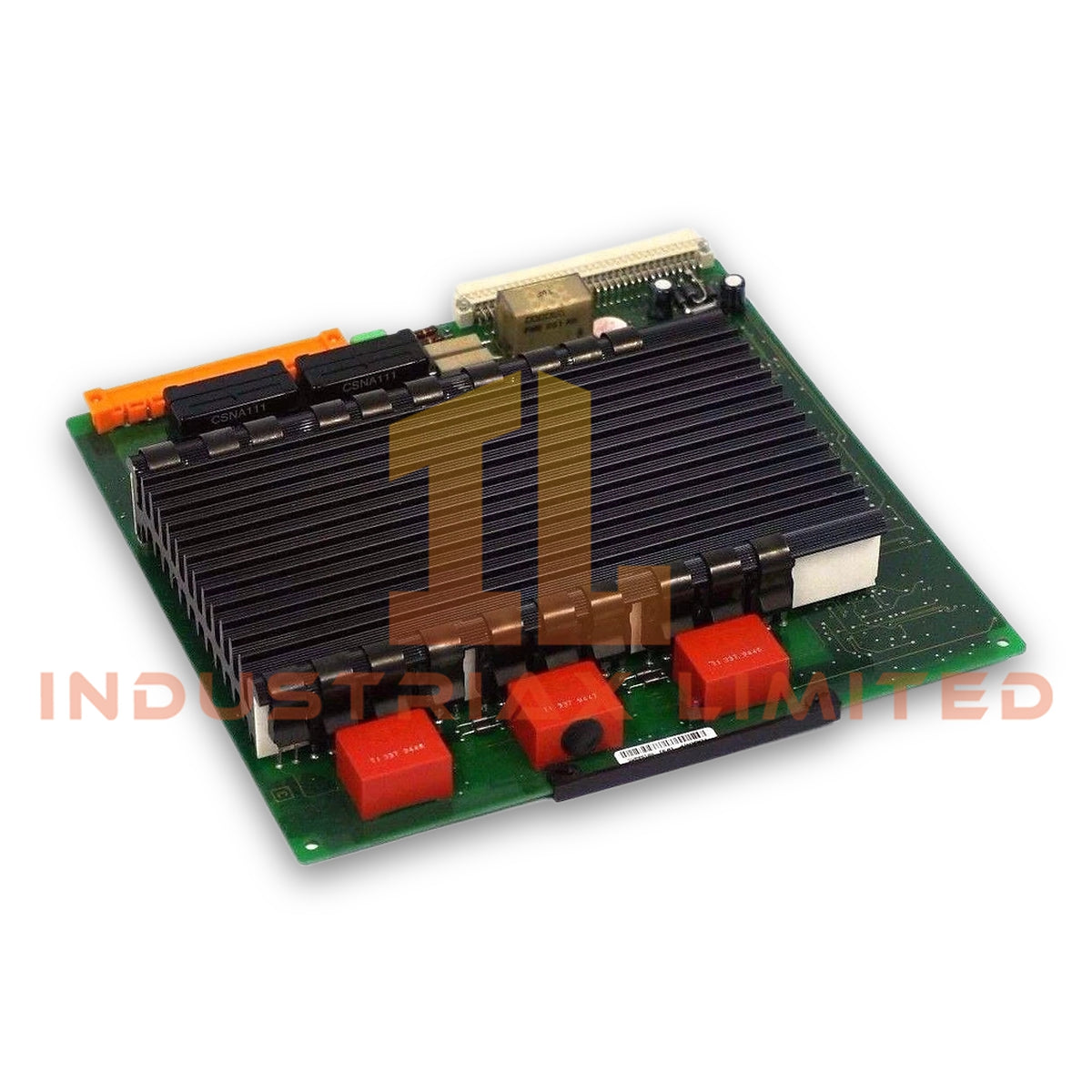

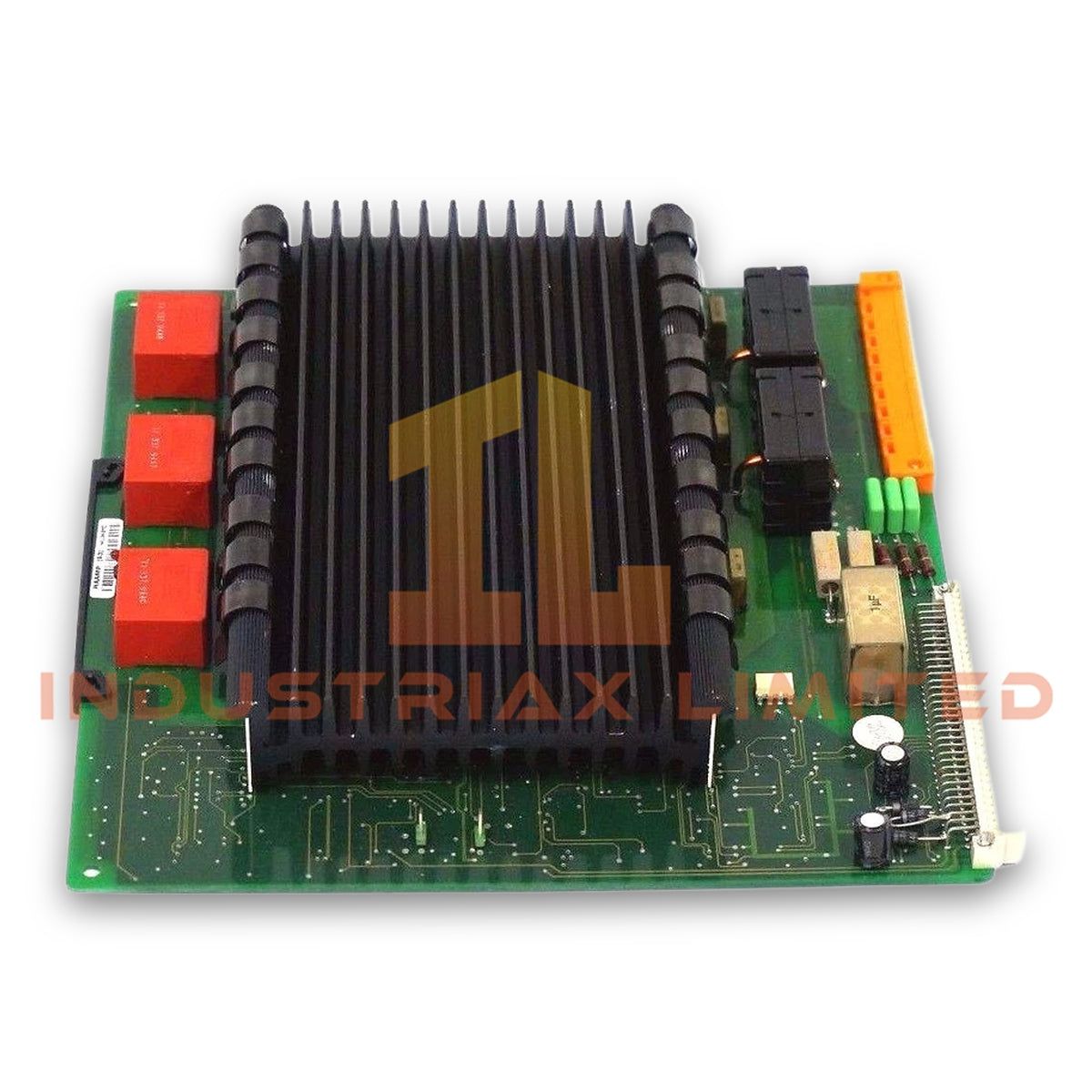

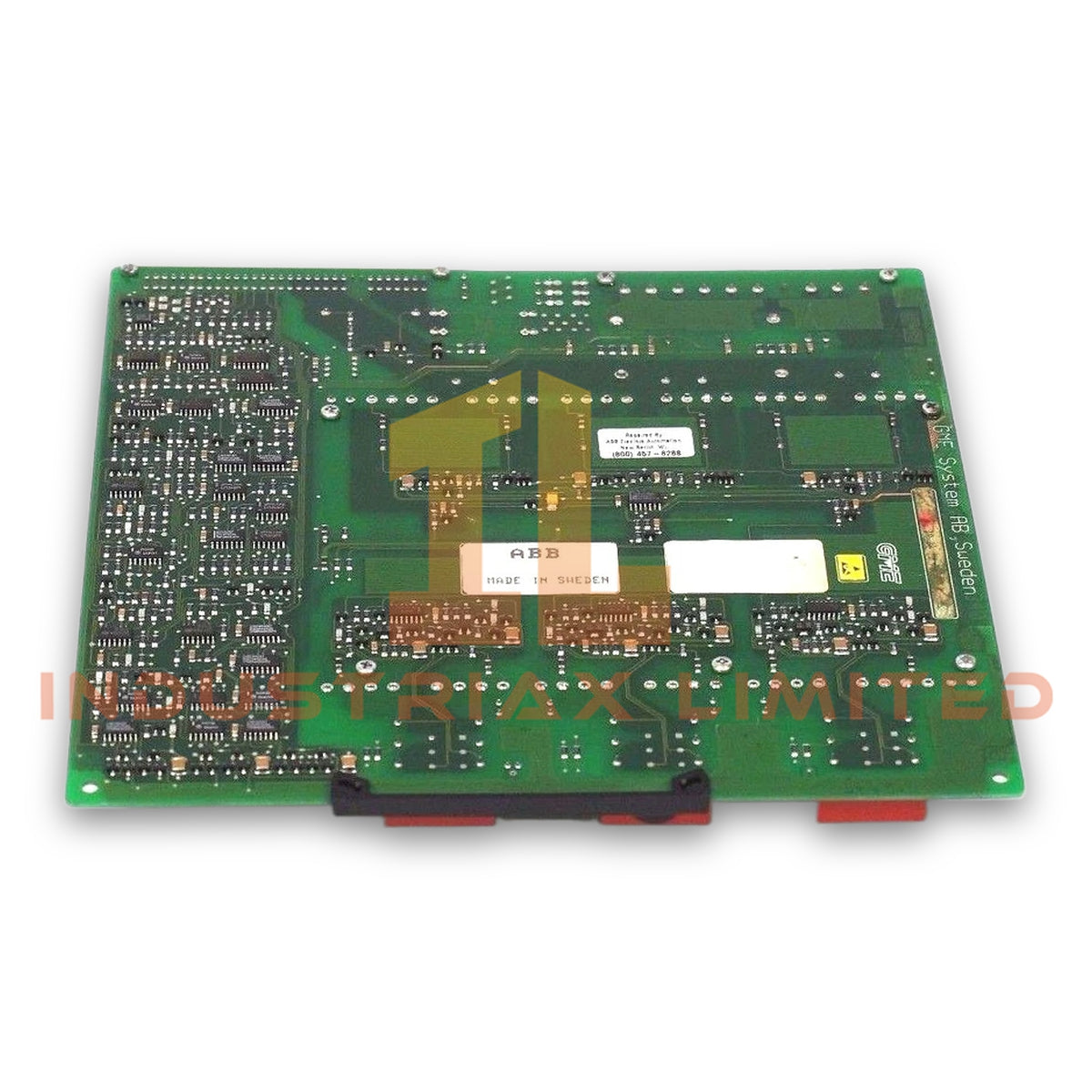

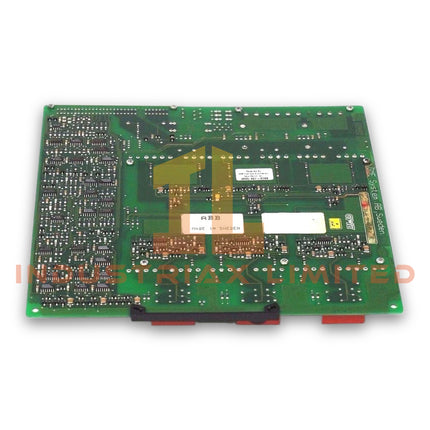

ABB DSQC236G Robot Axis Drive Board
Configured for axis drive signal execution in ABB robot controller systems, the ABB DSQC236G (DSQC236G Robot Axis Drive Board) provides direct physical and electrical control interface functions. The module is also cataloged as YB560103-CD/22 and supports drive board operations within ABB robotic motion control hardware.
Hardware Specifications
Parameter
Specification
Model
DSQC236G
Spare Model
YB560103-CD/22
Brand
ABB
Product Type
Robot Axis Drive Board
Origin
USA
Weight
0.4 kg
Dimensions
25.4 x 2.5 x 25.4 cm
Manufacturer Status
Discontinued by manufacturer
ABB Drive Interface and Motion Control Characteristics
The DSQC236G operates as an ABB robotic drive interface component that processes electrical control signals between the robot controller and axis drive hardware. Therefore, the board participates in axis motion execution by transferring command and feedback related signals inside the controller architecture.
For ABB industrial control platforms, drive modules require coordinated backplane communication velocity and firmware compatibility to maintain deterministic motion response. The DSQC236G belongs to the ABB robot drive hardware family and integrates with the corresponding controller communication structure.
Additionally, correct firmware flash compatibility and hardware revision matching are required when replacing this board in existing ABB robot systems. Installation engineers should verify controller version, connector configuration, and replacement part compatibility before commissioning.
Frequently Asked Questions
Q: What function does the ABB DSQC236G perform in a robot system? A: The DSQC236G functions as a robot axis drive board that handles electrical interface operations associated with ABB robot motion control hardware.
Q: Is the DSQC236G compatible with all ABB robot controllers? A: Compatibility depends on the controller generation, firmware revision, and hardware configuration. Engineers should confirm the original board reference and system documentation before replacement.
Q: Does the DSQC236G support hot swapping during robot operation? A: The module should not be removed or installed during energized operation unless the specific ABB controller documentation explicitly permits this procedure.
Field Installation Guidelines
Disconnect controller power before removing or installing the DSQC236G board.
Verify connector alignment and mounting position before insertion into the controller assembly.
Inspect board contacts and connectors for contamination, oxidation, or mechanical damage.
Maintain proper grounding practices to reduce electrical noise during operation.
Route power and signal wiring according to ABB controller installation requirements.
Confirm firmware compatibility and perform system diagnostics after replacement.
