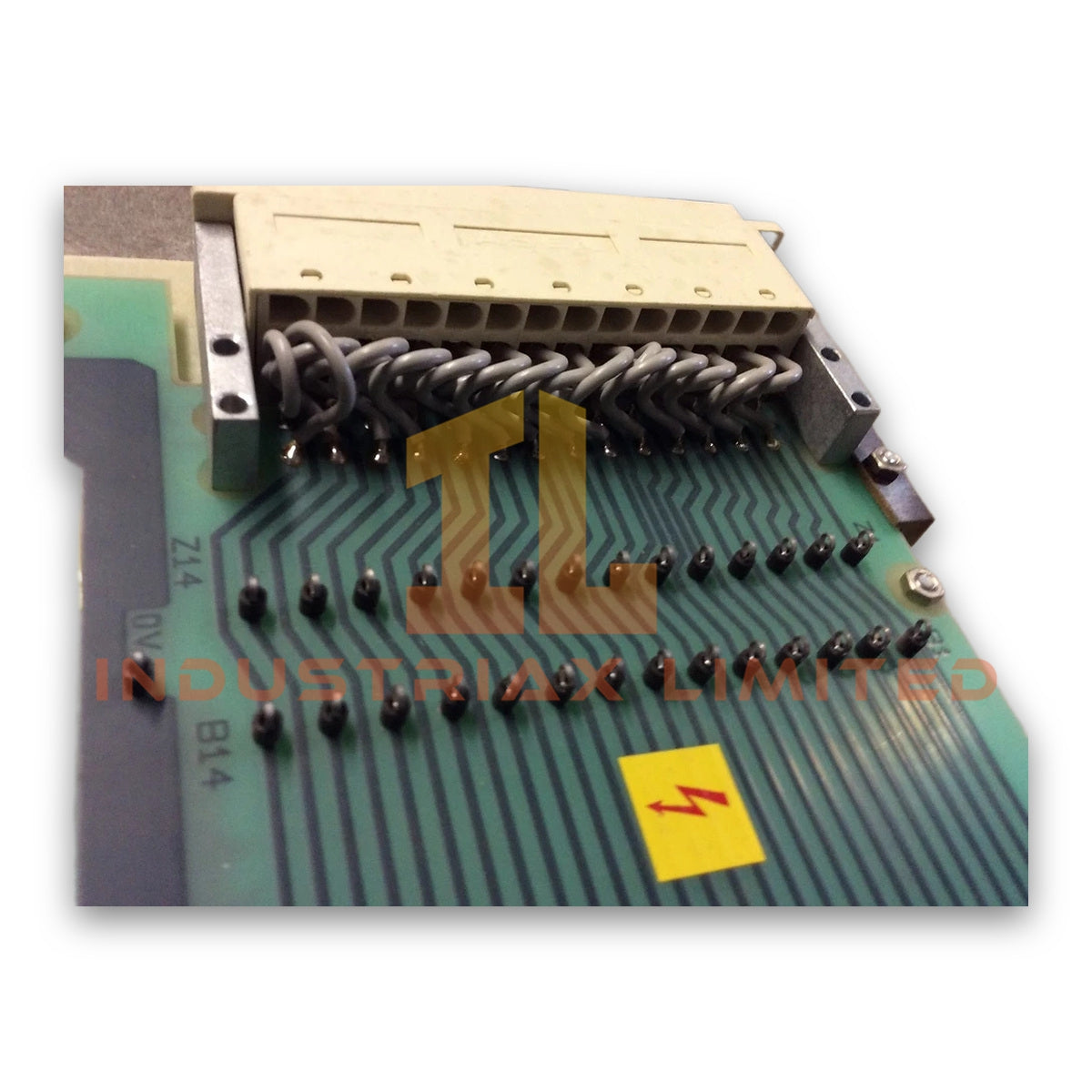

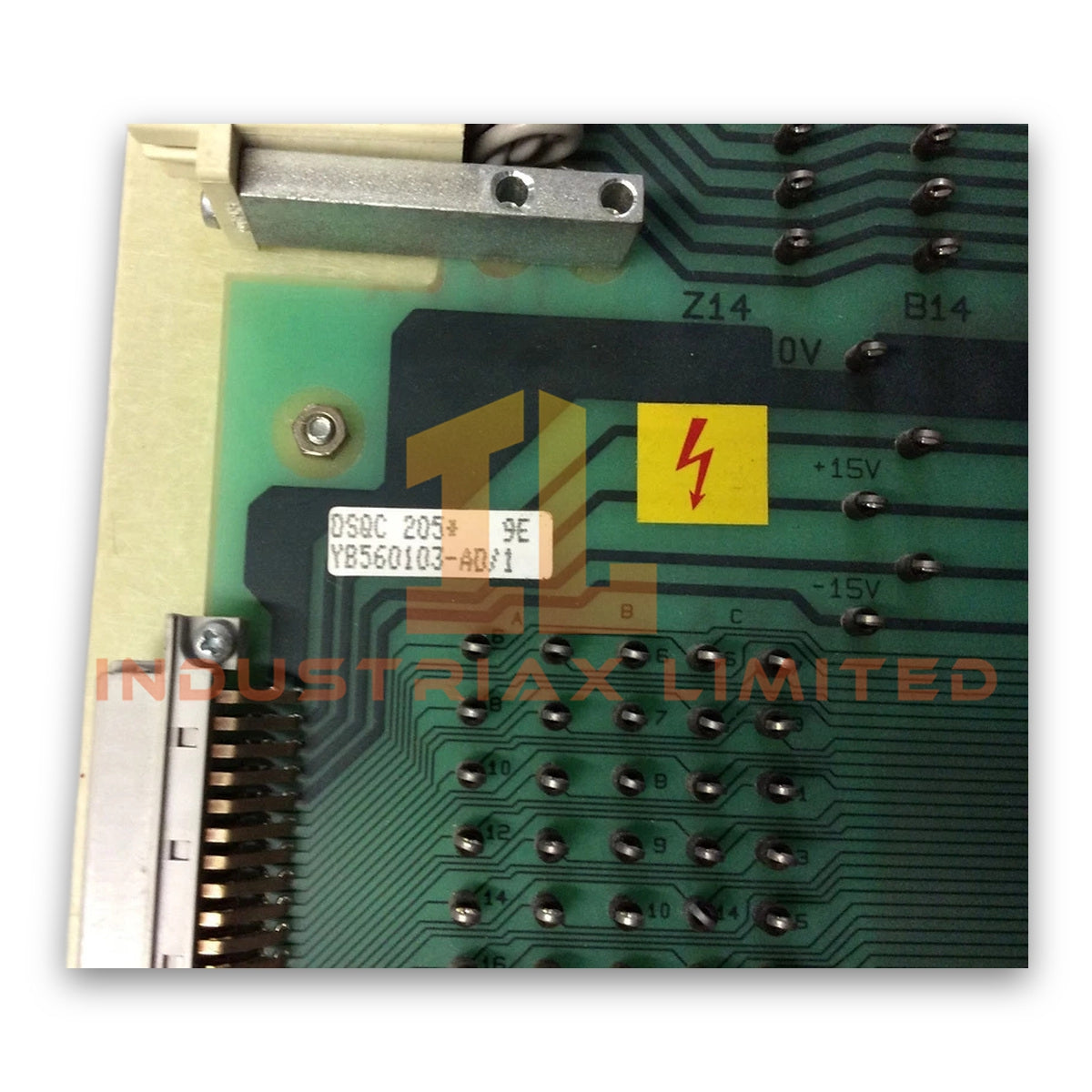

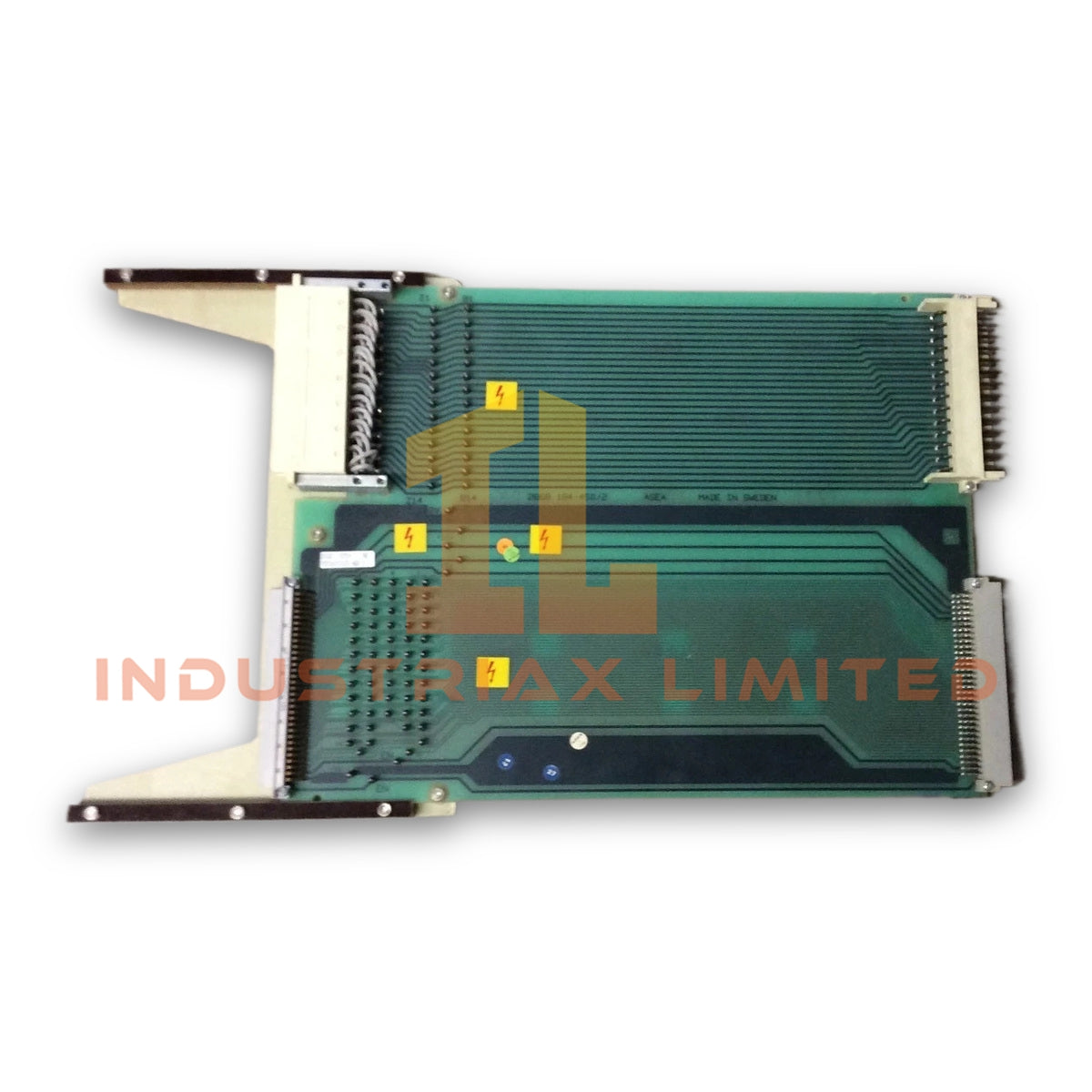

ABB DSQC205 Robot Module

Configured for extension I/O control and communication interface tasks in ABB S4 and S4C robot controller systems, the ABB YB560103-AD/1 (DSQC205 Robot Module) provides direct physical and electrical execution for robotic cell signal expansion and controller communication functions.

Hardware Specifications

Parameter	Specification
Model	DSQC205
Brand	ABB
Spare Model	YB560103-AD/1
Product Type	Robot Module
Device Function	Extension I/O and Communication Board
Compatible Systems	ABB S4 / S4C Robot Controller Platforms
Input Voltage	220-240 VAC
Input Frequency	50/60 Hz
Output Voltage	24 VDC
Maximum Output Current	4.16 A
Power Consumption	120 W
Weight	0.7 kg
Dimensions	25.4 x 5.1 x 40.6 cm (shipping size provided)
Storage Temperature	-40 deg C to +85 deg C

Backplane Bus Communication and I/O Density Scaling

The ABB DSQC205 operates as an extension hardware module within ABB robot controller architectures. Therefore, the board supports controller-side signal expansion through defined internal communication paths. The module design follows ABB industrial control hardware practices, including backplane communication management and I/O density scaling for robotic cell configurations.

The DSQC205 integrates electrical interfaces for controller communication and field signal handling. Additionally, correct firmware compatibility between the robot controller generation and installed hardware revision must be verified before replacement or system modification.

Frequently Asked Questions

Q: What controller platforms support the ABB DSQC205 module?
A: The DSQC205 is specified for ABB S4 and S4C robot controller systems. Compatibility depends on the installed controller configuration and hardware revision.

Q: Does the DSQC205 provide 24 VDC output capability?
A: The provided technical data lists a 24 VDC output with a maximum output current of 4.16 A. Actual application loading must follow ABB controller specifications.

Q: Can the DSQC205 be installed without firmware verification?
A: No. The installed controller firmware and hardware revision should be checked before commissioning to maintain communication compatibility.

Field Installation Guidelines

• Install the DSQC205 module inside the designated ABB robot controller cabinet slot according to the controller hardware manual.
• Verify power isolation before removing or installing the module.
• Check connector alignment and avoid mechanical stress on board interfaces during installation.
• Maintain proper cabinet grounding and ensure cable shields follow the original ABB wiring requirements.
• Separate signal wiring from high-current power cables to reduce electrical interference.
• Confirm controller recognition and communication status after installation before returning the robot system to operation.
