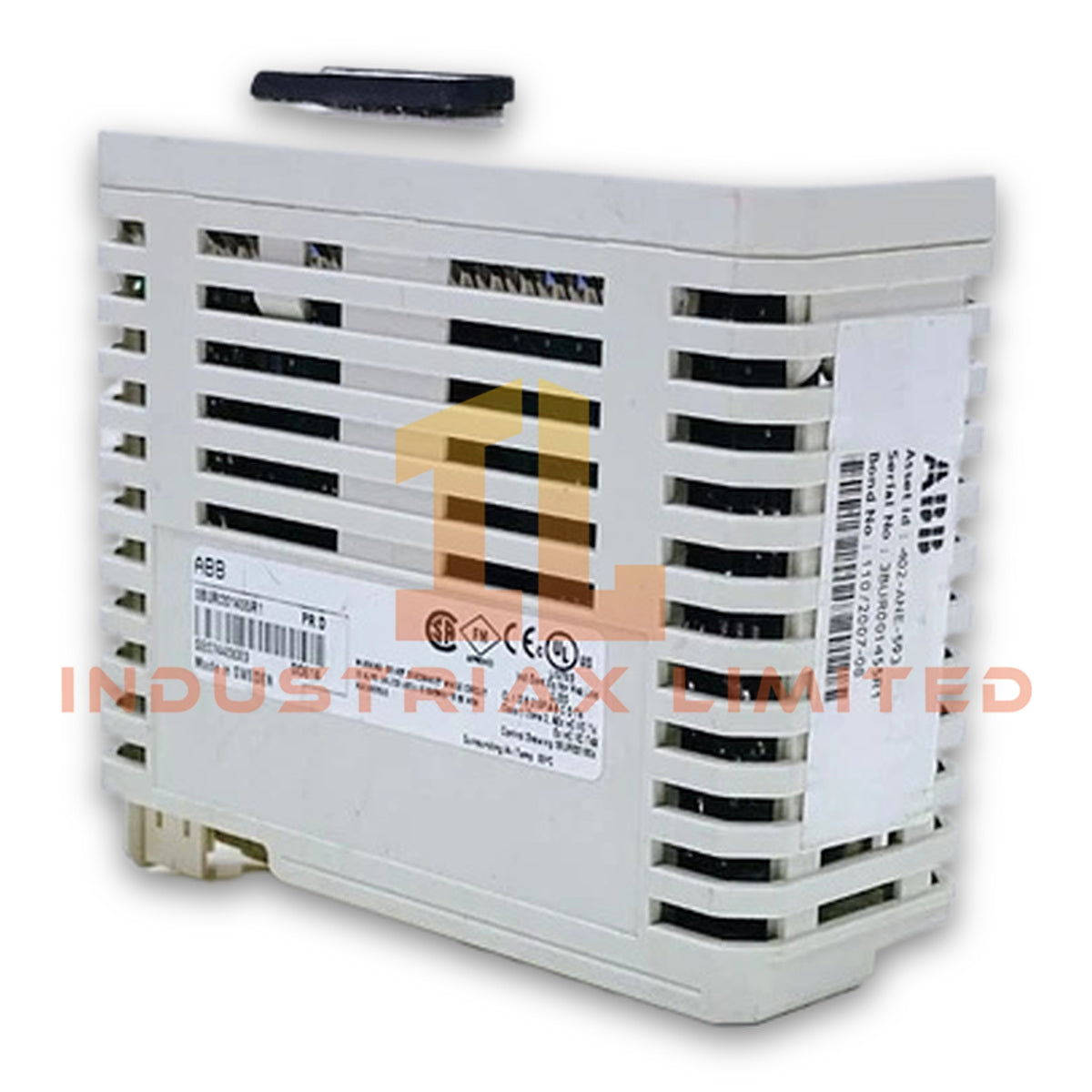

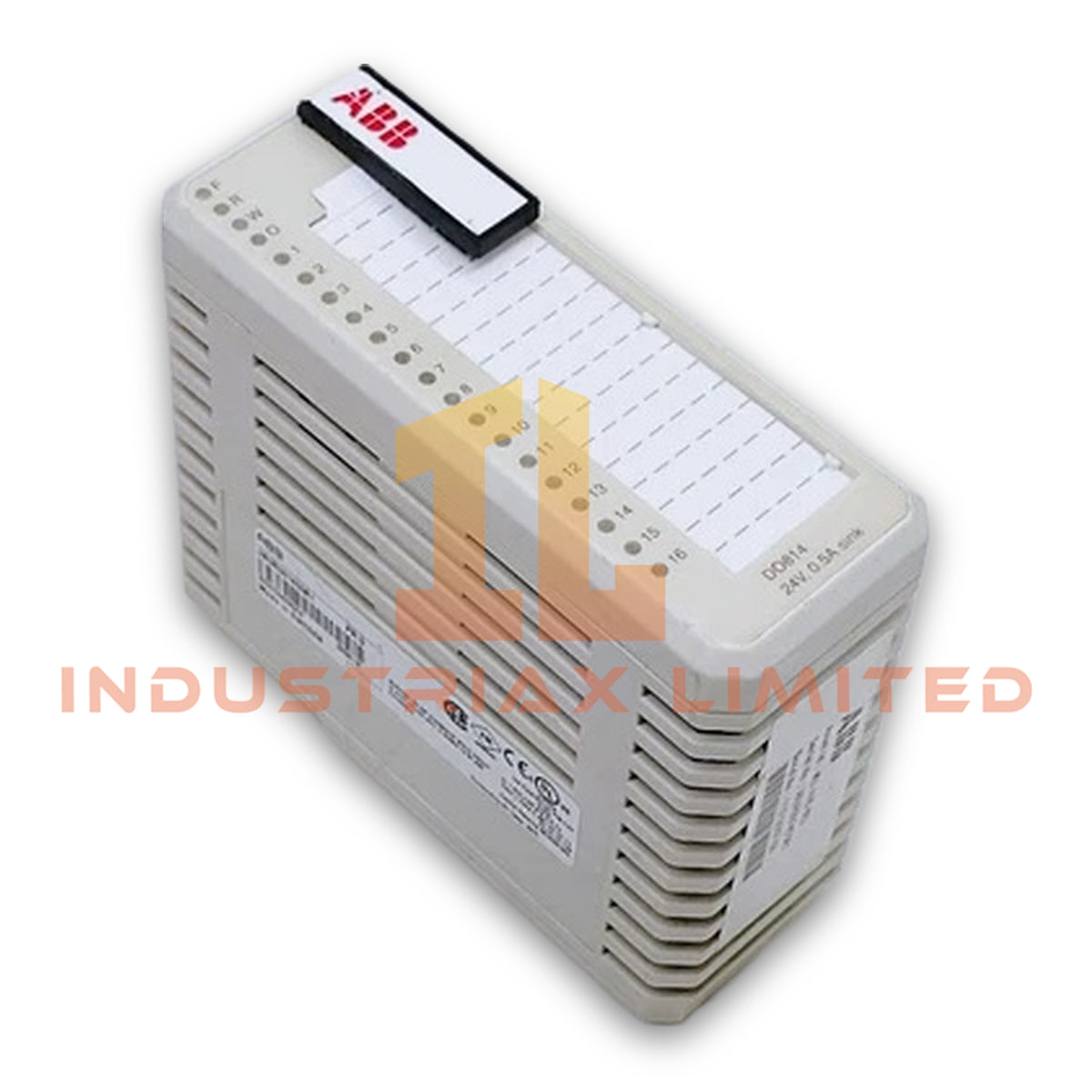

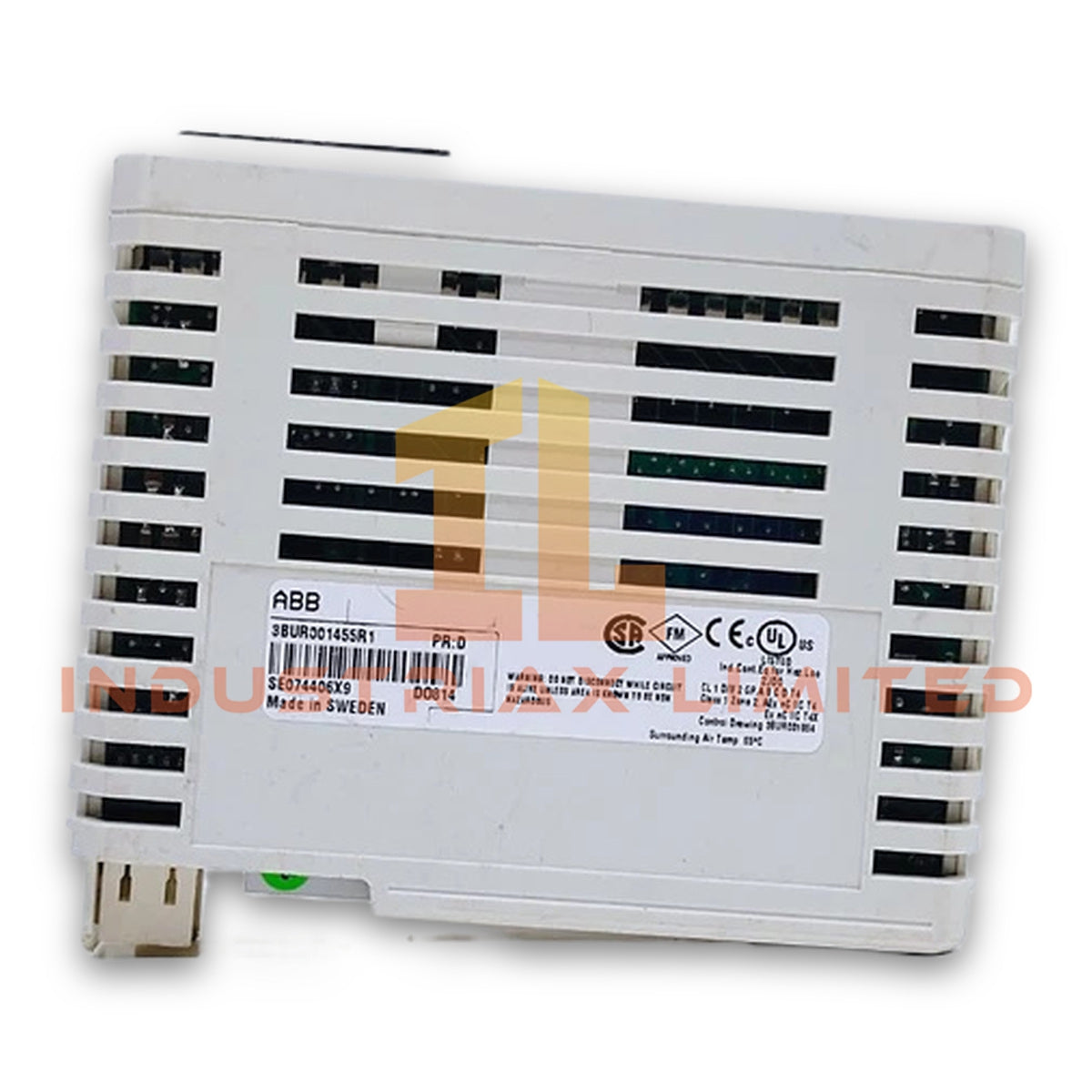

ABB DO814 3BUR001455R1 Digital Output Module

Configured for 24 VDC current sinking output execution in the ABB S800 I/O system, the ABB DO814 3BUR001455R1 (DO814 Digital Output Module) provides direct physical signal control through 16 output channels with current limiting protection.

Hardware Specifications

Parameter	Specification
Model	DO814 3BUR001455R1
Brand	ABB
Product Type	Digital Output Module
Origin	Sweden
Weight	0.4 kg
Dimensions	12.7 x 5.1 x 12.7 cm
Operating Temp	0 to +55 deg C
Storage Temperature	-40 to +70 deg C
Power Consumption	Typical 2.1 W
Signal Specification	24 VDC (12-32 VDC), 0.5 A
Number of Channels	16
Signal Type	Current sinking, current limiting
I/O System	ABB S800 I/O
Mechanics	S800
Maximum Field Cable Length	600 m
Rated Insulation Voltage	50 V
Dielectric Test Voltage	500 VAC
ModuleBus Current Consumption	80 mA at +5 V ModuleBus
Relative Humidity	5 to 95 %, non-condensing
Marine Certification	ABS, BV, DNV, LR
Tariff Code	8537101190

ABB S800 I/O Backplane and I/O Density Characteristics

The DO814 operates as an ABB S800 I/O digital output device with 16 current sinking channels. The module receives control commands through the ModuleBus interface and transfers discrete output signals to connected field devices.

Additionally, the S800 I/O architecture supports I/O density scaling through modular channel allocation. The DO814 provides compact digital output expansion for systems requiring multiple 24 VDC discrete actuators, solenoids, and control circuits.

The module uses current limiting output technology to control load current and protect output channels against abnormal electrical conditions. Therefore, field wiring design must consider load characteristics and cable routing requirements.

Frequently Asked Questions

Q: What output signal type does the ABB DO814 3BUR001455R1 provide?
A: The DO814 provides 16 digital output channels using 24 VDC current sinking signals with current limiting functionality.

Q: What ABB platform supports the DO814 module?
A: The DO814 is designed for the ABB S800 I/O system and uses the S800 mechanical configuration with ModuleBus communication.

Q: What environmental conditions are specified for DO814 operation?
A: The module operates from 0 to +55 deg C and supports 5 to 95 % relative humidity without condensation.

Field Installation Guidelines

• Install the DO814 module on the ABB S800 I/O mounting arrangement according to system hardware documentation.
• Verify the 24 VDC field supply polarity before connecting output loads.
• Separate digital output wiring from high voltage power cables to reduce electrical interference.
• Use appropriate grounding methods for cabinet shielding and signal reference connections.
• Confirm connected field devices match the module output current limitation and voltage range.
• Check ModuleBus connection integrity before system commissioning.
• Verify output channel status indicators after completing field wiring tests.
