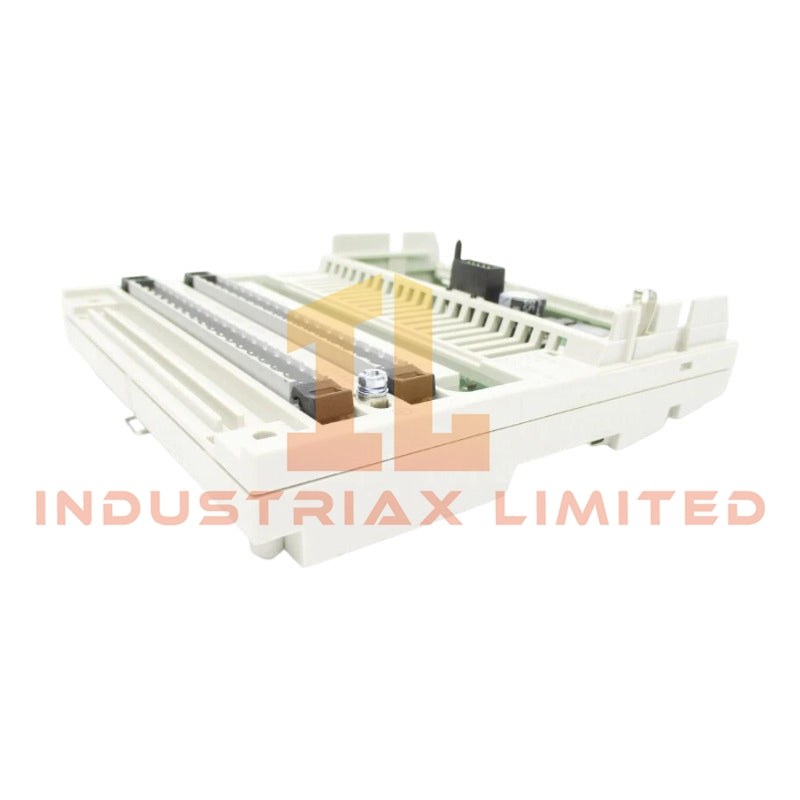

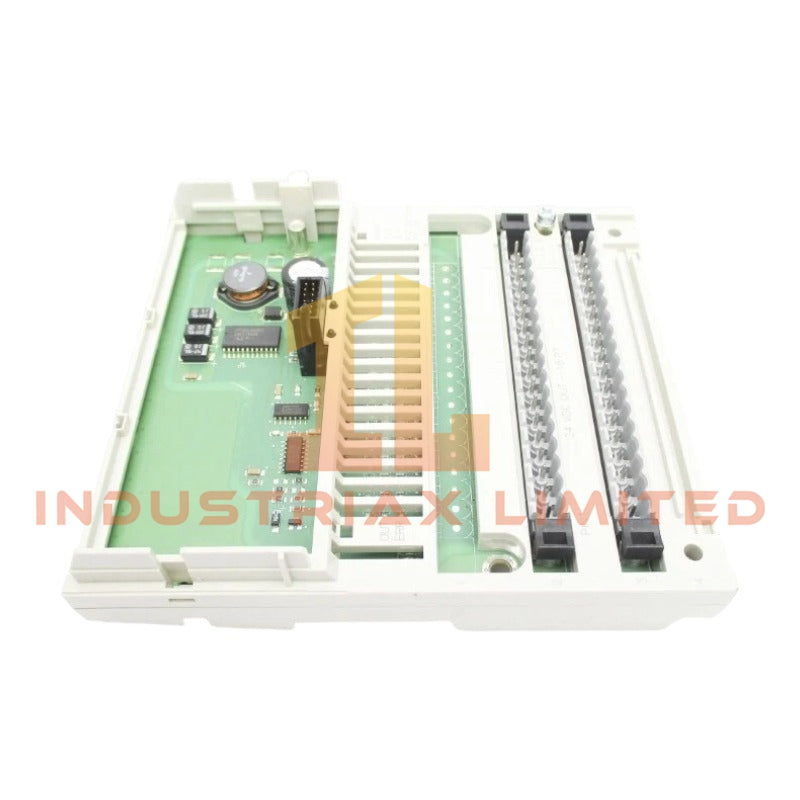

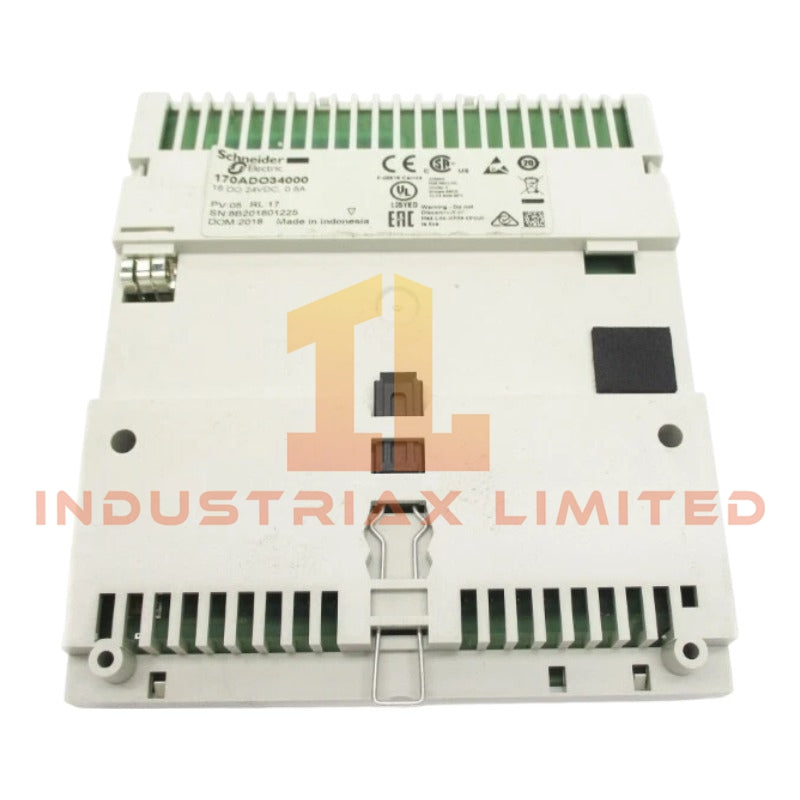

Schneider Electric 170ADO34000 Momentum Discrete Output Module

The Schneider Electric 170ADO34000 also cataloged as the 170ADO34000 discrete output module operates as a dedicated hardware component for electrical switching of field actuators within the Schneider Electric Modicon Momentum I/O architecture. Configured for 24 VDC solid-state output execution in distributed backplane systems, the 170ADO34000 (170ADO34000 discrete output base DC) provides direct channel-level switching across 16 isolated output points.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 170ADO34000
PowerConsumption	3.5 W typical / 4.5 W max
Output Channels	16 (2 groups of 8)
Output Type	Solid state switch
Output Voltage	24 VDC
Current per Channel	0.5 A
Group Current	4 A per group
Module Current	8 A total
Response Time	0.1 ms (ON/OFF)
Isolation	500 VAC channel-to-bus
Protection	Electronic short-circuit and overload protection

PLC Backplane Communication and Output Execution Profile

Within the Modicon Momentum distributed control topology, the 170ADO34000 module operates via backplane-bus synchronized output refresh cycles, where deterministic scan alignment governs output state transitions across 16 channels. The module supports high-speed digital actuation with 0.1 ms state change latency, optimized for tight I/O coupling in modular PLC racks. Channel grouping architecture (8+8 segmentation) enables localized current distribution across backplane power domains, reducing thermal concentration per output bank.

Frequently Asked Questions

Q: Can the 170ADO34000 outputs be hot-swapped under load conditions?
A: The module is not designed for live hot-swap of field loads. Removal under energized output conditions may cause transient backplane disturbance and undefined output states.

Q: What is the limitation of channel-to-channel isolation?
A: Output channels share group-level architecture; isolation is provided to backplane (500 VAC), but channels within the same group are not individually galvanically isolated.

Q: How does the module handle inductive load switching?
A: External suppression (flyback diode or RC snubber) is required. Internal protection is limited to electronic short-circuit detection and shutdown.

Field Installation Guidelines

Ensure 24 VDC supply stability before insertion into the Modicon Momentum backplane. Maintain separation between field wiring and logic wiring to minimize capacitive coupling across output groups. Shielded cabling is recommended for long-run inductive loads, with single-point grounding at the cabinet earth bar. Do not exceed 0.5 A per channel or 4 A per output group. Verify output polarity consistency prior to energization to prevent reverse conduction stress on solid-state switching elements.
