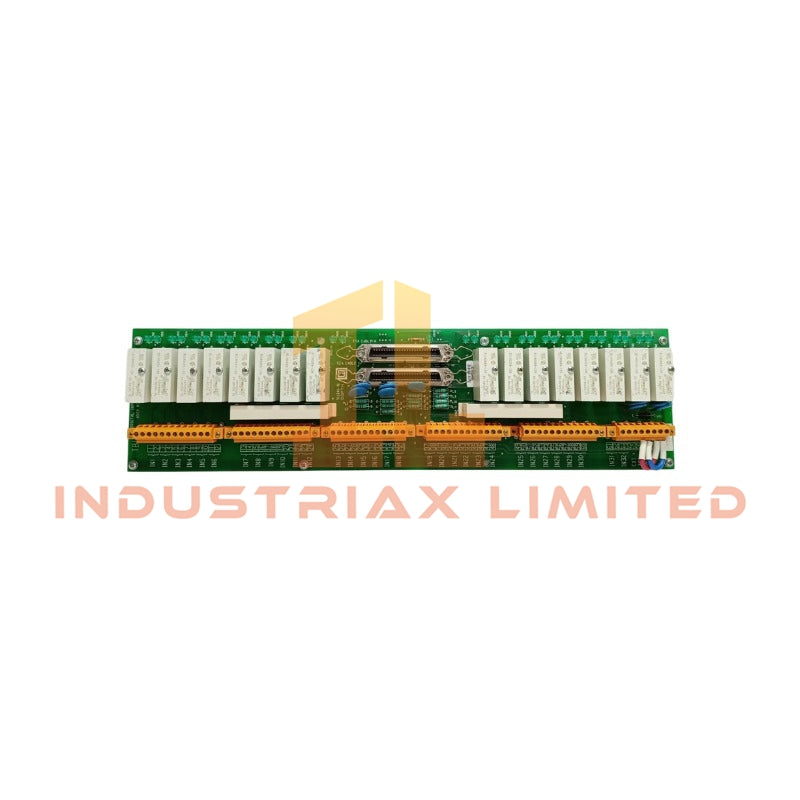

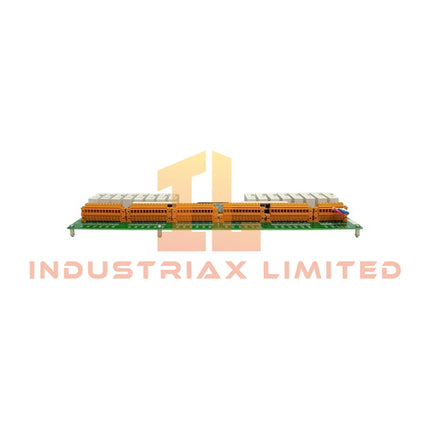

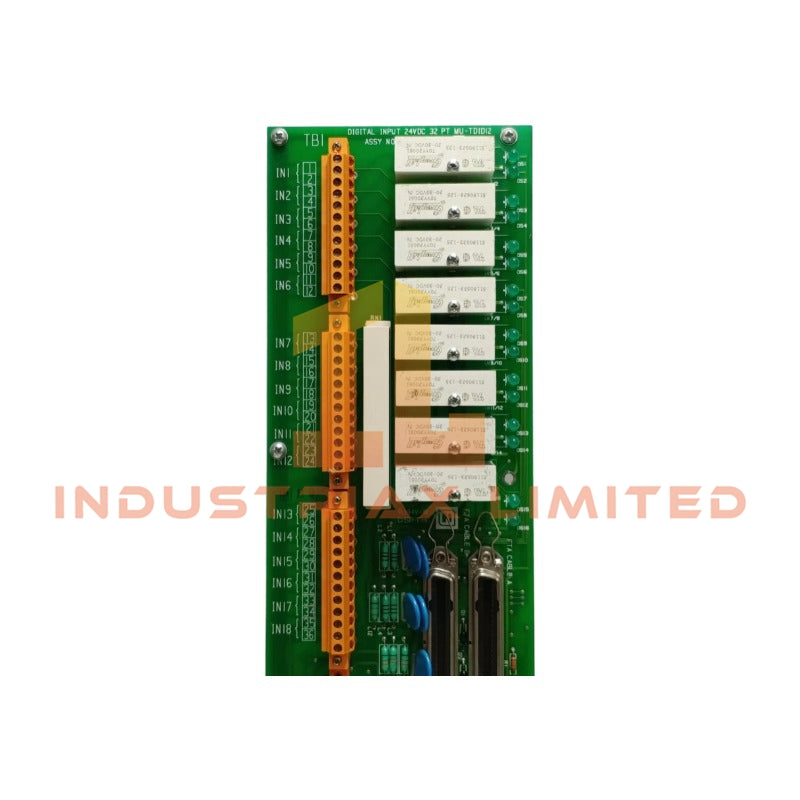

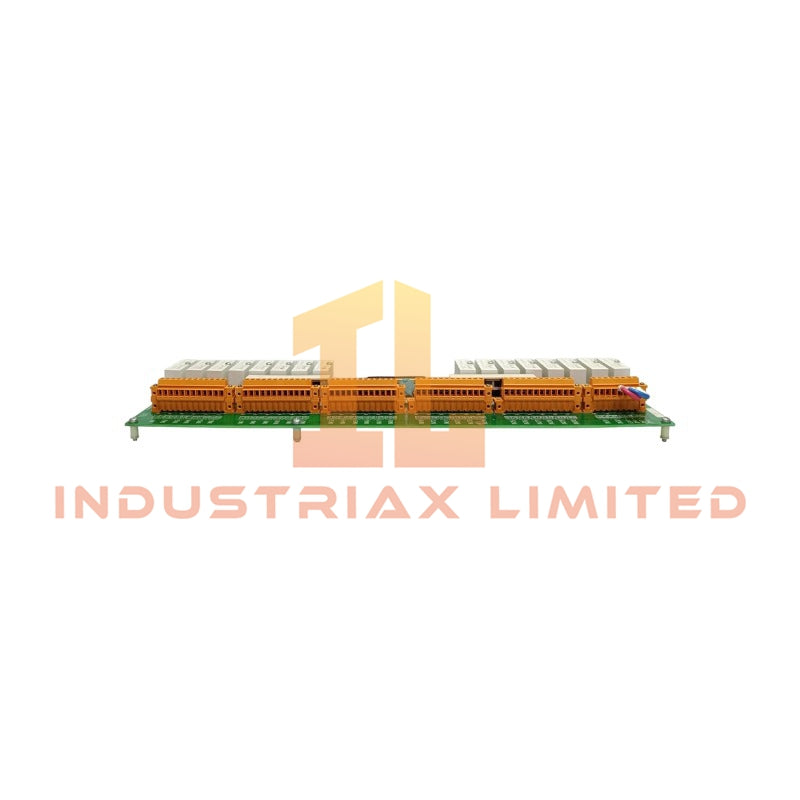

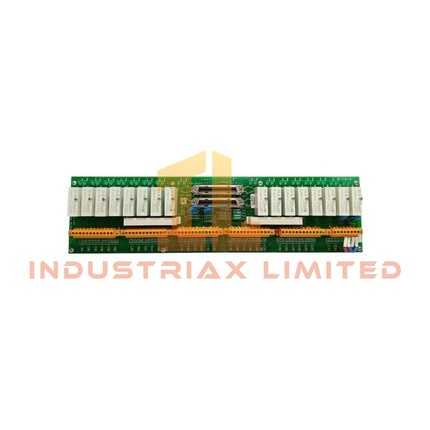

Honeywell MU-TDID12 Digital Input Field Termination Assembly

Configured for discrete signal acquisition in Honeywell Experion PKS and TDC 3000 systems, the Honeywell MU-TDID12 53104441-100 (MU-TDID12 Digital Input FTA) provides direct electrical interface execution for field contact and voltage input circuits.

Hardware Specifications

Parameter	Specification
Model	MU-TDID12
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to 60 deg C
Power Consumption	Dependent on connected I/O system configuration
Part Number	53104441-100
Module Type	Digital Input Field Termination Assembly (FTA)
Signal Type	Discrete digital input
Channel Capacity	32 channels (configuration dependent)
Input Interface	Dry contact or voltage sensing input
Nominal Field Voltage	24 VDC
Isolation Type	Galvanic or optical isolation
Mounting Method	FTA mounting channel / DIN rail system
Protection Features	Signal conditioning and overvoltage protection
System Compatibility	Honeywell Experion PKS and TDC 3000 platforms

Process Control Signal Isolation and DCS Interface

The MU-TDID12 provides discrete signal termination between field devices and Honeywell control processors. It accepts ON/OFF field signals from switches, contacts, and discrete sensors, then transfers conditioned signals through the I/O interface.

For Honeywell process control installations, the module supports structured field wiring and channel separation practices. In addition, channel-to-channel isolation reduces interference between independent field circuits and improves signal integrity during operation.

The module design follows DCS termination requirements, where field terminals, signal conditioning circuits, and controller-side interfaces remain separated. Therefore, maintenance personnel can troubleshoot field circuits without directly affecting controller electronics.

Frequently Asked Questions

Q: What type of field signals does the MU-TDID12 process?
A: The MU-TDID12 processes discrete ON/OFF input signals from dry contacts or compatible voltage-based field devices. The exact input method depends on the connected I/O configuration.

Q: Does the MU-TDID12 provide electrical isolation between field wiring and system electronics?
A: Yes. The module uses galvanic or optical isolation methods to separate field circuits from control system logic circuits.

Q: Can the MU-TDID12 be installed directly as a standalone controller module?
A: No. The MU-TDID12 functions as a Field Termination Assembly and requires connection with the compatible Honeywell I/O hardware and system cabling.

Field Installation Guidelines

• Install the MU-TDID12 according to the Honeywell approved FTA mounting arrangement and cabinet wiring practices.
• Verify terminal assignments before connecting field devices to prevent incorrect discrete input mapping.
• Use shielded field cables where electromagnetic interference may affect low-level control signals.
• Connect cable shields according to the site grounding standard and avoid multiple grounding points that can create ground loops.
• Separate digital signal wiring from high-voltage power cables and high-current switching circuits.
• Confirm field voltage levels before energizing the connected input channels.
• Inspect terminal connections periodically to maintain stable electrical contact during long-term operation.
