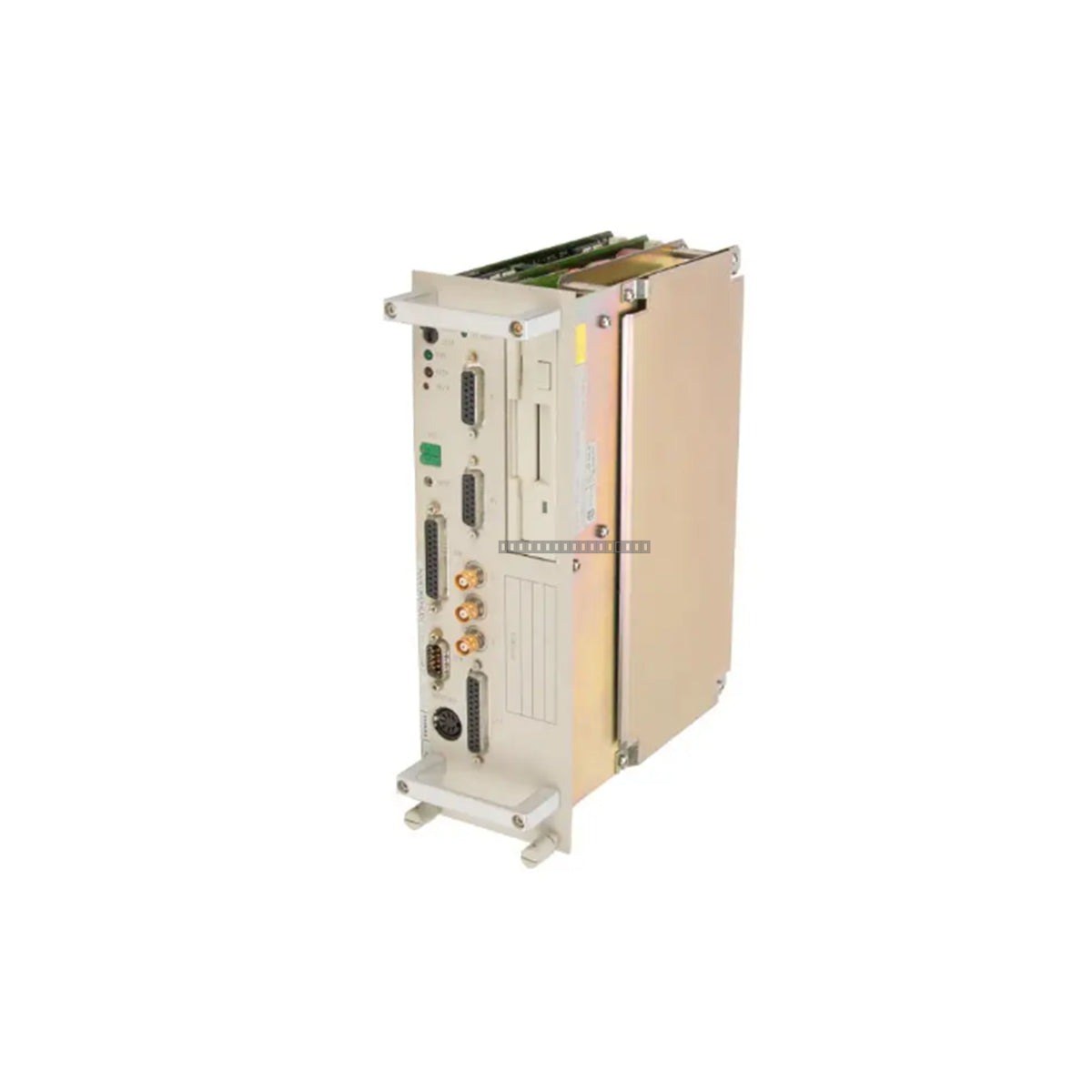

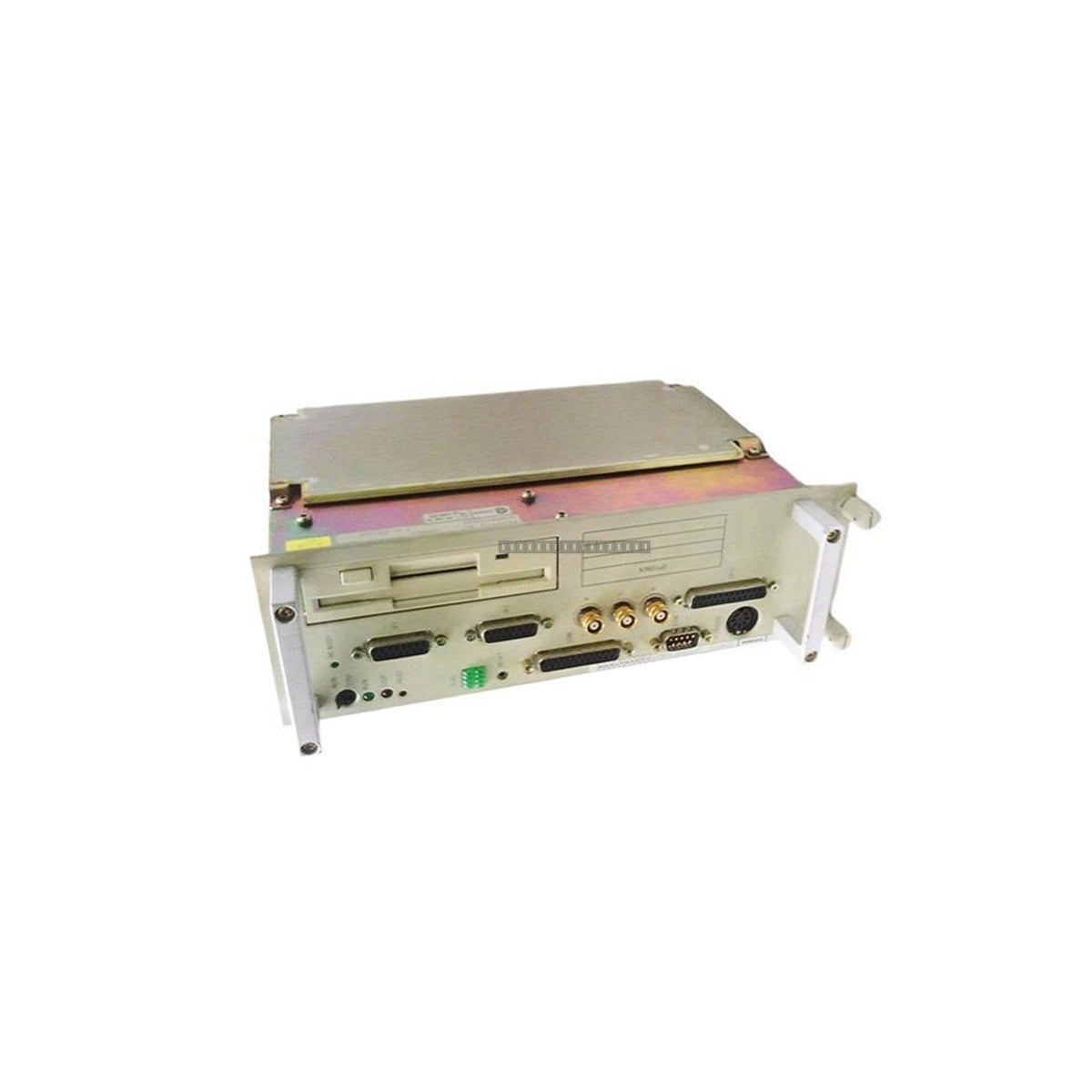

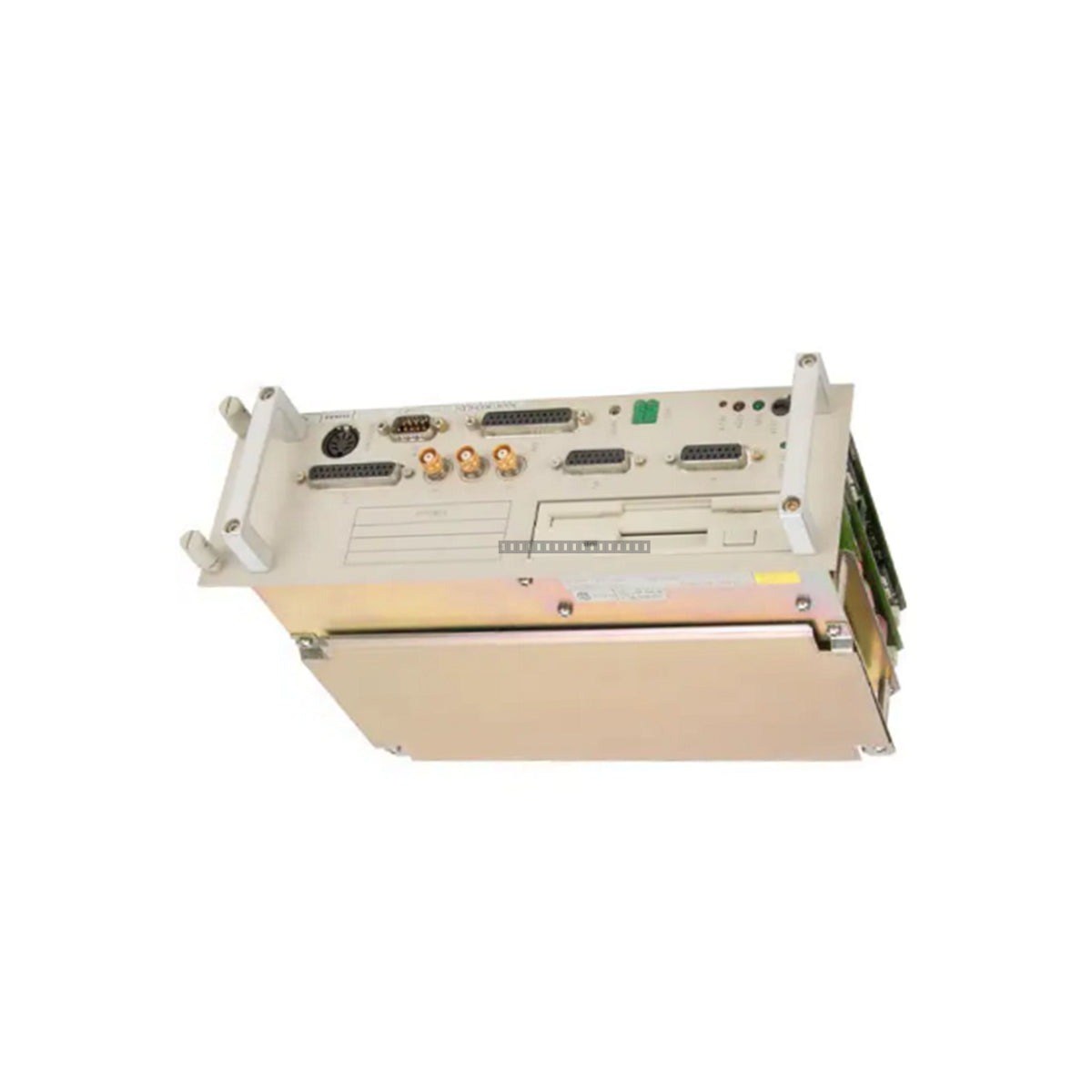

The Siemens Simatic S5 CP580 6ES5 580-0UA12 is a high-capacity central processing unit module designed for integration within Siemens Simatic S5-135 and S5-155 industrial control systems. This module provides essential processing power for large-scale automation environments, including petrochemical refineries, power generation facilities, and mining operations. As a core component of the S5 legacy architecture, it handles complex PLC calculation routines and coordinates multi-tasking operations via the high-speed backplane, ensuring reliable data flow and minimizing system latency.
Features
- High-performance processing for S5-135 and S5-155 rack-based systems.
- 4 MB onboard memory capacity for extensive user programs and industrial data blocks.
- Optimized for real-time cyclic program execution in multi-processor configurations.
- Hardware architecture designed for direct memory map manipulation and sequential logic processing.
- Internal shielding to mitigate high-frequency electrical noise and prevent data corruption.
Applications
This CPU module is primarily utilized in legacy industrial automation networks requiring robust, multi-tasking control. It is suitable for complex process control, large-scale sequential logic execution, and data management tasks within heavy industrial environments.
Technical Specifications
| Model |
6ES5 580-0UA12 (CP580) |
| System Compatibility |
Siemens Simatic S5-135 / S5-155 |
| Memory |
4 MB |
| Coprocessor |
None (Basic configuration) |
| Operating Temperature |
0 to 60 deg C |
| Power Supply |
5 VDC (via rack bus) |
Installation Guidelines
- Ensure the rack power is fully disconnected before inserting or removing the CP580 module.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
- Verify that the module is correctly seated in the designated S5 backplane slot to ensure proper bus communication.
- Maintain adequate cabinet ventilation to keep operating temperatures within the specified 0 to 60 deg C range.
- Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
FAQ
Does this module include a coprocessor?
No, the 6ES5 580-0UA12 is a basic hardware variant that does not include an integrated coprocessor, focusing instead on primary instruction cycle efficiency.
Is this module compatible with S5-115 systems?
This module is specifically engineered for the S5-135 and S5-155 series. Please consult your system documentation before attempting installation in other S5 series racks.
