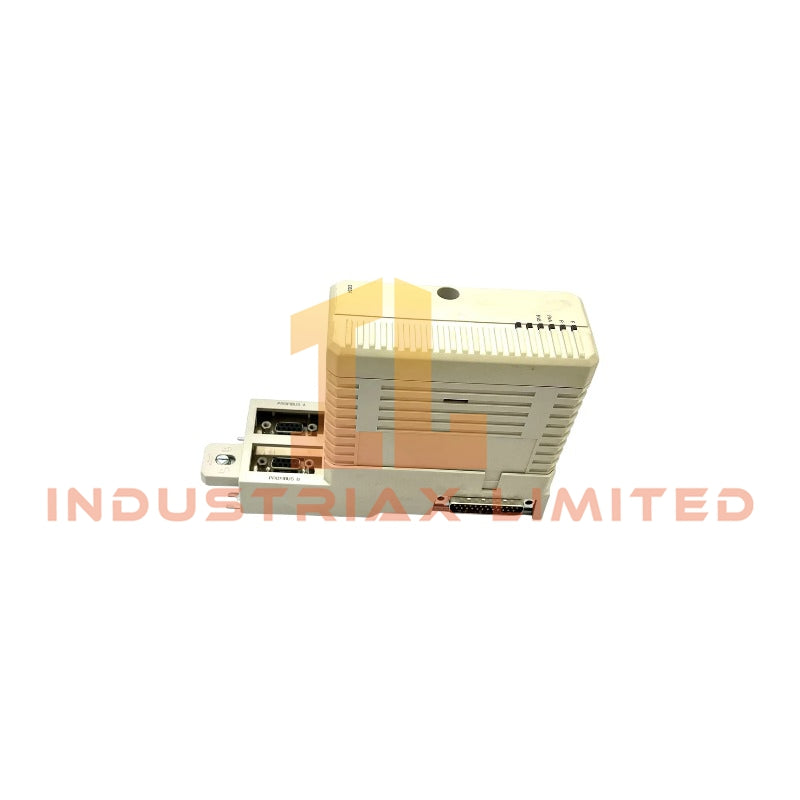

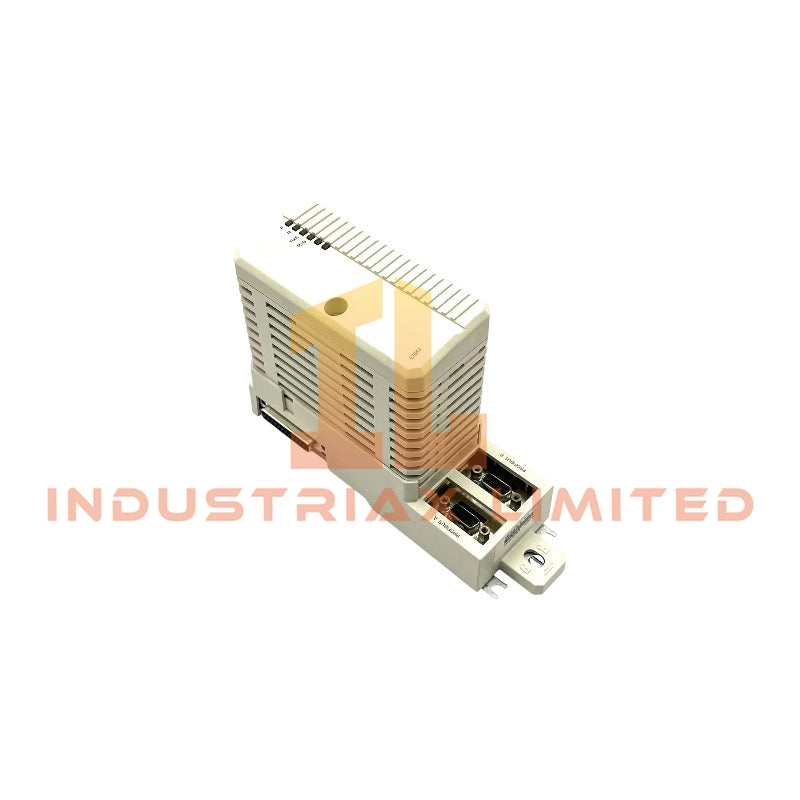

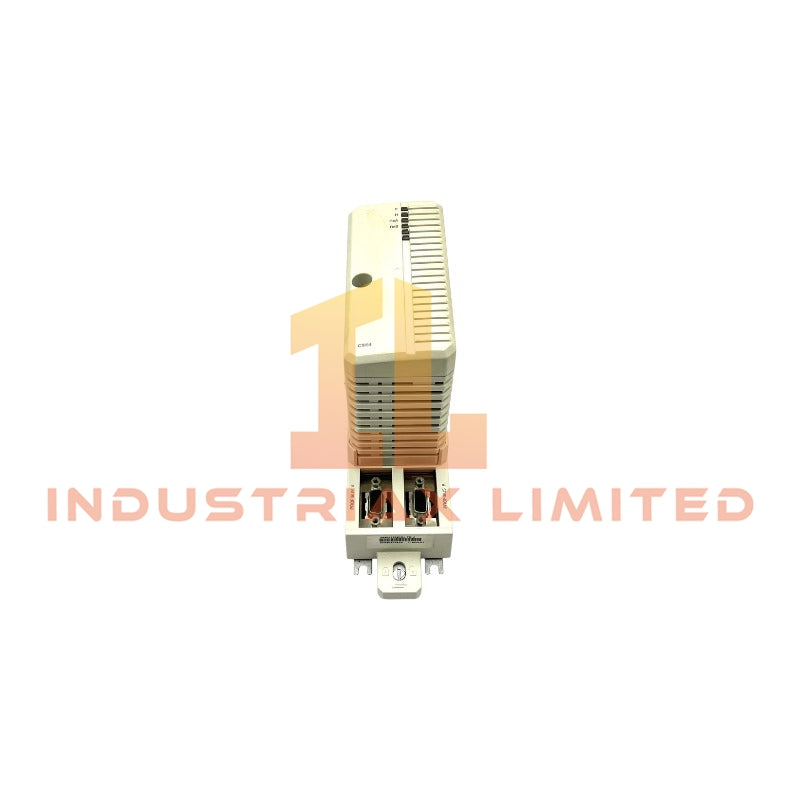

ABB CI854K01 Profibus-DP/V1 Interface Kit

Configured for Profibus-DP/V1 communication in AC 800M control systems, the ABB CI854K01 (CI854 Communication Interface) provides the interface hardware required for Profibus-DP/V1 network connectivity. The package includes the CI854 communication interface and TP854 baseplate with a specified width of 60 mm. Product ID 3BSE025961R1 identifies this spare-parts package.

Hardware Specifications

Parameter	Specification
Model	CI854K01
Base Model	CI854
Brand	ABB
Product ID	3BSE025961R1
Product Type	Profibus-DP/V1 Interface Kit
Communication Protocol	Profibus-DP/V1
Package Contents	CI854 Communication Interface; TP854 Baseplate
Baseplate	TP854
Baseplate Width	60 mm
Product Net Weight	0.6 kg
Product Net Dimensions	25 cm depth x 15.8 cm height x 8.7 cm width
Customs Tariff Number	85389091
Product Status	Spare_Parts
Replacement Product	CI845AK01, 3BSE030220R1
Control Software Requirement for Replacement	Version 3.2/1 or later

Profibus-DP/V1 Communication Interface

The CI854 provides the AC 800M platform with a dedicated Profibus-DP/V1 communication interface. The interface operates as part of the controller communication architecture and uses the TP854 baseplate for physical installation.

The supplied package combines the communication interface and baseplate as one ordering unit. Therefore, installation requires the specified TP854 baseplate rather than a separately selected mounting assembly.

Because the supplied data does not define baud rate, node capacity, electrical isolation, or current consumption, those parameters should be verified against the applicable ABB hardware manual before system engineering.

Frequently Asked Questions

Q: What communication protocol does the CI854K01 support?
A: The CI854K01 provides Profibus-DP/V1 communication through the CI854 interface.

Q: What components are included in the CI854K01 package?
A: The package includes one CI854 communication interface and one TP854 baseplate.

Q: What is the specified physical width of the TP854 baseplate?
A: The supplied product data specifies a TP854 baseplate width of 60 mm.

Field Installation Guidelines

Install the CI854 communication interface on the specified TP854 baseplate according to the applicable ABB installation documentation.

Mount the baseplate on a suitable control cabinet or equipment mounting surface. Maintain adequate clearance for connector access, cable routing, inspection, and module removal.

Route Profibus communication cables separately from high-voltage power wiring and high-current switching conductors where practical. Maintain the applicable Profibus cable shielding and grounding arrangement throughout the network.

Before energizing the controller system, verify the module position, baseplate compatibility, communication connections, and cable termination. Do not apply undocumented power or signal connections to the interface.

The supplied data does not specify operating temperature, power consumption, electrical isolation, or network termination requirements. Confirm these values from the applicable ABB technical documentation before final installation.

Spesifikasi

• Merek: ABB
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
