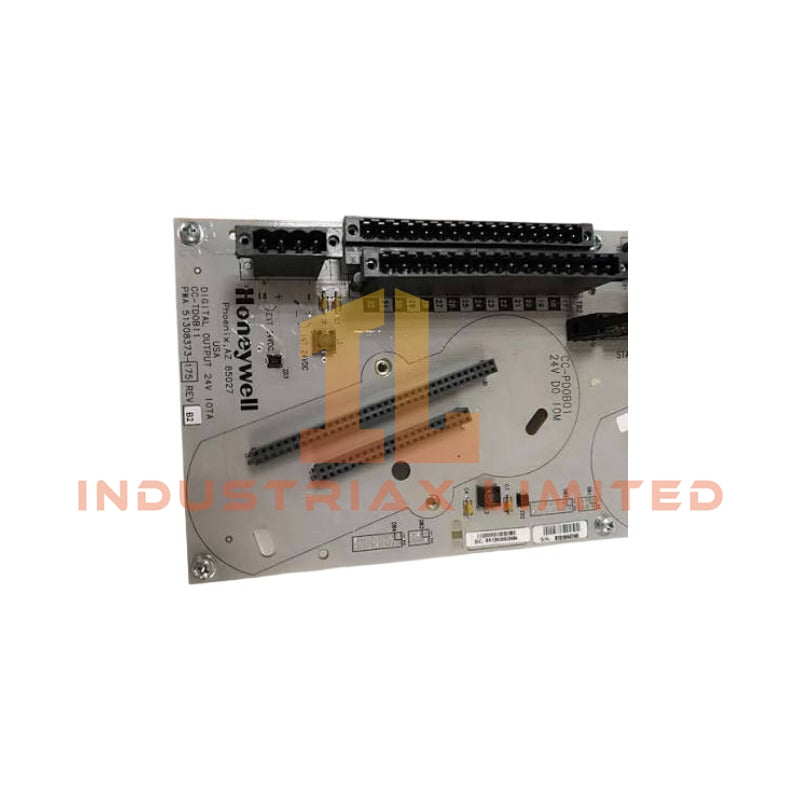

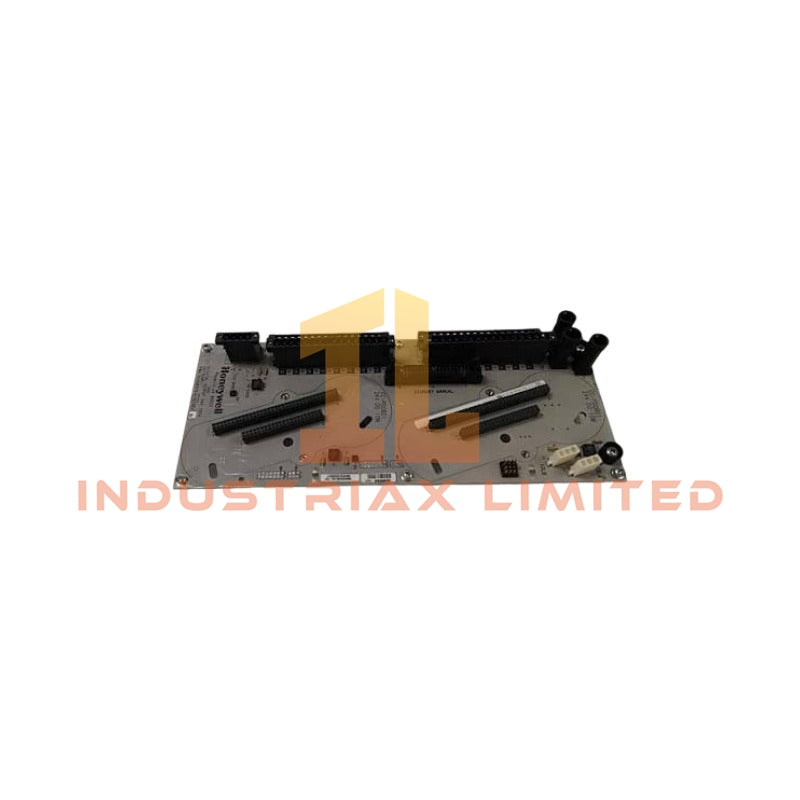

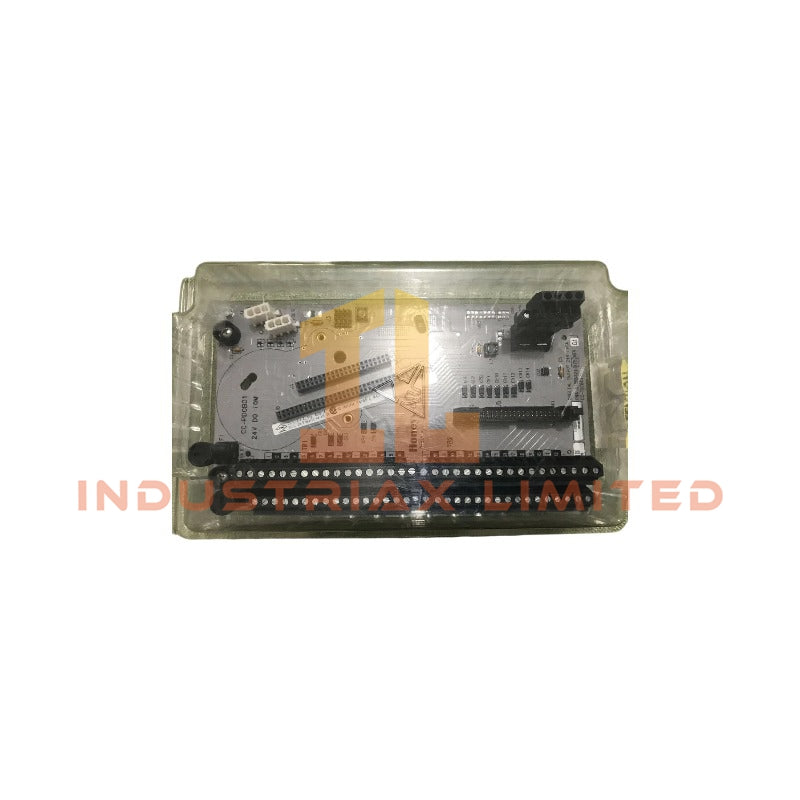

Honeywell CC-PDOB01 Digital Output Module
Configured for discrete field actuation in Honeywell Experion PKS C300 I/O architecture, the Honeywell CC-PDOB01, also cataloged as the CC-PDOB01 Digital Output 24 V Module, provides direct electrical switching for 32-channel bussed output distribution within controller-side termination assemblies.
The module executes 24 VDC digital output state control through optically isolated driver stages, supporting field load energization and de-energization with defined switching timing and channel-level electrical separation.
Hardware Specifications
Parameter
Specification
Model
CC-PDOB01
Brand
Honeywell
Origin
USA
Power Consumption
Not specified
Output Channels
32 channels
Load Voltage
Up to 30 VDC
On-State Voltage
24 V typical
Load Current
0.5 A per channel (max)
Isolation
1500 VAC RMS or +/-1500 VDC
Off-State Leakage
0.5 uA max
Switching Time
10 ms max
Honeywell Distributed I/O Channel Isolation and Output Drive Behavior
The CC-PDOB01 implements per-channel solid-state switching stages referenced to a common bussed output architecture. Electrical separation between field-side outputs and logic-side backplane interfaces is achieved through galvanic isolation rated at 1500 VAC RMS or +/-1500 VDC. This isolation boundary suppresses ground potential propagation across field wiring groups and backplane logic domains.
Output driver behavior is defined by low off-state leakage characteristics (0.5 uA max), enabling predictable de-energized line conditions in high impedance field loads. Switching transition timing is bounded at 10 ms maximum, constraining dynamic response in sequential actuation systems.
Channel density scaling to 32 outputs per module reduces termination assembly footprint while maintaining discrete control segmentation at the individual output stage.
Frequently Asked Questions (FAQ)
Q: Does CC-PDOB01 support hot-swap replacement during live backplane operation? A: The module behavior depends on system backplane implementation. Electrical switching stages are not inherently designed for field load interruption during insertion; backplane hot-swap capability is controller-chassis dependent.
Q: What is the impact of channel-to-channel interaction under simultaneous switching? A: Outputs are isolated at the module level; however, simultaneous switching can induce shared supply transient loading depending on field wiring topology and external load inductance.
Q: What limits exist for inductive load switching? A: Inductive load suppression must be handled externally via field-side flyback diodes or suppression networks, as the module specification does not define internal energy absorption beyond rated switching current.
Field Installation Guidelines
Field wiring shall be terminated using approved terminal assemblies associated with the Experion C300 I/O structure. Output channels must be grouped according to load class and wiring segregation rules to prevent cross-coupling between inductive and resistive loads.
Shield termination shall follow single-point grounding practice at the cabinet entry panel. Conductor routing must maintain separation from analog and communication wiring to reduce switching transient coupling.
Backplane insertion must be performed with power removed unless the host chassis explicitly supports controlled hot insertion. Torque and connector engagement shall follow cabinet-level assembly specifications defined by system integration standards.
Output protection devices such as external fuses or electronic circuit breakers shall be applied per channel grouping strategy to limit fault propagation.
