Keterangan

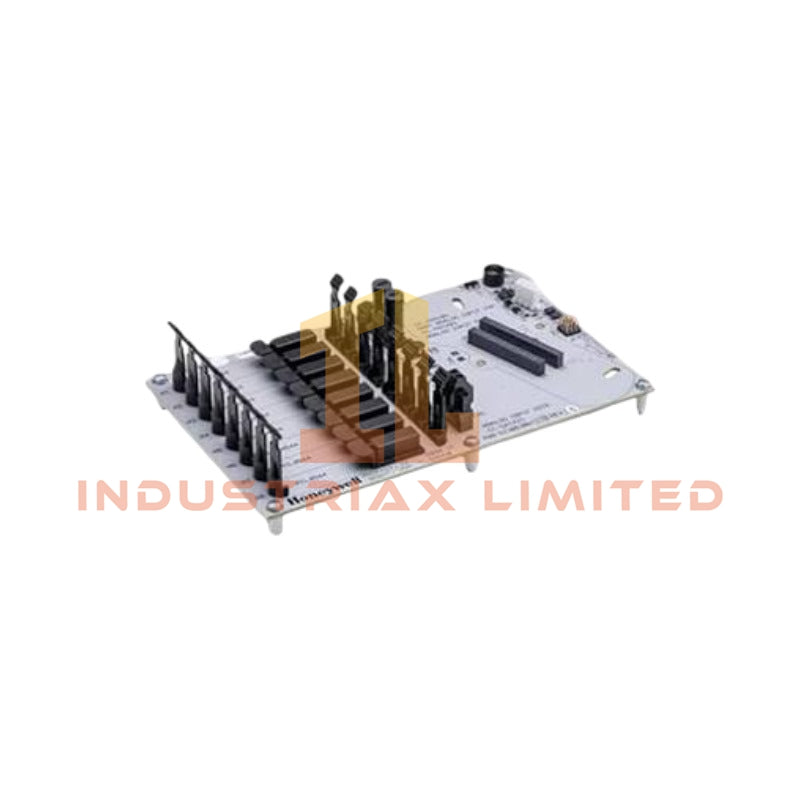

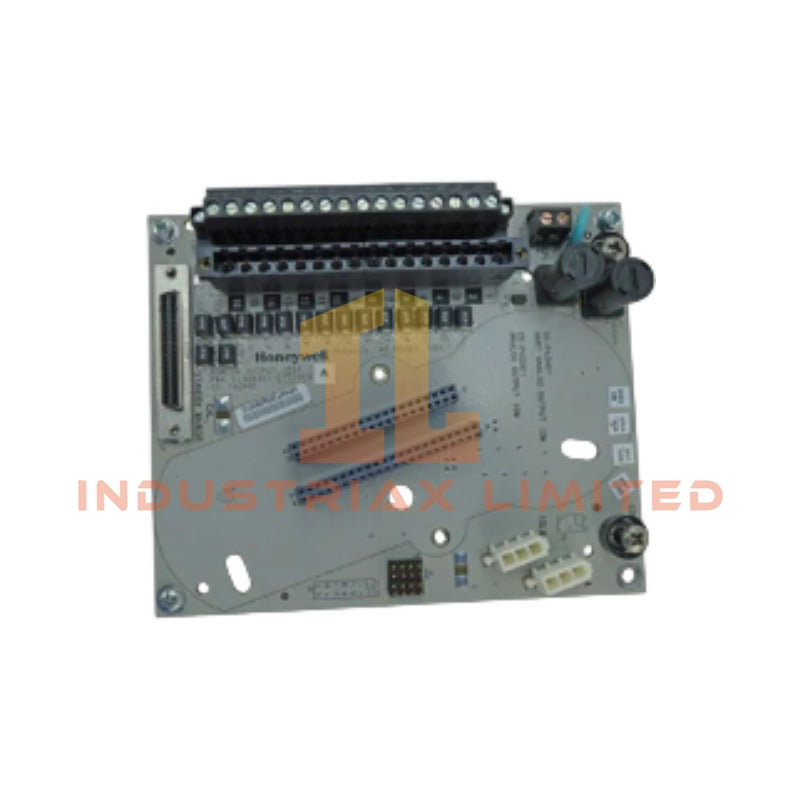

Honeywell CC-GAIX21 51306309-175 Analog Input Module
Configured for analog signal acquisition in a Honeywell process control system, the Honeywell CC-GAIX21 51306309-175 (CC-GAIX21 Analog Input Module) provides direct electrical conversion of field voltage signals into digital process data. The module incorporates a 16-bit A/D converter with defined common-mode and normal-mode rejection characteristics for analog measurement channels.
Suffix Breakdown & Model Matrix
The supplied documentation identifies a single catalog number: CC-GAIX21 51306309-175. No official suffix or option code breakdown is provided; therefore, no model matrix or suffix interpretation is included.
Hardware Specifications
Parameter
Specification
Model
CC-GAIX21 51306309-175
Brand
Honeywell
Product Type
Analog Input Module
Manufacturer
Honeywell
Origin
USA
Shipping Location
Xiamen, China
Weight
0.4 kg
Dimensions
19.1 cm x 18.8 cm x 6.5 cm
Operating Temp
Not specified
Power Consumption
Not specified
A/D Converter Resolution
16 bits
Common Mode Rejection Ratio
70 dB, dc to 60 Hz
Common Mode Voltage
-6 V to +5 V peak, dc to 60 Hz
Normal Mode Rejection Ratio
19 dB at 60 Hz
Normal Mode Filter
Single-pole RC, -3 dB at 6.5 Hz
Maximum Normal Mode Input
+/- 30 V
Crosstalk
-60 dB, dc to 60 Hz
Input Impedance (Voltage Inputs)
Greater than 10 MOhm, powered
Input Scan Rate
50 ms
Tariff Code
8537101190
Channel-to-Channel Signal Integrity
The module is intended for analog signal acquisition within distributed process control architectures. Proper channel separation depends on cabinet wiring practice, shield termination, and field cable routing. When multiple analog channels are installed in the same enclosure, segregating analog wiring from high-energy power conductors helps maintain the specified common-mode rejection, normal-mode rejection, and crosstalk performance. Where applicable, channel-to-channel isolation provided by the system architecture should be preserved by following the platform wiring requirements.
Frequently Asked Questions
Q: Does this module support hot replacement while the controller is operating? A: The supplied documentation does not specify hot-swap capability. Module replacement should follow the maintenance procedure defined for the installed Honeywell control platform.
Q: Is the operating temperature range specified? A: No. The provided technical information does not include environmental operating limits. Refer to the official platform documentation for installation environment requirements.
Q: Can the module accept higher transient input voltages than the specified analog range? A: The documented maximum normal-mode input is +/- 30 V. Input wiring should be designed so normal operating and transient conditions remain within the published electrical limits.
Field Installation Guidelines
Verify module catalog number before installation to ensure compatibility with the target Honeywell I/O carrier or chassis.
Remove or isolate system power in accordance with plant maintenance procedures unless the installed platform explicitly supports online replacement.
Route analog input cables separately from AC power, motor, and relay wiring to reduce induced electrical noise.
Terminate cable shields according to the system grounding specification to minimize ground loops.
Tighten field wiring terminals using the torque specified by the terminal hardware documentation.
Inspect connector engagement and module seating after installation before restoring system operation.
Perform channel verification and input signal validation after commissioning.
