Keterangan

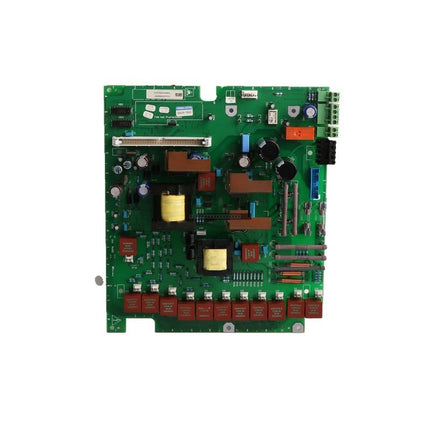

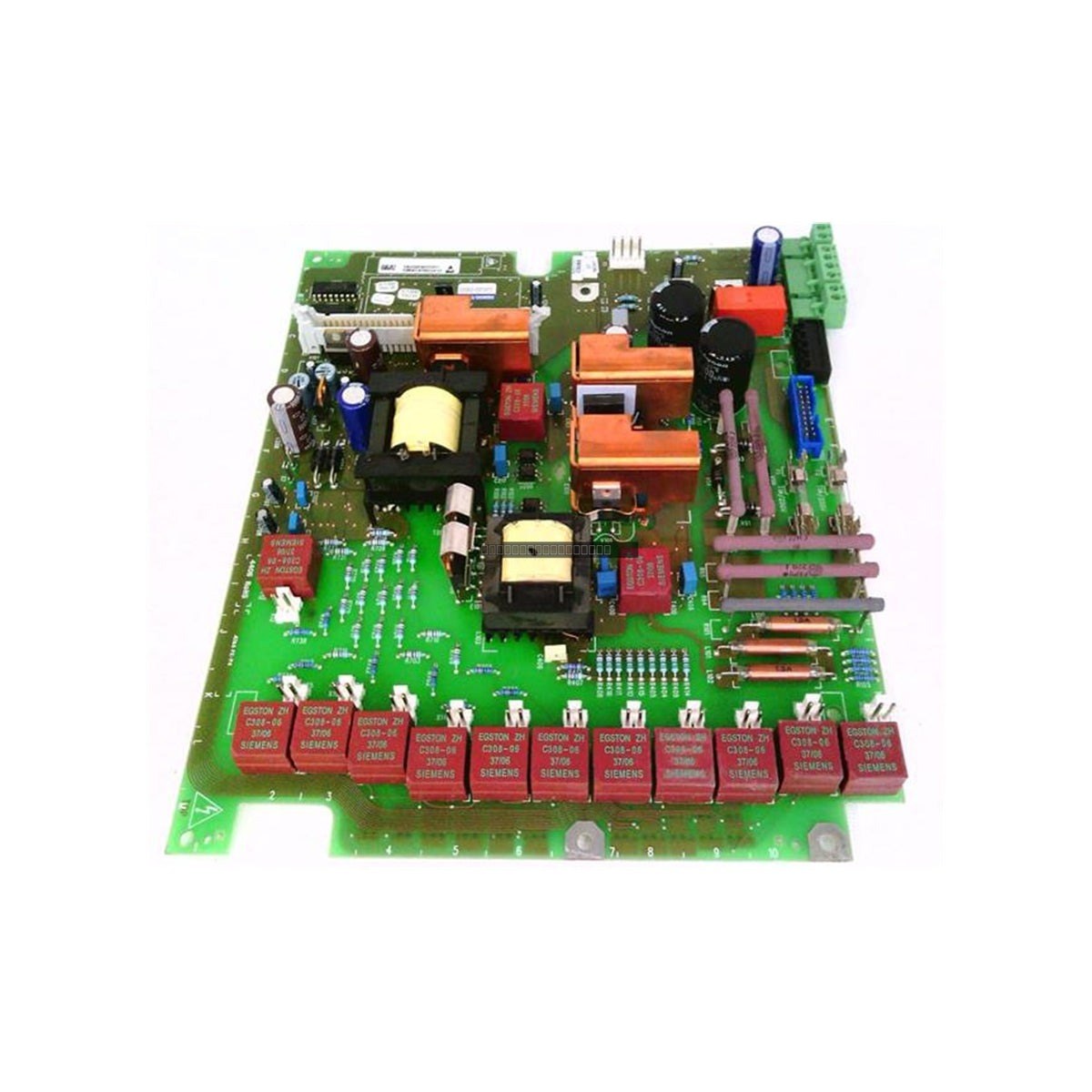

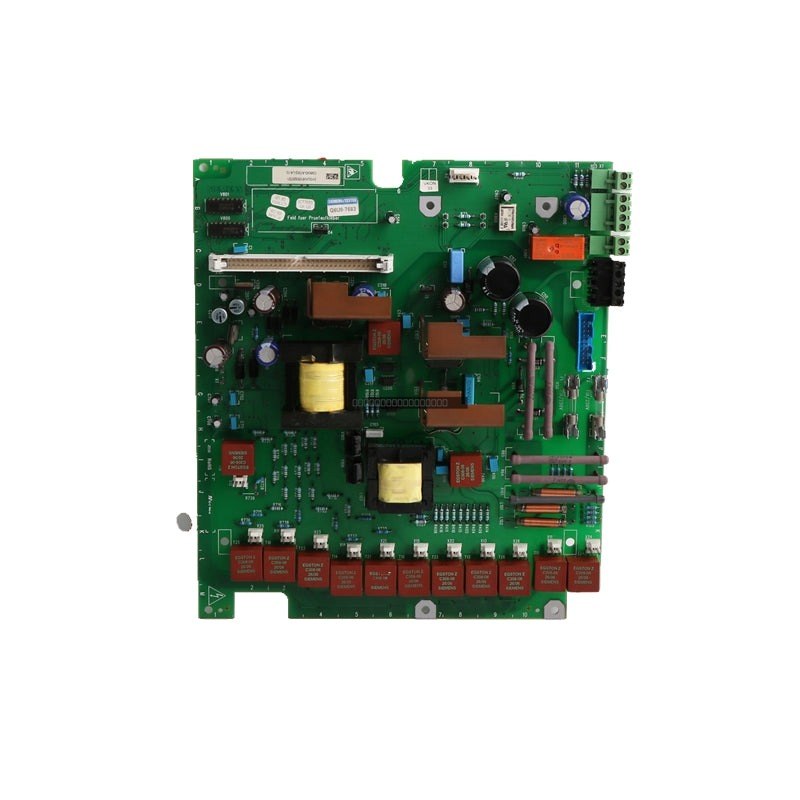

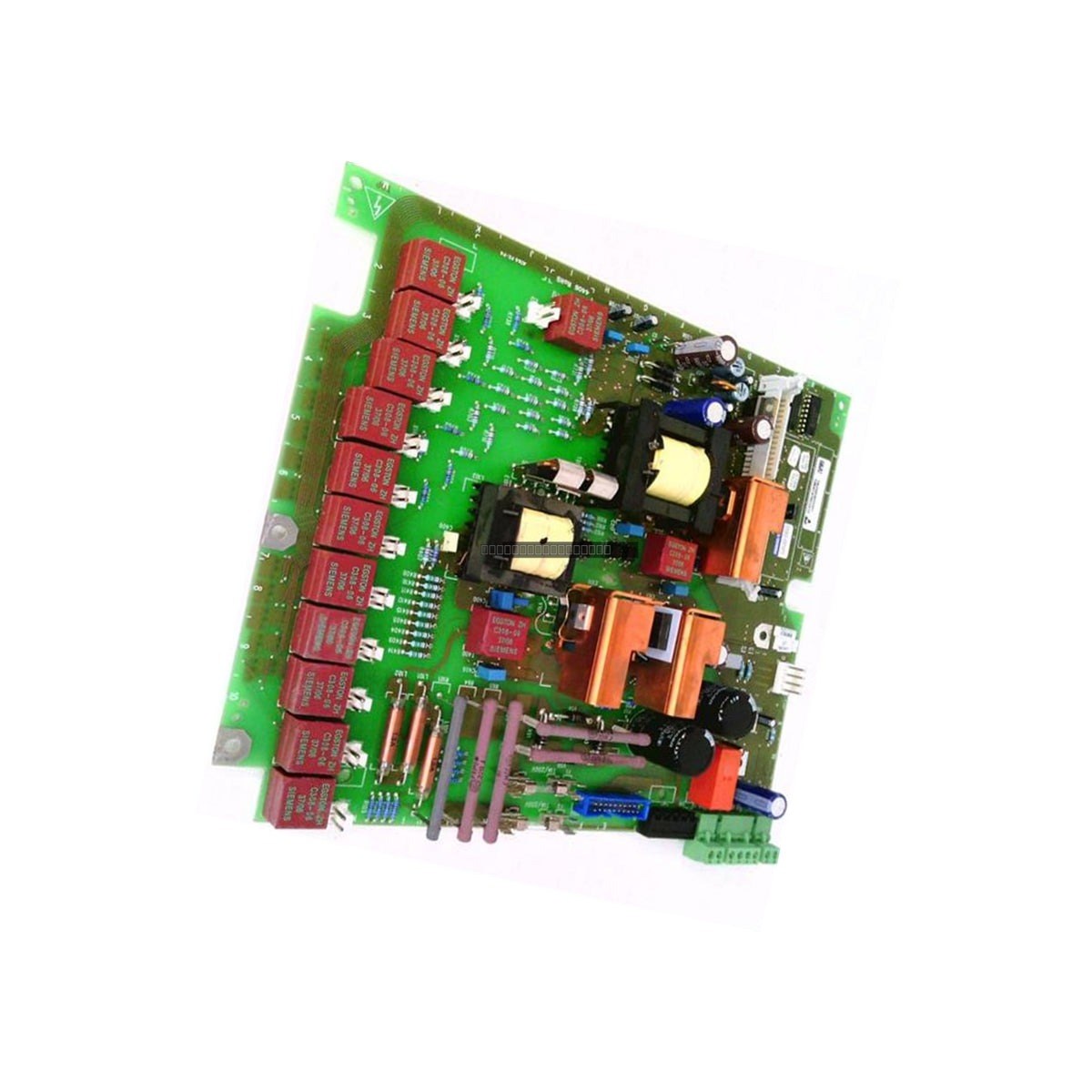

The Siemens C98043-A7002-L4-12 is a specialized power interface board designed for integration within SIMOVERT drive systems. This module facilitates critical signal and power management, ensuring reliable communication and control between the inverter power section and the control logic.
Features
- Engineered for seamless compatibility with SIMOVERT inverter architectures.
- Integrated terminal blocks included for immediate field deployment.
- Supports standard 24 V DC control voltage environments.
- Robust contact ratings suitable for industrial switching requirements.
- Designed for operation in standard industrial ambient conditions.
Technical Specifications
| Model Number |
C98043-A7002-L4-12 |
| Alternate/Spare Part |
6RY1703-0DA02 |
| Supply Voltage |
24 V DC (+/- 15%) |
| Current Consumption |
<= 2 A |
| Digital I/O Compatibility |
24 V DC |
| Contact Ratings |
<= 5 A, 250 V AC/DC |
| Operating Temperature |
0 to 55 degC (derate above 40 degC) |
| Relative Humidity |
<= 93% (non-condensing) |
Installation Guidelines
- Ensure the system power is completely disconnected before attempting to install or remove the interface board.
- Handle the module using proper ESD-safe practices to prevent damage to sensitive internal components.
- Verify that the mounting environment is free from excessive vibration and conductive dust.
- Ensure all terminal connections are tightened to the specified torque to prevent intermittent signal loss or heating.
- Maintain adequate ventilation around the drive cabinet to keep ambient temperatures within the 0 to 55 degC operating range.
FAQ
What is the primary function of the C98043-A7002-L4-12?
This board serves as a power interface module within the SIMOVERT drive series, managing signal distribution and power regulation for the inverter assembly.
Are the terminals included with this unit?
Yes, this specific part includes the necessary terminal blocks for wiring connections.
Is there a specific derating requirement for this module?
Yes, while the module is rated for up to 55 degC, performance should be derated if the ambient operating temperature exceeds 40 degC to ensure long-term component reliability.
