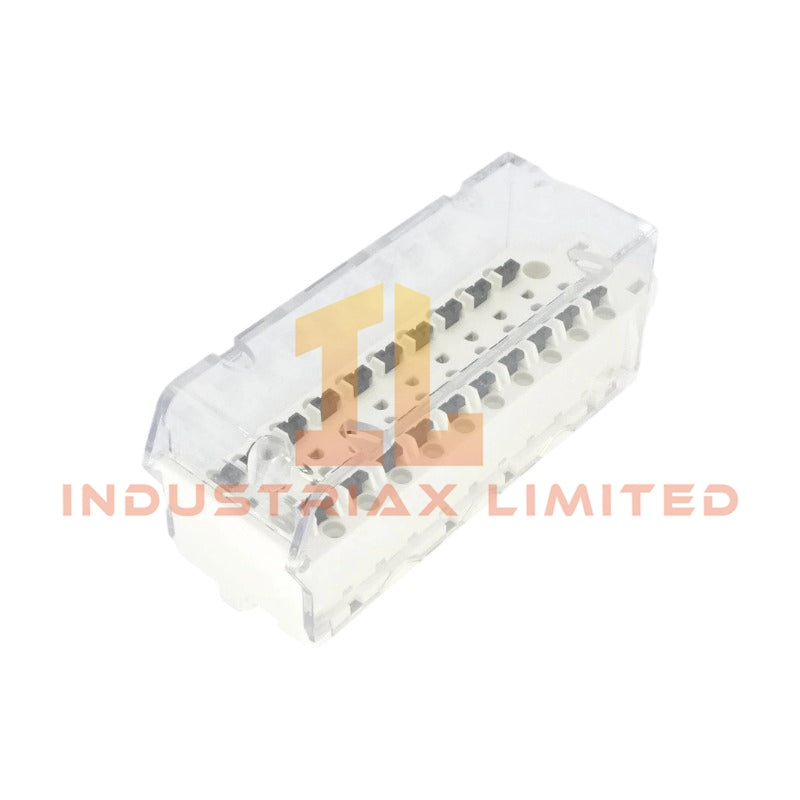

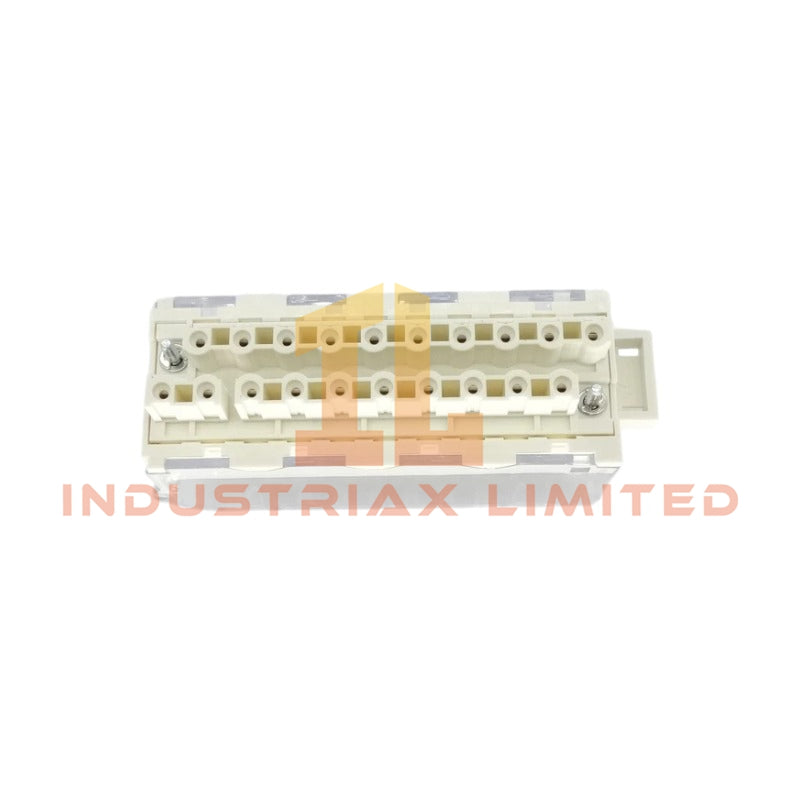

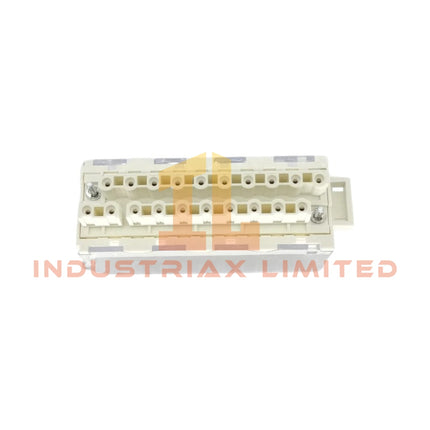

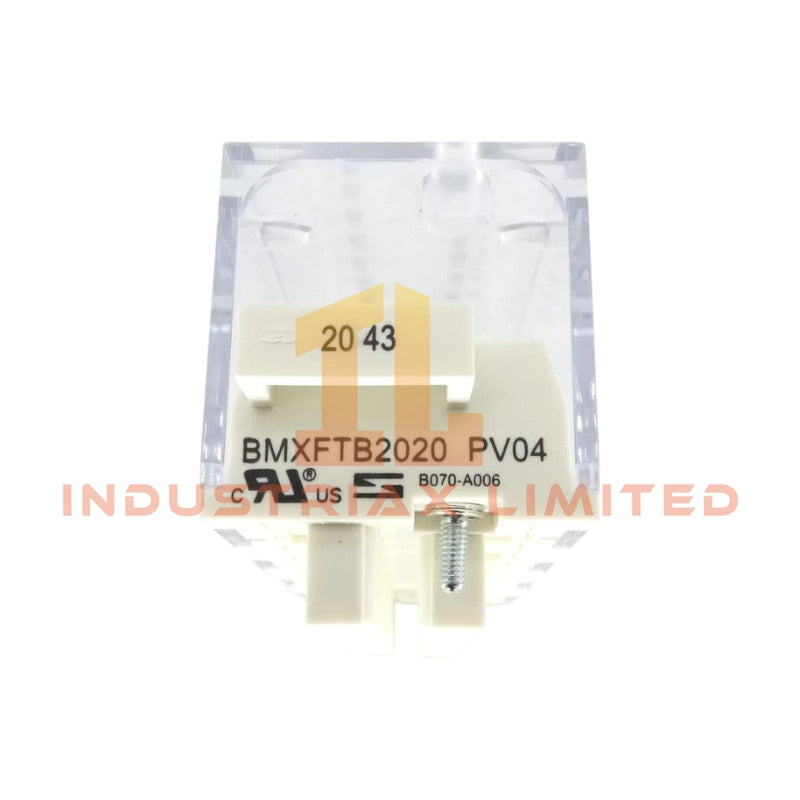

Schneider Electric BMXFTB2020 Modicon X80 Terminal Block

TheSchneider Electric BMXFTB2020 (BMXFTB2020Removable Spring Terminal Block) serves as the primary front-panel wiring interface component utilized to execute multi-channel signal termination across Schneider Electric Modicon X80 platforms. Configured for direct electrical termination of field I/O conductors in 20-pin removable architectures, the unit provides mechanical and electrical separation between wiring field and I/O electronics without signal processing functions.

Suffix Breakdown & Model Matrix

• BMX: Modicon X80 I/O system prefix
• FTB: Front Terminal Block assembly designation
• 2020: 20-pin terminal configuration identifier

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric BMXFTB2020
Origin	France
Weight	Approx. 80 g (packaged unit)
Dimensions	3.6 cm x 4.6 cm x 11.0 cm (package)
OperatingTemp	Not specified (system dependent on Modicon X80 base module)
PowerConsumption	Passive component, no internal consumption
Channel Capacity	20-pin removable spring clamp terminals
Wire Range	0.34 to 1 mm2
Mounting Type	Plug-in removable front connector interface

PLC Backplane Interface and Signal Termination Integrity

Within Modicon X80 architectures under Schneider Electric control systems, the BMXFTB2020 does not participate in backplane data exchange or firmware execution. Instead, it maintains deterministic mechanical-to-electrical continuity between field wiring and module I/O pins, ensuring stable contact resistance under vibration conditions typical of DIN rail mounted backplane assemblies. Signal integrity is maintained by fixed spring-force clamping geometry, independent of Ethernet or fieldbus protocol layers such as Ethernet/IP or Modbus TCP.

Frequently Asked Questions

Q: Does BMXFTB2020 support hot-swap operation?
A: The terminal block itself is passive. Hot-swap capability depends on the host Modicon X80 I/O module, not the terminal block.

Q: Is there any backplane current load introduced by the terminal block?
A: No. The unit is electrically passive and does not draw current from the backplane or field power rails.

Q: Can conductors below 0.34 mm2 be used?
A: Use below 0.34 mm2 is not recommended due to reduced spring clamp contact stability.

Field Installation Guidelines

• Ensure system power is isolated before inserting or removing the terminal block from the I/O module.
• Verify all conductors are stripped to manufacturer-recommended length before insertion into spring clamps.
• Maintain correct alignment during insertion to avoid pin deformation on the 20-pin interface.
• Avoid mechanical stress on connected wiring harnesses during module replacement cycles.
• Confirm full seating of the removable block to ensure uniform contact pressure across all channels.

Spesifikasi

• Merek: Schneider Electric
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
