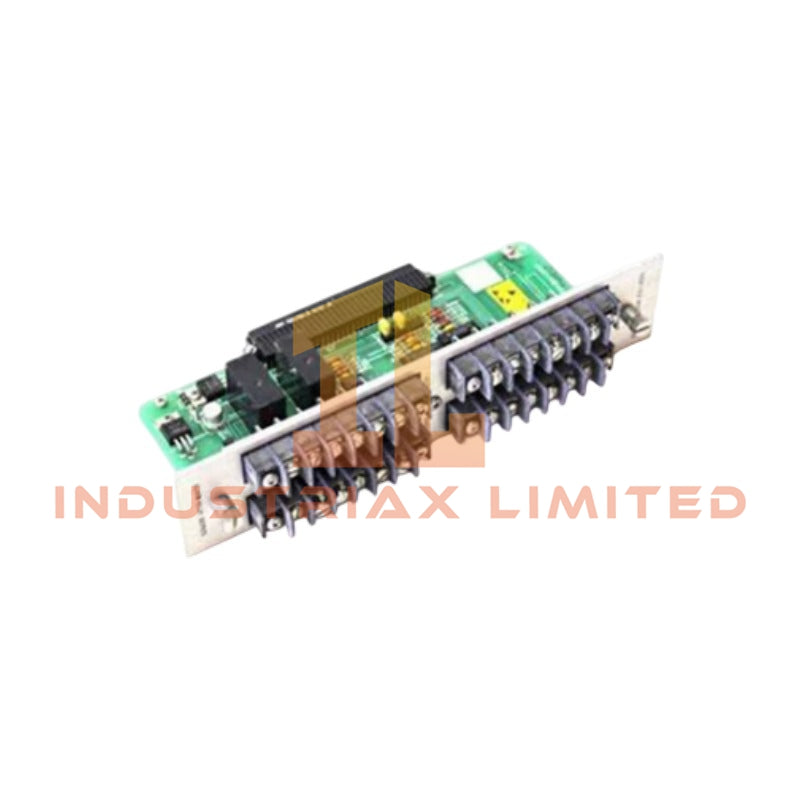

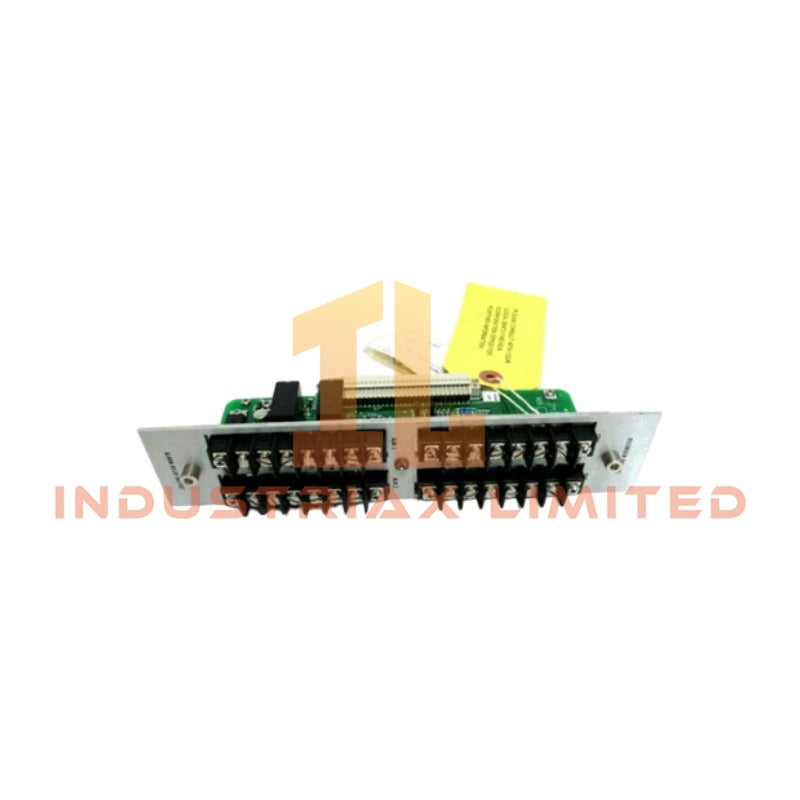

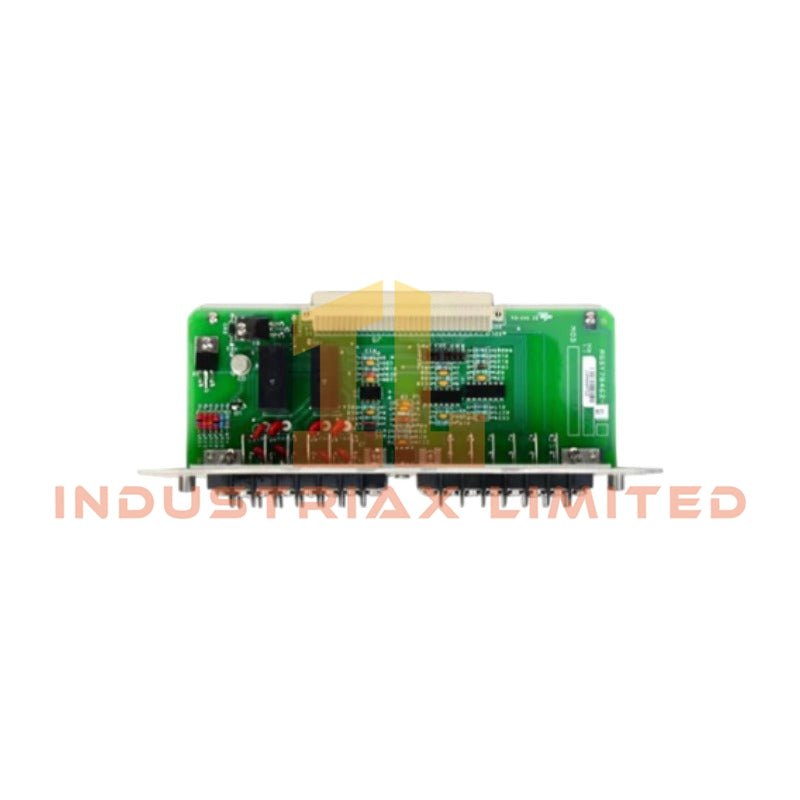

The Bently Nevada 84134-01, also cataloged as the 84134-01 Dual Velocity Monitor Module, operates as a dedicated hardware component for vibration velocity signal processing within Bently Nevada 3300 Series Machinery Protection System platforms.
Hardware Specifications
Parameter
Specification
Model
84134-01
Brand
Bently Nevada
Product Type
Dual Velocity Monitor Module
System Compatibility
Bently Nevada 3300 Series Machinery Protection System
Designed for API 670 machinery protection applications
Rotor Dynamics and Vibration Signal Processing
The 84134-01 module processes velocity vibration inputs for continuous monitoring of rotating equipment mechanical behavior. The dual-channel architecture allows independent acquisition and evaluation of vibration signals from compatible monitoring sensors.
The module operates within the Bently Nevada 3300 monitoring rack environment and supports machinery protection logic through configurable alarm functions. Signal conditioning is performed for vibration velocity measurement applications, providing processed data for operator indication and protective actions.
For rotating machinery analysis, the module supports vibration evaluation related to rotor dynamics behavior, including mechanical imbalance, misalignment, and abnormal vibration response conditions. The monitoring design maintains channel separation to reduce signal interaction during dual-channel operation.
Frequently Asked Questions
Q: How many monitoring channels are available on the 84134-01 module? A: The 84134-01 provides two independent vibration velocity monitoring channels for separate signal measurement.
Q: Which monitoring platform accepts the 84134-01 module? A: The module is designed for installation in Bently Nevada 3300 Series Machinery Protection System racks.
Q: Does the module require specific installation considerations for vibration signal wiring? A: Installation requires correct sensor wiring polarity, proper cable routing, and suitable grounding practices to maintain signal integrity.
Field Installation Guidelines
Install the module in a compatible Bently Nevada 3300 rack position according to system configuration requirements.
Verify vibration sensor connections, signal polarity, and terminal assignments before energizing the monitoring system.
Route vibration signal cables separately from high-voltage power wiring to reduce electrical interference.
Apply appropriate cable shielding and grounding methods according to plant instrumentation standards.
Confirm alarm configuration parameters and perform functional verification after installation.
Maintain cabinet ventilation to keep the module within the specified operating temperature range.
