Description

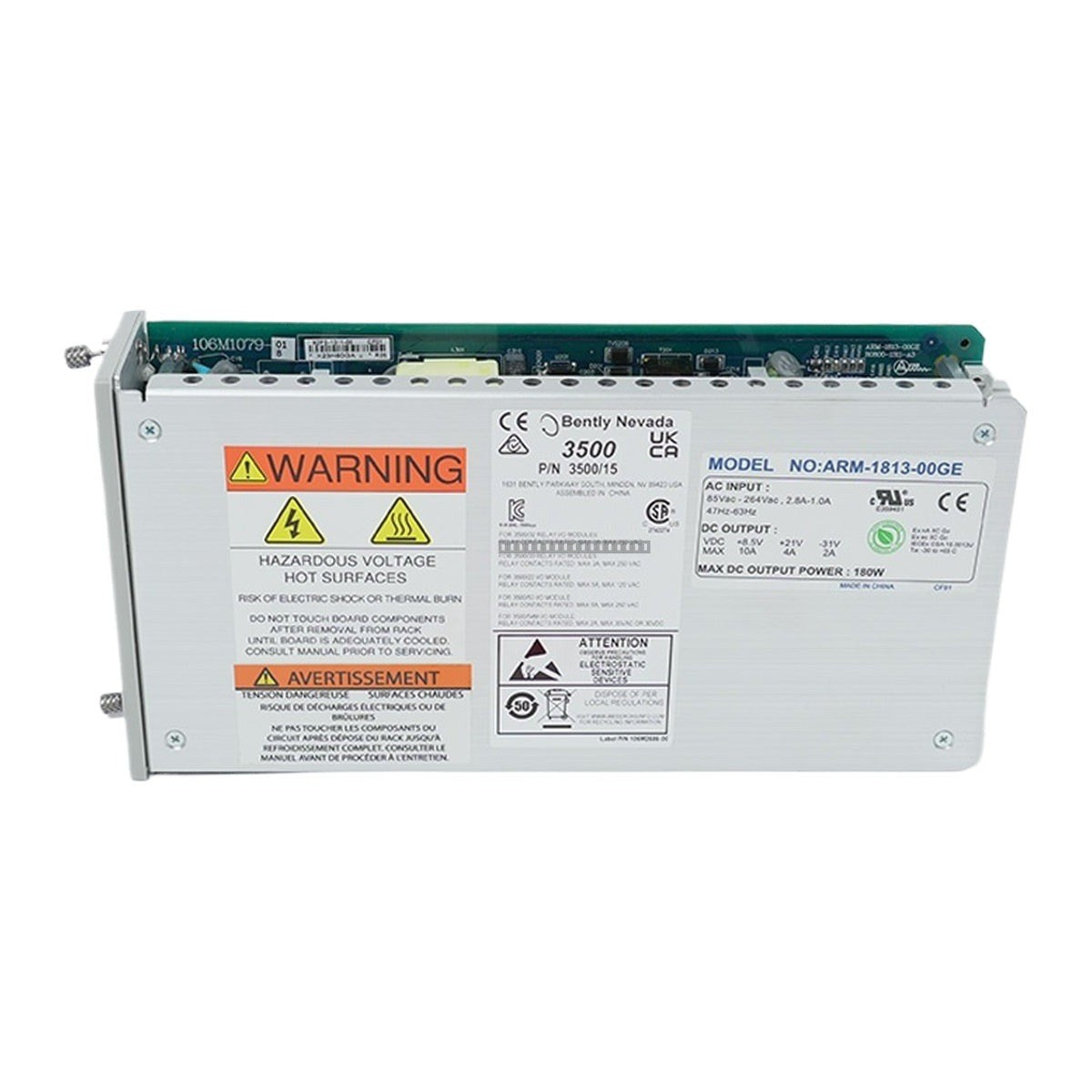

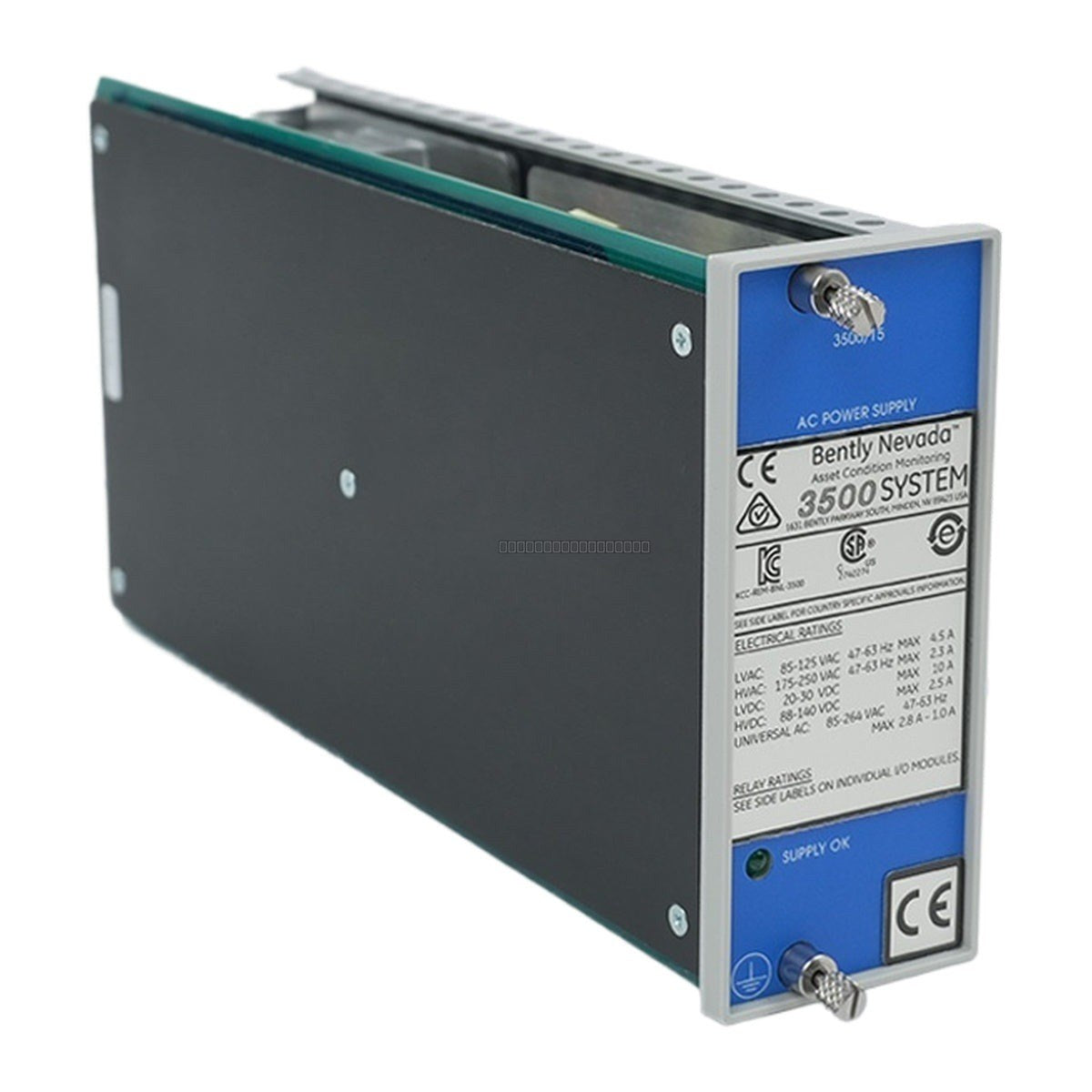

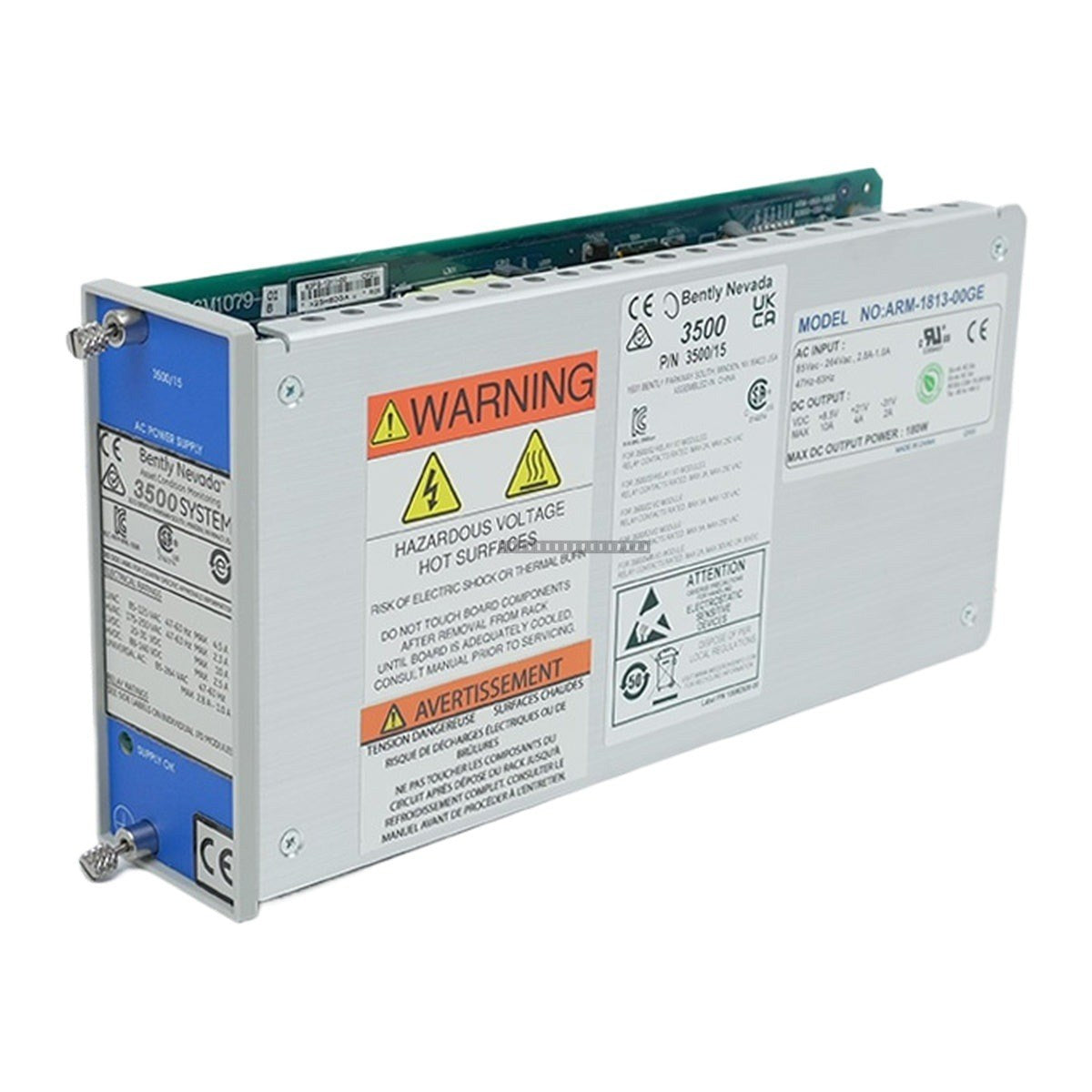

The Bently Nevada 106M1079-01 is a Universal AC Power Supply Module engineered for the 3500 Series Machinery Protection System. This half-height module is designed to reside in the designated slots on the left side of the 3500 rack, providing essential power conversion for system modules. It accepts a wide range of AC input voltages and converts them into the stable DC voltages required for the operation of the 3500 rack components.
Features
- Universal AC input voltage range: 85 to 264 Vac rms.
- Supports redundant power configurations when two modules are installed.
- Hot-swappable design allows for insertion or removal without disrupting rack operation, provided a redundant supply is active.
- Half-height form factor for efficient rack space utilization.
- Dedicated architecture compatible with standard 3500/15 Universal AC Power Supply systems.
Applications
- Oil & Gas: Monitoring of offshore platforms, refineries, and pipeline infrastructure.
- Power Generation: Ensuring stability for grid-connected generators and turbines.
- Petrochemicals: Protecting high-speed chemical processing equipment.
- Mining: Monitoring large-scale crushers and industrial ventilation systems.
Technical Specifications
| Model |
3500/15 106M1079-01 |
| Input Voltage (Non-hazardous) |
85 to 264 Vac rms |
| Input Voltage (Hazardous) |
85 to 250 Vac rms |
| Nominal Input Voltage |
110 to 220 Vac |
| Input Frequency |
47 to 63 Hz |
| Form Factor |
Half-height module |
| Weight |
1.2 kg |
Installation Guidelines
- Slot Assignment: Install in the two half-height slots on the far left of the 3500 rack. The lower slot is designated for the primary supply, and the upper slot is for the backup/redundant supply.
- Rear PIM Installation: Ensure the Power Input Module (PIM) is installed in the rear of the rack in the slot corresponding to the front power supply position.
- Module Insertion: Align the module with the guide rails and slide it firmly into the slot until the connectors seat securely. Tighten the captive thumb screws to ensure proper grounding and mechanical retention.
- Handling: Always power down the rack before installing or removing modules to prevent electrical faults or system instability.
FAQ
What is the 3500/15 106M1079-01?
The Bently Nevada 3500/15 106M1079-01 is a Universal AC Power Supply Module designed for the 3500 Mechanical Protection System, offering 85 to 264 Vac rms input.
What is the function of the 106M1079-01?
It is a half-height Universal AC Power Supply module that converts input voltage to the internal voltages required by the 3500 machinery protection rack.
Does it support redundancy?
Yes. When two modules are installed, the one in the lower slot acts as the primary supply, and the upper slot acts as the backup. This ensures the rack remains operational even if one supply fails or is removed.
Do you provide a warranty?
Yes, we provide a 12-month warranty for this module. Please contact our support team for assistance with any issues encountered within this period.
