Description

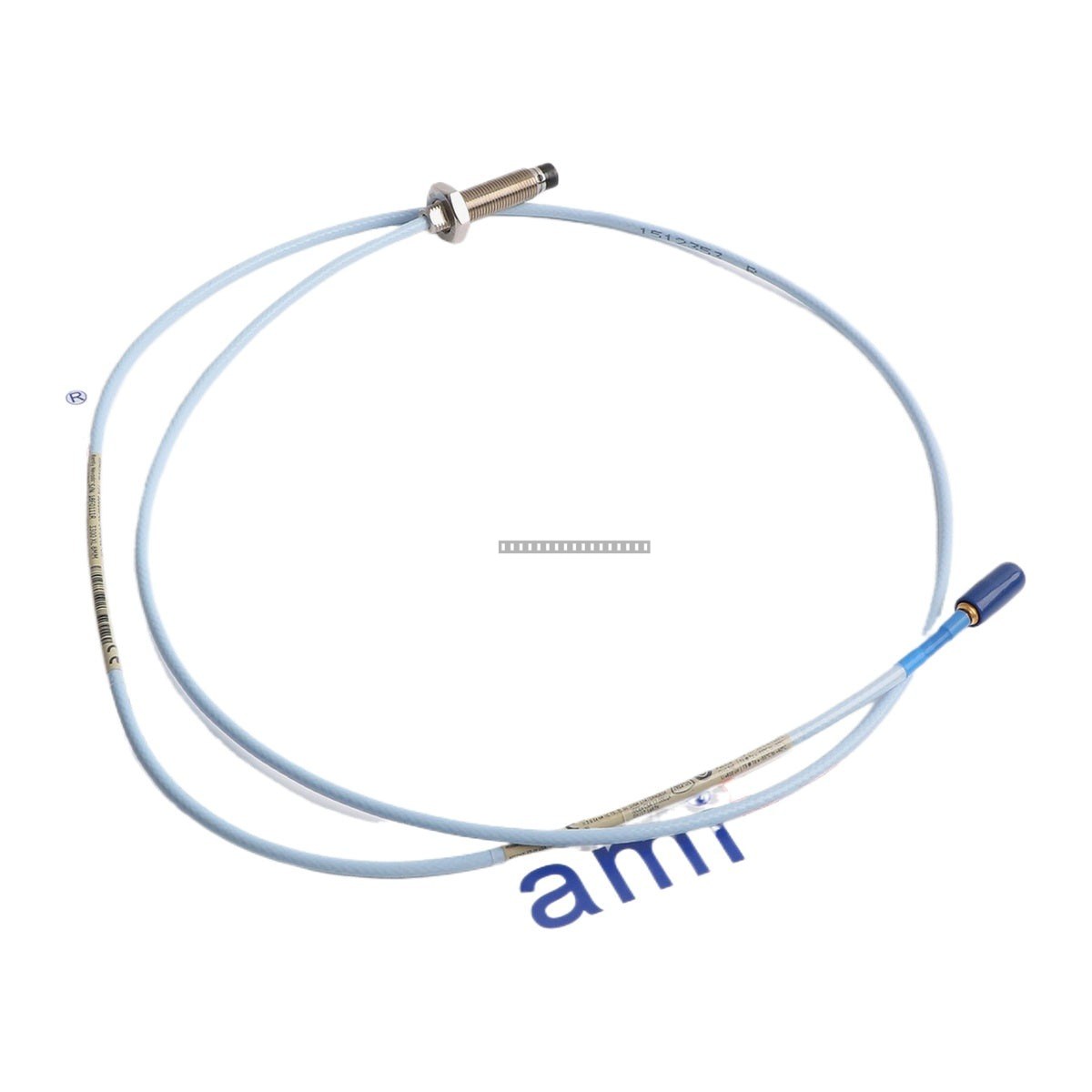

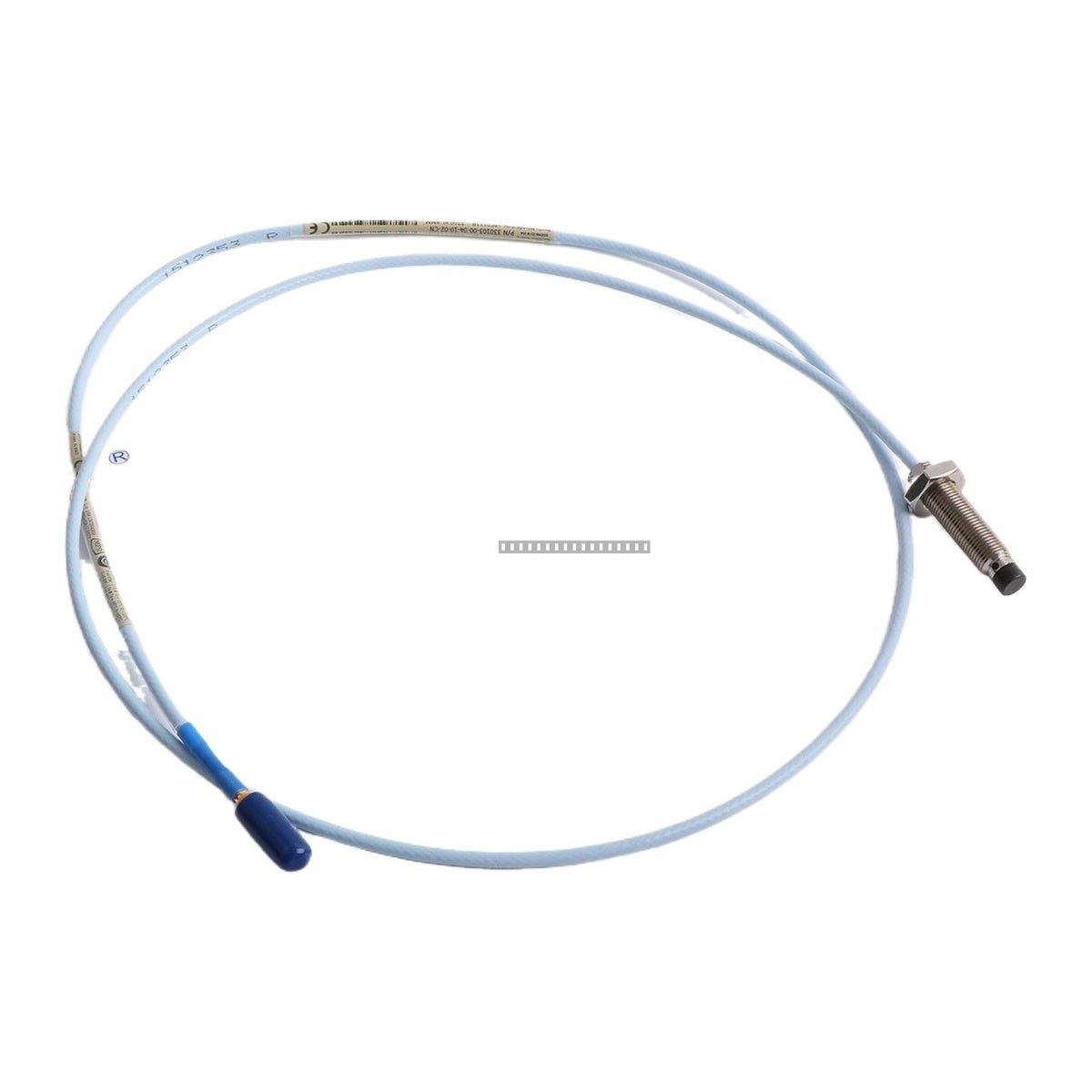

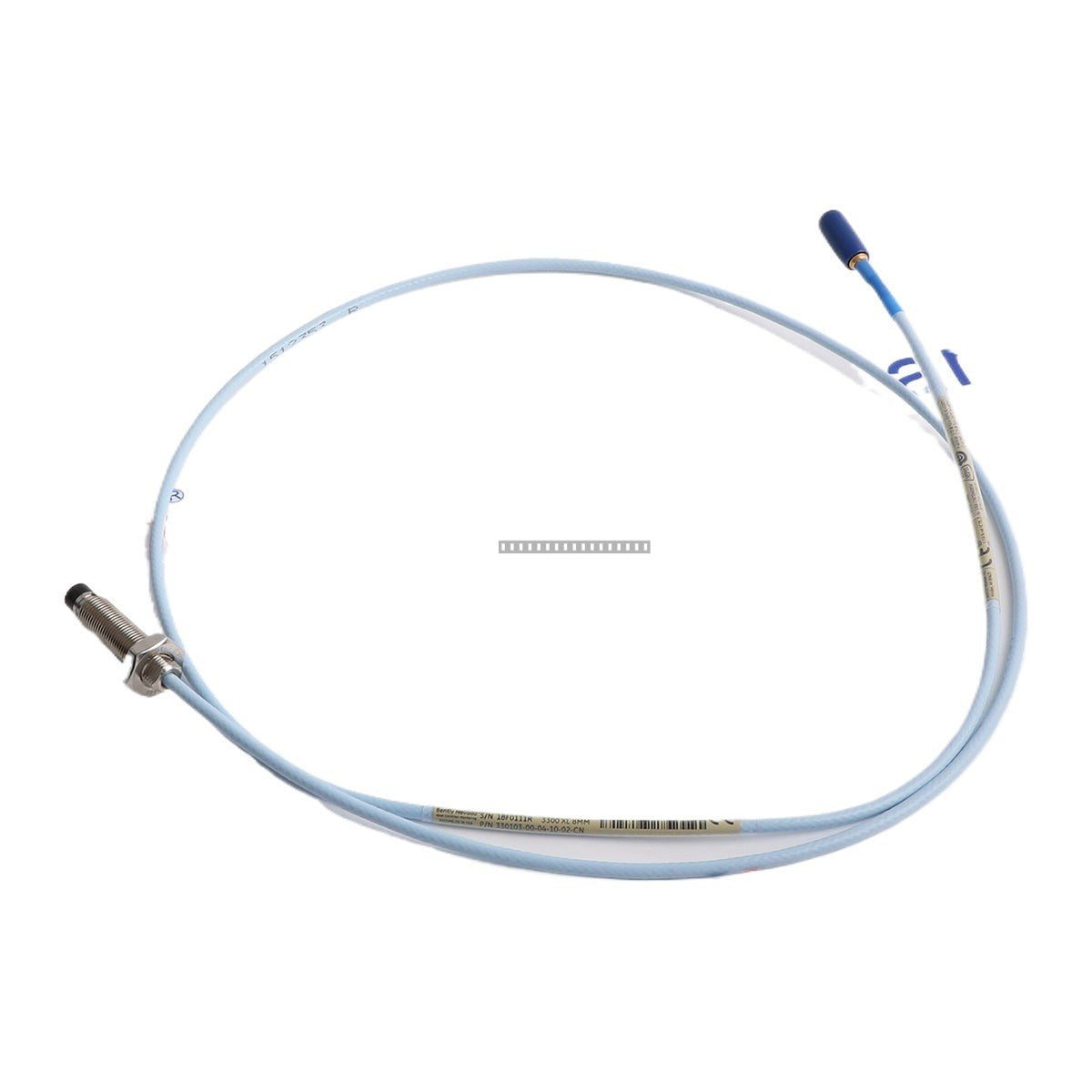

The Bently Nevada 330103-00-04-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring in rotating machinery. As a core component of the Bently Nevada 3300 XL transducer system, this probe provides accurate, non-contact measurement of shaft displacement, position, and speed in industrial environments.
Features
- Standard 8 mm probe tip diameter for reliable sensing.
- M10 x 1 thread configuration for secure mounting.
- Equipped with a miniature coaxial ClickLoc connector for robust signal integrity.
- Standard cable construction without armor.
- Designed for hazardous area compliance with CSA, ATEX, and IECEx certifications.
Technical Specifications
| Model Number |
330103-00-04-10-02-CN |
| Probe Diameter |
8 mm |
| Thread Size |
M10 x 1 |
| Unthreaded Length |
0 mm |
| Case Length |
40 mm |
| Cable Length |
1.0 meter (3.3 feet) |
| Connector Type |
Miniature coaxial ClickLoc |
| Approvals |
CSA, ATEX, IECEx |
Installation Guidelines
- Ensure the probe is installed in a rigid, vibration-free mounting bracket to prevent false readings.
- Maintain proper gap distance as specified by the machine monitoring system configuration.
- Handle the probe tip with care; avoid physical impact or scratching of the sensing surface.
- Route coaxial cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal accuracy.
- Ensure that all connections are fully seated and the ClickLoc connector is properly secured.
- Verify that the installation environment complies with the specific hazardous area ratings (CSA, ATEX, IECEx) indicated for this unit.
FAQ
What is the primary function of the 330103-00-04-10-02-CN probe?
This probe is used to measure static and dynamic distances between the probe tip and the observed conductive surface, typically a machine shaft, to monitor vibration and axial position.
Is this probe suitable for hazardous areas?
Yes, this specific model (CN suffix) is manufactured with CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous locations.
Can this probe be used with other Bently Nevada systems?
The 3300 XL 8 mm probe is designed to be compatible with Bently Nevada 3300 XL proximity transducer systems. Always verify system compatibility before installation.
