Description

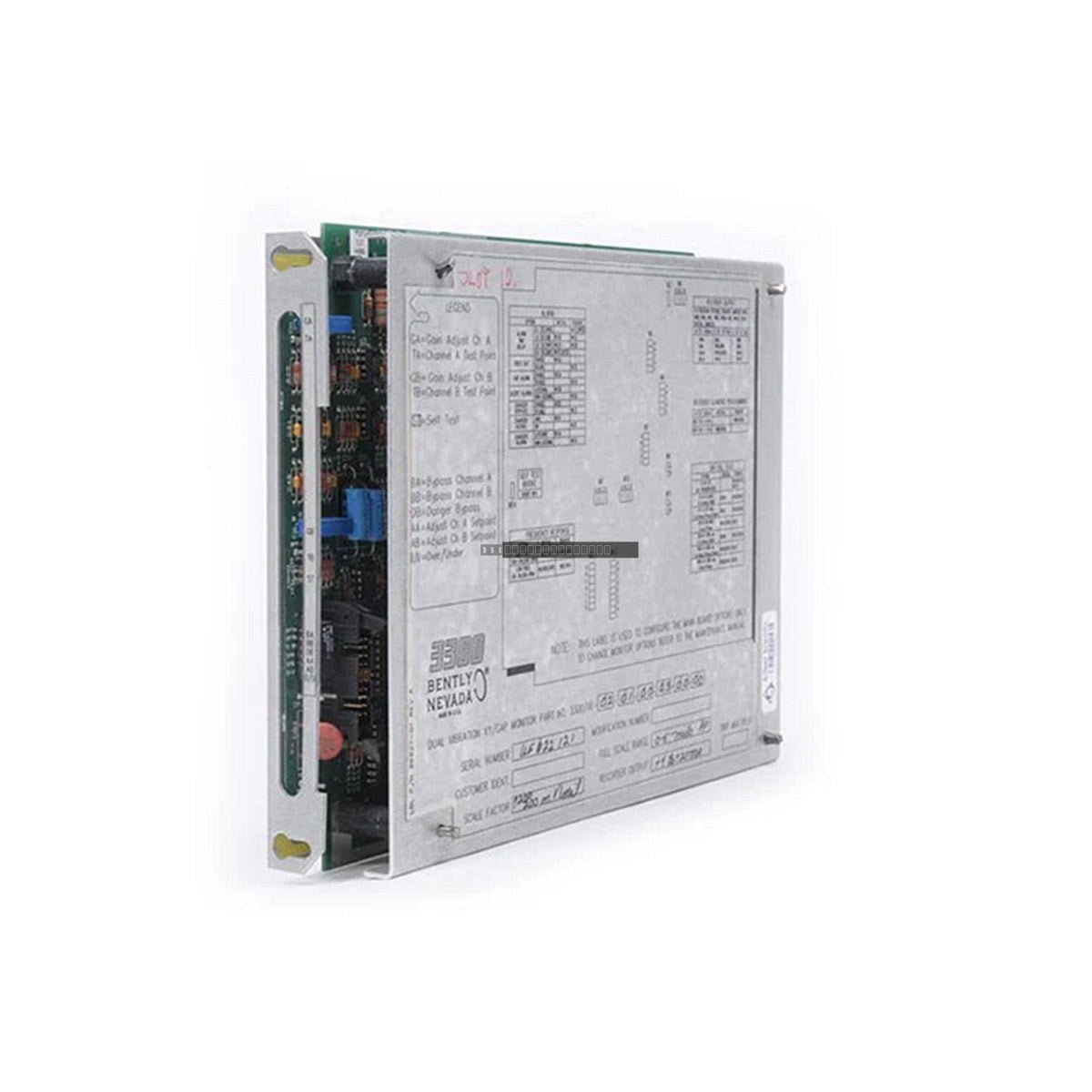

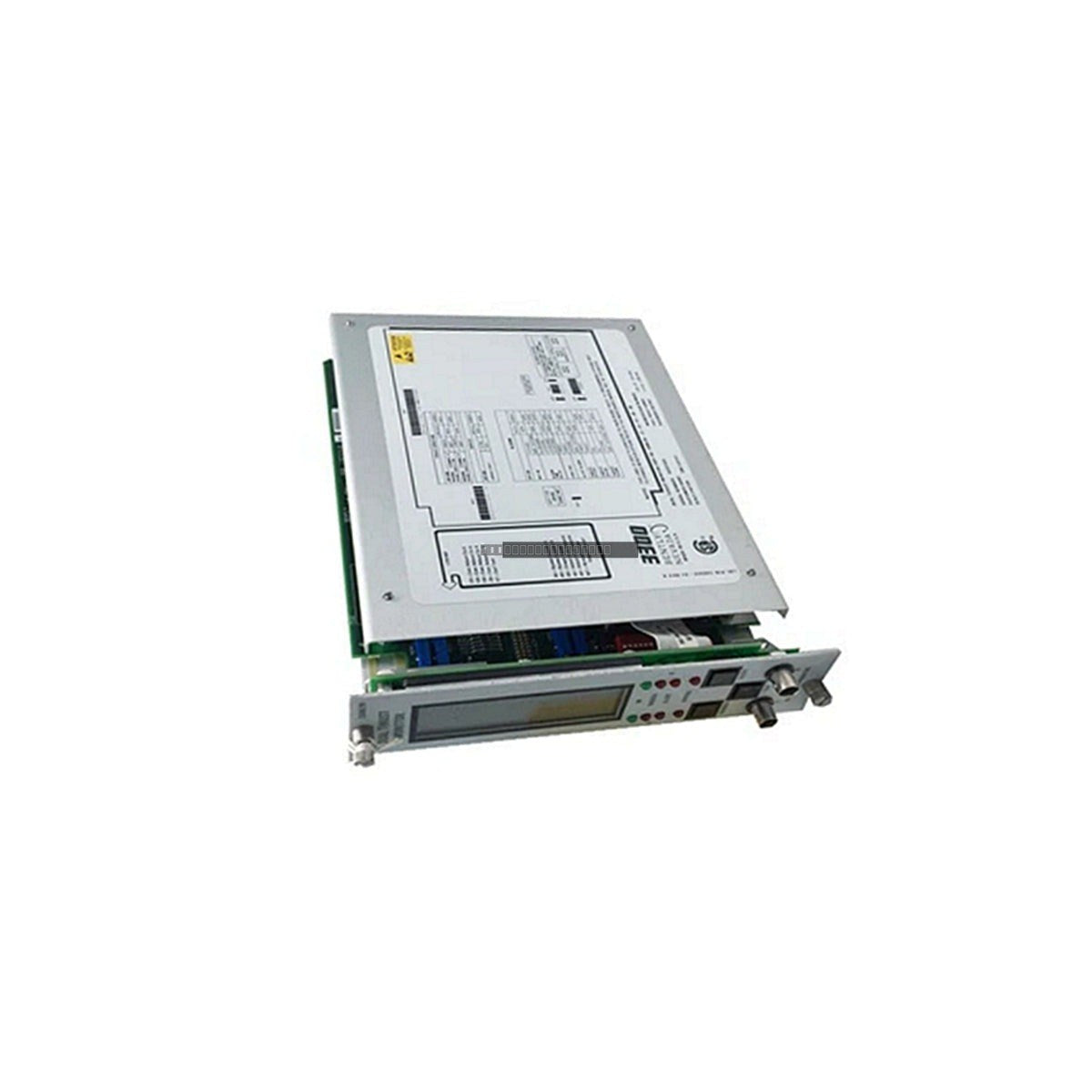

The Bently Nevada 3300/55 Dual Velocity Monitor is a specialized rack-mount module designed for the 3300 Series machinery protection system. This unit provides continuous monitoring of casing vibration velocity by utilizing Velomitor piezo-velocity sensors. It features two independent channels that process vibration signals to ensure critical machinery protection through real-time comparison against user-defined alarm setpoints.
Features
- Dual independent velocity monitoring channels for comprehensive casing vibration analysis.
- Integrated relay outputs configured for Alert and Danger alarm conditions to facilitate automated machinery shutdown or operator notification.
- Proportional 4-20 mA outputs provide direct interface capability with external data acquisition or control systems.

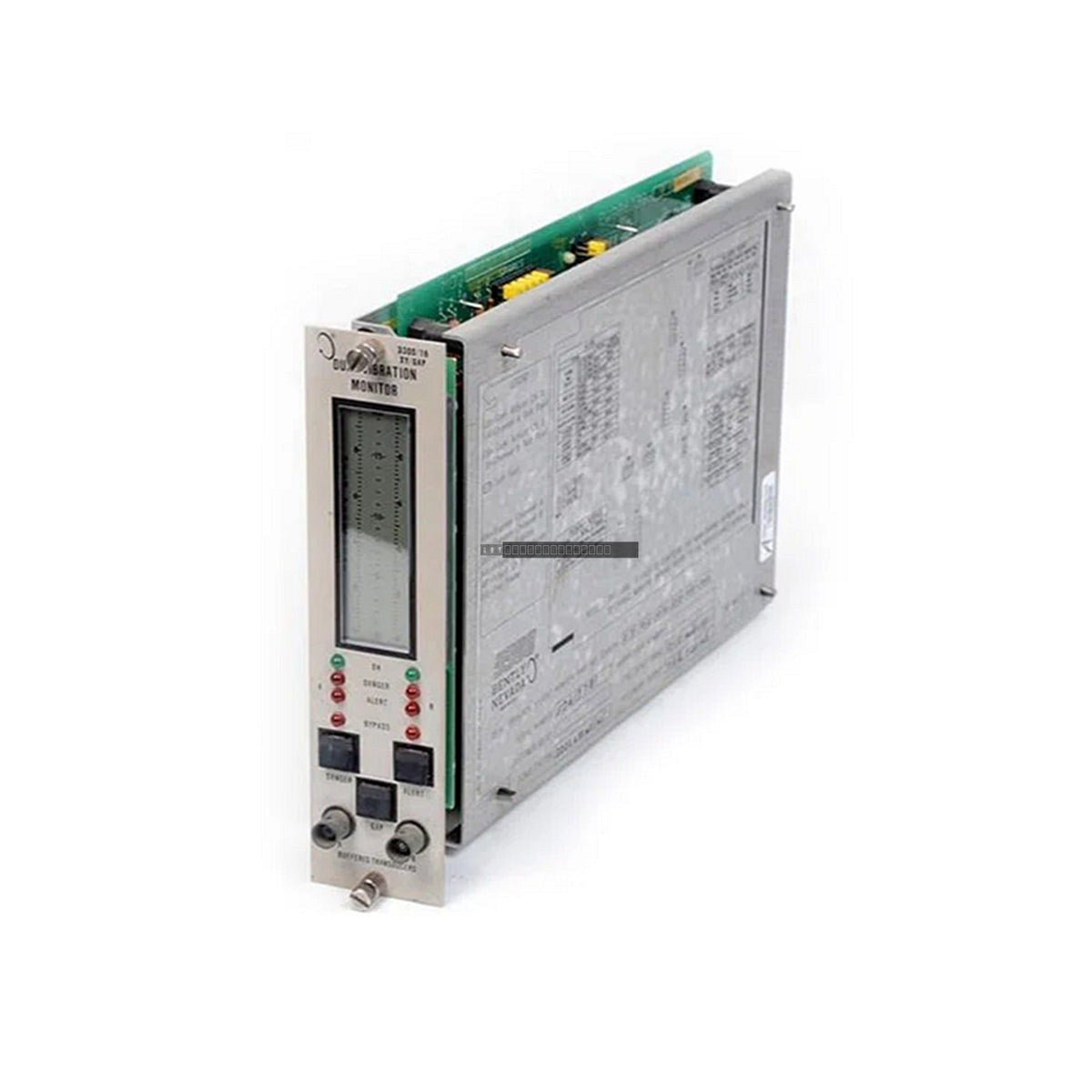

- Front-panel LED indicators display operational status, including OK, Bypass, Alert, and Danger states for rapid diagnostic assessment.
- Configured with intrinsic safety barrier support for reliable operation in hazardous industrial environments.
Applications
This module is typically deployed in power generation, petrochemical, and heavy industrial facilities where casing vibration monitoring is essential for predictive maintenance and asset protection. It is designed to interface directly with rotating equipment sensors to detect mechanical instability before failure occurs.
Technical Specifications
| Model |
3300/55-01-04-02-02-03-00-05-00 |
| Series |
3300 |
| Input Compatibility |
Velomitor Piezo-Velocity Sensors |
| Operating Temperature |
0 degC to 60 degC |
| Power Consumption |
1.5 W (typical) |
| Output Signals |
4-20 mA, Dynamic Vibration, Relay |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the rack backplane to ensure reliable signal and power connection.
- Use shielded cabling for all sensor inputs to minimize electromagnetic interference (EMI) and signal noise.
- Follow local hazardous area regulations when installing modules equipped with intrinsic safety barriers.
- Maintain proper ventilation within the rack cabinet to ensure the module operates within its specified temperature range.
FAQ
What does the 3300/55-01-04-02-02-03-00-05-00 model code indicate?
This specific order code defines the factory configuration, including the dual-channel velocity measurement, agency approval for safety, Velomitor sensor input compatibility, relay output logic, and intrinsic safety barrier integration.
Can this module be used in hazardous locations?
Yes, this specific configuration includes barrier options for hazardous area installations. Always verify the specific certification labels on your unit against your facility's safety requirements.
