Description

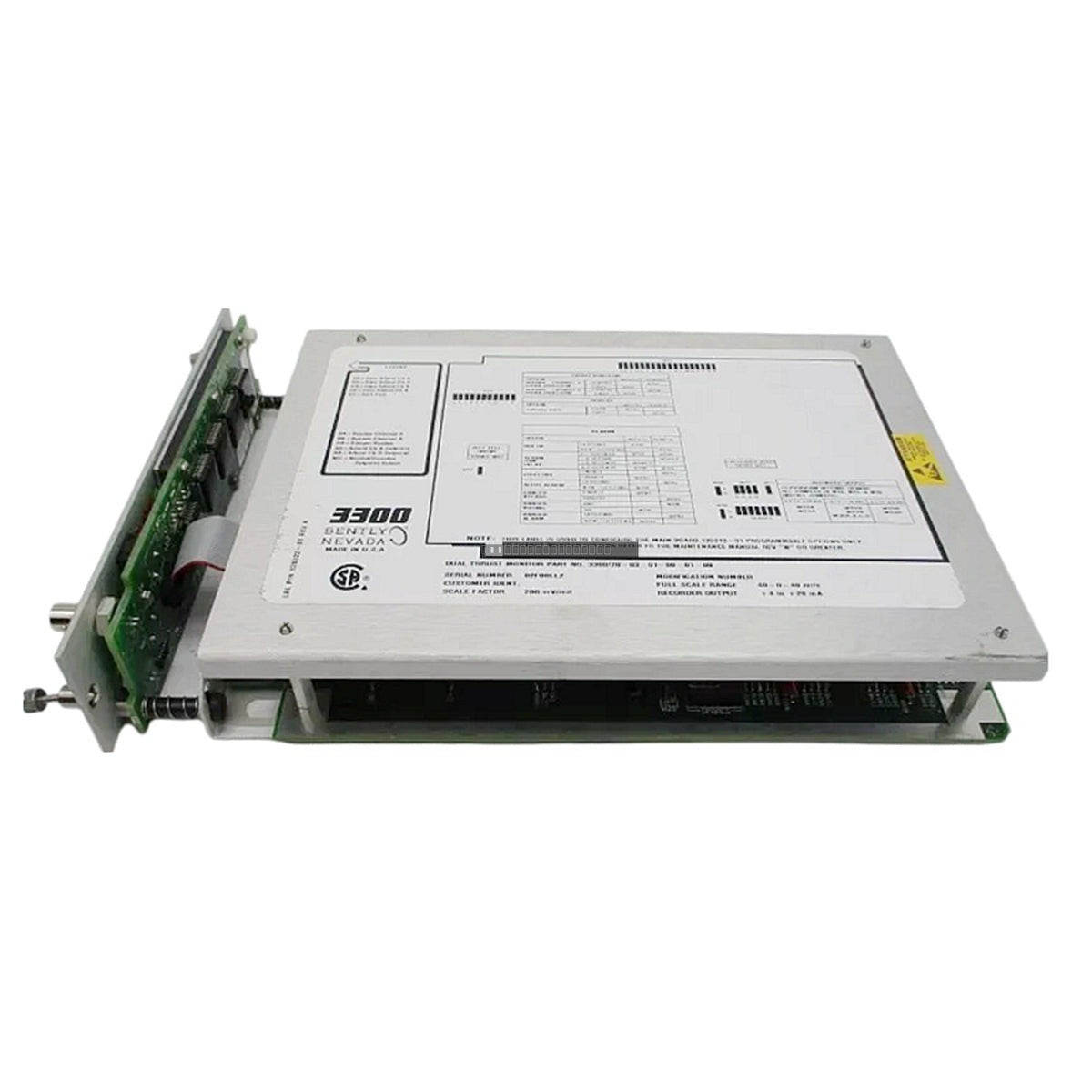

The Bently Nevada 3300/40 Eccentricity Monitor Module is a specialized instrumentation component designed for the 3300 series rack system. It provides critical monitoring of shaft eccentricity in large rotating machinery, such as steam turbines and centrifugal compressors. By analyzing displacement signals from proximity probes, the module detects shaft bow or misalignment during slow-roll startup and shutdown sequences. It features integrated alarm setpoints to trigger Alert and Danger status, facilitating proactive maintenance and protecting assets from mechanical failure.
Features
- Engineered for integration into standard Bently Nevada 3300 monitoring racks.
- Supports shaft eccentricity measurement and bow detection during slow-roll operations.
- Provides continuous signal conditioning for proximity probe inputs.
- Includes dedicated relay outputs for Alert and Danger alarm conditions.
- Integrated LED status indicators for system health, including OK, Bypass, Alert, and Danger states.
Technical Specifications
| Model |
3300/40-12-01-01-00-00 |
| Brand |
Bently Nevada |
| Series |
3300 |
| Operating Temperature |
0 to 60 degC |
| Power Consumption |
1.5 W (approx.) |
| Signal Sensitivity |
200 mV/mil or 100 mV/mil (programmable) |
| Accuracy (Signal Conditioning) |
+/- 0.33% typical |
| Output Options |
+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
- Verify that the module is correctly seated in the designated rack slot and that the front panel is secured.
- Use shielded, twisted-pair cabling for all transducer inputs to minimize electromagnetic interference (EMI).
- Maintain adequate ventilation within the cabinet to keep the ambient temperature within the 0 to 60 degC operating range.
- Always follow proper ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connector pins.
FAQ
What is the primary function of the 3300/40 monitor?
This module is specifically designed to monitor shaft eccentricity and detect shaft bow, particularly during the slow-roll conditions common during turbine startup and shutdown.
Does this module require external power?
The module receives power directly from the 3300 rack backplane once installed; it consumes approximately 1.5 watts during operation.
How are the alarm setpoints managed?
The module continuously compares processed input signals against user-configured Alert and Danger setpoints, triggering internal relays and front-panel LED indicators when thresholds are exceeded.
