Description

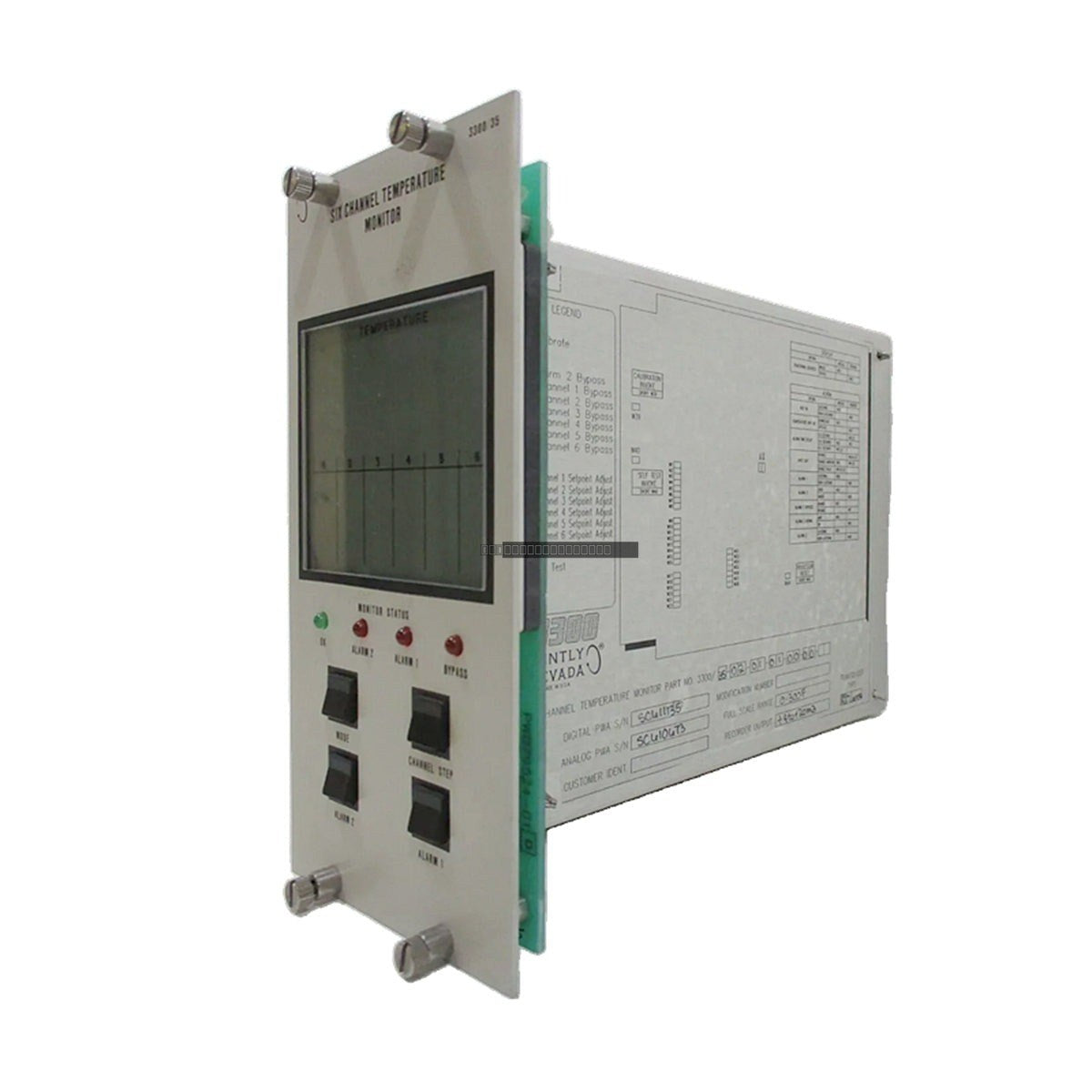

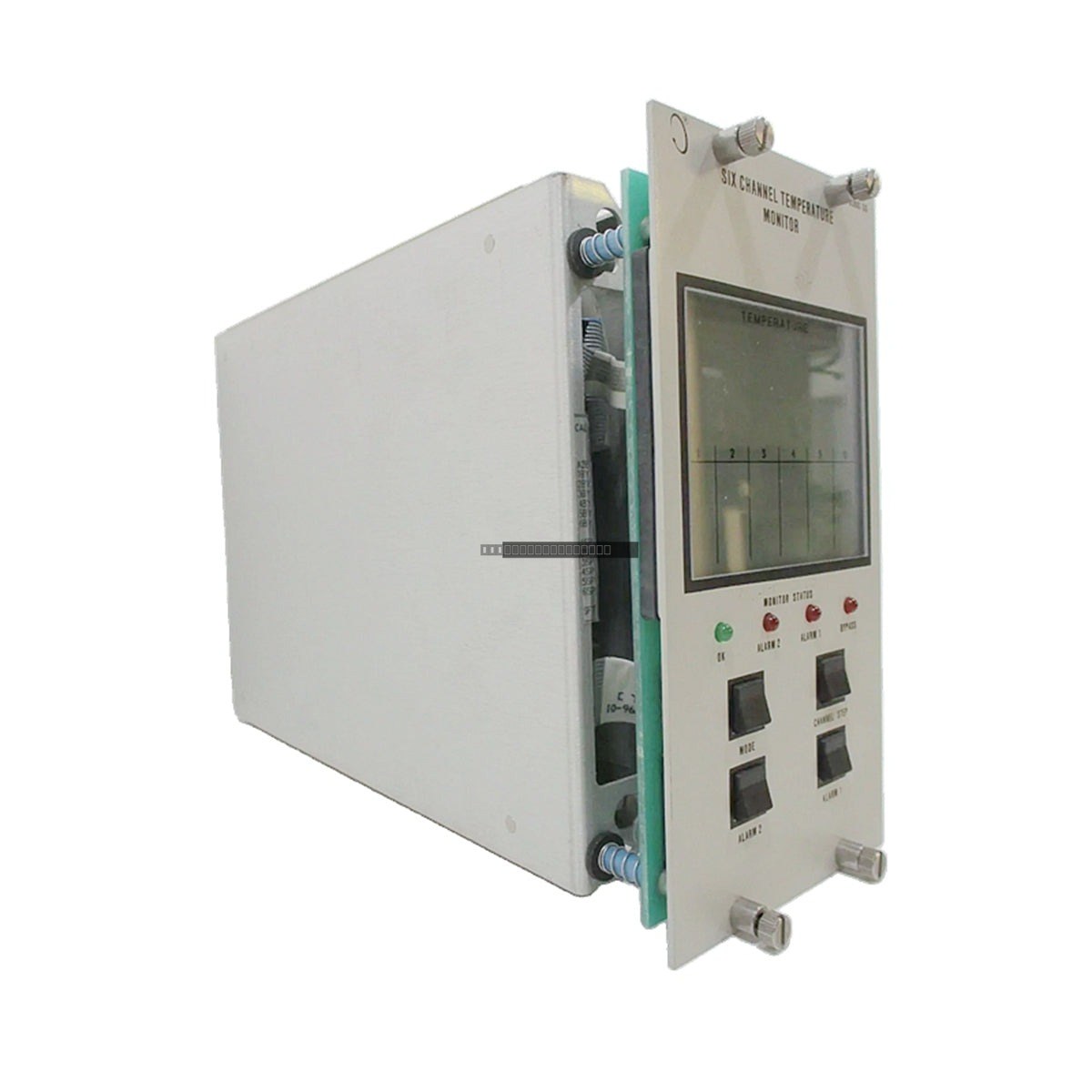

The Bently Nevada 3300/35-02-02-01-00-00 is a 6-channel Temperature Monitor module engineered for integration into the 3300 Series rack-based monitoring system. This module provides continuous, high-reliability monitoring of critical temperature points in industrial rotating machinery, including turbines, compressors, and large motors. By processing inputs from RTDs or thermocouples and comparing them against user-configurable alarm setpoints, the unit facilitates proactive machinery protection and predictive maintenance.
Features
- Six independent monitoring channels for multi-point temperature data acquisition.
- Compatibility with standard RTDs (Pt100, Pt1000) and thermocouples (J, K, T types).
- Integrated relay outputs for Alert and Danger alarm conditions.
- Proportional analog outputs (4 to 20 mA and 1 to 5 VDC) for external integration.
- Front-panel LED indicators providing real-time status for OK, Bypass, Alert, and Danger conditions.
Applications
This module is specifically designed for monitoring thermal conditions in critical assets, including:
- Bearing temperature monitoring for large rotating equipment.
- Stator winding temperature tracking in generators and motors.
- Casing temperature monitoring for compressors and turbines.
Technical Specifications
| Model |
3300/35-02-02-01-00-00 |
| Series |
3300 |
| Operating Temperature |
-35 degC to +65 degC |
| Power Consumption |
~2 W |
| Input Types |
RTD (Pt100, Pt1000), Thermocouple (J, K, T) |
| Analog Outputs |
4 to 20 mA, 1 to 5 VDC |
| Alarm Outputs |
Alert and Danger Relays |
Installation Guidelines
- Ensure the 3300 rack system is powered down before inserting or removing the monitor module.
- Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
- Verify that the module is fully seated in the rack slot to ensure proper backplane connection.
- Use shielded cabling for all transducer inputs to minimize EMI/RFI interference in high-noise industrial environments.
- Ensure adequate ventilation around the 3300 rack to maintain operating temperatures within the specified -35 degC to +65 degC range.
FAQ
What types of sensors does this module support?
The 3300/35-02-02-01-00-00 supports a variety of common industrial temperature sensors, specifically RTDs (Pt100 and Pt1000) and J, K, or T type thermocouples.
Can this module trigger external alarms?
Yes, the module is equipped with internal relay outputs that can be configured for Alert and Danger alarm conditions, allowing for direct integration with plant safety or control systems.
