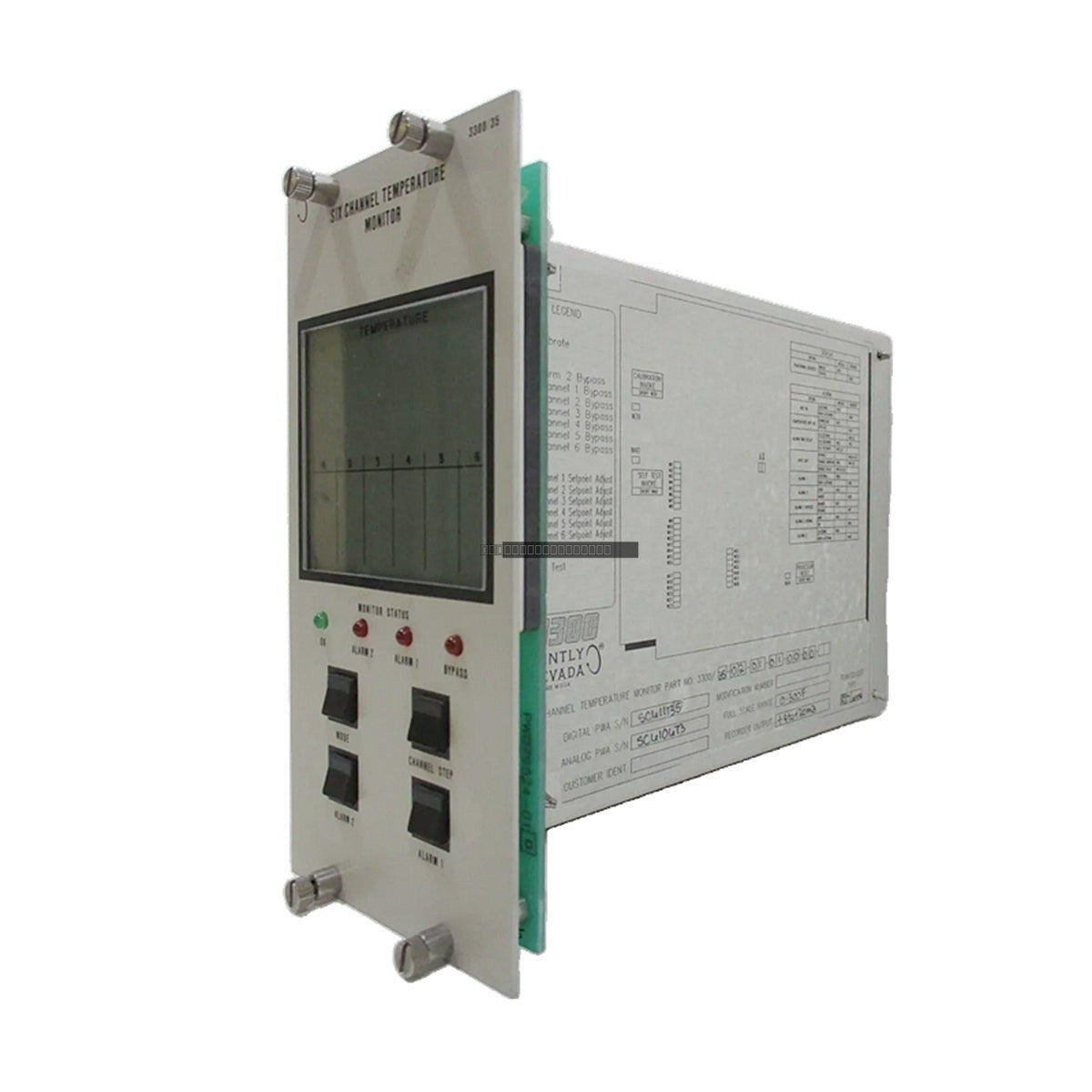

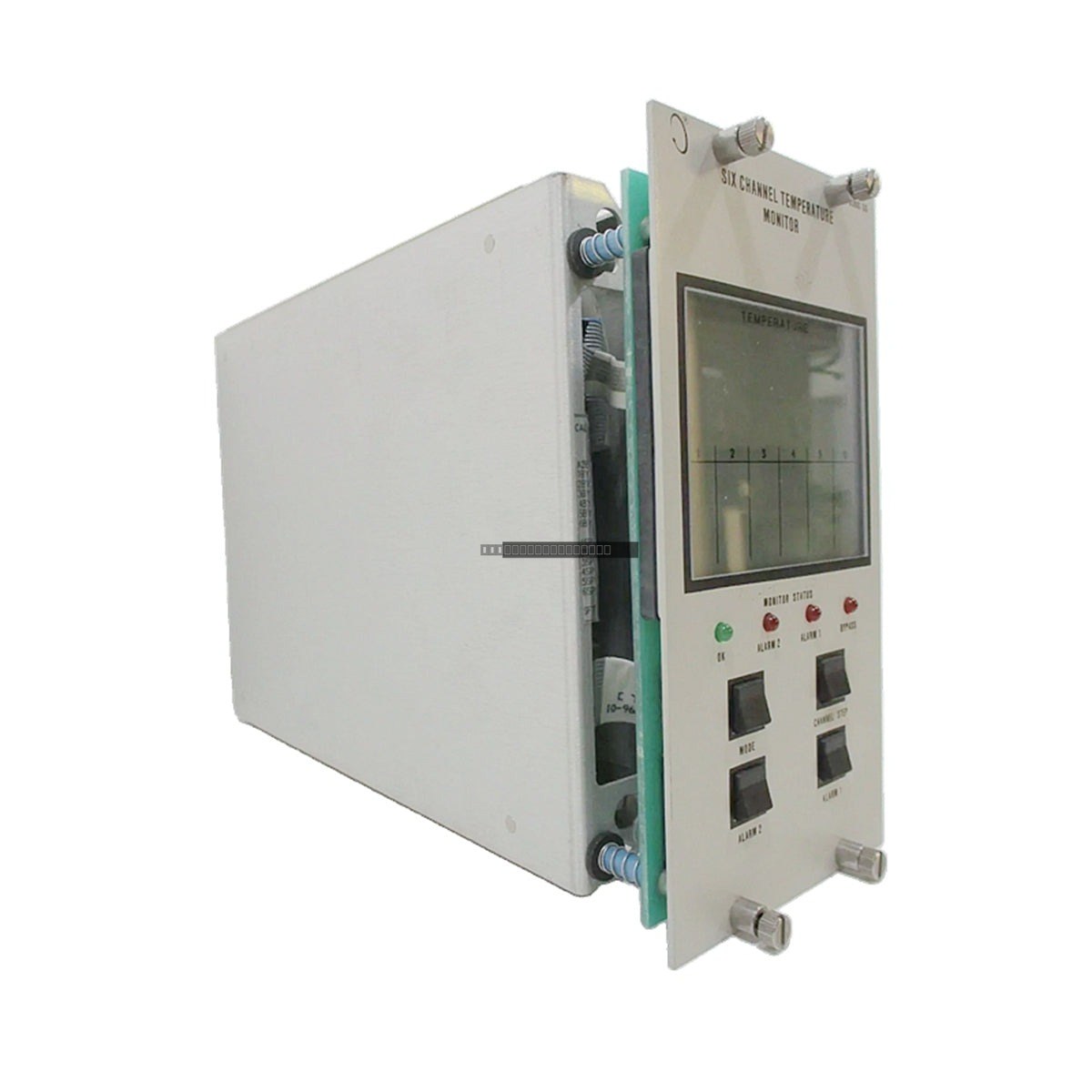

The Bently Nevada 3300/35-02-01-01-00-00 is a dedicated 6-channel temperature monitoring module engineered for the 3300 Series rack-based machinery protection system. This unit provides high-reliability, continuous thermal monitoring for critical rotating assets such as large industrial turbines, compressors, and motors, facilitating early detection of thermal degradation and supporting robust predictive maintenance strategies.
Features
- Six independent input channels capable of processing signals from RTDs (Pt100, Pt1000) and common thermocouple types (J, K, T).
- Integrated alarm management with dedicated Alert and Danger setpoints for each channel.
- Standard relay outputs for direct integration with plant safety and shutdown systems.
- Proportional signal outputs including +4 to +20 mA and +1 to +5 VDC for external data logging or DCS integration.
- Comprehensive diagnostic LED indicators for real-time status monitoring, including OK, Bypass, Alert, and Danger states.
Applications
This module is typically deployed in critical industrial environments where precise temperature tracking of bearings, stator windings, and machine casings is required to prevent catastrophic failure. It serves as a primary component in machinery protection systems where rapid response to temperature excursions is necessary for safe operation.
Technical Specifications
| Model |
3300/35-02-01-01-00-00 |
| Series |
3300 |
| Channels |
6 Independent |
| Supported Inputs |
RTD (Pt100, Pt1000), Thermocouple (J, K, T) |
| Outputs |
4-20 mA, 1-5 VDC, Relay (Alert/Danger) |
| Power Consumption |
~2 W |
| Operating Temperature |
-35 degC to +65 degC |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
- Verify that the module is fully seated in the rack slot to ensure proper backplane communication.
- Use shielded twisted-pair cabling for sensor inputs to minimize noise interference in high-EMI industrial environments.
- Maintain proper grounding practices for the 3300 rack system to ensure signal integrity and electrical safety.
- Ensure adequate ventilation around the rack to maintain ambient operating temperatures within the specified -35 degC to +65 degC range.
FAQ
What types of sensors are compatible with this monitor?
The 3300/35-02-01-01-00-00 is compatible with standard RTDs (Pt100 and Pt1000) as well as J, K, and T type thermocouples.
Does this module support relay logic?
Yes, this unit includes standard relay outputs configured for Alert and Danger alarm conditions, allowing it to trigger external equipment or shutdown sequences based on user-defined setpoints.
Can this module be used in a standard 3300 rack?
Yes, this module is designed specifically for the Bently Nevada 3300 Series rack system and adheres to the standard mechanical profile for this series.
