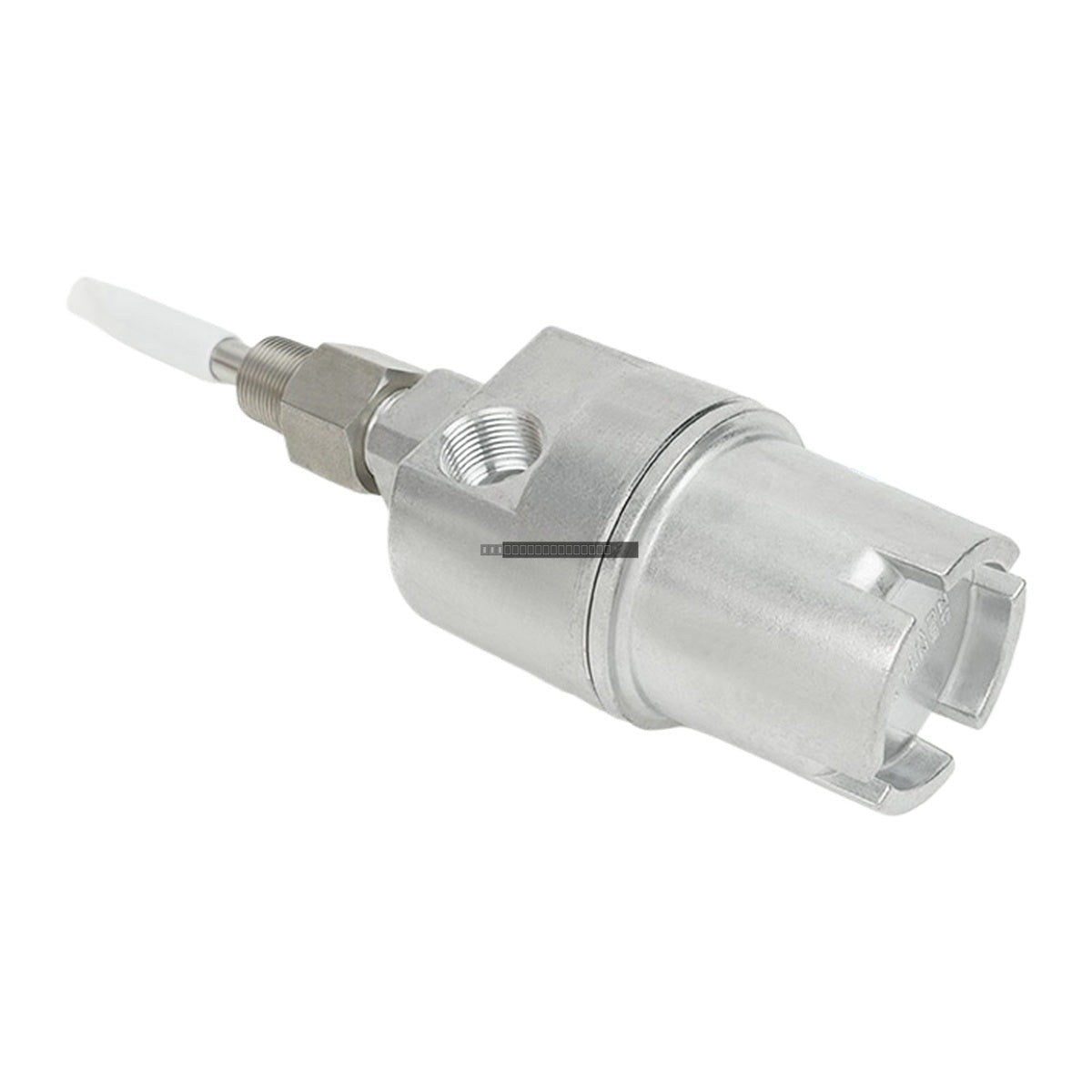

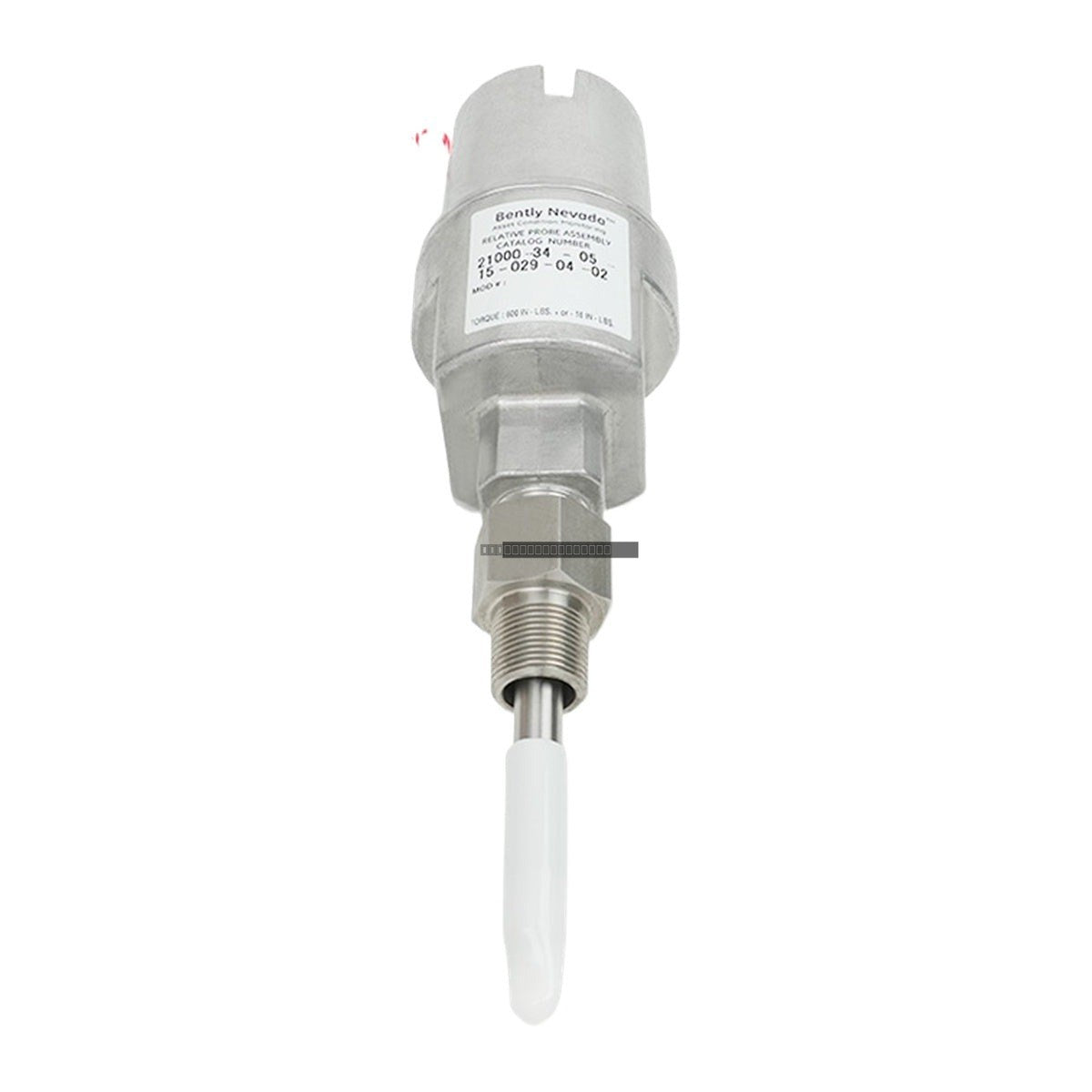

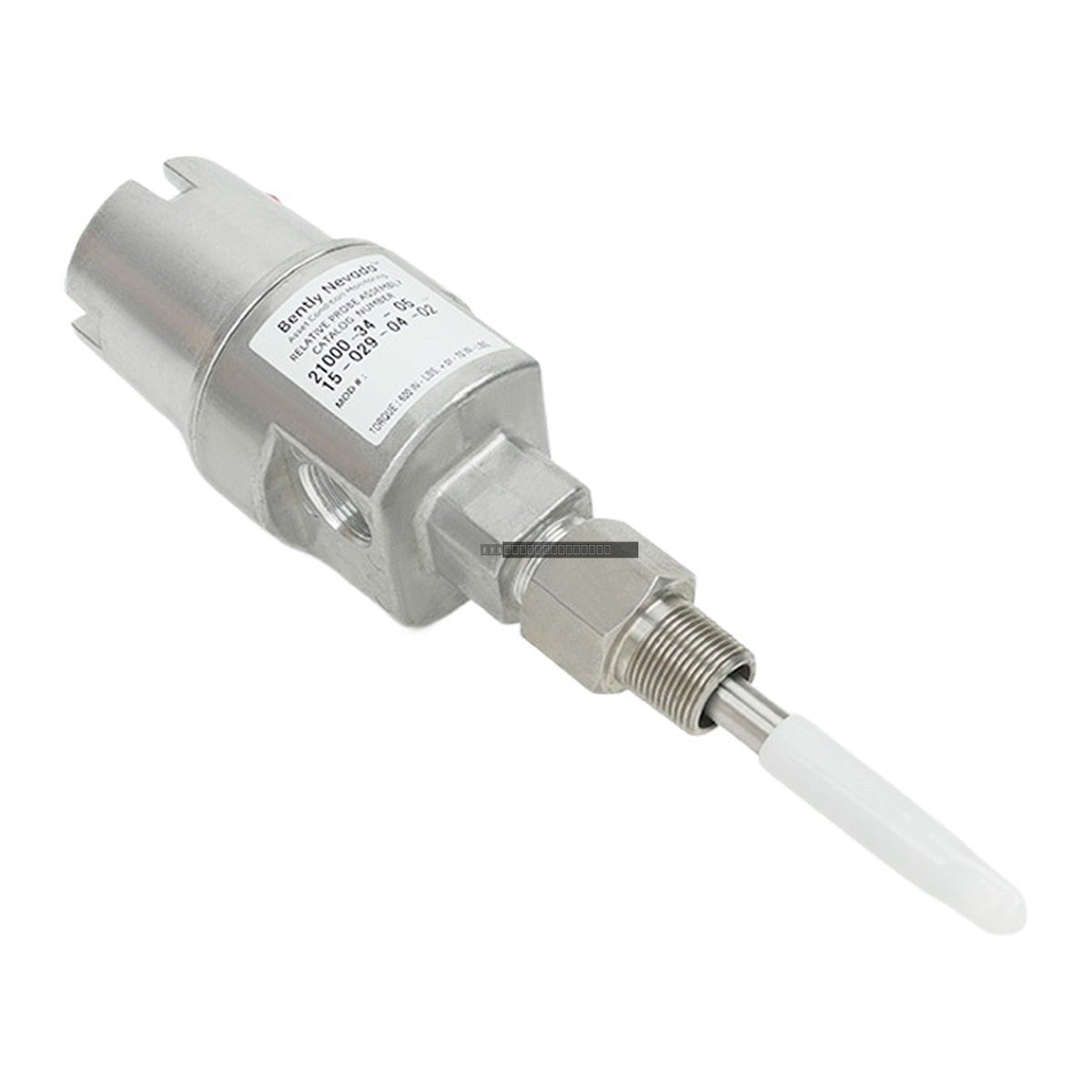

The Bently Nevada 21000-34-05-15-029-04-02 is an aluminum proximity probe housing assembly designed for the secure mounting and environmental protection of 3300 XL 8mm proximity probes. This assembly is engineered to meet the rigorous demands of industrial machinery monitoring, providing a robust, explosion-proof enclosure that complies with API 670 standards for externally mounted proximity probe housings.
Features
-
Material: Durable aluminum housing construction (21000 series).
-
Hazardous Area Rating: Rated as explosion-proof for use in classified industrial environments, featuring CSA Type 4 enclosure certification.
-
Compatibility: Specifically configured for 3300 XL 8mm probes with connector protectors.
-
Mounting: 3/4-14 NPT mounting thread with a single 3/4-14 NPT plug.
-
Precision Design: Includes a 0.5m probe cable length and a 1.5-inch minimum standoff adapter length, with a 2.9-inch probe penetration depth.
Applications
-
Oil & Gas: Bearing condition monitoring for compressors and pump sets in refineries and transmission stations.
-
Power Generation: Axial displacement and radial vibration monitoring for steam turbine generator sets.
-
Petrochemical: Core power equipment monitoring, including large-scale mixers and centrifuges.
-
Heavy Industry: Vibration monitoring for large fans, coal mills, and industrial transmission systems.
Technical Specifications
| Model Number |
21000-34-05-15-029-04-02 |
| Housing Material |
Aluminum |
| Mounting Thread |
3/4-14 NPT |
| Probe Compatibility |
3300 XL 8mm |
| Probe Cable Length |
0.5 m (20 in) |
| Standoff Adapter |
1.5 in (38 mm) |
| Probe Penetration |
2.9 in (73.66 mm) |
| Fittings |
One 3/4-14 NPT plug |
| Compliance |
API 670, CSA Type 4 |
Installation Guidelines
- Ensure the probe lead is longer than the sleeve length to prevent mechanical stress.
- For sleeve lengths exceeding 304 mm (12 inches), utilize additional sleeve support to mitigate vibration-induced fatigue.
- Verify that the hazardous area classification of the installation site matches the rating of the housing assembly.
- Ensure all NPT threads are properly sealed to maintain the integrity of the explosion-proof enclosure.
- Handle with care to avoid damage to the probe tip or connector protector during installation.
FAQs
What is the primary function of this housing assembly?
The 21000-34-05-15-029-04-02 acts as a protective, explosion-proof enclosure for proximity probes, shielding them from harsh environmental factors such as oil, dust, and moisture while ensuring accurate vibration and position data collection.
Is this assembly compliant with industrial standards?
Yes, this housing is fully compliant with the American Petroleum Institute (API) 670 standard and carries CSA Type 4 enclosure certification for hazardous area applications.
Can this be used in explosive atmospheres?
Yes, the assembly is rated as explosion-proof for hazardous locations, provided that the installation adheres to the relevant safety codes and the specific hazardous area approval requirements for your facility.
