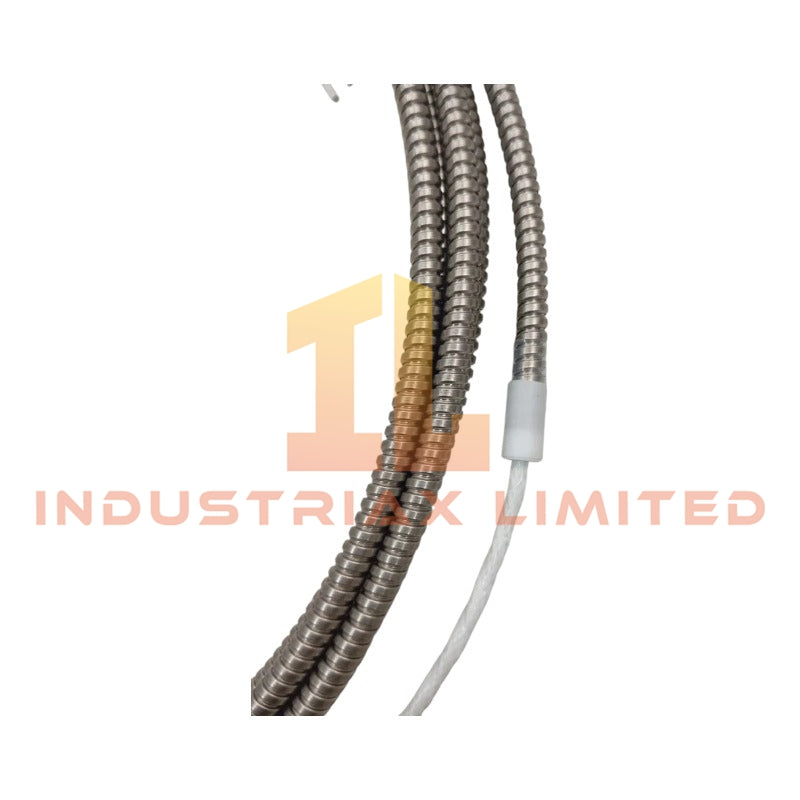

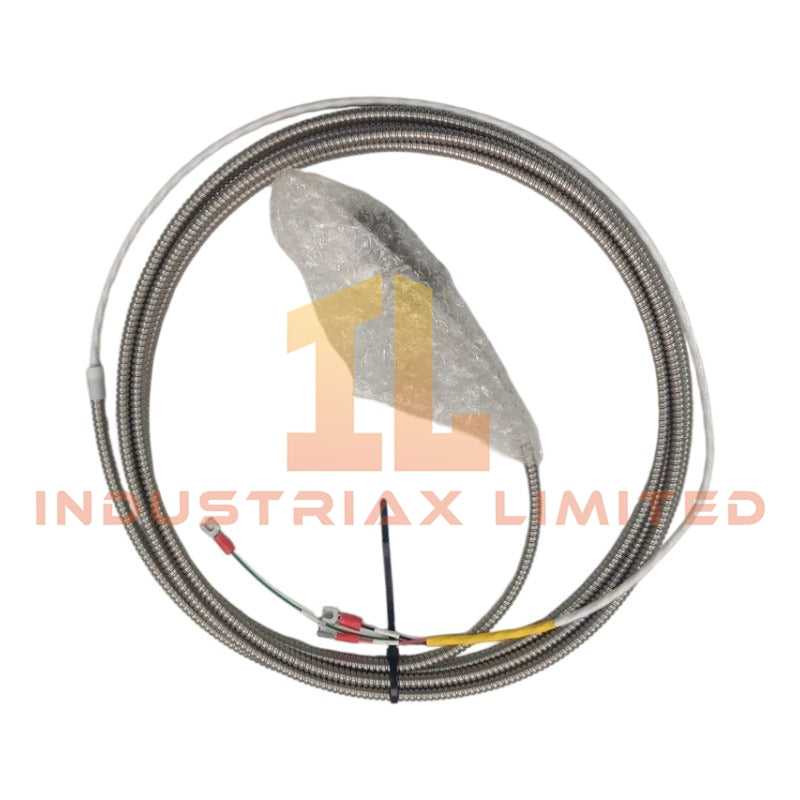

Bently Nevada 16710-15 Armored Interconnect Cable
Configured for transducer signal routing in Bently Nevada 3300 and 3500 machinery monitoring systems, the Bently Nevada 16710-15, also cataloged as the 16710 Armored Interconnect Cable, provides direct electrical transmission of vibration and acceleration data between field sensors and monitoring racks.
Hardware Specifications
|
Parameter
|
Specification
|
|
Brand
|
Bently Nevada
|
|
Origin
|
U.S.A
|
|
Weight
|
0.131 kg
|
|
Dimensions
|
Approx. 6.0 mm diameter, 15 ft (4.57 m) length
|
|
Operating Temp
|
-20 degC to +80 degC (some variants -40 degC to +90 degC)
|
|
Power Consumption
|
Passive component, no active power draw
|
|
Voltage Rating
|
300 V
|
|
Conductor Size
|
3-conductor, 22 AWG (0.5 mm²) copper
|
|
Shielding
|
Braided shield
|
|
Armor Type
|
Stainless steel or ruggedized metal armor conduit
|
|
Connector Type
|

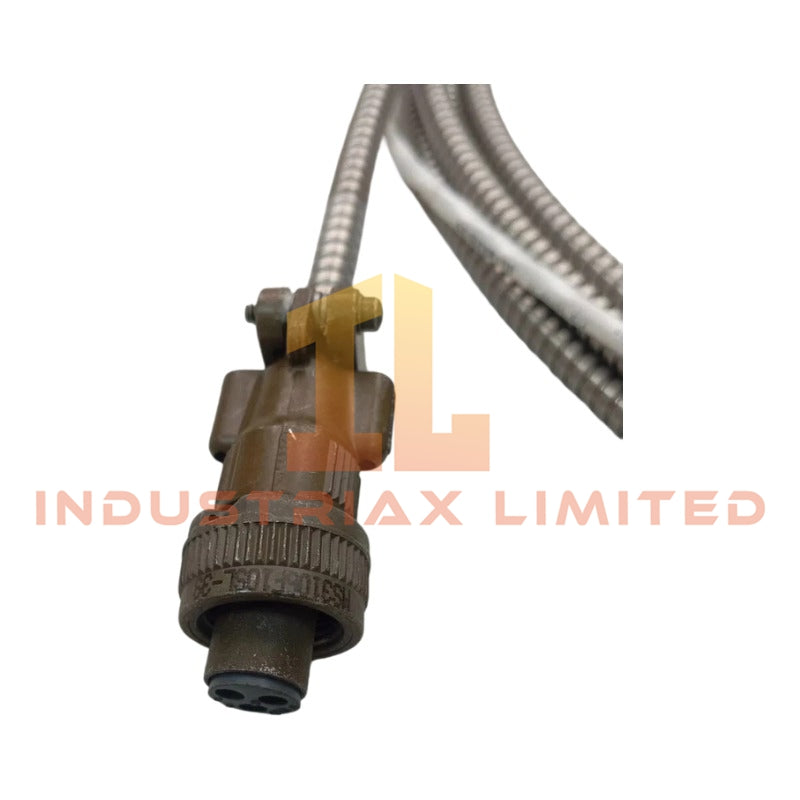

3-socket plug at one end, terminal lugs at the other
|
Eddy-Current Probe Scaling and Gap Voltage Validation
In TSI deployments using eddy-current proximity probes, the 16710-15 supports accurate probe scaling by maintaining stable impedance characteristics across its full length. This preserves target calibration constants during rotor dynamics measurements. Gap voltage validation aligns with the standard -10 VDC reference typical of Bently Nevada systems, ensuring that shaft vibration displacement readings remain within defined linearity ranges without introducing offset errors.
Frequently Asked Questions
Q: Is the 16710-15 compatible with hot-swap replacement in live monitoring racks?
A: No. Signal cabling must be connected or disconnected only when the monitoring system is de-energized to prevent transient surges and signal distortion.
Q: What is the minimum bend radius for installation?
A: Minimum bend radius is 30 mm. Routing tighter than this may compromise armor integrity and shielding performance.
Q: Does the cable support cross-talk suppression in multi-channel layouts?
A: Yes. Internal braided shielding reduces electromagnetic coupling between adjacent cables, limiting cross-talk in dense wiring environments.
Field Installation Guidelines
Install the armored cable with continuous mechanical support using cable trays or rigid conduit clamps. Maintain separation from high-voltage power conductors to minimize EMI pickup. Terminate the braided shield to the designated ground point at the monitoring rack to preserve signal integrity. Avoid sharp edges during pulling to prevent armor deformation. Verify connector seating and torque terminal lugs to manufacturer-recommended values before energizing the system.
