Description

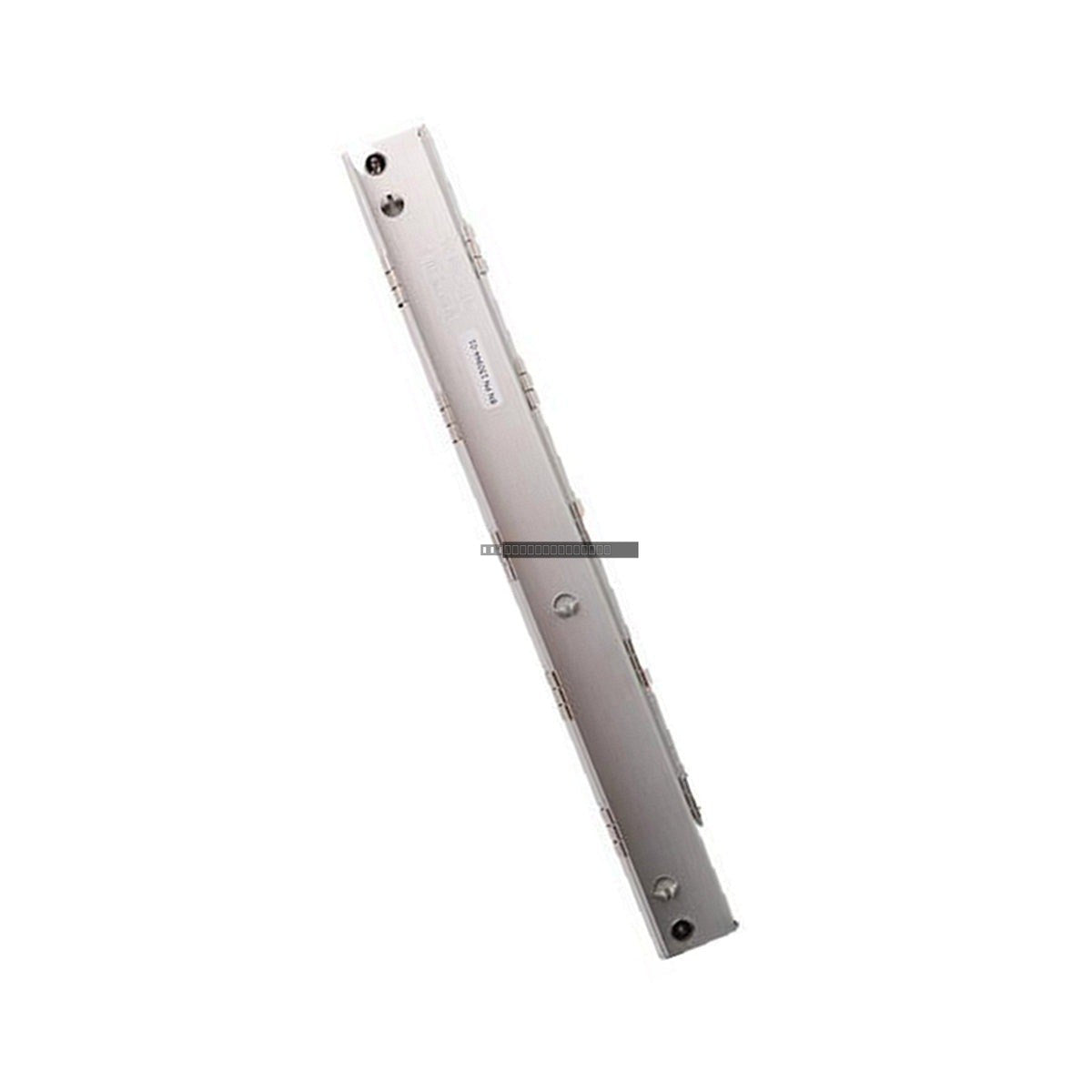

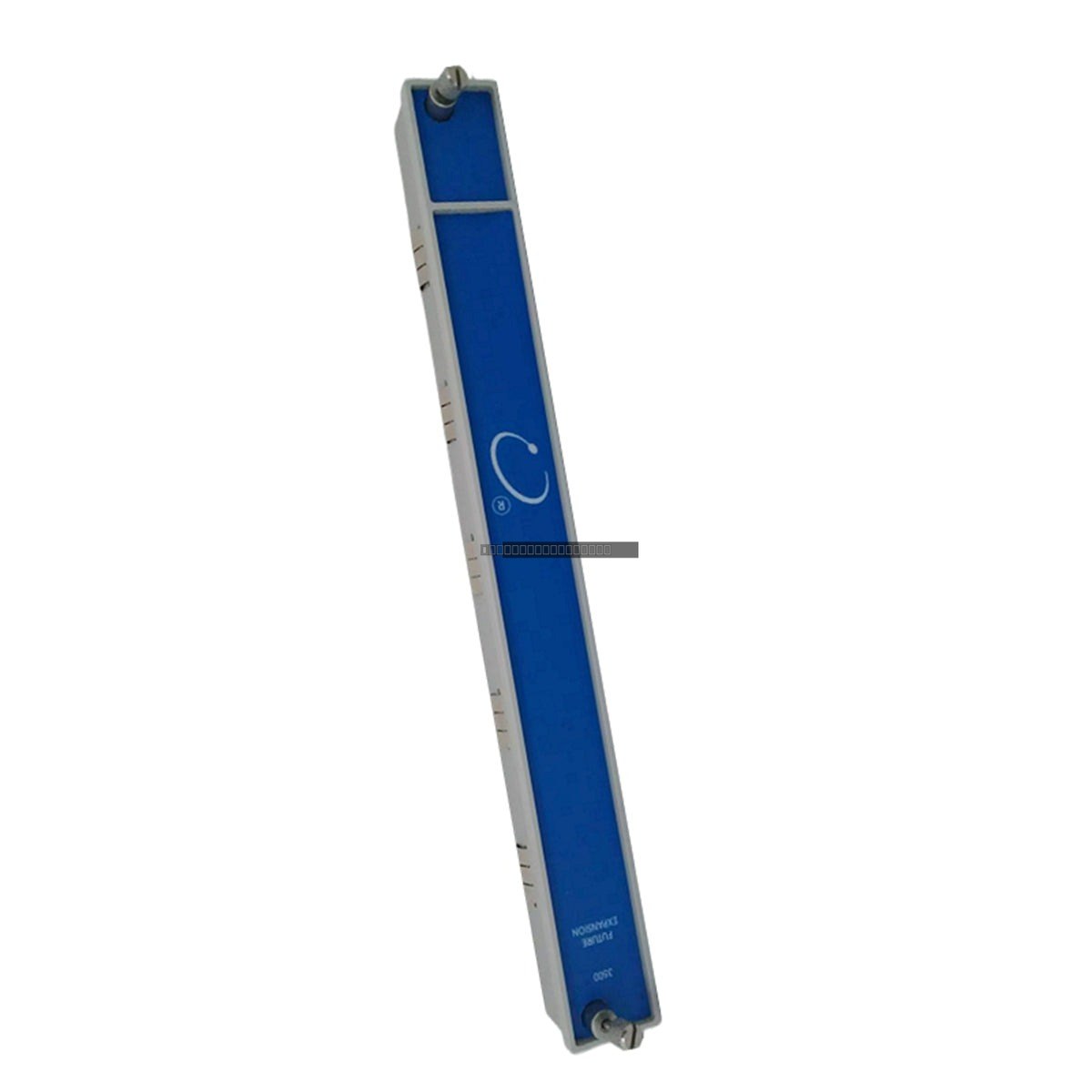

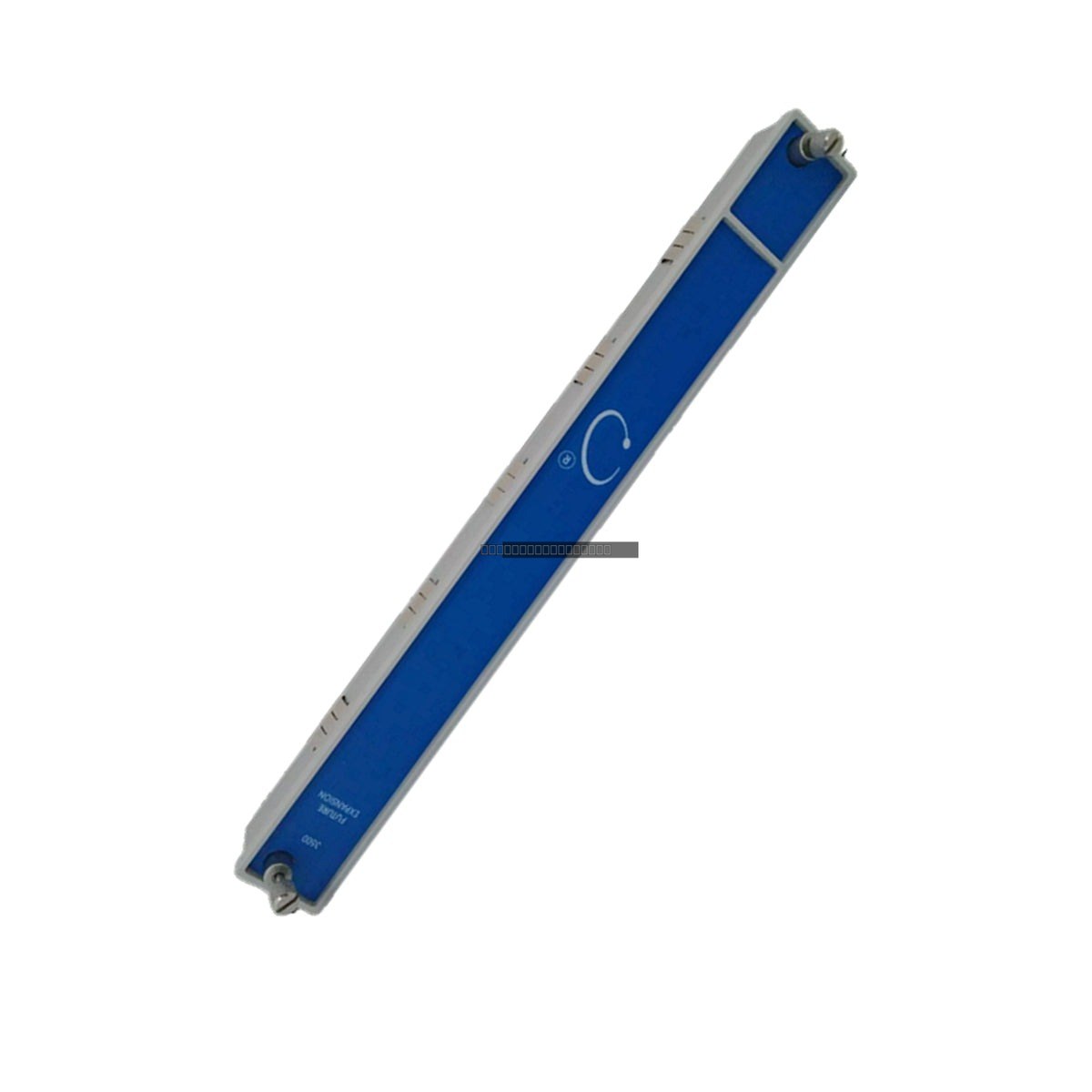

The Bently Nevada 130944-01 (often associated with part number 128275-01F) is a blank module designed for the Bently Nevada 3500 Series Machinery Protection System. This full-height monitor blank front panel is used to cover unused slots within the 3500 system rack. It serves as a protective barrier, ensuring that internal rack components are shielded from environmental contaminants while maintaining the structural integrity and proper airflow management of the rack assembly.
Features
- Compatible with all 3500 System rack configurations (Full-size and Mini-rack).
- Provides a clean, professional finish for unused module slots.
- Essential for maintaining proper cooling airflow within the 3500 rack.
- Constructed to match the standard 3500 series form factor.
- Protects backplane connectors and internal electronics from dust and debris.
Applications
This blank module is used in various industrial environments where Bently Nevada 3500 systems are deployed, including:
- Thermal and nuclear power plants.
- Hydroelectric power generation facilities.
- Oil and gas pipeline booster stations and offshore platforms.
- Petrochemical refineries and ethylene/propylene plants.
- Heavy manufacturing facilities, including steel mills and cement plants.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
130944-01 |
| Associated Part |
128275-01F |
| Module Type |
Blank Module / Front Panel |
| Operating Temperature |
-40 degC to +85 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Weight |
0.05 kg |
Installation Guidelines
- Ensure the 3500 rack power is managed according to site safety protocols before performing maintenance.
- Align the blank module with the guide rails of the empty slot in the 3500 rack.
- Slide the module into the slot until it is flush with the front of the rack.
- Secure the module using the integrated captive fasteners to ensure a proper ground connection and mechanical stability.
- Always keep unused slots covered to prevent airflow bypass and protect the backplane from foreign objects.
FAQs
What is the primary function of the 130944-01 blank module?
The module acts as a protective cover for empty slots in a Bently Nevada 3500 rack. It prevents dust ingress, maintains the rack's aesthetic, and ensures that cooling airflow is directed correctly through the installed monitor modules.
Is this module compatible with both full-size and mini-racks?
Yes, the 130944-01 is designed to be compatible with the standard 3500 system rack architecture, including both full-size and mini-rack configurations.
