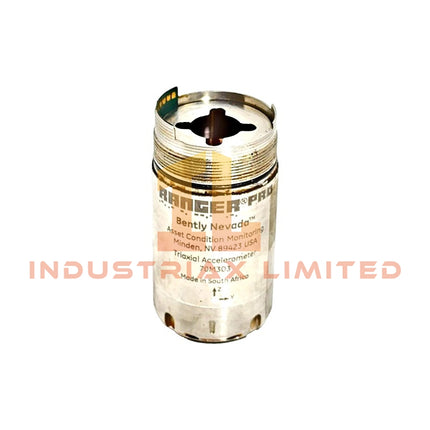

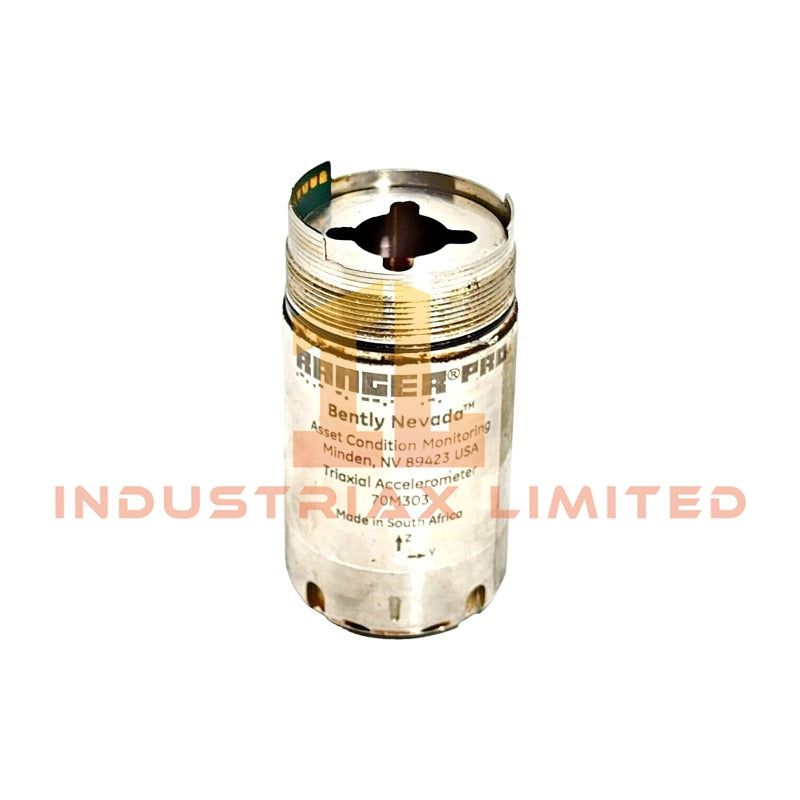

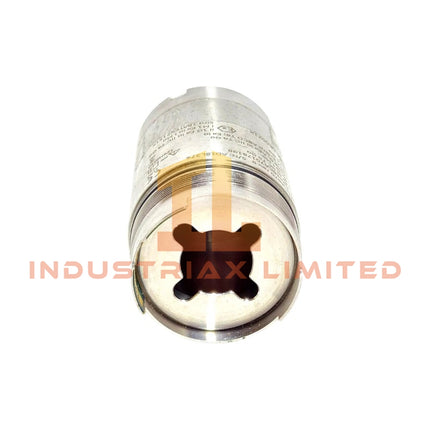

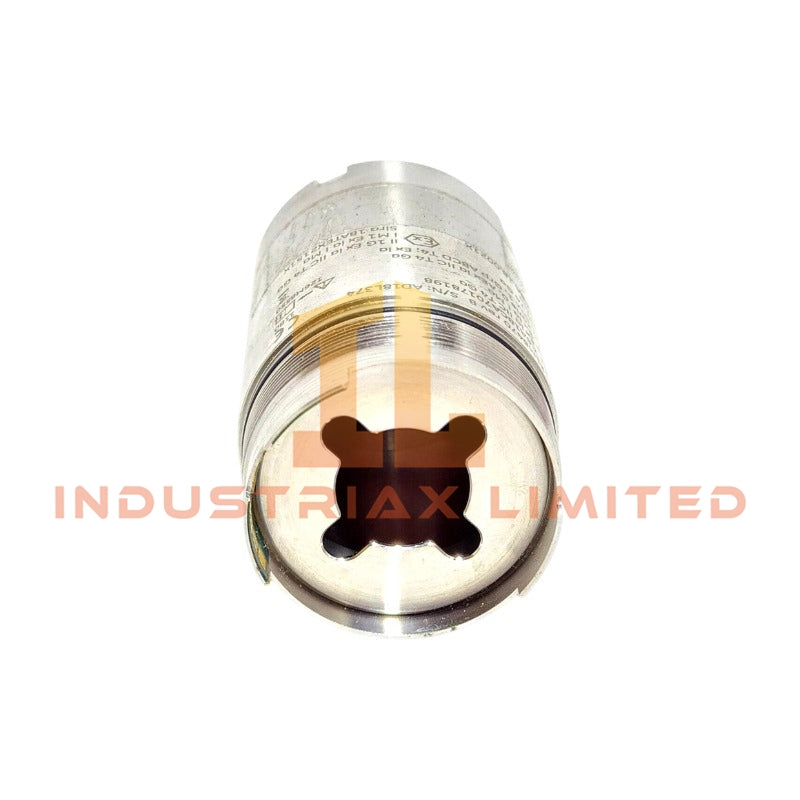

Bently Nevada 121M6469 Ranger Pro Wireless Triaxial Vibration and Temperature Sensor

The Bently Nevada 121M6469, also cataloged as the 121M6469 Ranger Pro Wireless Triaxial Vibration and Temperature Sensor, operates as a dedicated hardware component for wireless vibration and temperature data acquisition within the Bently Nevada System 1 monitoring network.

Hardware Specifications

Parameter	Specification
Model	121M6469
Brand	Bently Nevada
Product Type	Ranger Pro Wireless Triaxial Vibration and Temperature Sensor
Origin	USA
Weight	Approx. 230 g without battery; approx. 300 g with battery
Dimensions	Height: 88 mm; Diameter: 40 mm
Operating Temp	-40 deg C to +85 deg C
Power Consumption	Battery-powered design with replaceable lithium battery; consumption depends on sampling rate and wireless configuration
Measurement Type	Triaxial vibration (X, Y, Z axes) and temperature measurement
Vibration Sensor Element	Piezoelectric ceramic accelerometer
Acceleration Range	+/- 20 g peak
Frequency Range	Z-axis: 5 Hz to 10 kHz (+/- 3 dB); X/Y axes: 5 Hz to 2 kHz (+/- 3 dB)
Vibration Accuracy	+/- 5% at 160 Hz for Z-axis; +/- 10% at 160 Hz for X/Y axes
Temperature Measurement Range	-40 deg C to +120 deg C
Temperature Resolution	0.1 deg C
Wireless Protocol	ISA100.11a compliant with IEC 62734
Network Topology	Star and mesh wireless configurations
Configuration Method	Over-the-air provisioning or USB docking station
Data Output	Overall vibration values, time waveform, FFT spectrum, PeakDemod spectrum
Battery Life	Up to 5 years depending on operating conditions
Enclosure Protection	IP67
Housing Material	Stainless steel and industrial polymer composite construction

Rotor Dynamics and Vibration Signal Processing

The 121M6469 applies Bently Nevada mechanical monitoring technology for rotating equipment condition analysis. The sensor acquires multi-axis vibration signals to identify mechanical behavior associated with imbalance, misalignment, looseness, and bearing degradation.

Moreover, the device architecture supports vibration signal integrity through sensor-axis separation and measurement processing methods. The system design follows Bently Nevada practices used in rotor dynamics analysis, including vibration trend evaluation and machine health assessment through System 1 software.

For applications involving proximity measurement systems, Bently Nevada monitoring platforms use eddy-current probe scaling and gap voltage validation principles with typical -10 VDC target references. The 121M6469 itself functions as an accelerometer-based wireless sensor and does not replace eddy-current displacement probes.

Frequently Asked Questions

Q: Does the Bently Nevada 121M6469 provide simultaneous measurement on multiple vibration axes?
A: Yes. The sensor measures vibration through three orthogonal axes, including X, Y, and Z channels, while also recording temperature data.

Q: Can the 121M6469 operate in hazardous industrial environments?

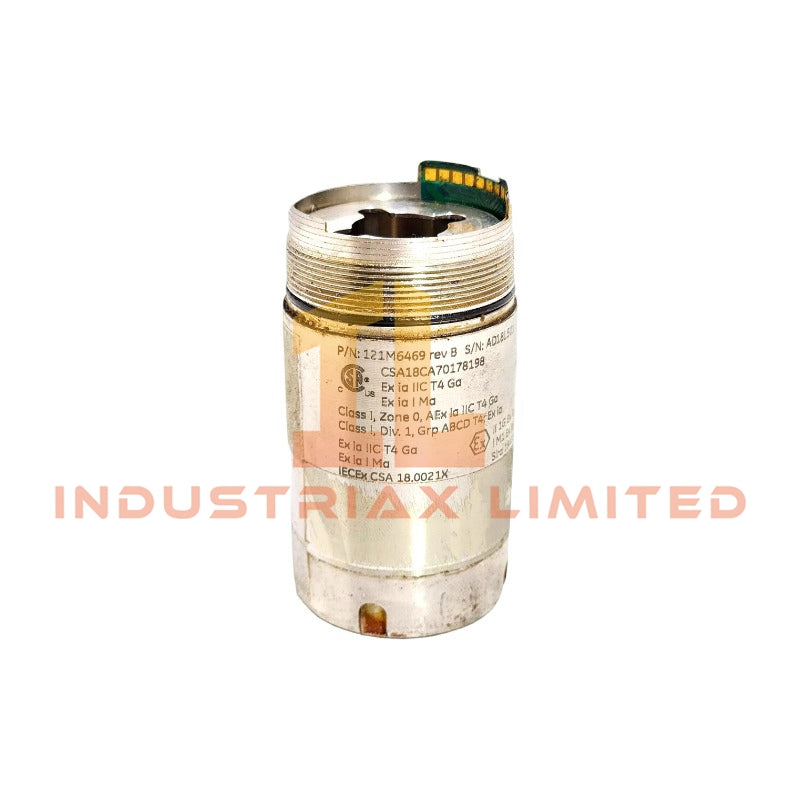

A: The sensor supports hazardous area deployment when ordered with the applicable certification options. The exact ATEX or IECEx approval depends on the selected product configuration.

Q: How does the sensor communicate vibration data with the monitoring system?
A: The sensor communicates through ISA100.11a wireless protocol and transfers vibration values, waveform data, FFT spectrum, and PeakDemod spectrum to compatible monitoring infrastructure.

Field Installation Guidelines

• Install the sensor directly on the machine housing using a suitable mounting surface with sufficient mechanical contact.
• Clean the mounting area before installation to minimize vibration transmission loss caused by surface contamination.
• Maintain proper wireless network coverage and verify ISA100.11a communication quality before final commissioning.
• Avoid installation locations with excessive mechanical impact, direct flame exposure, or temperature conditions beyond the specified operating range.
• Route nearby electrical cables away from the sensor mounting area to reduce possible electromagnetic interference.
• Configure sampling parameters according to machine speed, bearing type, and required vibration analysis bandwidth.
• Verify sensor orientation to maintain correct X, Y, and Z axis vibration interpretation during data analysis.
