Description

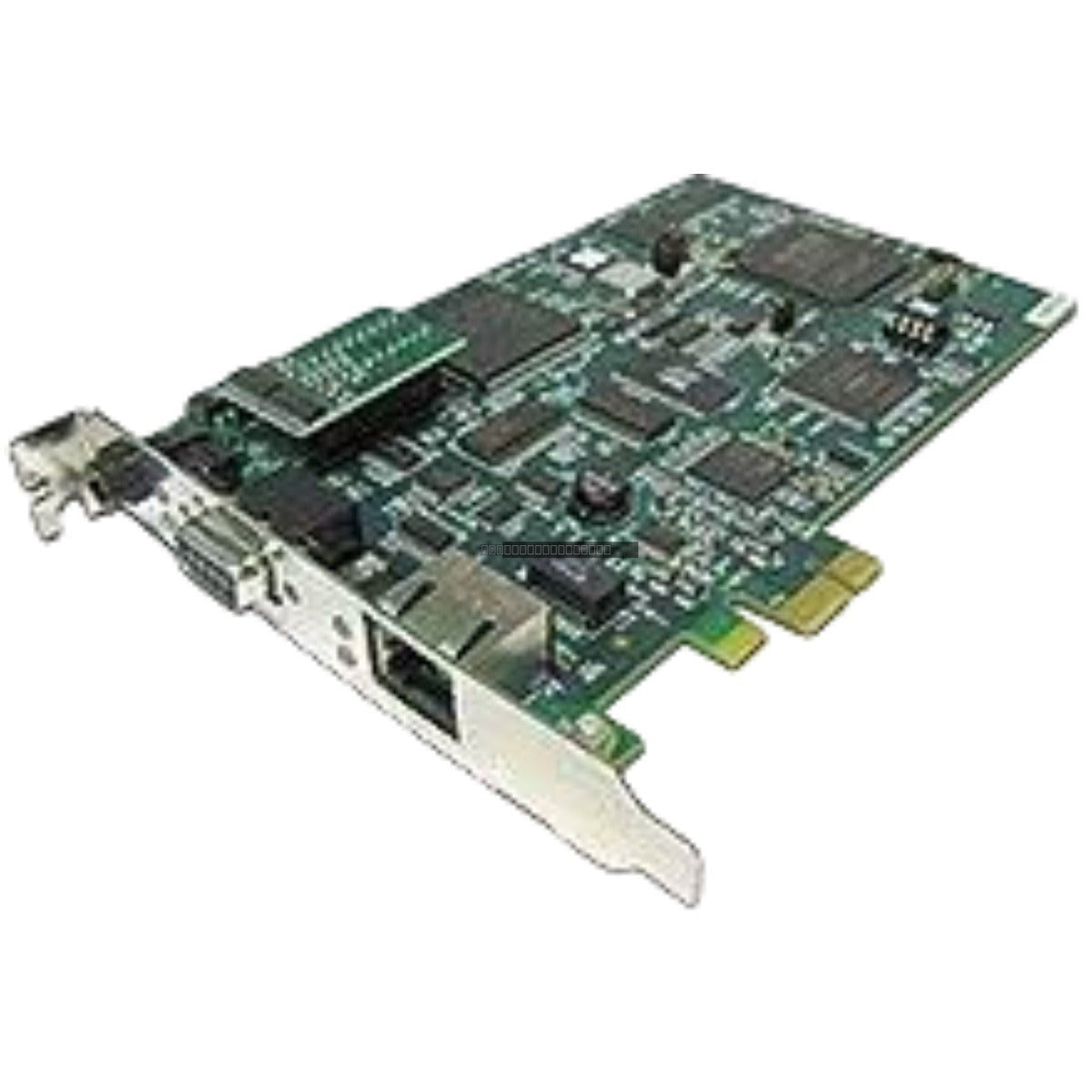

The Woodward APP-PS7-PCIE is a high-speed Network Interface Card (NIC) engineered for seamless integration into PCI Express-based industrial computing platforms. This module serves as a robust communication bridge between host controllers and plant-wide industrial Ethernet networks. Primarily utilized in turbine control systems, decentralized power plants, and large-scale manufacturing automation, the APP-PS7-PCIE facilitates real-time data exchange with ultra-low latency. By offloading communication tasks from the host CPU, this interface card ensures deterministic system performance and high availability, preventing communication bottlenecks in mission-critical utility infrastructures.
Features
- High-bandwidth PCIe interface for rapid data throughput.
- Onboard processing capabilities to handle protocol-specific stack management.
- Superior noise immunity through shielded interface ports.
- High-efficiency thermal management for continuous operation under heavy network traffic.
- Designed for standard industrial workstation slots.
Applications
This network interface card is specifically designed for use in mission-critical industrial environments, including:
- Turbine control and monitoring systems.
- Decentralized power generation plant control.
- Large-scale industrial automation and process control.
- High-availability data acquisition systems.
Technical Specifications
| Model |
APP-PS7-PCIE |
| Brand |
Woodward |
| Interface Slot |
PCI Express (PCIe) |
| Data Transfer Rate |
10/100/1000 Mbps (Industrial Ethernet) |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
3.5 W (Typical) |
Installation Guidelines
- Ensure the host system is powered down and disconnected from the main power source before inserting or removing the card.
- Handle the card by its edges to prevent electrostatic discharge (ESD) damage to sensitive onboard components.
- Ensure the card is fully seated in the PCIe slot and secured with the appropriate mounting screw to maintain physical stability and proper grounding.
- Route Ethernet cabling away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Verify that the host operating system and industrial software drivers are configured to recognize the NIC before initiating full network communication.
FAQ
What is the primary function of the APP-PS7-PCIE?
The APP-PS7-PCIE is designed to offload industrial communication protocol processing from the host CPU, providing deterministic, low-latency Ethernet connectivity for industrial control systems.
Is this card compatible with standard PC slots?
Yes, the card is designed for standard PCI Express (PCIe) industrial workstation slots.
What environmental conditions is this card rated for?
The module is rated for operation in temperatures ranging from 0 to 60 deg C and is built with shielded ports for high noise immunity in industrial environments.
