Description

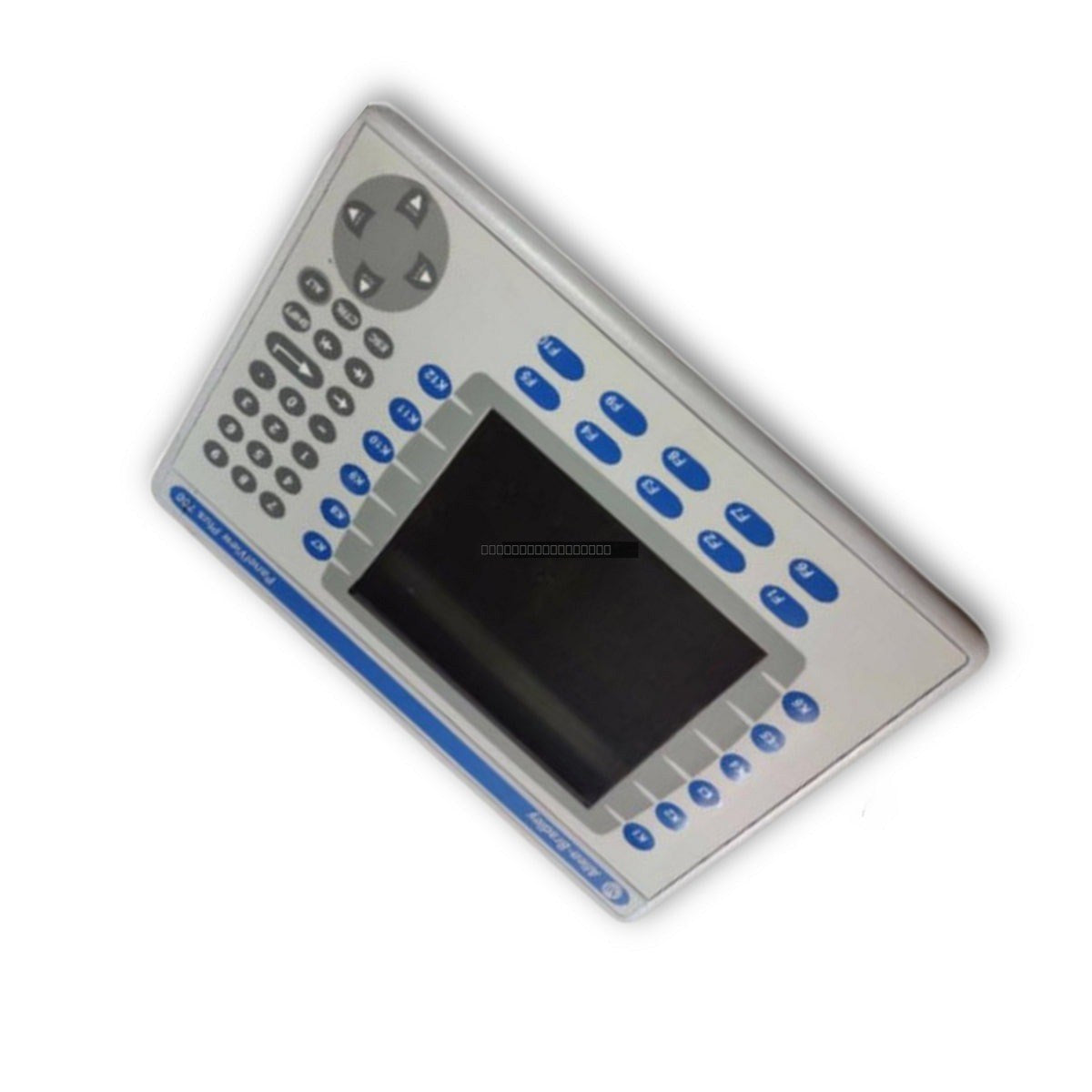

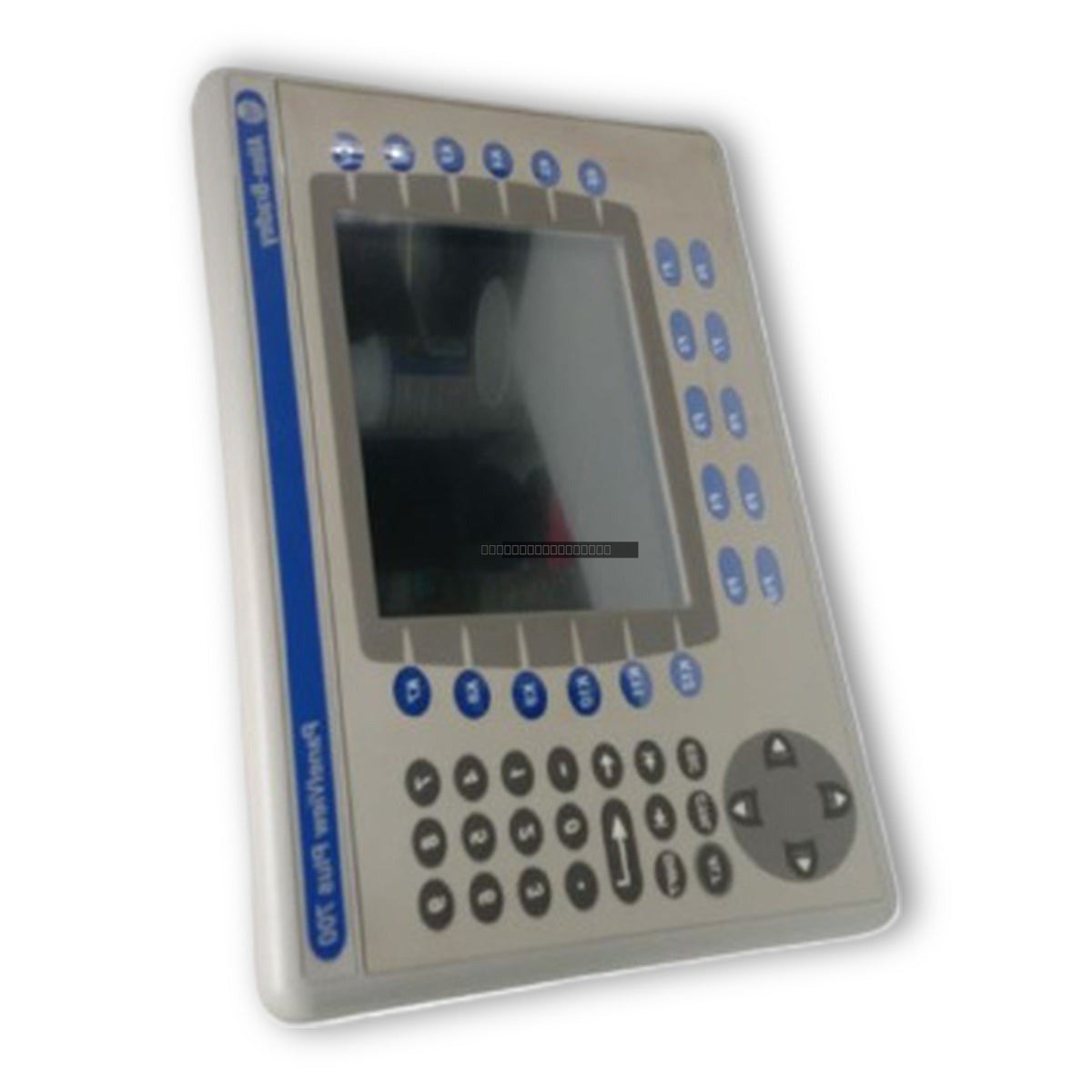

The Allen-Bradley 2711P-B7C4D1 is a PanelView Plus 700 operator interface terminal designed for industrial visualization and control applications. This unit features a 6.5-inch color active-matrix TFT display with a resolution of 640 x 480 pixels, providing clear graphical feedback for machine and process monitoring. The terminal is equipped with both a touch screen and a keypad, offering flexible input methods for operators in demanding environments.
Features
- Integrated keypad with 22 function keys (F1-F10 and K1-K12) and touch-screen interface.
- 6.5-inch color display supporting 18-bit color graphics.
- Connectivity options include Ethernet, RS-232, and two USB ports for peripheral integration.
- Robust memory configuration with 512 MB RAM and 512 MB non-volatile storage.
- Designed for 24V DC nominal input voltage operation.
Technical Specifications
| Model |
2711P-B7C4D1 |
| Display Size |
6.5 inches |
| Resolution |
640 x 480 (18-bit color) |
| Luminance |
300 cd/m2 (Nits) |
| Input Voltage |
18-32V DC (24V DC nominal) |
| Power Consumption |
70 W max |
| Communication |
Ethernet, RS-232, USB |
| Memory |
512 MB RAM / 512 MB Non-volatile |
Installation Guidelines
- Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the required NEMA/IP seal rating.
- Use shielded communication cables for Ethernet and RS-232 connections to minimize electromagnetic interference (EMI).
- Verify that the power supply provides a stable 24V DC source within the 18-32V range.
- Maintain proper ventilation around the unit to prevent overheating, as the terminal is convection-cooled.
- Always disconnect power before installing or removing the logic module or communication cables.
- Ensure the unit is properly grounded to the enclosure chassis to protect against electrical surges.
FAQ
What is the primary input method for this terminal?
The 2711P-B7C4D1 supports both touch-screen input and a physical keypad with 22 dedicated function keys.
Does this unit support Ethernet communication?
Yes, it includes an integrated Ethernet port for network connectivity, alongside RS-232 and USB ports.
What is the required power supply for this model?
This model operates on a 24V DC nominal input, with an acceptable operating range of 18-32V DC.
