Description

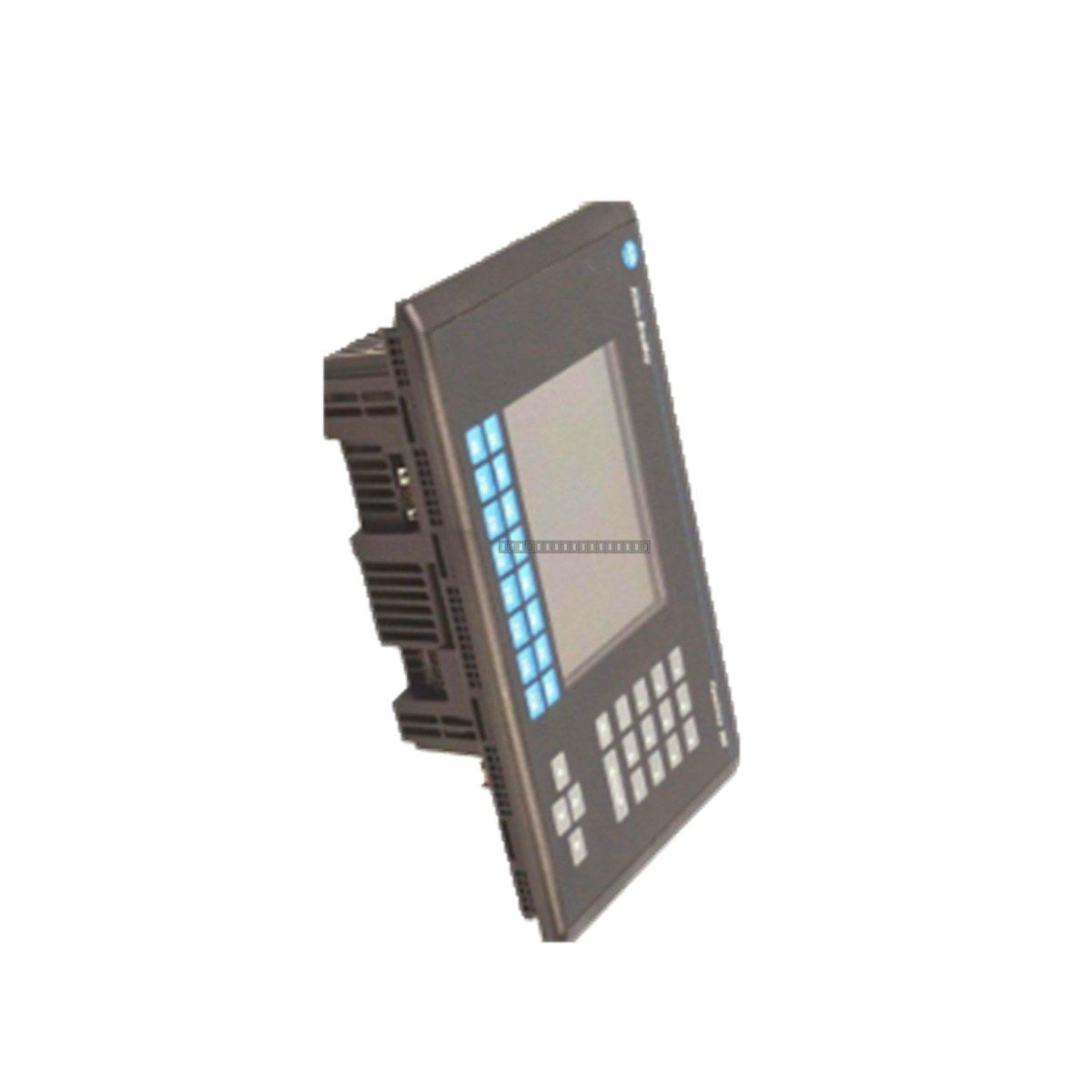

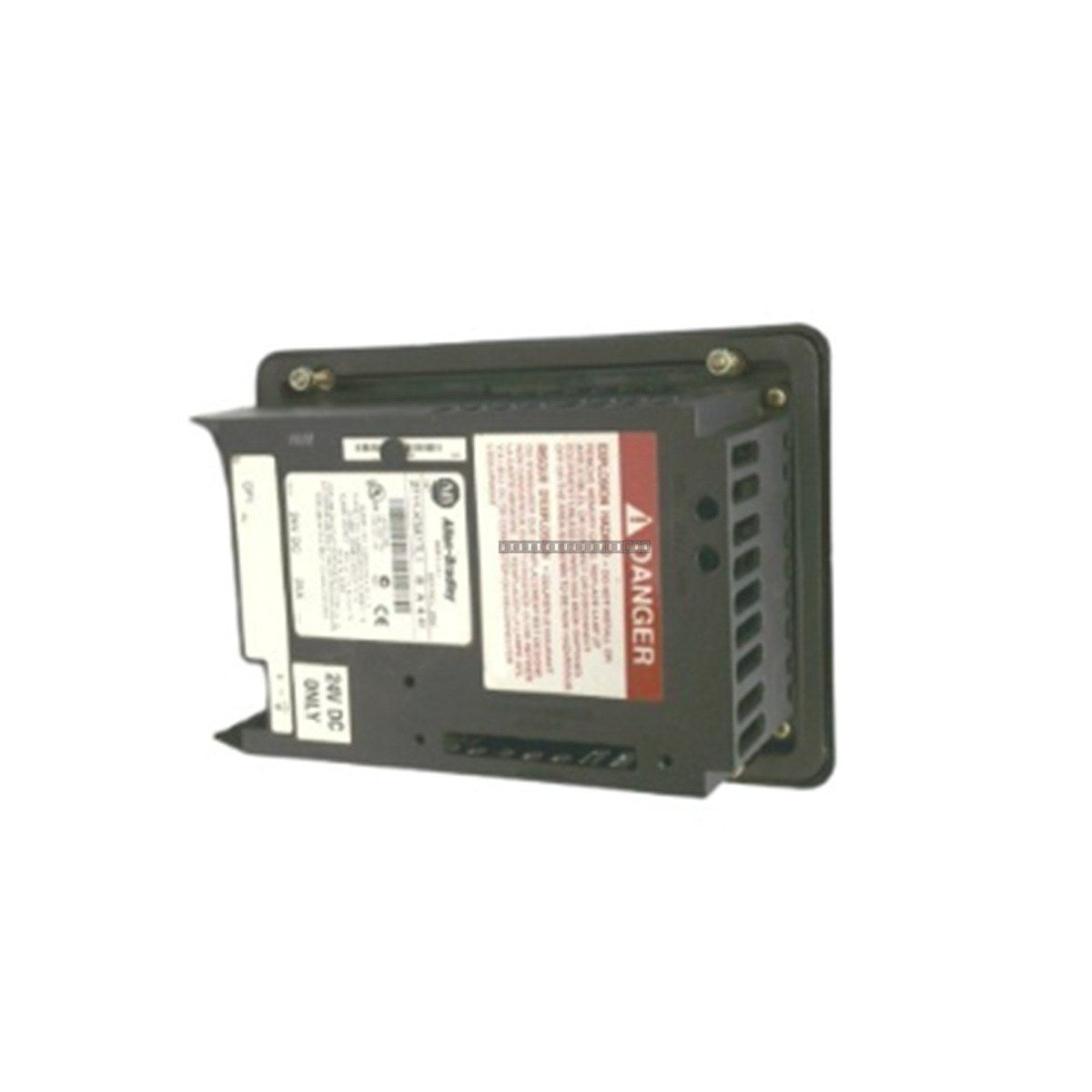

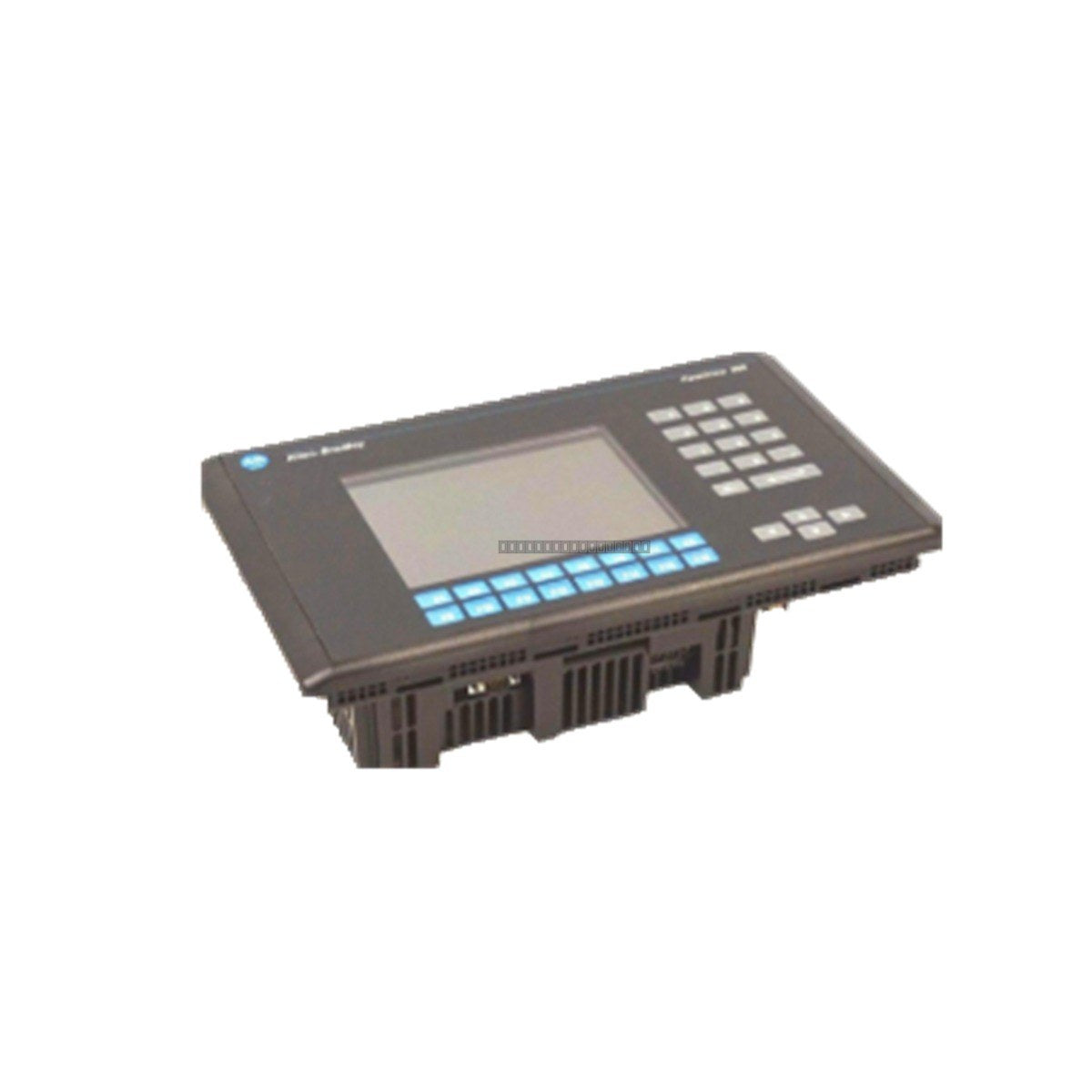

The Allen-Bradley 2711-K5A15 is a robust industrial Human-Machine Interface (HMI) from the PanelView Standard series, engineered for reliable process monitoring and control in demanding plant-floor environments. This terminal features a 5.5-inch monochrome blue-mode transflective LCD, providing high-contrast visibility for real-time diagnostics, alarm management, and system parameter adjustments. Designed for integration into heavy industrial sectors such as water treatment, chemical processing, and automated logistics, the 2711-K5A15 ensures consistent operational oversight and efficient workflow management.
Features
-
Display Technology: 5.5-inch monochrome blue-mode transflective LCD with a 256 x 128 pixel resolution.
-
Long-Life Illumination: Integrated LED backlight rated for 100,000 hours of service.
-
Tactile Interface: Rugged mechanical keypad featuring dedicated function keys (F1-F10), a numeric keypad, and navigation arrows for precise operator input.
-
Communication Connectivity: Equipped with a ControlNet communication node for deterministic data exchange with Allen-Bradley PLCs, plus an RS-232 serial port for printer connectivity.
-
Memory Capacity: Includes 170 KB of application runtime memory and 240 KB of nonvolatile memory for storing bitmaps, text, and application objects.
-
Environmental Protection: Rated for NEMA 12/13 and 4X (indoor) and IP54/IP65, ensuring resistance to dust and moisture ingress.
Applications
The 2711-K5A15 is ideal for applications requiring direct, high-visibility interaction with automation control systems. Typical use cases include monitoring pump stations, managing conveyor routing, tracking machine-level diagnostic logs, and providing local operator control for PLC-based manufacturing cells.
Technical Specifications
| Model |
2711-K5A15 |
| Brand |
Allen-Bradley / Rockwell Automation |
| Display Size |
5.5 inch |
| Input Voltage |
85 to 264 VAC (120 VAC Nominal) |
| Input Frequency |
47 to 63 Hz |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Humidity |
5 to 95% Non-condensing |
| Enclosure Rating |
NEMA 12/13, 4X, IP54, IP65 |
Installation Guidelines
-
Mounting: Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the integrity of the NEMA/IP seal.
-
Power Wiring: Verify the supply voltage is within the 85-264 VAC range before connection. Ensure proper grounding of the chassis to prevent EMI-related logic interference.
-
ESD Precautions: Handle the terminal with standard electrostatic discharge (ESD) precautions to protect internal circuitry.
-
Environment: Install in an area free from excessive vibration and direct exposure to corrosive chemicals. Ensure adequate ventilation to maintain operating temperatures below 55 deg C.
-
Maintenance: Power down the unit before performing any maintenance or cable connections to the ControlNet or RS-232 ports.
FAQ
What is the primary communication protocol for this terminal? The 2711-K5A15 utilizes a ControlNet communication node for deterministic messaging with supported Allen-Bradley controllers.
Can this unit be used outdoors? No, while the unit carries NEMA 4X ratings, it is designed for indoor use only.
What is the purpose of the RS-232 port? The RS-232 port on this model is dedicated to printer connectivity for generating hardcopy alarm summaries and diagnostic reports.
